Ferrari 400i (1983 Mechanical) Electrical System, Fuses and Relays Parts Diagram

102 - Electrical System, Fuses and Relays

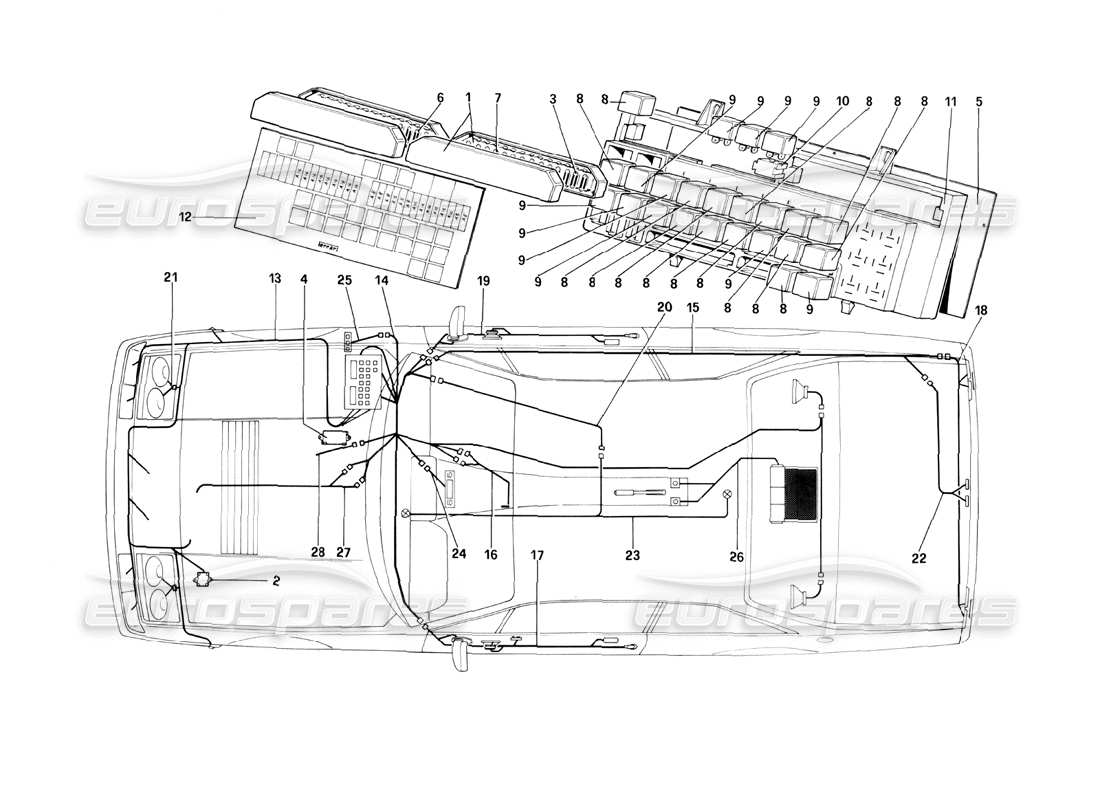

Ferrari 400i (1983 Mechanical) Electrical System, Fuses and Relays Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 116262

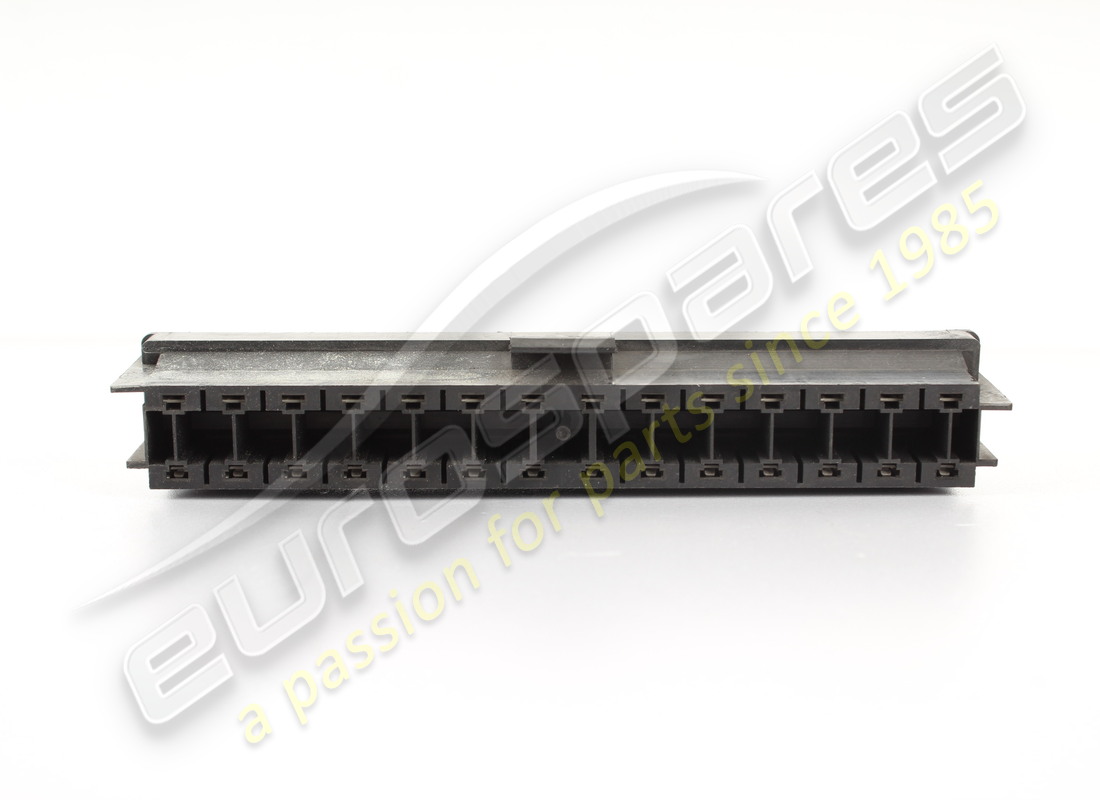

                                              SCATOLA PORTA FUSIBILI
                                              from £34.79
                                              from £34.79
                                              # 002
                                              MPN: 114422
                                              MORSETTIERA
                                              from £14.02
                                              from £14.02
                                              # 003
                                              MPN: 10858090
                                              FUSE 8 AMP CERAMIC
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 95403001
                                              # 004
                                              MPN: 120064
                                              MORSETTIERA
                                              Supersession
                                              Supersession
                                              # 006
                                              MPN: 11048990
                                              FUSE 16 AMP CERAMIC
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 95403002
                                              # 007
                                              MPN: 11051590
                                              FUSE VALVE 5 A.
                                              from £0.47
                                              from £0.47
                                              # 008
                                              MPN: 40130007
                                              RELAY
                                              0332209151
                                              from £12.30
                                              from £12.30
                                              This part replaces part number 110356 - and 1 more. Click to view details
                                              # 009
                                              MPN: 40130106
                                              RELAY
                                              from £10.40
                                              from £10.40
                                              This part replaces part number 110355
                                              # 010
                                              MPN: 40323800
                                              BLOCCHETTO FISS. TELERUTTORE
                                              Supersession
                                              Supersession
                                              # 011
                                              MPN: 118873
                                              CONTROL UNIT PLATE
                                              Supersession
                                              Supersession
                                              # 012
                                              MPN: 120063
                                              PLATE FOR CONTROL UNIT
                                              Supersession
                                              Supersession
                                              # 013
                                              MPN: 119855
                                              CAVI ANTERIORE GS
                                              Per GD vale n. 120172
                                              from £794.35
                                              from £794.35
                                              # 014
                                              MPN: 119866
                                              CAVI PLANCIA GS
                                              Per GD vale n. 120173
                                              from £878.32
                                              from £878.32
                                              # 015
                                              MPN: 119856
                                              REAR CABLES
                                              from £231.32
                                              from £231.32
                                              # 016
                                              MPN: 119857
                                              CONSOLE CABLES
                                              from £211.58
                                              from £211.58
                                              # 017
                                              MPN: 119858
                                              CAVI PORTA SX.
                                              # 018
                                              MPN: 119860
                                              REAR LIGHT CABLES
                                              from £171.23
                                              from £171.23
                                              # 019
                                              MPN: 119859
                                              CAVI PORTA DX.
                                              from £66.53
                                              from £66.53
                                              # 020
                                              MPN: 119862
                                              CAVI PLANCIA - PLAFONIERE
                                              from £54.91
                                              from £54.91
                                              # 021
                                              MPN: 119865
                                              PROJECTOR CABLES
                                              from £21.87
                                              from £21.87
                                              # 022
                                              MPN: 115160
                                              LICENSE LIGHT CABLES
                                              from £14.58
                                              from £14.58
                                              # 023
                                              MPN: 119863
                                              CEILING LIGHT CABLES
                                              Non con radio Panasonic
                                              from £24.48
                                              from £24.48
                                              # 023
                                              MPN: 119868
                                              CEILING LIGHT CABLES
                                              Solo con radio Panasonic
                                              # 024
                                              MPN: 119864
                                              Cavi radio Blaupunk Toronto
                                              Non vale per GD
                                              # 024
                                              MPN: 119867
                                              Cavi radio Panasonic
                                              Non vale per GD
                                              # 024
                                              MPN: 120174
                                              Cavi radio Blaupunk Toronto
                                              Solo per GD
                                              from £57.60
                                              from £57.60
                                              # 024
                                              MPN: 120176
                                              Cavi radio Panasonic
                                              Solo per GD
                                              # 025
                                              MPN: 119869
                                              CAVI TELERUTTORI VALVOLE ANTIBRINA
                                              Impianto AC supplementare
                                              from £47.76
                                              from £47.76
                                              # 026
                                              MPN: 119870
                                              REAR EVAPORATOR UNIT CABLES
                                              from £42.65
                                              from £42.65
                                              # 027
                                              MPN: 115169
                                              EQUIPMENT CABLES ON THE ENGINE
                                              from £208.86
                                              from £208.86
                                              # 028
                                              MPN: 110710
                                              REVERSE LIGHT SWITCH CABLES
                                              from £4.29
                                              from £4.29
