101 - Front and Rear Lights - Horns and Aerial

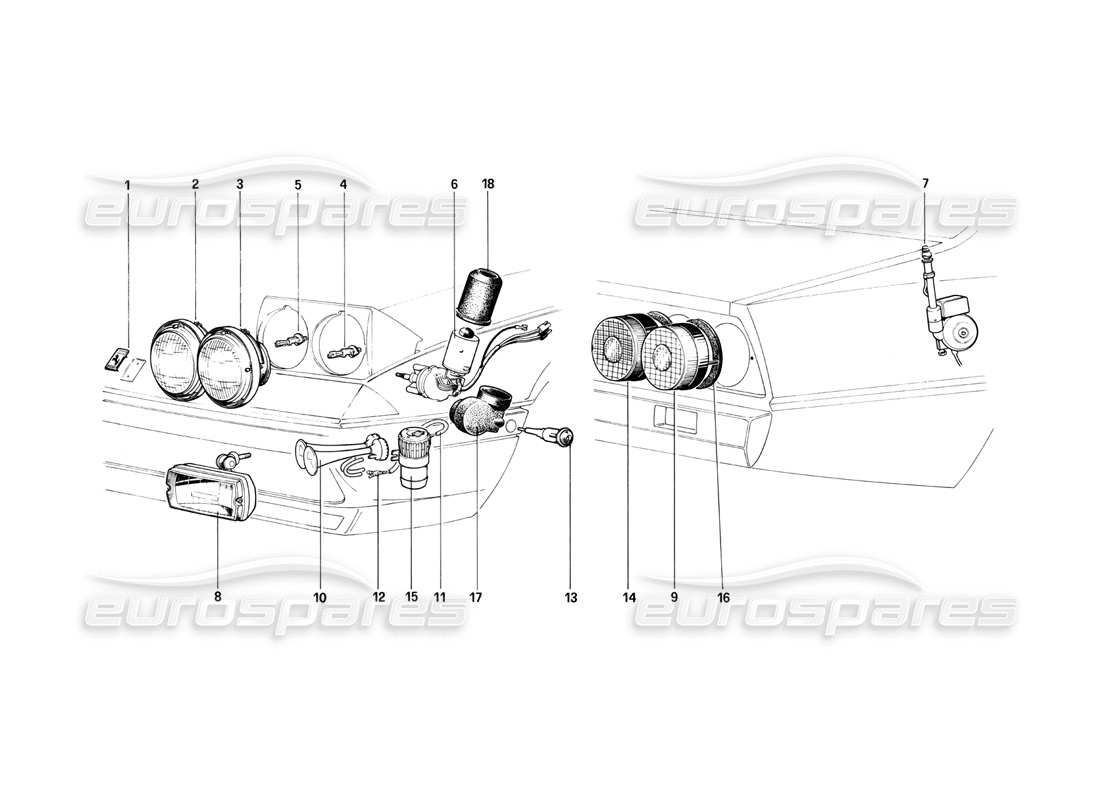

Ferrari 400i (1983 Mechanical) Front and Rear Lights - Horns and Aerial Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60795400
FRONT ORNAMENT
Two pin type.
from £124.14
from £124.14
This part replaces part number 60043007
# 002
MPN: 119634
RIGHT HIGH BEAM HEADLAMP.
Non vale per F
from £78.71
from £78.71
# 002
MPN: 119635
PROIETTORE ABBAGLIANTE SX.
Non vale per F
from £82.65
from £82.65
# 002
MPN: 120193
RIGHT HIGH BEAM HEADLAMP.
Solo per F
from £104.12
from £104.12
# 002
MPN: 120194
PROIETTORE ABBAGLIANTE SX.
Solo per F
from £104.12
from £104.12
# 003
MPN: 119636
PROIETTORE ANABBAGLIANTE DX.
Does not apply to GD and F
from £0.79
from £0.79
# 003
MPN: 119637
PROIETTORE ANABBAGLIANTE SX.
Does not apply to GD and F
from £5.39
from £5.39
# 003
MPN: 120177
PROIETTORE ANABBAGLIANTE DX.
Solo per GD
from £112.28
from £112.28
# 003
MPN: 120178
PROIETTORE ANABBAGLIANTE SX.
Solo per GD
from £114.93
from £114.93
# 003
MPN: 120195
PROIETTORE ANABBAGLIANTE DX.
Solo per F
from £97.23
from £97.23
# 003
MPN: 120196
PROIETTORE ANABBAGLIANTE SX.
Solo per F
from £102.26
from £102.26
# 004
MPN: 60121704
LAMP
Non vale per F
Supersession
Supersession
# 004
MPN: 60122603
LAMP
Alone. for F
Supersession
Supersession
# 005
-
LAMP
# 005
MPN: MC3897/7
LAMP
Non vale per F
from £8.43
from £8.43
This part replaces part number 40214603
# 006
MPN: 172534
MOTORINO ALZAFARI DX.
from £221.74
from £221.74
This part replaces part number 149134 which we have in stock - and 4 more. Click to view details
HEADLIGHT LIFTING MOTOR Genuine Ferrari Part - New (to order)
PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING
PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING
HEADLIGHT LIFTING MOTOR (172534) Original Equipment - New In stock
PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING
PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING
# 006
MPN: 172535
MOTORINO ALZAFARI SX.
from £221.74
from £221.74
This part replaces part number 149133 - and 2 more. Click to view details
HEADLIGHT LIFTING MOTOR Genuine Ferrari Part - New In stock
PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
HEADLIGHT LIFTING MOTOR (172535) Original Equipment - New In stock
PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
# 007
MPN: 107472
Antenna radio
Dalla vettura n. .........… e per GD
# 007
MPN: 116970
Antenna radio
Non vale per GD - Fino vettura n. .........…
from £249.47
from £249.47
This part replaces part number 111439
# 008
MPN: 60273406
FLASHING PROJECTOR
Non vale per F
Supersession
Supersession
This part replaces part number 257-82-280-00 - and 1 more. Click to view details
# 008
MPN: 60273406/S
FOG LIGHT
Square Type
# 008
MPN: 60273505
FLASHING PROJECTOR
Solo per F
Supersession
Supersession

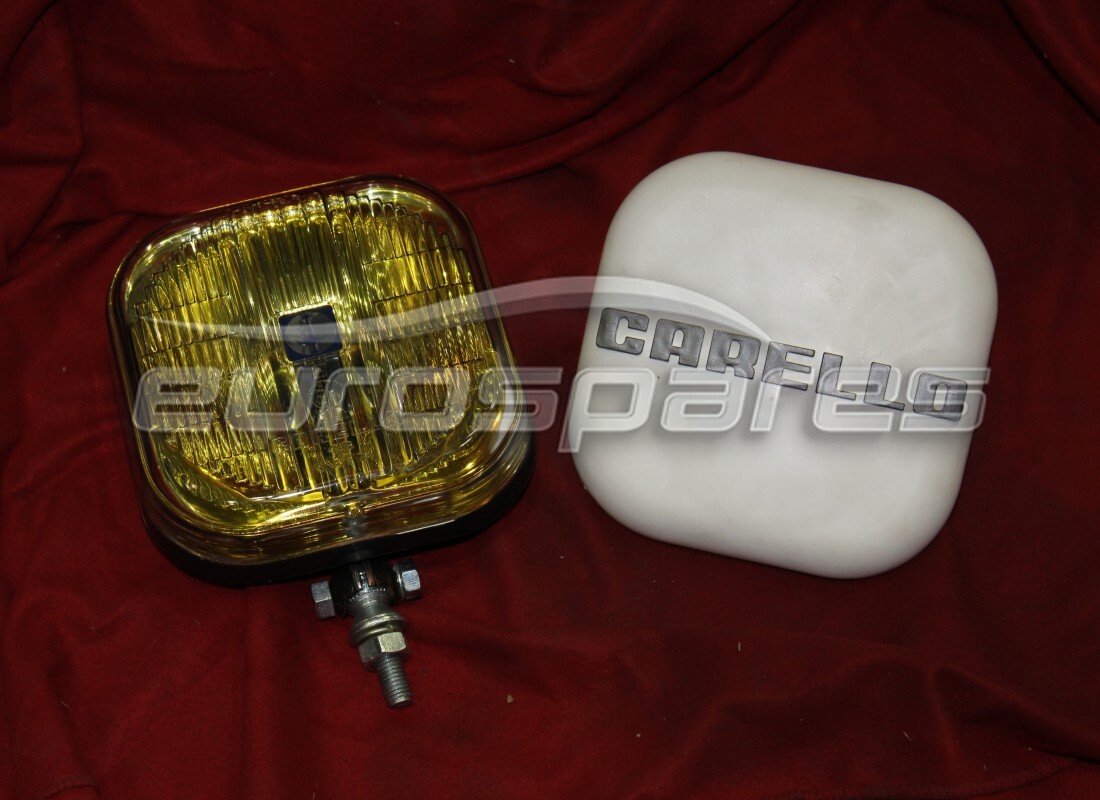

# 008
MPN: 60273505/S
FOG LIGHT
French Spec (Square)
from £231.00
from £231.00
# 009
MPN: 110054
FANALE POSTERIORE DIREZIONE RETROMAREIA
from £313.79
from £313.79
# 010
MPN: 60665500
HORNS
use : 189428
Supersession
Supersession
# 010
MPN: 60842900
HORNS - SOLD AS A PAIR
Solo per CH
from £94.61
from £94.61
# 011
MPN: 60884300
HORN DUCT
from £2.66
from £2.66
# 012
MPN: 60741100
UNION 3-WAY
from £0.47
from £0.47
This part replaces part number 61741100
# 013
MPN: 60054103
WING REPEATER LAMP
(domed lens)
from £28.95
from £28.95
This part replaces part number 102242 - and 5 more. Click to view details
# 014
MPN: 110053
REAR LIGHT POSITION AND STOP
from £241.38
from £241.38
# 015
MPN: 225757
HORN COMPRESSOR
Solo per CH
from £138.82
from £138.82
This part replaces part number 139920
# 015
MPN: 60741000
HORN COMPRESSOR
Non vale per CH
Supersession
Supersession

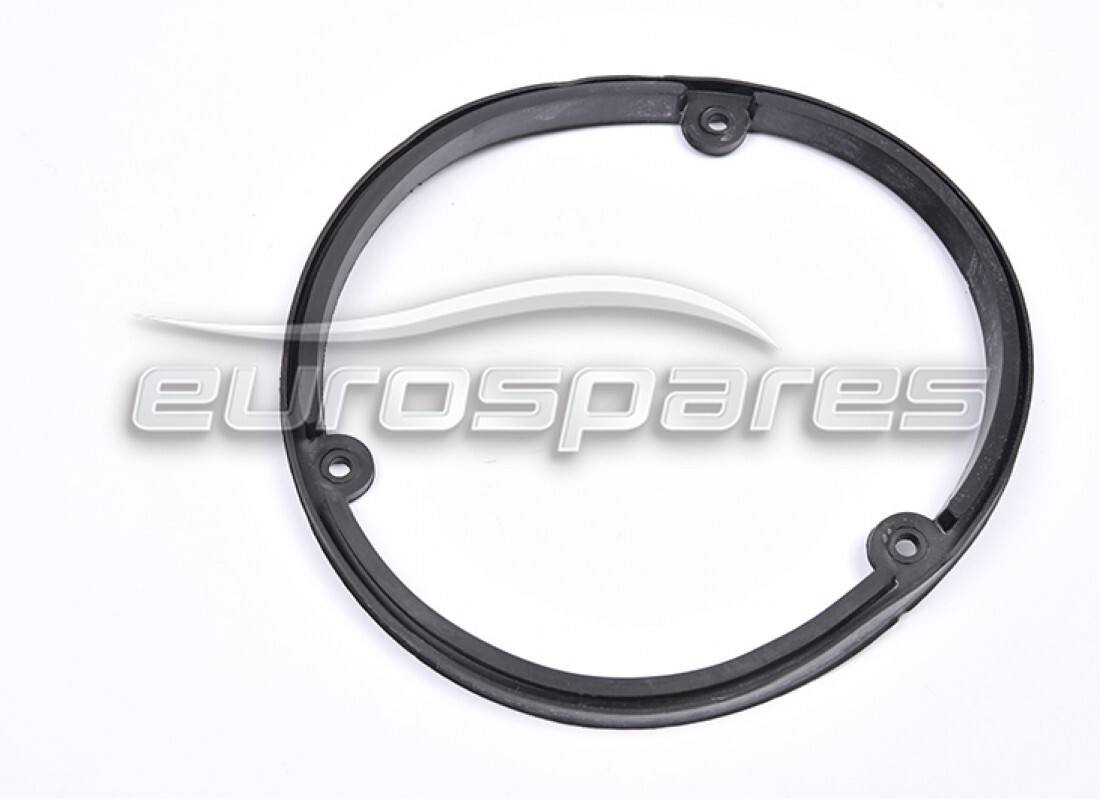

# 016
MPN: 60592100
GASKET OR SEAL
from £29.93
from £29.93
# 017
MPN: 60331204
PROTEZIONE INFERIORE MOTORINO SX.
from £63.21
from £63.21
# 017
MPN: 60331303
PROTEZIONE INFERIORE MOTORINO DX.
from £63.21
from £63.21
# 018
MPN: 60331402
PROTEZIONE SUPERIORE MOTORINO
from £97.10
from £97.10
