ferrari 400i (1983 mechanical) rear suspension - oil tank and oil pump parts diagram

047 - Rear Suspension - Oil Tank and Oil Pump

Ferrari 400i (1983 Mechanical) Rear Suspension - Oil Tank and Oil Pump Parts Diagram

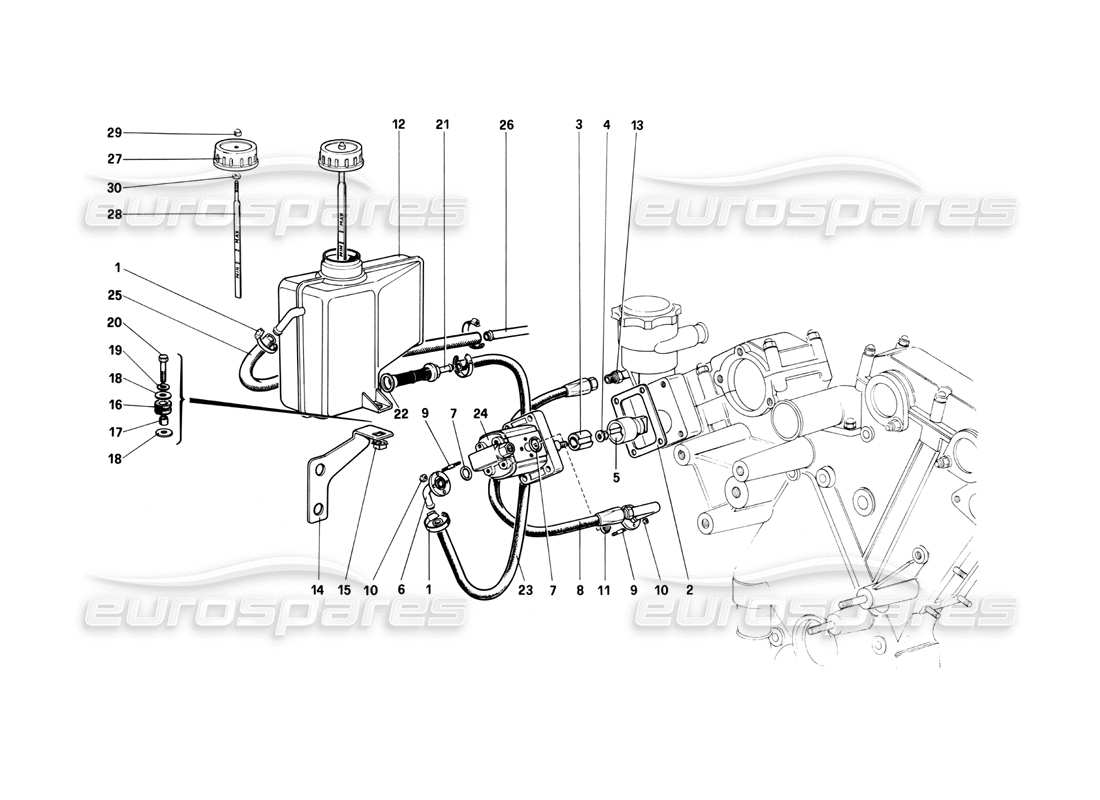

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 13000390
                                                            JUBILEE CLIP
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12179590 - and 1 more. Click to view details
                                                            # 002
                                                            MPN: 147831

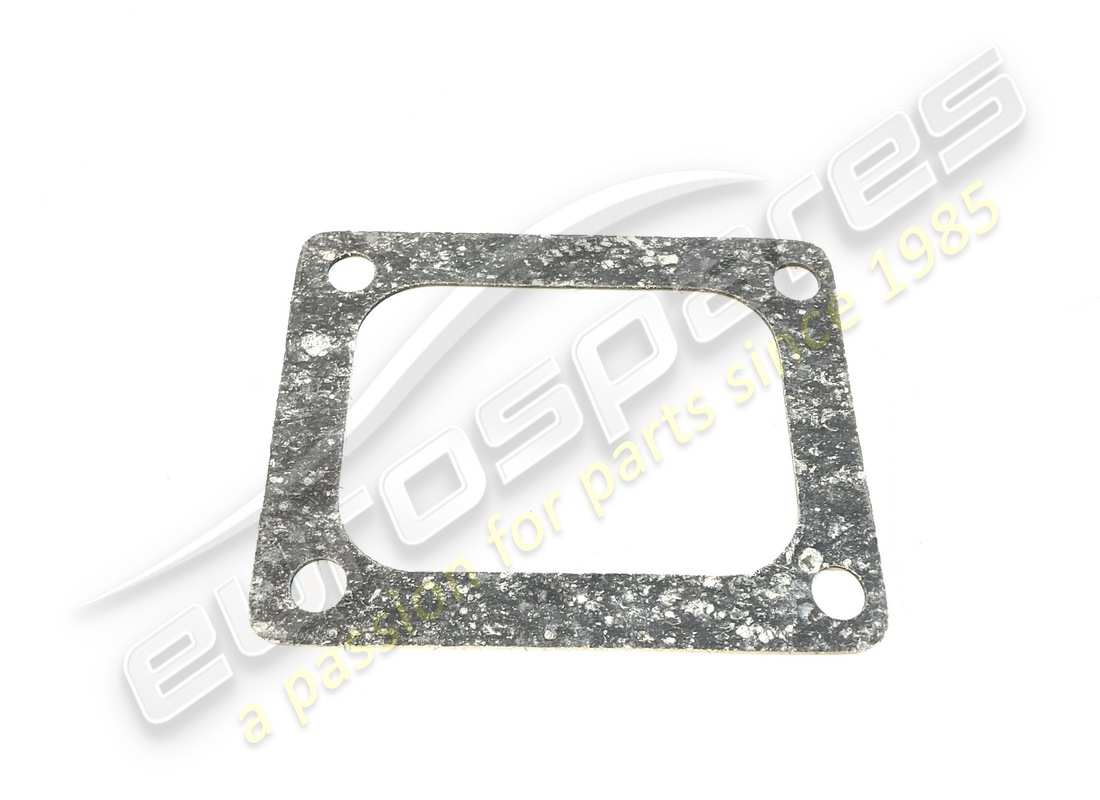

                                                            GASKET
                                                            from £13.09
                                                            from £13.09
                                                            This part replaces part number 117797
                                                            # 003
                                                            MPN: 117803
                                                            PUMP COUPLING SLEEVE
                                                            from £29.50
                                                            from £29.50
                                                            # 004
                                                            MPN: 117804
                                                            SELF LOCKING NUT
                                                            from £0.47
                                                            from £0.47
                                                            # 005
                                                            MPN: 117802
                                                            PUMP DRIVE BODY
                                                            from £54.17
                                                            from £54.17
                                                            # 006
                                                            MPN: 117944
                                                            PUMP SUCTION FLANGE
                                                            from £62.56
                                                            from £62.56
                                                            # 007
                                                            MPN: 101616
                                                            SEALING RING
                                                            from £1.51
                                                            from £1.51
                                                            # 008
                                                            MPN: 118832
                                                            PIPE WITH PUMP DELIVERY FLANGE
                                                            from £149.40
                                                            from £149.40
                                                            # 009
                                                            MPN: 13539221
                                                            THREADED STUD
                                                            from £0.47
                                                            from £0.47
                                                            # 010
                                                            MPN: 12574121
                                                            NUT
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 12574111 - and 2 more. Click to view details
                                                            # 011
                                                            MPN: 118863
                                                            FILTER ON DELIVERY PIPE FLANGE
                                                            from £31.64
                                                            from £31.64
                                                            # 012
                                                            MPN: 117840
                                                            SERBATOIO OLIO
                                                            from £343.28
                                                            from £343.28
                                                            # 013
                                                            MPN: 117783
                                                            INTERMEDIATE PIPE CONNECTING PUMP AND SELF-LEVELING VALVE
                                                            from £185.80
                                                            from £185.80
                                                            # 014
                                                            MPN: 119143
                                                            STAFF A FISS. SERBATOIO
                                                            from £7.60
                                                            from £7.60
                                                            # 015
                                                            MPN: 60758600
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            # 016
                                                            MPN: 103549
                                                            RUBBER BUSH
                                                            from £0.71
                                                            from £0.71
                                                            # 017
                                                            MPN: 103550
                                                            BUSH
                                                            from £1.94
                                                            from £1.94
                                                            This part replaces part number 4130913
                                                            # 018
                                                            MPN: 106744
                                                            WASHER
                                                            from £4.91
                                                            from £4.91
                                                            # 019
                                                            MPN: 106850
                                                            WASHER
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 10516473 - and 1 more. Click to view details
                                                            # 020
                                                            MPN: 10902721
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            # 021
                                                            MPN: 117906
                                                            FILTRO PESCANTE
                                                            from £58.28
                                                            from £58.28
                                                            # 022
                                                            MPN: 102645
                                                            GASKET OR SEAL
                                                            from £3.63
                                                            from £3.63
                                                            This part replaces part number 104283 - and 2 more. Click to view details
                                                            # 023
                                                            MPN: 117776
                                                            TUBO DA PESCANTE A POMPA
                                                            from £24.72
                                                            from £24.72
                                                            # 024
                                                            MPN: 117798
                                                            OIL PUMP
                                                            from £512.73
                                                            from £512.73
                                                            # 025
                                                            MPN: 118851
                                                            PIPE FROM TANK TO INTERMEDIATE PIPE
                                                            from £12.12
                                                            from £12.12
                                                            # 026
                                                            MPN: 118852
                                                            INTERMEDIATE PIPE FROM SELF-LEVELING VALVE TO TANK
                                                            from £213.24
                                                            from £213.24
                                                            # 027
                                                            MPN: 126141
                                                            OIL FILLER CAP
                                                            (Reqs 101242 & 126142)
                                                            from £61.85
                                                            from £61.85
                                                            This part replaces part number 109719
                                                            # 028
                                                            MPN: 117959
                                                            ASTA LIVELLO
                                                            from £14.90
                                                            from £14.90
                                                            # 029
                                                            MPN: 100044
                                                            CAP NUT
                                                            from £0.26
                                                            from £0.26
                                                            This part replaces part number 151230 - and 1 more. Click to view details
                                                            # 030
                                                            MPN: 15896211
                                                            NUT
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 15896210
