Ferrari 400i (1983 Mechanical) Steering Linkage Parts Diagram

043 - Steering Linkage

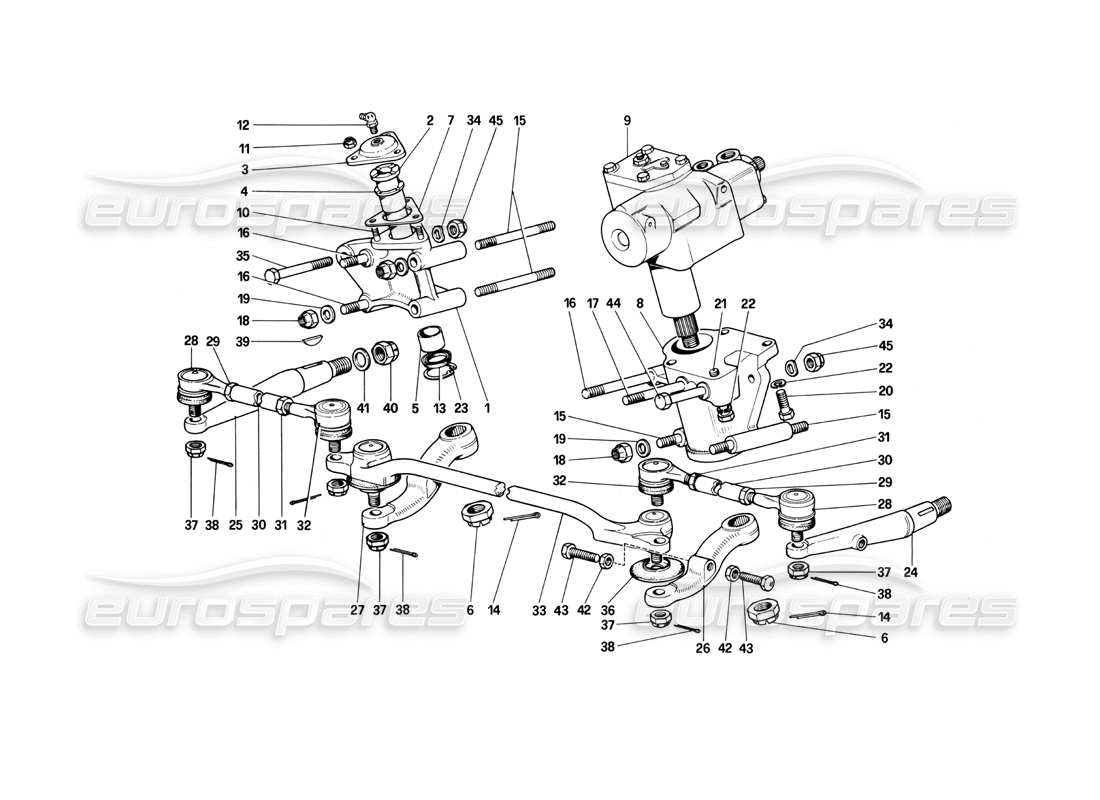

Ferrari 400i (1983 Mechanical) Steering Linkage Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 101120
                                                                                    SUPPORT
                                                                                    Non vale per GD
                                                                                    from £551.14
                                                                                    from £551.14
                                                                                    This part replaces part number 740404
                                                                                    # 001
                                                                                    MPN: 104112
                                                                                    SUPPORT
                                                                                    Vale per GD
                                                                                    from £414.75
                                                                                    from £414.75
                                                                                    This part replaces part number 740405 - and 1 more. Click to view details
                                                                                    # 002
                                                                                    MPN: 101127
                                                                                    PIVOT
                                                                                    from £651.14
                                                                                    from £651.14
                                                                                    This part replaces part number 75253
                                                                                    # 003
                                                                                    MPN: 101128
                                                                                    COVER
                                                                                    from £126.00
                                                                                    from £126.00
                                                                                    This part replaces part number 75254
                                                                                    # 004
                                                                                    MPN: 101129

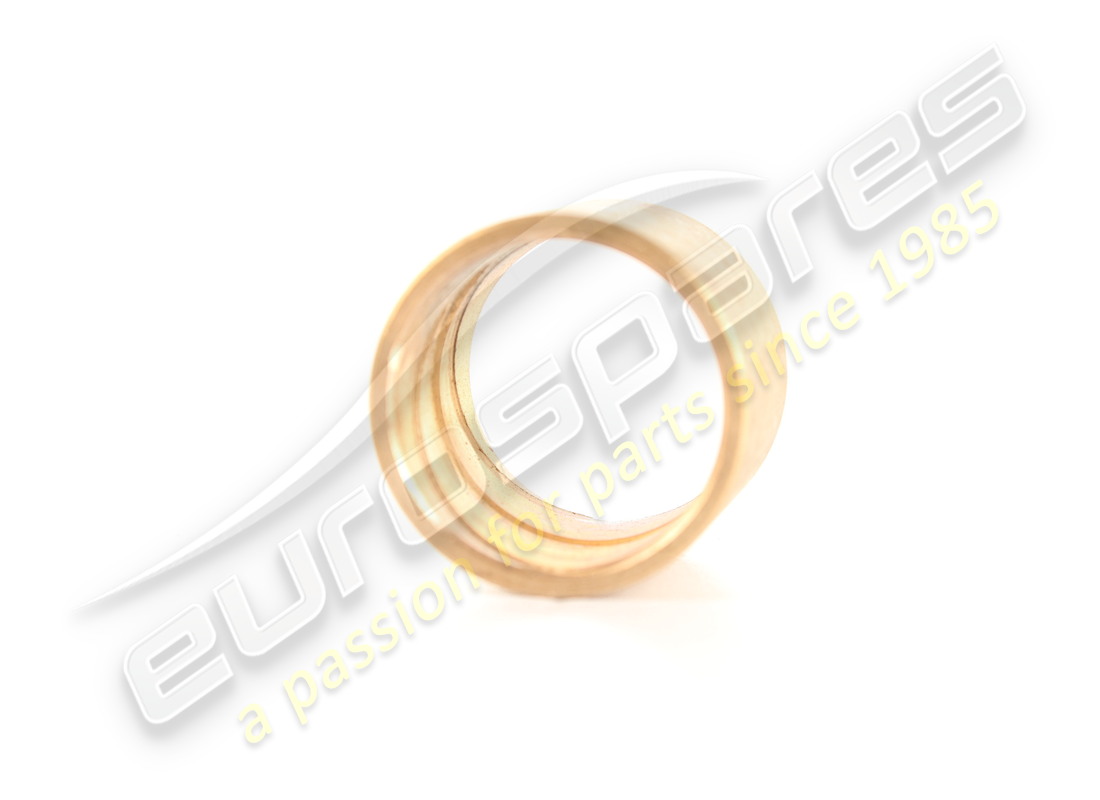

                                                                                    BUSH
                                                                                    from £138.84
                                                                                    from £138.84
                                                                                    This part replaces part number 75255
                                                                                    # 005
                                                                                    MPN: 101130
                                                                                    BUSH
                                                                                    from £78.84
                                                                                    from £78.84
                                                                                    This part replaces part number 75256 - and 1 more. Click to view details
                                                                                    # 006
                                                                                    MPN: 101147
                                                                                    NUT
                                                                                    from £44.49
                                                                                    from £44.49
                                                                                    This part replaces part number 75257
                                                                                    # 007
                                                                                    MPN: 101134
                                                                                    SPACER
                                                                                    from £8.67
                                                                                    from £8.67
                                                                                    This part replaces part number 740114
                                                                                    # 008
                                                                                    MPN: 101133
                                                                                    SUPPORT
                                                                                    from £651.73
                                                                                    from £651.73
                                                                                    This part replaces part number 740402
                                                                                    # 008
                                                                                    MPN: 104111
                                                                                    SUPPORT
                                                                                    from £300.11
                                                                                    from £300.11
                                                                                    This part replaces part number 740403 - and 1 more. Click to view details
                                                                                    # 009
                                                                                    MPN: 101112
                                                                                    LHD STEERING BOX
                                                                                    This part replaces part number 740559
                                                                                    # 009
                                                                                    MPN: 103645
                                                                                    RHD STEERING BOX
                                                                                    from £1,503.97
                                                                                    from £1,503.97
                                                                                    # 010
                                                                                    MPN: 13516621
                                                                                    THREADED STUD
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 011
                                                                                    MPN: 101139
                                                                                    NUT
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 16104425
                                                                                    # 012
                                                                                    MPN: 101140
                                                                                    GREASER
                                                                                    from £2.44
                                                                                    from £2.44
                                                                                    # 013
                                                                                    MPN: 101141
                                                                                    SEALING RING
                                                                                    from £17.32
                                                                                    from £17.32
                                                                                    # 014
                                                                                    MPN: 10735001
                                                                                    SPLIT PIN
                                                                                    from £0.93
                                                                                    from £0.93
                                                                                    # 015
                                                                                    MPN: 101144
                                                                                    THREADED STUD
                                                                                    from £17.63
                                                                                    from £17.63
                                                                                    This part replaces part number 95481
                                                                                    # 016
                                                                                    MPN: 101143
                                                                                    THREADED STUD
                                                                                    from £16.81
                                                                                    from £16.81
                                                                                    This part replaces part number 95480
                                                                                    # 017
                                                                                    MPN: 101116
                                                                                    THREADED STUD
                                                                                    from £13.21
                                                                                    from £13.21
                                                                                    # 018
                                                                                    MPN: 101146
                                                                                    NUT
                                                                                    from £5.16
                                                                                    from £5.16
                                                                                    # 019
                                                                                    MPN: 10730821
                                                                                    WASHER
                                                                                    Per 400 automatic q = 4
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 020
                                                                                    MPN: 101117
                                                                                    BOLT
                                                                                    from £14.02
                                                                                    from £14.02
                                                                                    # 021
                                                                                    MPN: 101118
                                                                                    BOLT
                                                                                    from £17.63
                                                                                    from £17.63
                                                                                    # 022
                                                                                    MPN: 10517070
                                                                                    WASHER
                                                                                    from £2.95
                                                                                    from £2.95
                                                                                    # 023
                                                                                    MPN: 101142
                                                                                    RING
                                                                                    from £2.23
                                                                                    from £2.23
                                                                                    # 024
                                                                                    MPN: 101149
                                                                                    LEVER
                                                                                    from £326.81
                                                                                    from £326.81
                                                                                    This part replaces part number 760189
                                                                                    # 025
                                                                                    MPN: 101150
                                                                                    LEVER
                                                                                    from £326.81
                                                                                    from £326.81
                                                                                    This part replaces part number 760188
                                                                                    # 026
                                                                                    MPN: 101123
                                                                                    LEVER
                                                                                    from £233.80
                                                                                    from £233.80
                                                                                    This part replaces part number 760187
                                                                                    # 027
                                                                                    MPN: 101122
                                                                                    LEVER
                                                                                    from £249.42
                                                                                    from £249.42
                                                                                    This part replaces part number 760197
                                                                                    # 028
                                                                                    MPN: 4193223

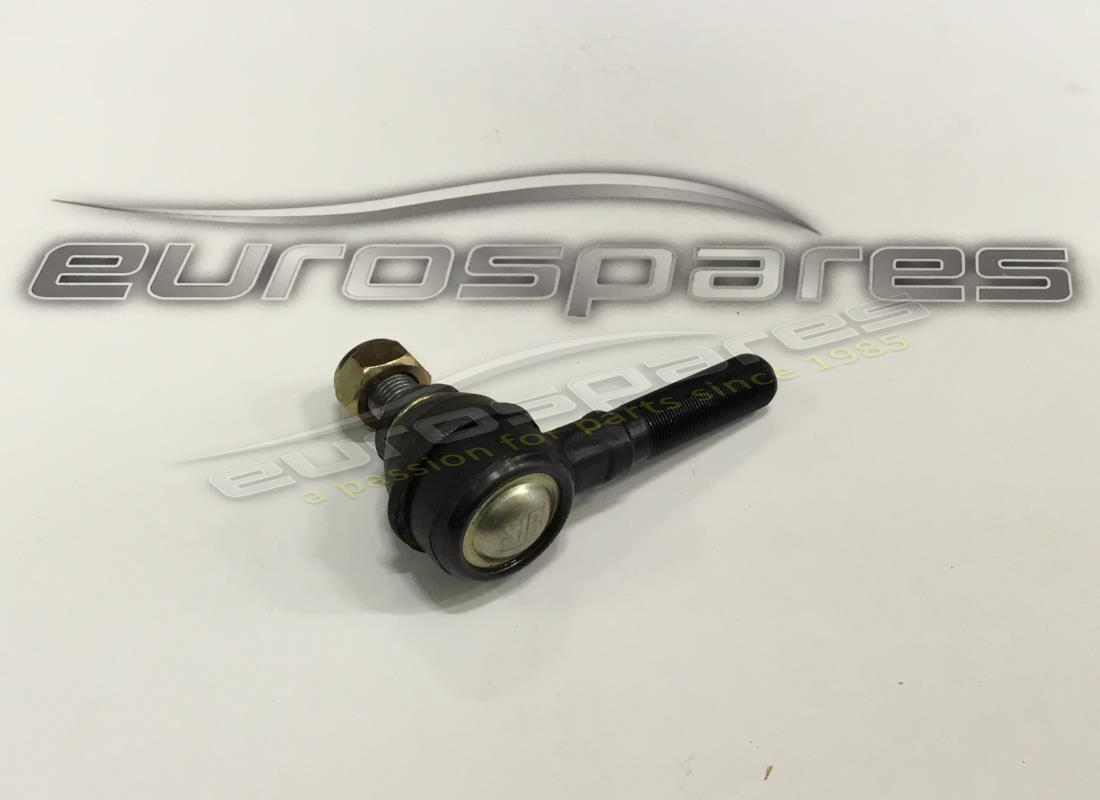

                                                                                    BALL JOINT
                                                                                    from £65.05
                                                                                    from £65.05

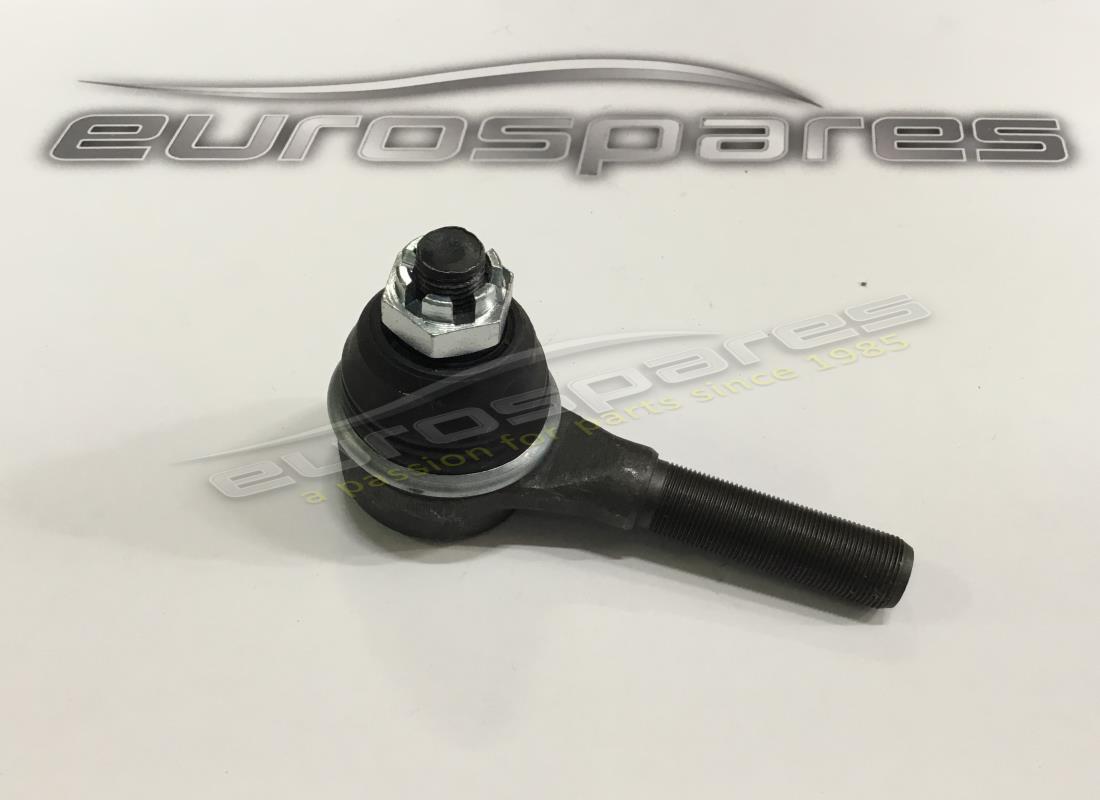

                                                                                    # 028
                                                                                    MPN: 4193224
                                                                                    BALL JOINT
                                                                                    RIGHT HAND THREAD
                                                                                    from £65.05
                                                                                    from £65.05
                                                                                    This part replaces part number 101155
                                                                                    # 029
                                                                                    MPN: 101156
                                                                                    NUT
                                                                                    from £14.68
                                                                                    from £14.68
                                                                                    This part replaces part number 100867 - and 1 more. Click to view details
                                                                                    # 030
                                                                                    MPN: 101157
                                                                                    TIE ROD
                                                                                    from £61.00
                                                                                    from £61.00
                                                                                    This part replaces part number 101153 - and 1 more. Click to view details
                                                                                    # 031
                                                                                    MPN: 101158
                                                                                    NUT
                                                                                    from £6.15
                                                                                    from £6.15
                                                                                    This part replaces part number 760199
                                                                                    # 032
                                                                                    MPN: 4193223
                                                                                    BALL JOINT
                                                                                    LEFT HAND THREAD
                                                                                    from £65.05
                                                                                    from £65.05
                                                                                    # 033
                                                                                    MPN: 104865
                                                                                    BALL PIN ASSEMBLY ON GUIDE LEVER AND RETURN
                                                                                    from £713.31
                                                                                    from £713.31
                                                                                    # 034
                                                                                    MPN: 12601571
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 12601574
                                                                                    # 035
                                                                                    MPN: 15541621
                                                                                    BOLT
                                                                                    from £25.75
                                                                                    from £25.75
                                                                                    This part replaces part number 93846
                                                                                    # 036
                                                                                    MPN: 101168
                                                                                    RUBBER GROMMET
                                                                                    from £13.20
                                                                                    from £13.20
                                                                                    This part replaces part number 760221
                                                                                    # 037
                                                                                    MPN: 10793421
                                                                                    NUT
                                                                                    from £3.10
                                                                                    from £3.10
                                                                                    # 038
                                                                                    MPN: 10734600
                                                                                    SPLIT PIN
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 039
                                                                                    MPN: 10206420
                                                                                    Key
                                                                                    from £1.10
                                                                                    from £1.10
                                                                                    # 040
                                                                                    MPN: 12575121
                                                                                    SELF LOCKING NUT
                                                                                    from £2.27
                                                                                    from £2.27
                                                                                    # 041
                                                                                    MPN: 10731101
                                                                                    WASHER
                                                                                    from £1.34
                                                                                    from £1.34
                                                                                    # 043
                                                                                    MPN: 101151
                                                                                    BOLT
                                                                                    from £3.47
                                                                                    from £3.47
                                                                                    This part replaces part number 95465
                                                                                    # 044
                                                                                    MPN: 15541721
                                                                                    BOLT
                                                                                    from £0.91
                                                                                    from £0.91
                                                                                    # 045
                                                                                    MPN: 148020
                                                                                    NUT
                                                                                    from £2.53
                                                                                    from £2.53
                                                                                    This part replaces part number 102825 - and 3 more. Click to view details
