Ferrari 400i (1983 Mechanical) Hydraulic Steering System Parts Diagram

041 - Hydraulic Steering System

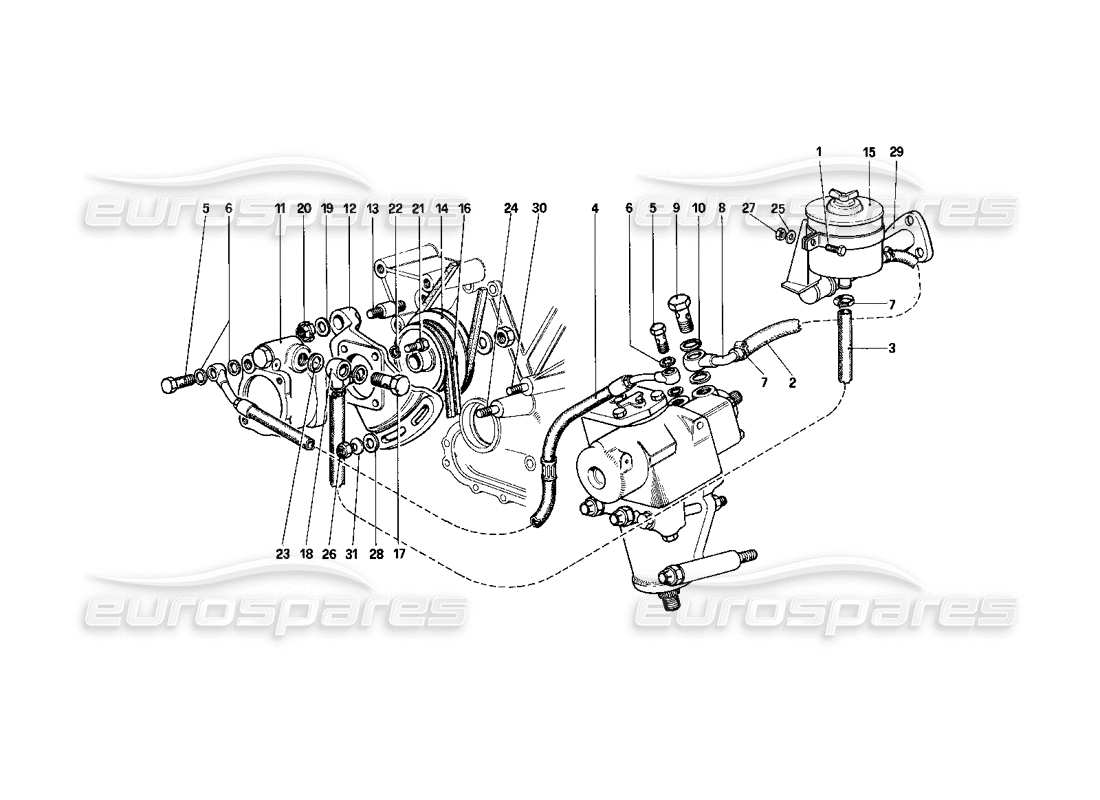

Ferrari 400i (1983 Mechanical) Hydraulic Steering System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 16843421
                                                        BOLT
                                                        # 002
                                                        MPN: 113315
                                                        HOSE FROM GUIDE BOX TO! RESERVOIR
                                                        from £16.44
                                                        from £16.44
                                                        # 003
                                                        MPN: 105846
                                                        PIPE CONNECTING GUIDE PUMP TO TANK
                                                        Non vale per GD Non vale per GD
                                                        from £31.96
                                                        from £31.96
                                                        # 004
                                                        MPN: 101170
                                                        TUBO DALLA POMPA ALLA SCATOLA GUIDA
                                                        from £506.94
                                                        from £506.94
                                                        This part replaces part number 740488
                                                        # 005
                                                        MPN: 103402
                                                        UNION
                                                        from £19.49
                                                        from £19.49
                                                        This part replaces part number 95038 - and 3 more. Click to view details
                                                        # 006
                                                        MPN: 10280060
                                                        PUMP ALIA GUIDE BOX GASKET
                                                        from £0.51
                                                        from £0.51
                                                        This part replaces part number 100501 - and 3 more. Click to view details
                                                        # 007
                                                        MPN: 13000390
                                                        JUBILEE CLIP
                                                        from £0.51
                                                        from £0.51
                                                        This part replaces part number 12179590 - and 1 more. Click to view details
                                                        # 008
                                                        MPN: 113314
                                                        TUBE WITH ADJUSTABLE
                                                        from £31.80
                                                        from £31.80
                                                        # 009
                                                        MPN: 102632
                                                        UNION
                                                        from £41.98
                                                        from £41.98
                                                        This part replaces part number 95035
                                                        # 010
                                                        MPN: 10257060
                                                        GASKET
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 10253060 - and 2 more. Click to view details
                                                        # 011
                                                        MPN: 100513
                                                        HYDRAULIC GUIDE PUMP COMPLETE WITH NUT
                                                        # 012
                                                        MPN: 100515
                                                        WASHER
                                                        from £142.72
                                                        from £142.72
                                                        # 013
                                                        MPN: 100518
                                                        PIVOT
                                                        from £71.47
                                                        from £71.47
                                                        This part replaces part number 220506
                                                        # 014
                                                        MPN: 100514
                                                        PULLEY ON PUMP
                                                        from £204.75
                                                        from £204.75
                                                        This part replaces part number 220509 - and 1 more. Click to view details
                                                        # 015
                                                        MPN: 100517
                                                        TANK FOR HYDRAULIC GUIDE PUMP
                                                        Non vale per GD
                                                        from £185.42
                                                        from £185.42
                                                        This part replaces part number 220695 - and 1 more. Click to view details

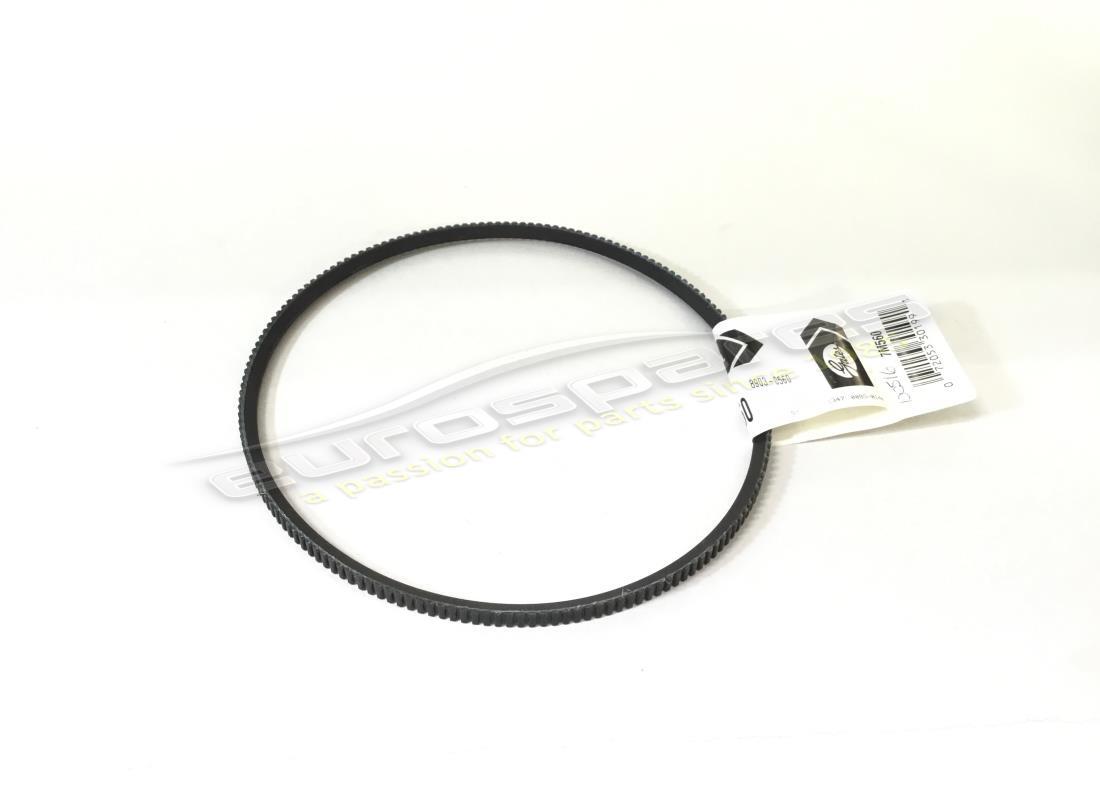

                                                        # 016
                                                        MPN: 100516
                                                        HYDRAULIC GUIDE PUMP CONTROL BELT
                                                        from £24.67
                                                        from £24.67
                                                        This part replaces part number 220696
                                                        # 017
                                                        MPN: 100508
                                                        UNION
                                                        from £61.42
                                                        from £61.42
                                                        This part replaces part number 220630
                                                        # 018
                                                        MPN: 10-48-05
                                                        ORIENTABILE (PER GS)
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 102629
                                                        # 019
                                                        MPN: 12646901
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 020
                                                        MPN: 101242
                                                        RING NUT
                                                        (Reqs 101242 & 126142)
                                                        from £21.37
                                                        from £21.37
                                                        # 021
                                                        MPN: 16043821
                                                        BOLT
                                                        from £0.49
                                                        from £0.49
                                                        # 022
                                                        MPN: 11198074
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                        # 023
                                                        MPN: 10259960
                                                        GASKET
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 95017

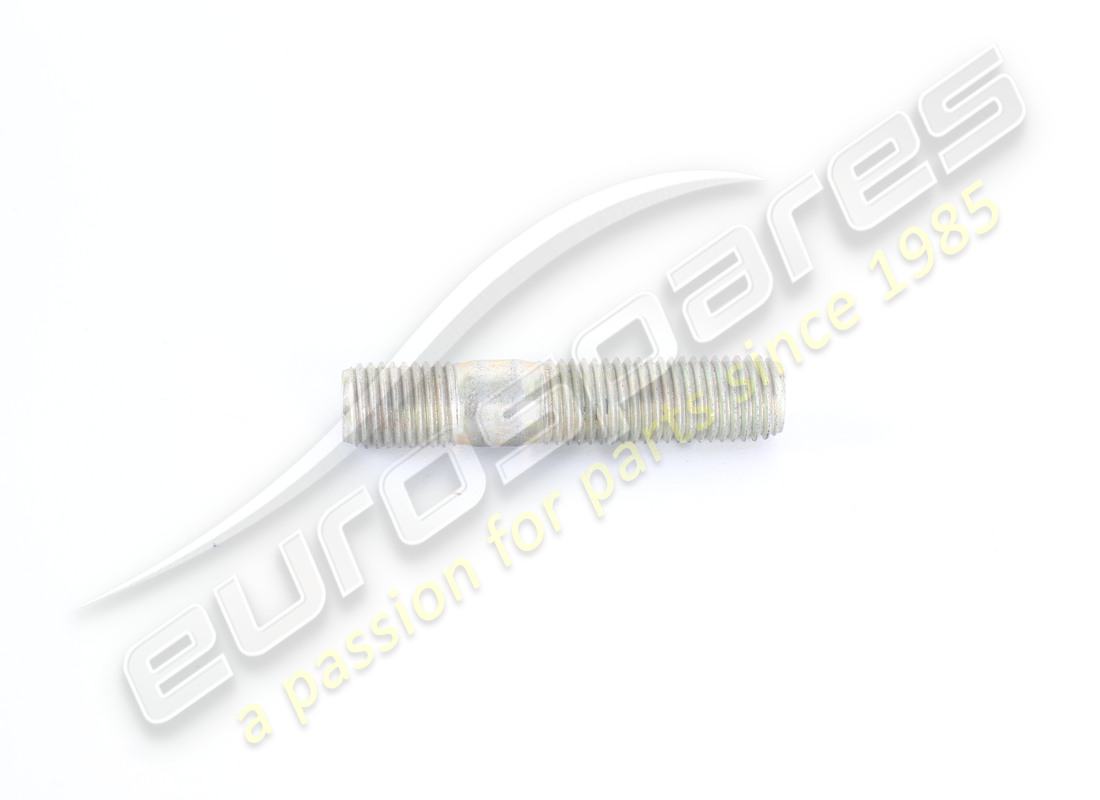

                                                        # 024
                                                        MPN: 13449821
                                                        STUD
                                                        from £0.81
                                                        from £0.81
                                                        # 025
                                                        MPN: 106852
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 10516670 - and 2 more. Click to view details
                                                        # 026
                                                        MPN: 12574521
                                                        NUT
                                                        from £0.56
                                                        from £0.56
                                                        This part replaces part number 104114 - and 1 more. Click to view details
                                                        # 027
                                                        MPN: 16100824
                                                        NUT
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 16100814 - and 1 more. Click to view details
                                                        # 029
                                                        MPN: 113900
                                                        SUPPORT
                                                        Non vale per GD
                                                        from £357.27
                                                        from £357.27
                                                        # 030
                                                        MPN: 13450121
                                                        THREADED STUD
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 13450120
                                                        # 031
                                                        MPN: 10413770
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
