ferrari 400i (1983 mechanical) hand-brake controll parts diagram

040 - Hand-Brake Controll

Ferrari 400i (1983 Mechanical) Hand-Brake Controll Parts Diagram

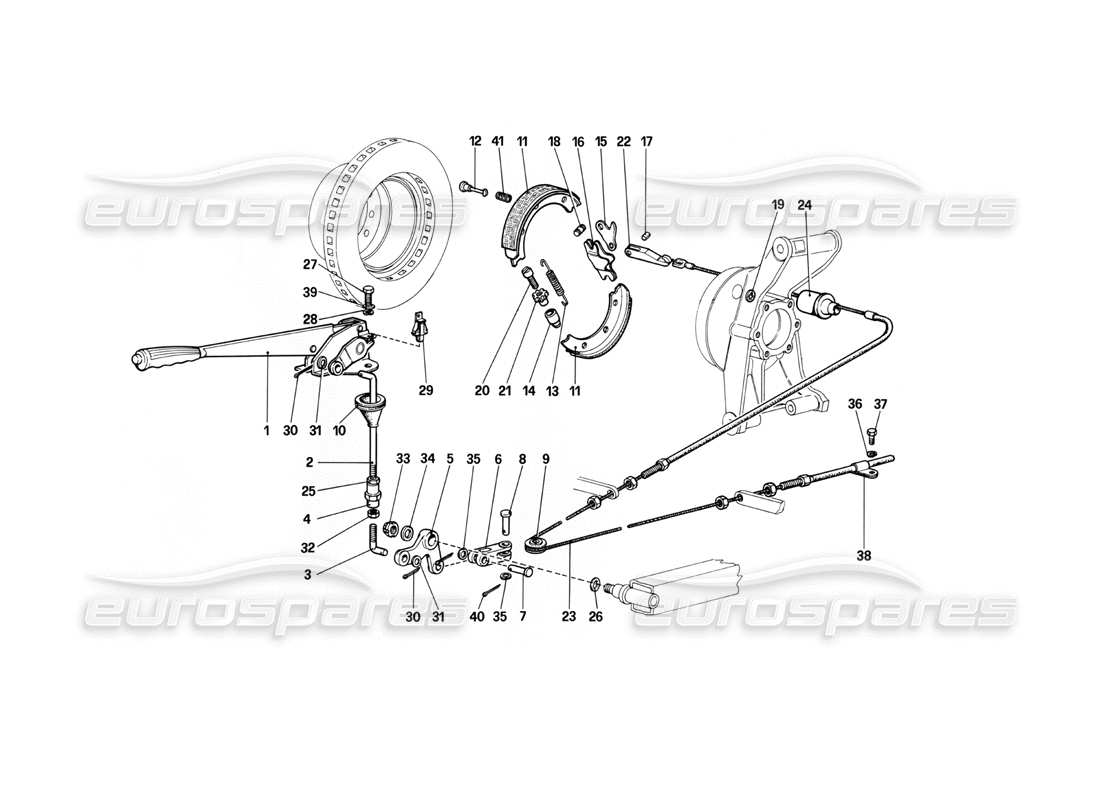

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 001
                                                                                MPN: 110071
                                                                                ASSIEME LEVA COMANDO FRENO A MANO
                                                                                from £252.00
                                                                                from £252.00
                                                                                This part replaces part number 101178 - and 3 more. Click to view details
                                                                                # 002
                                                                                MPN: 105291
                                                                                TIE ROD
                                                                                from £13.21
                                                                                from £13.21
                                                                                # 003
                                                                                MPN: 101190
                                                                                TIE ROD
                                                                                from £24.05
                                                                                from £24.05
                                                                                This part replaces part number 680752
                                                                                # 004
                                                                                MPN: 101192
                                                                                REGISTER FOR TIE RODS
                                                                                from £36.70
                                                                                from £36.70
                                                                                This part replaces part number 680753
                                                                                # 005
                                                                                MPN: 101193

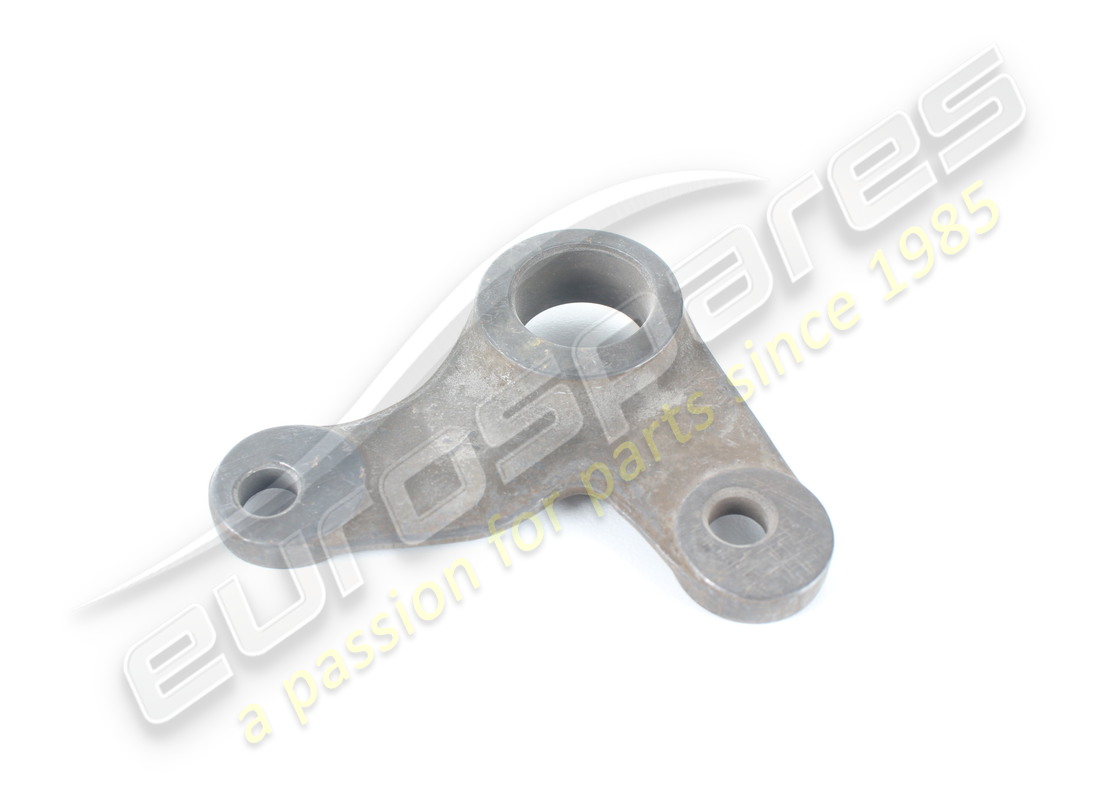

                                                                                LEVER
                                                                                from £202.52
                                                                                from £202.52
                                                                                This part replaces part number 680754
                                                                                # 006
                                                                                MPN: 101194
                                                                                FORK
                                                                                from £143.16
                                                                                from £143.16
                                                                                This part replaces part number 680755
                                                                                # 007
                                                                                MPN: 101195
                                                                                PIVOT
                                                                                from £13.52
                                                                                from £13.52
                                                                                This part replaces part number 680756 which we have in stock - and 3 more. Click to view details
                                                                                # 008
                                                                                MPN: 101196
                                                                                PIVOT
                                                                                from £37.02
                                                                                from £37.02
                                                                                This part replaces part number 680757
                                                                                # 009
                                                                                MPN: 101197

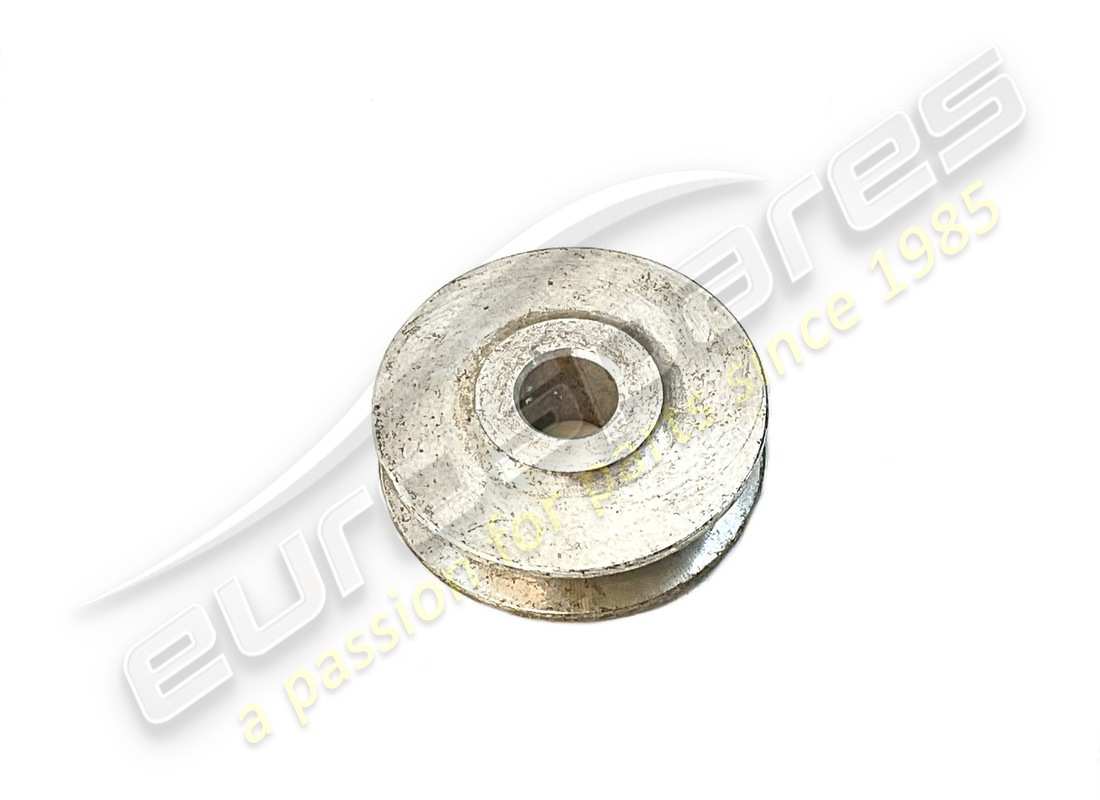

                                                                                CARRUCOLA
                                                                                from £30.20
                                                                                from £30.20
                                                                                This part replaces part number 69153
                                                                                # 010
                                                                                MPN: 101187
                                                                                SOFFIETTO
                                                                                from £26.28
                                                                                from £26.28
                                                                                This part replaces part number 680750
                                                                                # 011
                                                                                MPN: 134847
                                                                                HAND BRAKE SHOES
                                                                                Set of 4 (25 mm)
                                                                                from £36.25
                                                                                from £36.25
                                                                                This part replaces part number 101270 - and 2 more. Click to view details
                                                                                # 012
                                                                                MPN: 101275
                                                                                PIVOT
                                                                                from £8.07
                                                                                from £8.07
                                                                                This part replaces part number 680515 - and 2 more. Click to view details
                                                                                # 013
                                                                                MPN: 101276
                                                                                SPRING
                                                                                from £1.55
                                                                                from £1.55
                                                                                This part replaces part number 680516 - and 5 more. Click to view details
                                                                                # 014
                                                                                MPN: 101279
                                                                                SEAT FOR SCREW
                                                                                from £31.50
                                                                                from £31.50
                                                                                # 015
                                                                                MPN: 101280
                                                                                LEVER
                                                                                from £26.53
                                                                                from £26.53
                                                                                This part replaces part number 680538 - and 6 more. Click to view details
                                                                                # 016
                                                                                MPN: 101281
                                                                                LEVER
                                                                                from £34.71
                                                                                from £34.71
                                                                                This part replaces part number 680539 - and 7 more. Click to view details
                                                                                # 017
                                                                                MPN: 101282
                                                                                PIVOT
                                                                                from £4.02
                                                                                from £4.02
                                                                                This part replaces part number 680540 - and 1 more. Click to view details
                                                                                # 018
                                                                                MPN: 101283
                                                                                PIVOT
                                                                                from £8.70
                                                                                from £8.70
                                                                                This part replaces part number 680541 - and 3 more. Click to view details
                                                                                # 019
                                                                                MPN: 101284
                                                                                PIATTELLO PER MOLLA
                                                                                from £2.89
                                                                                from £2.89
                                                                                This part replaces part number 680542
                                                                                # 020
                                                                                MPN: 101285
                                                                                THREADED PIVOT
                                                                                from £18.13
                                                                                from £18.13
                                                                                This part replaces part number 680543 - and 7 more. Click to view details
                                                                                # 021
                                                                                MPN: 101286
                                                                                NUT
                                                                                from £21.99
                                                                                from £21.99
                                                                                This part replaces part number 680544 - and 5 more. Click to view details
                                                                                # 022
                                                                                MPN: 105270
                                                                                SELECTOR FORK
                                                                                from £14.95
                                                                                from £14.95
                                                                                # 023
                                                                                MPN: 106823
                                                                                COMPLETE ROPE FOR BRAKE CONTROL
                                                                                # 024
                                                                                MPN: 106824
                                                                                COVER
                                                                                from £97.16
                                                                                from £97.16
                                                                                This part replaces part number 103051 - and 2 more. Click to view details
                                                                                # 025
                                                                                MPN: 16102911
                                                                                NUT
                                                                                Filetto Sx.
                                                                                Supersession
                                                                                Supersession
                                                                                # 026
                                                                                MPN: 100853
                                                                                WASHER
                                                                                from £15.36
                                                                                from £15.36
                                                                                This part replaces part number 105688 - and 1 more. Click to view details
                                                                                # 027
                                                                                MPN: 16043221
                                                                                BOLT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 13842414 - and 1 more. Click to view details
                                                                                # 028
                                                                                MPN: 10516677
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                # 029
                                                                                MPN: 105949

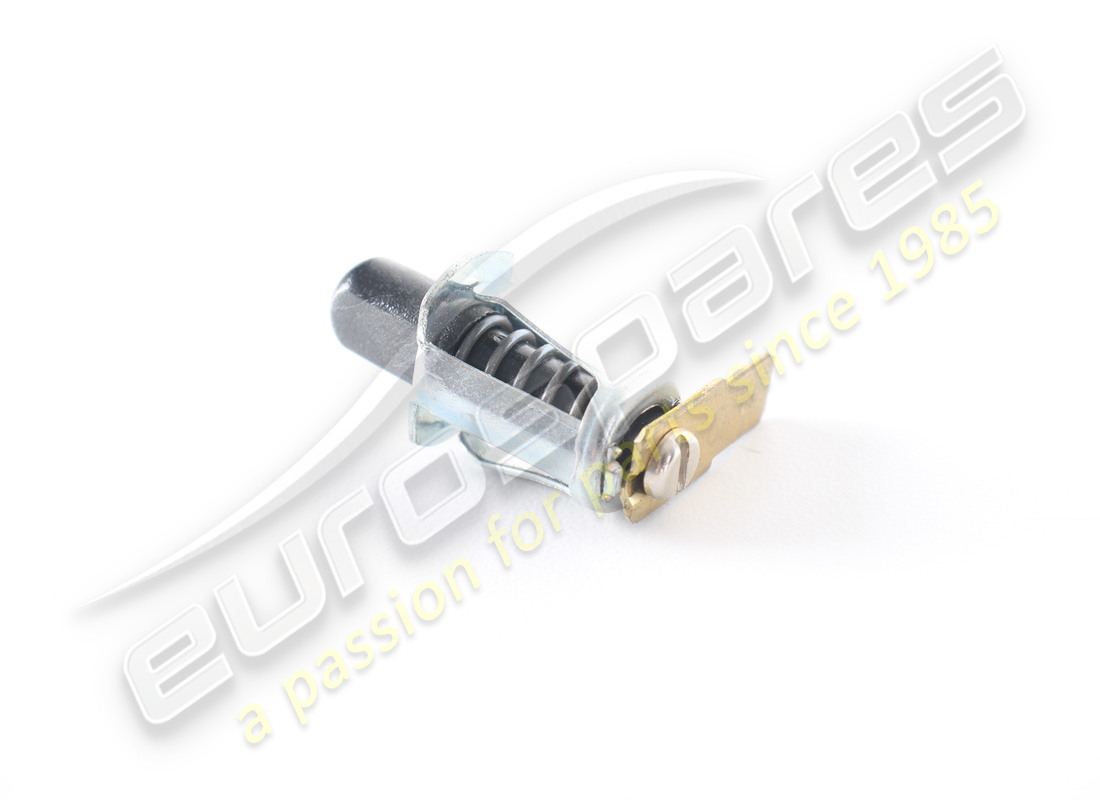

                                                                                INTERRUTTOREPERSPIA
                                                                                from £34.05
                                                                                from £34.05
                                                                                # 030
                                                                                MPN: 10734301
                                                                                SPLIT PIN
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 031
                                                                                MPN: 12625221
                                                                                WASHER
                                                                                from £0.54
                                                                                from £0.54
                                                                                # 032
                                                                                MPN: 16102321
                                                                                NUT
                                                                                from £1.35
                                                                                from £1.35
                                                                                # 033
                                                                                MPN: 100865
                                                                                RING NUT
                                                                                from £9.91
                                                                                from £9.91
                                                                                # 034
                                                                                MPN: 10730921
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 036
                                                                                MPN: 12601271
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                This part replaces part number 103372 - and 1 more. Click to view details
                                                                                # 037
                                                                                MPN: 101205
                                                                                BOLT
                                                                                from £0.60
                                                                                from £0.60
                                                                                # 038
                                                                                MPN: 103529
                                                                                FASCETTA PER GUAINA
                                                                                from £4.29
                                                                                from £4.29
                                                                                This part replaces part number 680970
                                                                                # 039
                                                                                MPN: 10519621
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                # 040
                                                                                MPN: 10734201
                                                                                SPLIT PIN
                                                                                Supersession
                                                                                Supersession
                                                                                # 041
                                                                                MPN: 101277
                                                                                SPRING
                                                                                from £1.31
                                                                                from £1.31
                                                                                This part replaces part number 680517 - and 2 more. Click to view details
