Ferrari 400i (1983 Mechanical) Brakes Hydraulic Controll (400 GT - Valid for LHD Versions) Parts Diagram

035 - Brakes Hydraulic Controll (400 GT - Valid for LHD Versions)

Ferrari 400i (1983 Mechanical) Brakes Hydraulic Controll (400 GT - Valid for LHD Versions) Parts Diagram

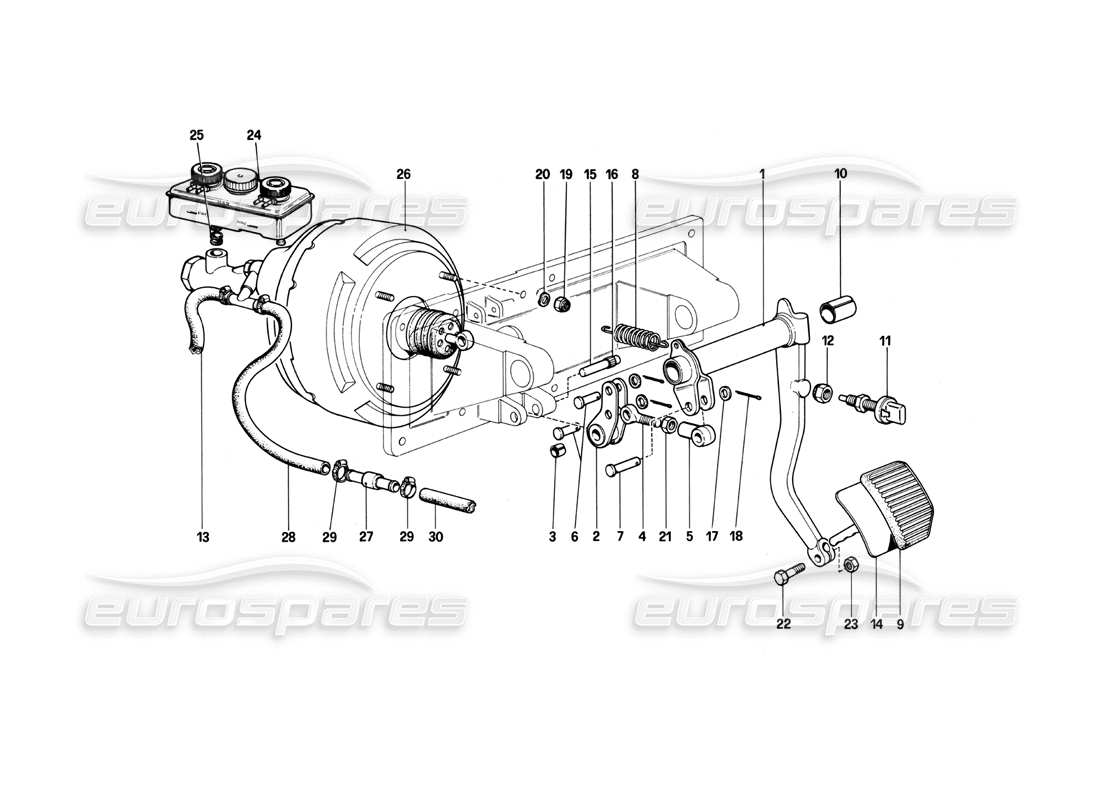

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 000
                                                              MPN: 308BMRK
                                                              BRAKE MASTER SEAL KIT
                                                              Rebuild Kit
                                                              # 001
                                                              MPN: 100949
                                                              LEVER
                                                              from £344.93
                                                              from £344.93
                                                              # 002
                                                              MPN: 100951
                                                              LEVER
                                                              from £37.75
                                                              from £37.75
                                                              This part replaces part number 660861 - and 1 more. Click to view details
                                                              # 003
                                                              MPN: 100958
                                                              BUSH
                                                              from £7.98
                                                              from £7.98
                                                              This part replaces part number 660866
                                                              # 004
                                                              MPN: 100959
                                                              TIE ROD
                                                              from £86.27
                                                              from £86.27
                                                              This part replaces part number 660860
                                                              # 005
                                                              MPN: 100960
                                                              ADJUSTMENT FOR BRAKE LEVER
                                                              from £97.47
                                                              from £97.47
                                                              This part replaces part number 660858
                                                              # 006
                                                              MPN: 100961
                                                              PIVOT
                                                              from £26.35
                                                              from £26.35
                                                              This part replaces part number 660864
                                                              # 007
                                                              MPN: 100963
                                                              PIVOT
                                                              from £30.30
                                                              from £30.30
                                                              This part replaces part number 660859
                                                              # 008
                                                              MPN: 101305
                                                              SPRING
                                                              from £8.24
                                                              from £8.24
                                                              This part replaces part number 660343
                                                              # 009
                                                              MPN: 100976

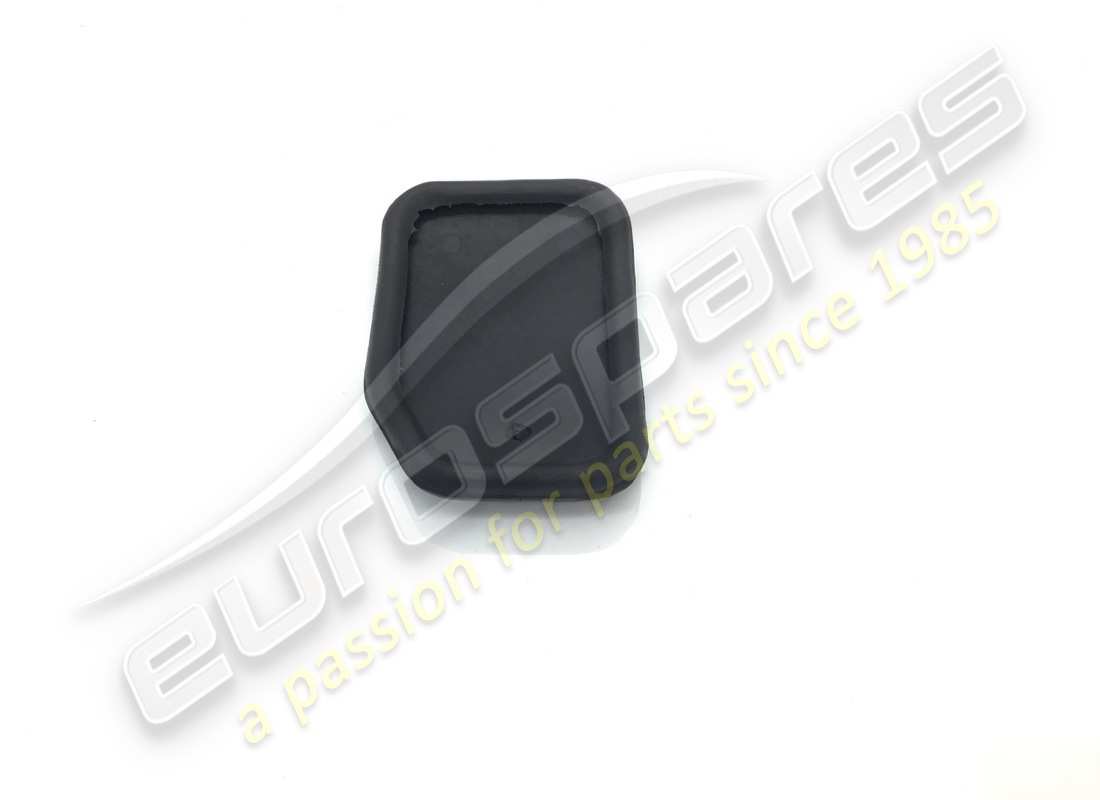

                                                              GOMMINO PROTEZIONE PEDALE
                                                              from £18.28
                                                              from £18.28
                                                              This part replaces part number 660737 - and 1 more. Click to view details
                                                              # 010
                                                              MPN: 100787
                                                              BUSH
                                                              from £5.48
                                                              from £5.48
                                                              This part replaces part number 101315 - and 1 more. Click to view details
                                                              # 011
                                                              MPN: 101663
                                                              STOP LIGHT SWITCH (2 TERMINALS)
                                                              from £23.05
                                                              from £23.05
                                                              This part replaces part number 4177124 - and 13 more. Click to view details
                                                              # 012
                                                              MPN: 101662
                                                              NUT
                                                              from £2.66
                                                              from £2.66
                                                              This part replaces part number 660523
                                                              # 013
                                                              MPN: 110751
                                                              HOSE CONNECTING THE DEPRESSOR TO THE BRAKE SERVO
                                                              from £89.39
                                                              from £89.39
                                                              # 014
                                                              MPN: 113526
                                                              BRAKE PEDAL ASSEMBLY
                                                              from £84.00
                                                              from £84.00
                                                              This part replaces part number 100947 - and 1 more. Click to view details
                                                              # 015
                                                              MPN: 100957
                                                              PIVOT
                                                              from £29.02
                                                              from £29.02
                                                              This part replaces part number 660865
                                                              # 016
                                                              MPN: 100962
                                                              RING
                                                              from £6.44
                                                              from £6.44
                                                              # 017
                                                              MPN: 100964
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 018
                                                              MPN: 10734301
                                                              SPLIT PIN
                                                              from £0.52
                                                              from £0.52
                                                              # 019
                                                              MPN: 101139
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 16104425
                                                              # 020
                                                              MPN: 12601371
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              # 021
                                                              MPN: 100965
                                                              LOCKNUT
                                                              from £0.80
                                                              from £0.80
                                                              # 022
                                                              MPN: 101308
                                                              BOLT
                                                              from £7.92
                                                              from £7.92
                                                              This part replaces part number 95192
                                                              # 023
                                                              MPN: 101309
                                                              NUT
                                                              from £0.93
                                                              from £0.93
                                                              # 024
                                                              MPN: 95691500
                                                              VASCHETTA PER LIQUIDO FRENI
                                                              from £395.00
                                                              from £395.00
                                                              # 025
                                                              MPN: 175189
                                                              SEALING RING
                                                              from £13.05
                                                              from £13.05
                                                              This part replaces part number 106625
                                                              # 026
                                                              MPN: 101536
                                                              Brake Servo
                                                              Supersession
                                                              Supersession
                                                              # 026
                                                              MPN: 124518

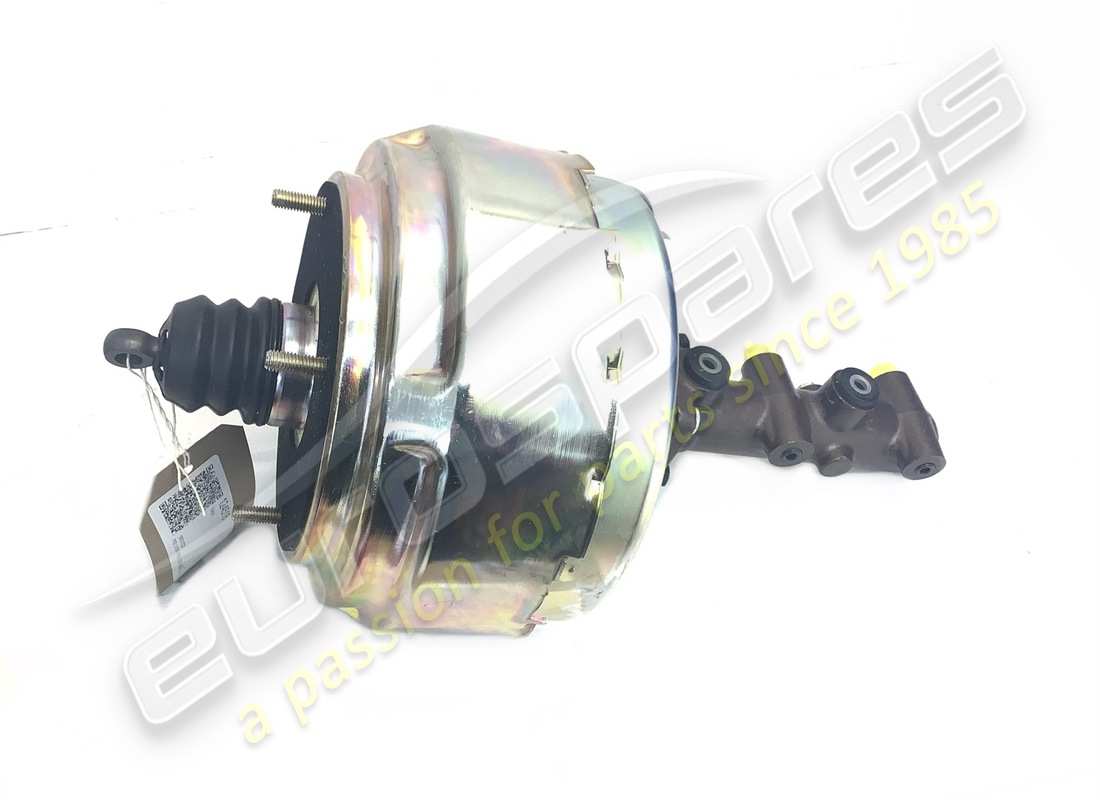

                                                              BRAKE SERVO ASSEMBLY LHD
                                                              from £1,778.74
                                                              from £1,778.74
                                                              This part replaces part number 101536 - and 5 more. Click to view details
                                                              # 026
                                                              MPN: 124518
                                                              Brake Servo Complete with Brake Master
                                                              from £1,778.74
                                                              from £1,778.74
                                                              This part replaces part number 101536 - and 5 more. Click to view details
                                                              # 027
                                                              MPN: 128435
                                                              VALVOLA DI NON RITORNO
                                                              from £99.01
                                                              from £99.01
                                                              This part replaces part number 101538 - and 3 more. Click to view details
                                                              # 028
                                                              MPN: 110746
                                                              HOSE CONNECTING NON-RETURN VALVE TO BRAKE SERVO
                                                              from £21.73
                                                              from £21.73
                                                              # 029
                                                              MPN: 13000390
                                                              JUBILEE CLIP
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 12179590 - and 1 more. Click to view details
                                                              # 030
                                                              MPN: 110747
                                                              VALVE CONNECTION PIPE DOES NOT RETURN TO THE INTAKE MANIFOLD
                                                              from £31.46
                                                              from £31.46
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
