ferrari 400i (1983 mechanical) differential housing parts diagram

031 - DIFFERENTIAL HOUSING

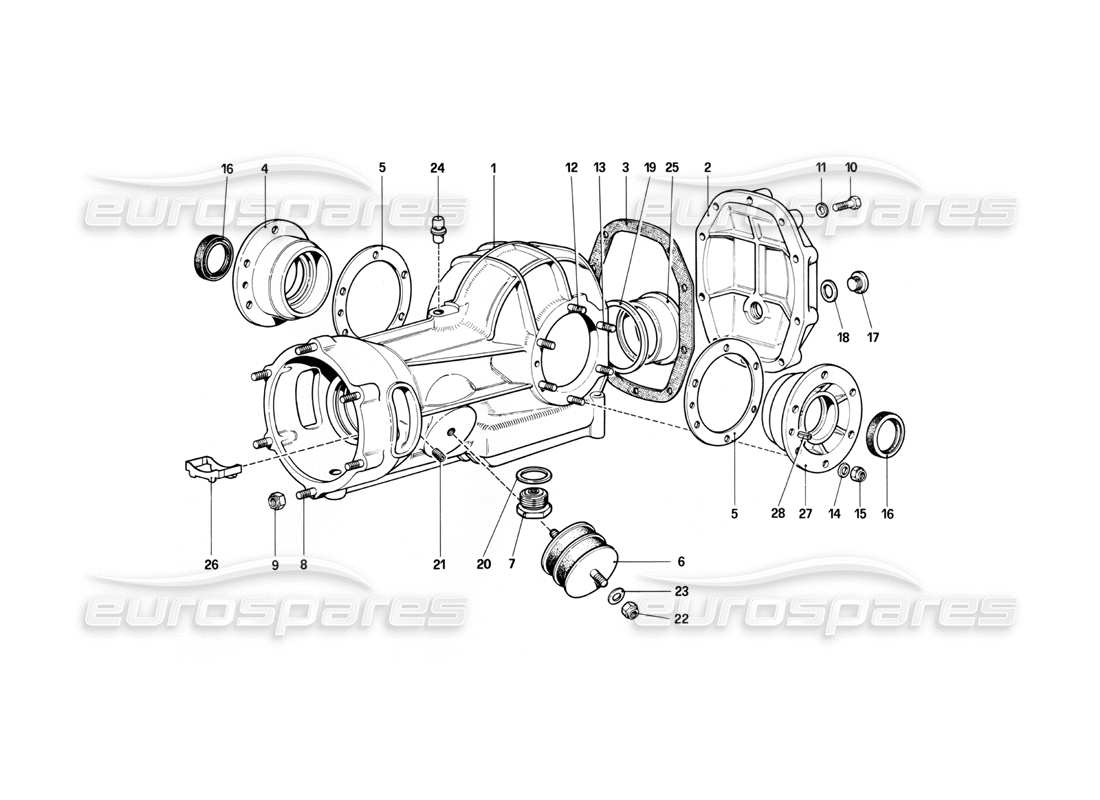

Ferrari 400i (1983 Mechanical) Differential Housing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 100815
                                                SCATOLA DIFFERENZIALE
                                                Non-replacement - Until sold out
                                                # 001
                                                MPN: 107439
                                                DIFFERENZIALE COMPLETE 400 GT - R. 10/43
                                                With box n.100815
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 111851
                                                COMPLETE DIFFERENTIAL BOX
                                                Supersession
                                                Supersession
                                                This part replaces part number 580594
                                                # 001
                                                MPN: 119377
                                                DIFFERENTIAL COMPLETE 400 AUT R. 12/39
                                                A richiesta - Con scatola 100815
                                                from £176.26
                                                from £176.26
                                                This part replaces part number 111522 - and 1 more. Click to view details
                                                # 001
                                                MPN: 120197
                                                SCATOLA DIFFERENZIALE
                                                Not replacement - After exhaustion 100815
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 120199
                                                DIFFERENZIALE COMPLETE 400 GT - R. 10/43
                                                With box no. 120197
                                                from £3,504.22
                                                from £3,504.22
                                                This part replaces part number 107439
                                                # 001
                                                MPN: 120201
                                                DIFFERENTIAL COMPLETE 400 AUT R. 12/41
                                                With box no. 100815 and 120197
                                                from £2,012.45
                                                from £2,012.45
                                                # 001
                                                MPN: 120202
                                                DIFFERENTIAL COMPLETE 400 AUT R. 12/41
                                                With box n.100815 and 120197
                                                from £3,659.00
                                                from £3,659.00
                                                # 001
                                                MPN: 120208
                                                DIFFERENTIAL COMPLETE 400 AUT R. 12/39
                                                A richiesta - Con scatola 120197
                                                from £2,850.00
                                                from £2,850.00
                                                This part replaces part number 109377 - and 1 more. Click to view details
                                                # 003
                                                MPN: 100819
                                                GASKET
                                                from £6.68
                                                from £6.68
                                                # 004
                                                MPN: 100816
                                                COVER
                                                With box 100815
                                                from £221.88
                                                from £221.88
                                                This part replaces part number 580685
                                                # 004
                                                MPN: 110250
                                                COVER
                                                With box 10081 5
                                                from £254.38
                                                from £254.38
                                                # 004
                                                MPN: 120185
                                                COVER
                                                Dopo esaurimento n. 120625
                                                from £210.75
                                                from £210.75
                                                # 004
                                                MPN: 120187
                                                COVER
                                                Dopo esaurimento n. 102634
                                                from £249.42
                                                from £249.42
                                                # 004
                                                MPN: 120625
                                                COVER
                                                Con scatola 120197 - Fino esaurimento
                                                from £251.90
                                                from £251.90
                                                # 004
                                                MPN: 120634
                                                COVER
                                                Con.scatola 120197 - Fino esaurimento
                                                from £172.20
                                                from £172.20
                                                # 005
                                                MPN: 100820
                                                SPESSORE PER COPERCHIO LATERALS MM. 1
                                                from £13.29
                                                from £13.29
                                                This part replaces part number 580598
                                                # 005
                                                MPN: 107458
                                                IDEM SPESSORE MM. 1,25
                                                from £28.85
                                                from £28.85
                                                # 005
                                                MPN: 107459
                                                IDEM SPESSORE MM. 1,5
                                                from £10.52
                                                from £10.52
                                                # 005
                                                MPN: 107460
                                                IDEM SPESSORE MM. 1,75
                                                from £30.28
                                                from £30.28
                                                # 005
                                                MPN: 107461
                                                IDEM SPESSORE MM. 2
                                                from £29.67
                                                from £29.67
                                                # 006
                                                MPN: 100825
                                                SUPPORT MOUNT
                                                (86 mm outer diameter)
                                                from £79.31
                                                from £79.31
                                                # 006
                                                MPN: 131251
                                                SUPPORT MOUNT
                                                (90 mm diameter)
                                                from £116.03
                                                from £116.03
                                                This part replaces part number 100825 - and 1 more. Click to view details
                                                # 007
                                                MPN: 100826
                                                TAPPO SCARICO OLIO
                                                from £57.02
                                                from £57.02
                                                This part replaces part number 522659 - and 1 more. Click to view details
                                                # 008
                                                MPN: 13546321
                                                THREADED STUD
                                                Supersession
                                                Supersession
                                                This part replaces part number 13546320
                                                # 009
                                                MPN: 13598021
                                                NUT
                                                from £0.71
                                                from £0.71
                                                This part replaces part number 13598011
                                                # 010
                                                MPN: 16044021
                                                SCREW
                                                from £1.62
                                                from £1.62
                                                This part replaces part number 119631 which we have in stock
                                                # 011
                                                MPN: 11198074
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                # 012
                                                MPN: 13546221
                                                LONG THREADED STUD
                                                from £0.95
                                                from £0.95
                                                # 013
                                                MPN: 13449421
                                                SHORT THREADED STUD
                                                # 014
                                                MPN: 11198571
                                                WASHER
                                                With lids n. 120 184 e120185
                                                from £0.47
                                                from £0.47
                                                # 014
                                                MPN: 127497
                                                WASHER
                                                With lids n.1 20624 and 120625
                                                from £0.52
                                                from £0.52
                                                This part replaces part number 10516871 - and 2 more. Click to view details
                                                # 015
                                                MPN: 12164721
                                                NUT
                                                from £0.61
                                                from £0.61
                                                # 016
                                                MPN: 101638
                                                SEALING RING
                                                Supersession
                                                Supersession
                                                # 017
                                                MPN: 10275011
                                                PLUG
                                                from £1.05
                                                from £1.05
                                                This part replaces part number 10275001 - and 3 more. Click to view details
                                                # 018
                                                MPN: 10263460
                                                GASKET
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 95119
                                                # 019
                                                MPN: 102920
                                                SPACER BETWEEN CASE AND BEARING HOLDER
                                                from £73.28
                                                from £73.28
                                                This part replaces part number 580762
                                                # 020
                                                MPN: 10265160
                                                GASKET
                                                from £0.94
                                                from £0.94
                                                # 021
                                                MPN: 101639
                                                SCREW
                                                from £1.06
                                                from £1.06
                                                # 022
                                                MPN: 12574521
                                                NUT
                                                from £0.56
                                                from £0.56
                                                This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                                # 023
                                                MPN: 13550476
                                                WASHER
                                                # 024
                                                MPN: 13411990
                                                SFIATO
                                                from £2.39
                                                from £2.39
                                                # 025
                                                MPN: 102921
                                                REAR BEARING HOLDER
                                                from £165.47
                                                from £165.47
                                                This part replaces part number 580763
                                                # 026
                                                MPN: 106940
                                                FRONT BEARING OIL CONVEYOR
                                                from £22.75
                                                from £22.75
                                                # 027
                                                MPN: 100816
                                                COVER
                                                With box 100815
                                                from £221.88
                                                from £221.88
                                                This part replaces part number 580685
                                                # 027
                                                MPN: 110249
                                                COVER
                                                With box 100815
                                                from £215.68
                                                from £215.68
                                                # 027
                                                MPN: 120184
                                                COVER
                                                Dopo esaurimento n. 120624
                                                from £210.75
                                                from £210.75
                                                # 027
                                                MPN: 120186
                                                COVER
                                                Dopo esaurimenton. 120635
                                                from £249.42
                                                from £249.42
                                                This part replaces part number 120635
                                                # 027
                                                MPN: 120624
                                                COVER
                                                Con scatola 120197 - Fino esaurimento
                                                from £251.90
                                                from £251.90
                                                # 027
                                                MPN: 120635
                                                COVER
                                                Con scatola 120197 - Fino esaurimento
                                                Supersession
                                                Supersession
                                                # 028
                                                MPN: 14600870
                                                PIN
                                                from £0.47
                                                from £0.47
