Ferrari 400i (1983 Mechanical) Gearbox (400 GT) Parts Diagram

026 - Gearbox (400 GT)

Ferrari 400i (1983 Mechanical) Gearbox (400 GT) Parts Diagram

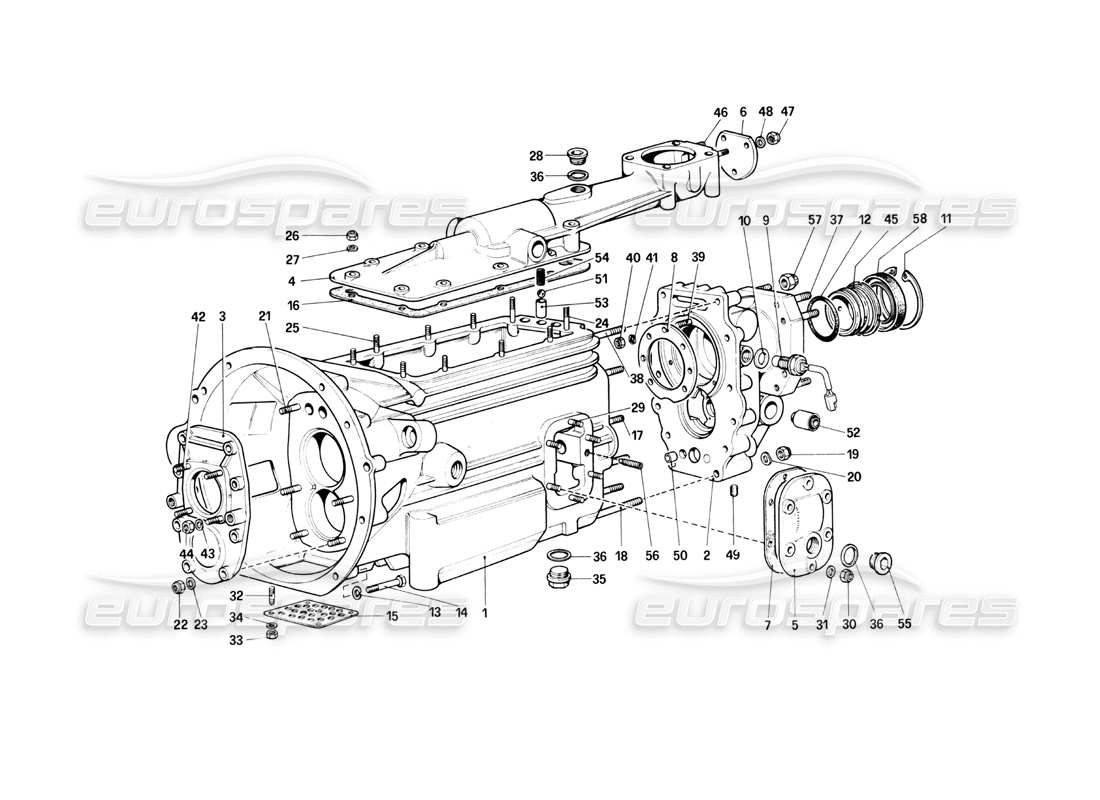

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 000
                                                                                                                    MPN: 119301
                                                                                                                    COMPLETE MANUAL GEARBOX 400I
                                                                                                                    VALID FOR LHD 400i
                                                                                                                    from £8,836.41
                                                                                                                    from £8,836.41
                                                                                                                    # 001
                                                                                                                    MPN: 111209
                                                                                                                    SCATOLA CAMBIO
                                                                                                                    Col complessivo n. 119302
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 001
                                                                                                                    MPN: 117179
                                                                                                                    SCATOLA CAMBIO
                                                                                                                    Col complessivo n. 119300
                                                                                                                    from £3,673.81
                                                                                                                    from £3,673.81
                                                                                                                    # 001
                                                                                                                    MPN: 119300
                                                                                                                    SCATOLA CAMBIO COMPLETA
                                                                                                                    Non vale per GD
                                                                                                                    from £3,665.56
                                                                                                                    from £3,665.56
                                                                                                                    # 001
                                                                                                                    MPN: 119302
                                                                                                                    SCATOLA CAMBIO COMPLETA
                                                                                                                    Vale per GD
                                                                                                                    from £3,277.85
                                                                                                                    from £3,277.85
                                                                                                                    # 002
                                                                                                                    MPN: 119222
                                                                                                                    COVER
                                                                                                                    from £741.70
                                                                                                                    from £741.70
                                                                                                                    # 003
                                                                                                                    MPN: 100676
                                                                                                                    COVER
                                                                                                                    from £279.06
                                                                                                                    from £279.06
                                                                                                                    This part replaces part number 523372
                                                                                                                    # 004
                                                                                                                    MPN: 104825
                                                                                                                    COVER
                                                                                                                    from £718.65
                                                                                                                    from £718.65
                                                                                                                    # 005
                                                                                                                    MPN: 100679
                                                                                                                    COVER
                                                                                                                    from £589.39
                                                                                                                    from £589.39
                                                                                                                    This part replaces part number 523375
                                                                                                                    # 006
                                                                                                                    MPN: 104827
                                                                                                                    COPERCHIETTO CHIUSURA FORO PER ASTA
                                                                                                                    from £6.60
                                                                                                                    from £6.60
                                                                                                                    # 007
                                                                                                                    MPN: 147627
                                                                                                                    GASKET
                                                                                                                    from £3.05
                                                                                                                    from £3.05
                                                                                                                    This part replaces part number 100682
                                                                                                                    # 008
                                                                                                                    MPN: 100685
                                                                                                                    FLANGIA TENUTA CUSCINETTO
                                                                                                                    from £123.99
                                                                                                                    from £123.99
                                                                                                                    This part replaces part number 523582
                                                                                                                    # 009
                                                                                                                    MPN: 116987
                                                                                                                    CAPTATORE D'IMPULSI
                                                                                                                    from £98.12
                                                                                                                    from £98.12
                                                                                                                    This part replaces part number 113962 - and 2 more. Click to view details
                                                                                                                    # 010
                                                                                                                    MPN: 10263460
                                                                                                                    GASKET
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 95119
                                                                                                                    # 011
                                                                                                                    MPN: 11061575
                                                                                                                    RING
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 012
                                                                                                                    MPN: 109650
                                                                                                                    SEALING RING
                                                                                                                    from £3.31
                                                                                                                    from £3.31
                                                                                                                    # 013
                                                                                                                    MPN: 11198074
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                    # 014
                                                                                                                    MPN: 16044224
                                                                                                                    BOLT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 16044221 which we have in stock
                                                                                                                    # 015
                                                                                                                    MPN: 100687
                                                                                                                    COPERCHIETTO INFERIORE
                                                                                                                    from £61.16
                                                                                                                    from £61.16
                                                                                                                    This part replaces part number 50820
                                                                                                                    # 016
                                                                                                                    MPN: 147628
                                                                                                                    GASKET
                                                                                                                    from £18.04
                                                                                                                    from £18.04
                                                                                                                    This part replaces part number 100686
                                                                                                                    # 017
                                                                                                                    MPN: 13517221
                                                                                                                    STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 018
                                                                                                                    MPN: 13517821
                                                                                                                    THREADED STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 019
                                                                                                                    MPN: 104030
                                                                                                                    NUT
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    This part replaces part number 16104125
                                                                                                                    # 020
                                                                                                                    MPN: 12601371
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 021
                                                                                                                    MPN: 13517321
                                                                                                                    THREADED STUD
                                                                                                                    from £16.90
                                                                                                                    from £16.90
                                                                                                                    This part replaces part number 13517320
                                                                                                                    # 022
                                                                                                                    MPN: 104030
                                                                                                                    NUT
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 16104125
                                                                                                                    # 023
                                                                                                                    MPN: 12601371
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 024
                                                                                                                    MPN: 11501221
                                                                                                                    THREADED STUD
                                                                                                                    from £2.66
                                                                                                                    from £2.66
                                                                                                                    # 025
                                                                                                                    MPN: 11500521
                                                                                                                    THREADED STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 026
                                                                                                                    MPN: 12574221
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                                    # 027
                                                                                                                    MPN: 12601271
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                    # 028
                                                                                                                    MPN: 100759
                                                                                                                    TAPPO SFIATO
                                                                                                                    from £10.95
                                                                                                                    from £10.95
                                                                                                                    This part replaces part number 523668
                                                                                                                    # 029
                                                                                                                    MPN: 11500521
                                                                                                                    THREADED STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 030
                                                                                                                    MPN: 12574221
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                                    # 031
                                                                                                                    MPN: 12601271
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                    # 032
                                                                                                                    MPN: 11000821
                                                                                                                    THREADED STUD
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 033
                                                                                                                    MPN: 15896421
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 034
                                                                                                                    MPN: 12601171
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 035
                                                                                                                    MPN: 14326540
                                                                                                                    DRAIN PLUG
                                                                                                                    from £35.89
                                                                                                                    from £35.89
                                                                                                                    # 036
                                                                                                                    MPN: 10263460
                                                                                                                    GASKET
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 95119
                                                                                                                    # 037
                                                                                                                    MPN: 13546331
                                                                                                                    THREADED STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 038
                                                                                                                    MPN: 13517521
                                                                                                                    THREADED STUD
                                                                                                                    from £6.77
                                                                                                                    from £6.77
                                                                                                                    # 039
                                                                                                                    MPN: 13540821
                                                                                                                    THREADED STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 040
                                                                                                                    MPN: 15896221
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 15896225
                                                                                                                    # 041
                                                                                                                    MPN: 10516471
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 042
                                                                                                                    MPN: 11500021
                                                                                                                    THREADED STUD
                                                                                                                    from £9.50
                                                                                                                    from £9.50
                                                                                                                    # 043
                                                                                                                    MPN: 10516471
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 044
                                                                                                                    MPN: 15896221
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 15896225
                                                                                                                    # 045
                                                                                                                    MPN: 109647
                                                                                                                    BUSH FOR OIL SEAL SEAT
                                                                                                                    from £106.52
                                                                                                                    from £106.52
                                                                                                                    # 046
                                                                                                                    MPN: 11000921
                                                                                                                    THREADED STUD
                                                                                                                    from £2.00
                                                                                                                    from £2.00
                                                                                                                    # 047
                                                                                                                    MPN: 12574121
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 12574111 - and 2 more. Click to view details
                                                                                                                    # 048
                                                                                                                    MPN: 12601171
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 049
                                                                                                                    MPN: 14326050
                                                                                                                    PLUG
                                                                                                                    from £1.01
                                                                                                                    from £1.01
                                                                                                                    # 050
                                                                                                                    MPN: 102692
                                                                                                                    GRANO CENTRAGGIO
                                                                                                                    from £4.94
                                                                                                                    from £4.94
                                                                                                                    # 051
                                                                                                                    MPN: 101612
                                                                                                                    SF ERA PER PUNTALINO Ø 5/1 6
                                                                                                                    from £0.70
                                                                                                                    from £0.70
                                                                                                                    This part replaces part number 93309
                                                                                                                    # 052
                                                                                                                    MPN: 105634
                                                                                                                    SILENTBLOC PER TIRANTE
                                                                                                                    from £49.67
                                                                                                                    from £49.67
                                                                                                                    # 053
                                                                                                                    MPN: 100749
                                                                                                                    BUSH
                                                                                                                    from £52.78
                                                                                                                    from £52.78
                                                                                                                    # 054
                                                                                                                    MPN: 100750
                                                                                                                    SPRING
                                                                                                                    from £0.91
                                                                                                                    from £0.91
                                                                                                                    This part replaces part number 523899
                                                                                                                    # 055
                                                                                                                    MPN: 10275011
                                                                                                                    PLUG
                                                                                                                    from £1.05
                                                                                                                    from £1.05
                                                                                                                    This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                                    # 056
                                                                                                                    MPN: 101620
                                                                                                                    PIN FIXING GRIN FOR IDLER GEAR RM
                                                                                                                    from £1.52
                                                                                                                    from £1.52
                                                                                                                    # 057
                                                                                                                    MPN: 13598021
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 13598011
                                                                                                                    # 058
                                                                                                                    MPN: 106778
                                                                                                                    SEAL
                                                                                                                    from £52.80
                                                                                                                    from £52.80
                                                                                                                    This part replaces part number 104872 - and 1 more. Click to view details
