017 - Water Pump and Engine Oil Pump

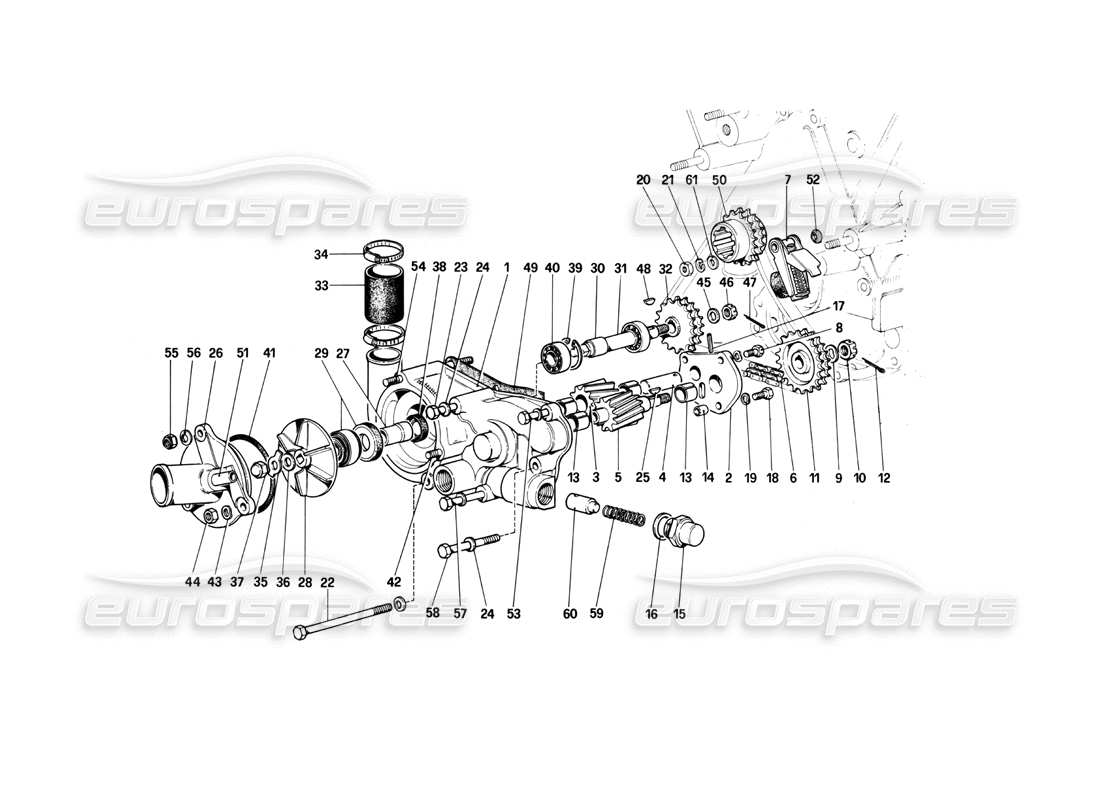

Ferrari 400i (1983 Mechanical) Water Pump and Engine Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                          #
                                                                                                                          Part number
                                                                                                                          Description
                                                                                                                          Price
                                                                                                                          # 001
                                                                                                                          MPN: 108794
                                                                                                                          OIL AND WATER PUMP BODY
                                                                                                                          Col complessivo n. 108902
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          # 001
                                                                                                                          MPN: 125168
                                                                                                                          COMPLETE WATER AND OIL PUMP BODY
                                                                                                                          from £1,299.59
                                                                                                                          from £1,299.59
                                                                                                                          This part replaces part number 108902
                                                                                                                          # 002
                                                                                                                          MPN: 100293
                                                                                                                          COVER
                                                                                                                          from £348.80
                                                                                                                          from £348.80
                                                                                                                          This part replaces part number 240709

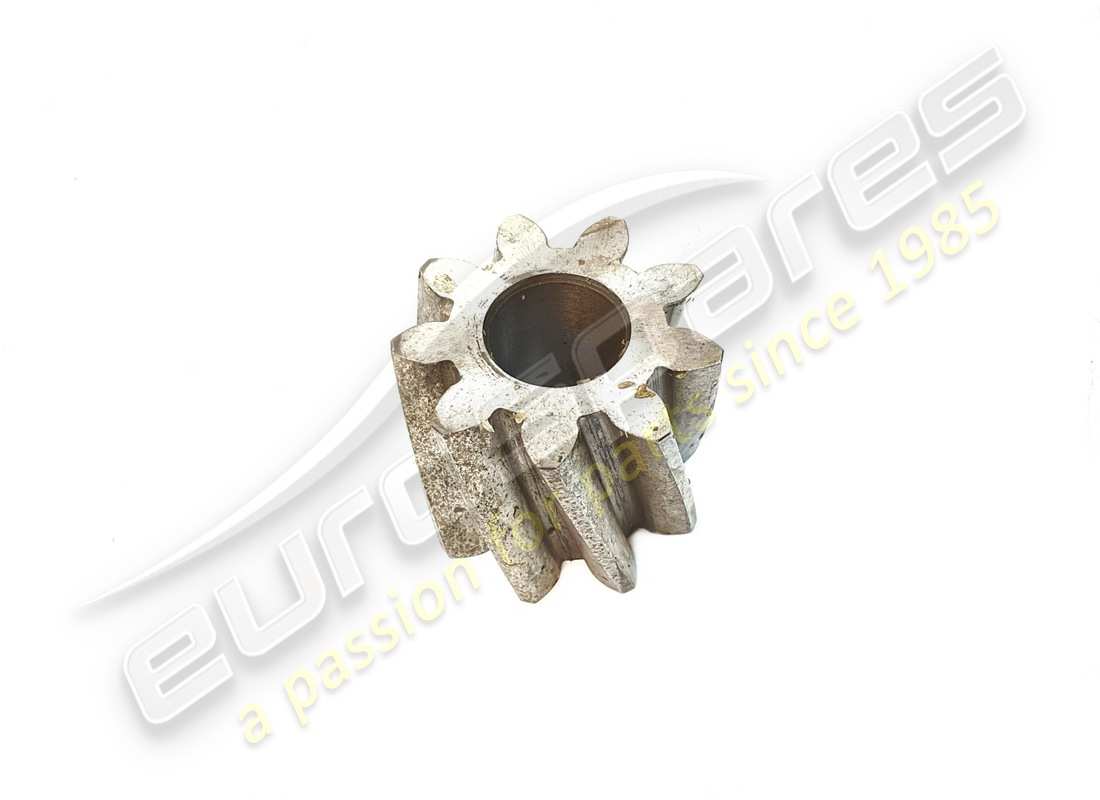

                                                                                                                          # 003
                                                                                                                          MPN: 100297
                                                                                                                          DRIVEN GEAR
                                                                                                                          from £306.25
                                                                                                                          from £306.25
                                                                                                                          This part replaces part number 240423
                                                                                                                          # 004
                                                                                                                          MPN: 100298
                                                                                                                          PIVOT
                                                                                                                          This part replaces part number 240712
                                                                                                                          # 005
                                                                                                                          MPN: 100296
                                                                                                                          DRIVING GEAR
                                                                                                                          from £434.78
                                                                                                                          from £434.78
                                                                                                                          This part replaces part number 240736
                                                                                                                          # 006
                                                                                                                          MPN: 100303
                                                                                                                          OIL PUMP AND WATER PUMP CONTROL CHAIN
                                                                                                                          from £123.48
                                                                                                                          from £123.48
                                                                                                                          This part replaces part number 240711
                                                                                                                          # 007
                                                                                                                          MPN: 114329
                                                                                                                          TENDICATENA
                                                                                                                          from £236.84
                                                                                                                          from £236.84
                                                                                                                          This part replaces part number 100304
                                                                                                                          # 008
                                                                                                                          MPN: 10902231
                                                                                                                          BOLT
                                                                                                                          # 009
                                                                                                                          MPN: 100301
                                                                                                                          WASHER
                                                                                                                          from £1.05
                                                                                                                          from £1.05
                                                                                                                          This part replaces part number 92507
                                                                                                                          # 010
                                                                                                                          MPN: 100302
                                                                                                                          NUT
                                                                                                                          from £4.24
                                                                                                                          from £4.24
                                                                                                                          This part replaces part number 95172
                                                                                                                          # 011
                                                                                                                          MPN: 100295
                                                                                                                          EXTERNAL DRIVEN GEAR NO
                                                                                                                          from £302.94
                                                                                                                          from £302.94
                                                                                                                          This part replaces part number 240710
                                                                                                                          # 012
                                                                                                                          MPN: 10734300
                                                                                                                          SPLIT PIN
                                                                                                                          # 013
                                                                                                                          MPN: 100299
                                                                                                                          BOCCOTE
                                                                                                                          from £12.77
                                                                                                                          from £12.77
                                                                                                                          # 014
                                                                                                                          MPN: 102725
                                                                                                                          DOWEL
                                                                                                                          from £0.66
                                                                                                                          from £0.66
                                                                                                                          # 015
                                                                                                                          MPN: 106237
                                                                                                                          VALVE CAP
                                                                                                                          from £25.24
                                                                                                                          from £25.24

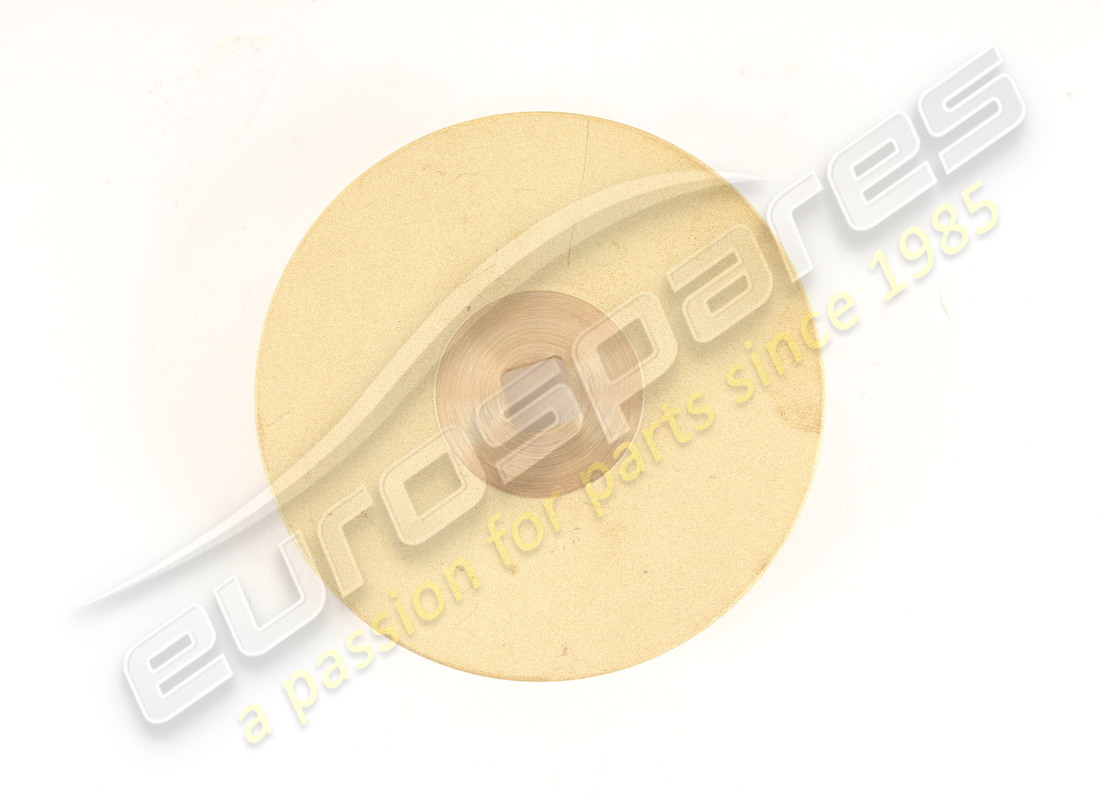

                                                                                                                          # 016
                                                                                                                          MPN: 144487
                                                                                                                          GASKET
                                                                                                                          from £18.15
                                                                                                                          from £18.15

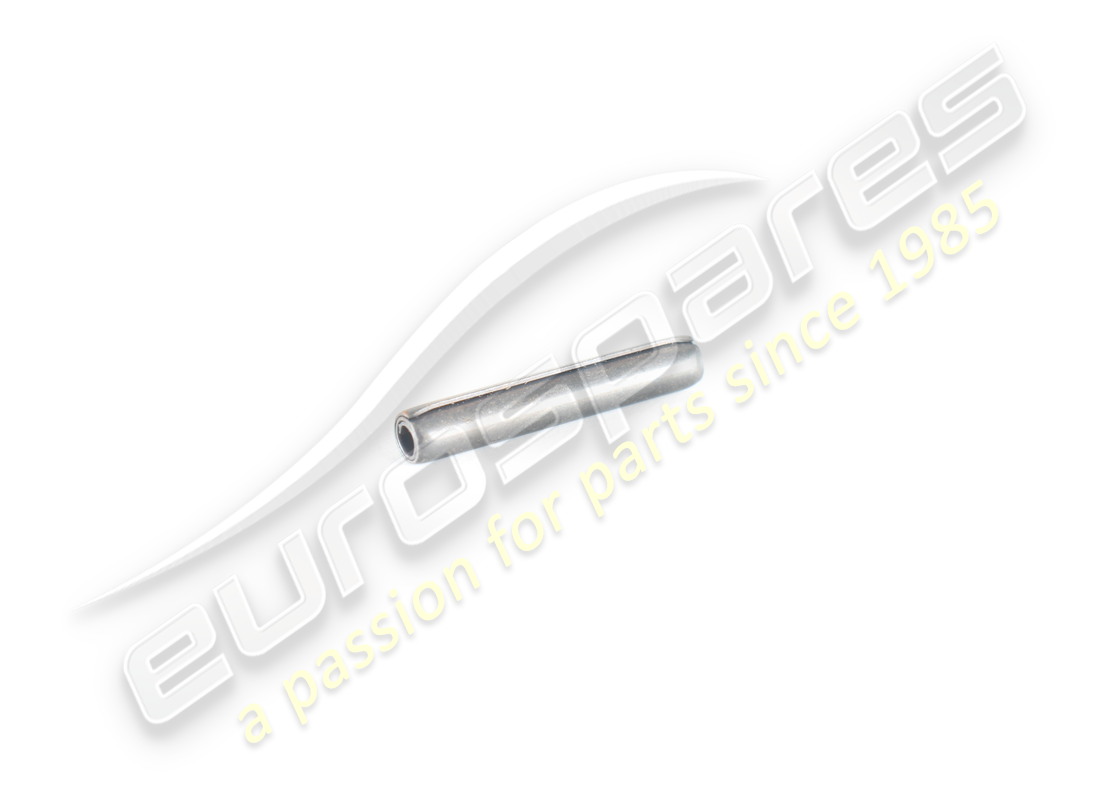

                                                                                                                          # 017
                                                                                                                          MPN: 100300
                                                                                                                          PIN
                                                                                                                          from £1.69
                                                                                                                          from £1.69
                                                                                                                          # 018
                                                                                                                          MPN: 10902431
                                                                                                                          BOLT
                                                                                                                          from £3.74
                                                                                                                          from £3.74
                                                                                                                          This part replaces part number 10902430
                                                                                                                          # 019
                                                                                                                          MPN: 12601271
                                                                                                                          WASHER
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                          # 020
                                                                                                                          MPN: 10720121
                                                                                                                          NUT
                                                                                                                          from £0.93
                                                                                                                          from £0.93
                                                                                                                          # 021
                                                                                                                          MPN: 106850
                                                                                                                          WASHER
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                                          # 022
                                                                                                                          MPN: 109731
                                                                                                                          BOLT
                                                                                                                          from £13.16
                                                                                                                          from £13.16
                                                                                                                          # 023
                                                                                                                          MPN: 16044421
                                                                                                                          BOLT
                                                                                                                          from £1.35
                                                                                                                          from £1.35
                                                                                                                          # 024
                                                                                                                          MPN: 11198074
                                                                                                                          WASHER
                                                                                                                          from £0.47
                                                                                                                          from £0.47
                                                                                                                          This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                          # 025
                                                                                                                          MPN: 10617120
                                                                                                                          Key
                                                                                                                          from £1.59
                                                                                                                          from £1.59
                                                                                                                          This part replaces part number 92
                                                                                                                          # 026
                                                                                                                          MPN: 104328
                                                                                                                          COVER
                                                                                                                          from £564.66
                                                                                                                          from £564.66
                                                                                                                          This part replaces part number 100437 - and 1 more. Click to view details
                                                                                                                          # 027
                                                                                                                          MPN: 100431
                                                                                                                          SPACER BETWEEN IMPELLER AND BEARING
                                                                                                                          from £61.94
                                                                                                                          from £61.94
                                                                                                                          This part replaces part number 26760
                                                                                                                          # 028
                                                                                                                          MPN: 100430
                                                                                                                          GIRANTE PER POMPA ACQUA
                                                                                                                          from £170.50
                                                                                                                          from £170.50
                                                                                                                          This part replaces part number 26614 - and 1 more. Click to view details

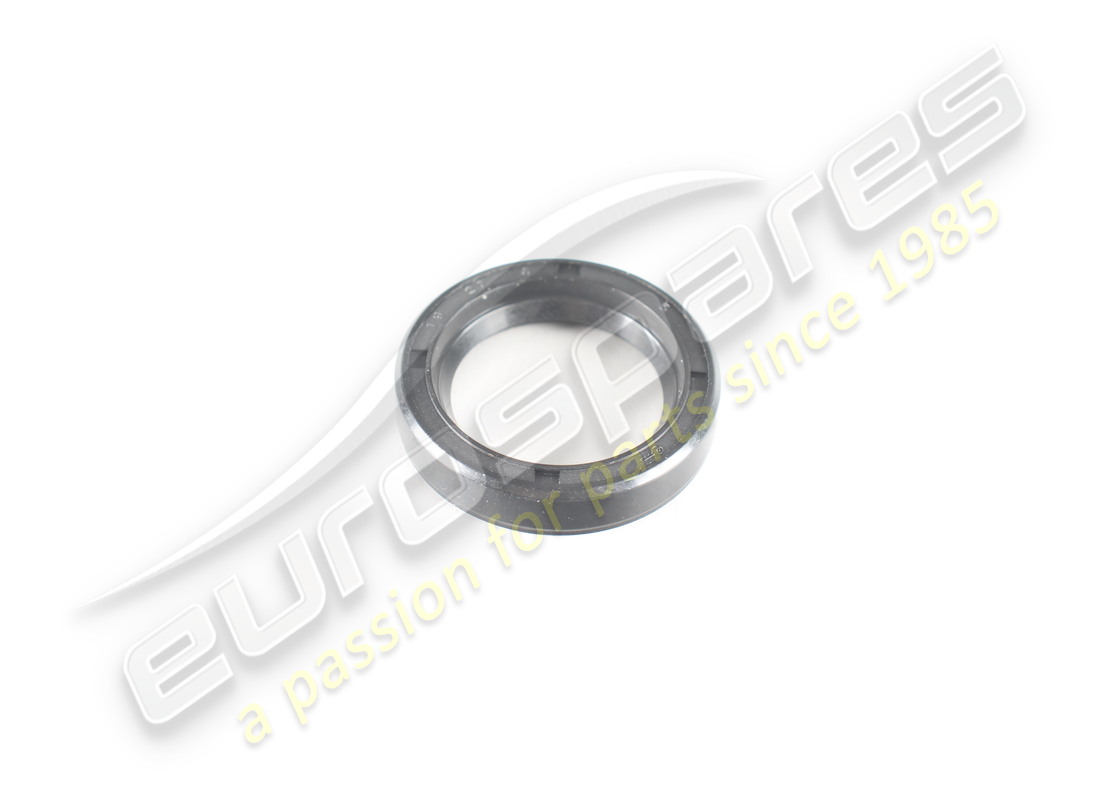

                                                                                                                          # 029
                                                                                                                          MPN: 100433
                                                                                                                          SEALING RING
                                                                                                                          from £69.95
                                                                                                                          from £69.95
                                                                                                                          This part replaces part number 114410
                                                                                                                          # 030
                                                                                                                          MPN: 100432
                                                                                                                          INTERMEDIATE SPACER
                                                                                                                          from £17.82
                                                                                                                          from £17.82
                                                                                                                          This part replaces part number 26788
                                                                                                                          # 031
                                                                                                                          MPN: 100653
                                                                                                                          GEAR SHAFT
                                                                                                                          from £232.53
                                                                                                                          from £232.53
                                                                                                                          This part replaces part number 26813
                                                                                                                          # 032
                                                                                                                          MPN: 100429
                                                                                                                          INGRANAGGIO
                                                                                                                          from £284.81
                                                                                                                          from £284.81
                                                                                                                          This part replaces part number 26814
                                                                                                                          # 033
                                                                                                                          MPN: 100440
                                                                                                                          SLEEVE
                                                                                                                          from £33.12
                                                                                                                          from £33.12
                                                                                                                          This part replaces part number 95503
                                                                                                                          # 034
                                                                                                                          MPN: 12180090
                                                                                                                          JUBILEE CLIP
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          This part replaces part number 102958
                                                                                                                          # 035
                                                                                                                          MPN: 100434
                                                                                                                          PLATE
                                                                                                                          from £7.26
                                                                                                                          from £7.26
                                                                                                                          This part replaces part number 92361 - and 1 more. Click to view details
                                                                                                                          # 036
                                                                                                                          MPN: 10730321
                                                                                                                          WASHER
                                                                                                                          from £0.66
                                                                                                                          from £0.66
                                                                                                                          This part replaces part number 10730301 - and 2 more. Click to view details
                                                                                                                          # 037
                                                                                                                          MPN: 100436
                                                                                                                          CAP NUT
                                                                                                                          from £7.41
                                                                                                                          from £7.41
                                                                                                                          This part replaces part number 92896
                                                                                                                          # 038
                                                                                                                          MPN: 101136
                                                                                                                          SEALING RING
                                                                                                                          from £17.54
                                                                                                                          from £17.54
                                                                                                                          This part replaces part number 108060
                                                                                                                          # 039
                                                                                                                          MPN: 11059076
                                                                                                                          SEEGER RING
                                                                                                                          from £0.66
                                                                                                                          from £0.66
                                                                                                                          This part replaces part number 11059075
                                                                                                                          # 040
                                                                                                                          MPN: 10-16-03
                                                                                                                          BEARING
                                                                                                                          from £3,035.00
                                                                                                                          from £3,035.00
                                                                                                                          This part replaces part number 114763 - and 1 more. Click to view details
                                                                                                                          # 041
                                                                                                                          MPN: 101023
                                                                                                                          SEALING RING
                                                                                                                          from £4.03
                                                                                                                          from £4.03

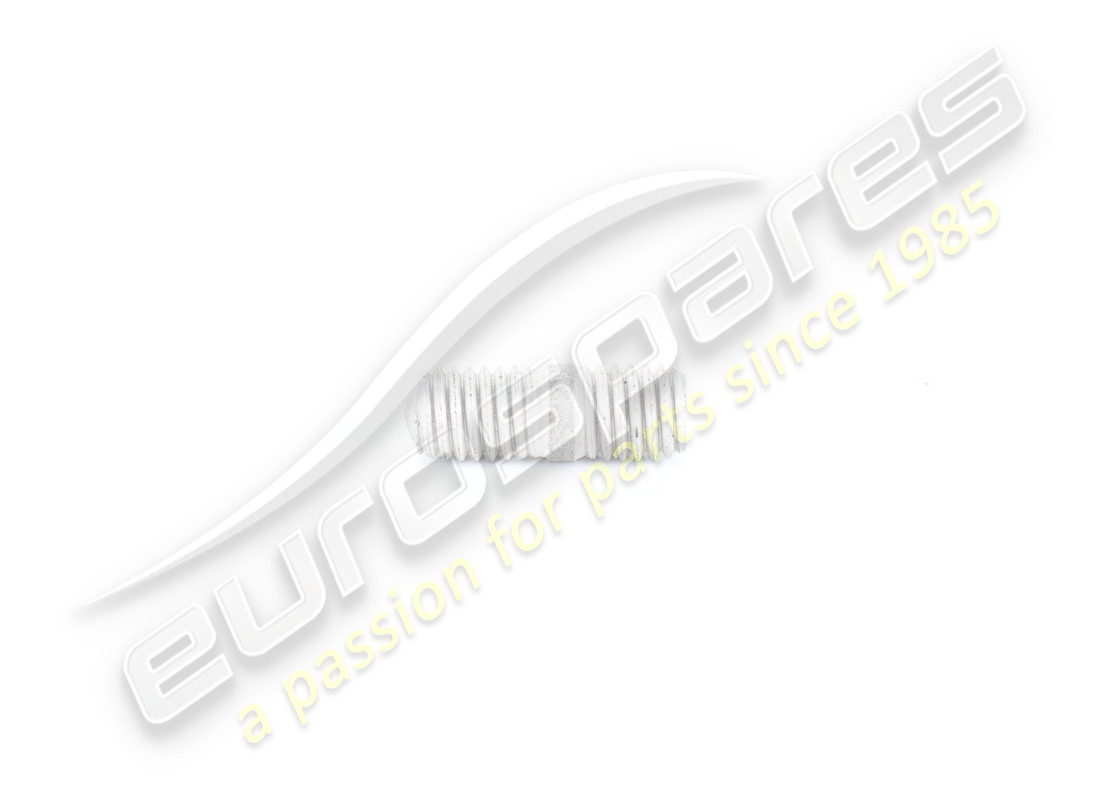

                                                                                                                          # 042
                                                                                                                          MPN: 100438
                                                                                                                          THREADED STUD
                                                                                                                          from £10.04
                                                                                                                          from £10.04
                                                                                                                          This part replaces part number 26790
                                                                                                                          # 043
                                                                                                                          MPN: 11198074
                                                                                                                          WASHER
                                                                                                                          from £0.47
                                                                                                                          from £0.47
                                                                                                                          This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                          # 044
                                                                                                                          MPN: 16100821
                                                                                                                          NUT
                                                                                                                          from £0.71
                                                                                                                          from £0.71
                                                                                                                          This part replaces part number 16100825 which we have in stock
                                                                                                                          # 045
                                                                                                                          MPN: 100301
                                                                                                                          WASHER
                                                                                                                          from £1.05
                                                                                                                          from £1.05
                                                                                                                          This part replaces part number 92507
                                                                                                                          # 046
                                                                                                                          MPN: 100302
                                                                                                                          NUT
                                                                                                                          from £4.24
                                                                                                                          from £4.24
                                                                                                                          This part replaces part number 95172
                                                                                                                          # 047
                                                                                                                          MPN: 10734300
                                                                                                                          SPLIT PIN
                                                                                                                          # 048
                                                                                                                          MPN: 10617120
                                                                                                                          Key
                                                                                                                          from £1.59
                                                                                                                          from £1.59
                                                                                                                          This part replaces part number 92
                                                                                                                          # 049
                                                                                                                          MPN: 147613
                                                                                                                          GASKET
                                                                                                                          from £6.72
                                                                                                                          from £6.72
                                                                                                                          This part replaces part number 100054
                                                                                                                          # 050
                                                                                                                          MPN: 100294
                                                                                                                          DRIVE GEAR
                                                                                                                          from £920.34
                                                                                                                          from £920.34
                                                                                                                          This part replaces part number 12739
                                                                                                                          # 051
                                                                                                                          MPN: 100652
                                                                                                                          UNION
                                                                                                                          from £47.07
                                                                                                                          from £47.07
                                                                                                                          This part replaces part number 26812
                                                                                                                          # 052
                                                                                                                          MPN: 114333
                                                                                                                          SPACER
                                                                                                                          from £13.98
                                                                                                                          from £13.98
                                                                                                                          # 053
                                                                                                                          MPN: 16044621
                                                                                                                          BOLT
                                                                                                                          from £0.71
                                                                                                                          from £0.71
                                                                                                                          # 054
                                                                                                                          MPN: 102638
                                                                                                                          THREADED STUD
                                                                                                                          from £17.31
                                                                                                                          from £17.31
                                                                                                                          This part replaces part number 220633
                                                                                                                          # 055
                                                                                                                          MPN: 16100824
                                                                                                                          NUT
                                                                                                                          from £0.53
                                                                                                                          from £0.53
                                                                                                                          This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                          # 056
                                                                                                                          MPN: 11198074
                                                                                                                          WASHER
                                                                                                                          from £0.47
                                                                                                                          from £0.47
                                                                                                                          This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                          # 057
                                                                                                                          MPN: 16046021
                                                                                                                          BOLT
                                                                                                                          from £2.62
                                                                                                                          from £2.62
                                                                                                                          # 058
                                                                                                                          MPN: 103576
                                                                                                                          BOLT
                                                                                                                          from £8.70
                                                                                                                          from £8.70
                                                                                                                          This part replaces part number 95610
                                                                                                                          # 059
                                                                                                                          MPN: 106900
                                                                                                                          MOILA PER VALVOLA
                                                                                                                          from £2.04
                                                                                                                          from £2.04
                                                                                                                          # 060
                                                                                                                          MPN: 125885
                                                                                                                          PISTON
                                                                                                                          from £69.55
                                                                                                                          from £69.55
                                                                                                                          This part replaces part number 106236 - and 3 more. Click to view details
                                                                                                                          # 061
                                                                                                                          MPN: 10730121
                                                                                                                          WASHER
                                                                                                                          from £0.47
                                                                                                                          from £0.47
