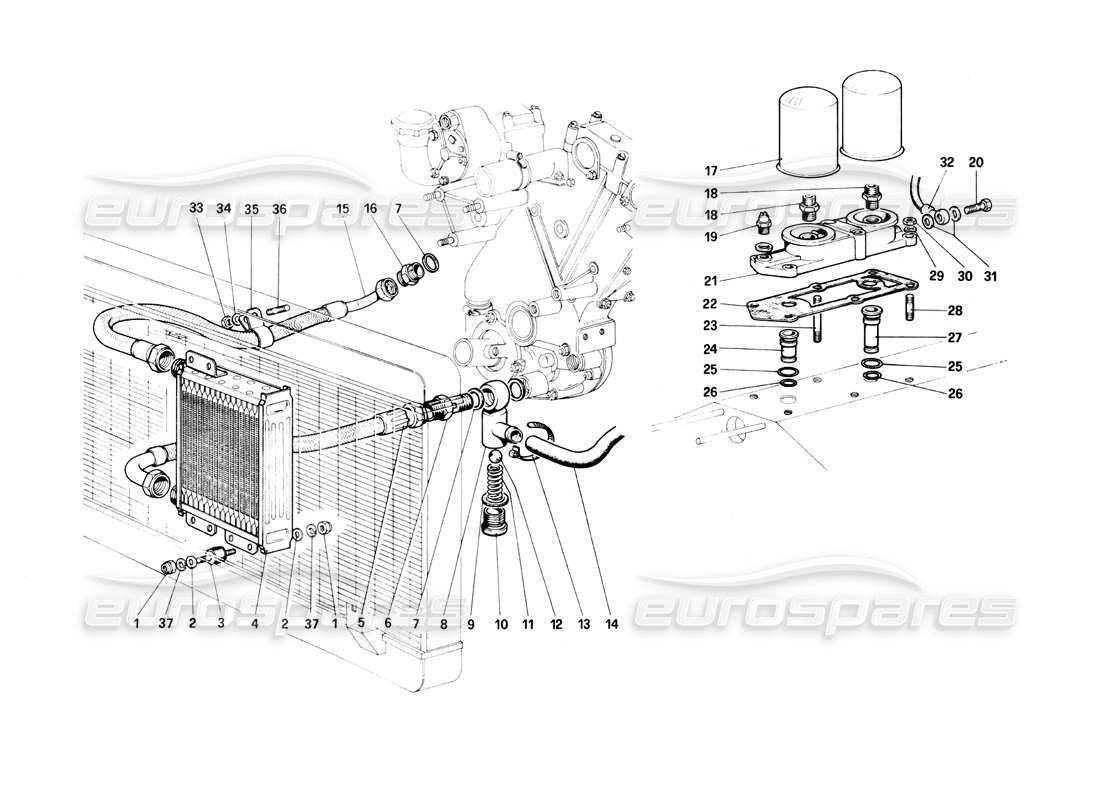

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210
                                                                            # 002
                                                                            MPN: 12643724
                                                                            WASHER
                                                                            from £0.50
                                                                            from £0.50
                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                            # 003
                                                                            MPN: 102947
                                                                            SUPPORT
                                                                            from £7.04
                                                                            from £7.04
                                                                            This part replaces part number 102007 - and 14 more. Click to view details
                                                                            # 004
                                                                            MPN: 145712
                                                                            OIL RADIATOR
                                                                            from £674.51
                                                                            from £674.51
                                                                            This part replaces part number 106965 - and 1 more. Click to view details
                                                                            # 005
                                                                            MPN: 114813
                                                                            TUBO DALLA POM PA AL RADIATORE
                                                                            from £404.60
                                                                            from £404.60
                                                                            # 006
                                                                            MPN: 111626
                                                                            UNION
                                                                            from £56.98
                                                                            from £56.98
                                                                            # 007
                                                                            MPN: 10263460
                                                                            GASKET
                                                                            from £0.52
                                                                            from £0.52
                                                                            This part replaces part number 95119
                                                                            # 008
                                                                            MPN: 111621
                                                                            PRESSURE RELIEF VALVE
                                                                            from £126.78
                                                                            from £126.78
                                                                            # 009
                                                                            MPN: 10257460
                                                                            GASKET
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 94702
                                                                            # 010
                                                                            MPN: 111625
                                                                            CAP FOR RELIEF VALVE
                                                                            from £20.77
                                                                            from £20.77
                                                                            # 011
                                                                            MPN: 111624
                                                                            SPRING
                                                                            from £3.65
                                                                            from £3.65
                                                                            # 012
                                                                            MPN: 109972
                                                                            BALL FOR RELIEF VALVE
                                                                            from £1.73
                                                                            from £1.73
                                                                            # 013
                                                                            MPN: 13000490
                                                                            JUBILEE CLIP
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10169090 - and 3 more. Click to view details
                                                                            # 014
                                                                            MPN: 111627
                                                                            HOSE FROM RELIEF VALVE TO FITTING ON PUMP
                                                                            from £47.96
                                                                            from £47.96
                                                                            # 015
                                                                            MPN: 114814
                                                                            TUBO DAL RADIATORE AL BASAMENTO
                                                                            from £422.70
                                                                            from £422.70
                                                                            # 016
                                                                            MPN: 100305
                                                                            UNION
                                                                            from £15.83
                                                                            from £15.83
                                                                            # 017
                                                                            MPN: 100325/OE
                                                                            OIL FILTER (FULL FLOW)
                                                                            from £46.95
                                                                            from £46.95
                                                                            # 018
                                                                            MPN: 100327
                                                                            UNION
                                                                            from £42.00
                                                                            from £42.00
                                                                            This part replaces part number 240216
                                                                            # 019
                                                                            MPN: 110664
                                                                            MINIMUM OIL PRESSURE SWITCH
                                                                            from £11.73
                                                                            from £11.73
                                                                            # 020
                                                                            MPN: 102580
                                                                            UNION
                                                                            from £34.43
                                                                            from £34.43
                                                                            This part replaces part number 220627
                                                                            # 021
                                                                            MPN: 110458
                                                                            OIL FILTER BASE
                                                                            from £206.46
                                                                            from £206.46
                                                                            # 022
                                                                            MPN: 147640
                                                                            GASKET
                                                                            from £15.41
                                                                            from £15.41
                                                                            This part replaces part number 103527 - and 1 more. Click to view details
                                                                            # 023
                                                                            MPN: 13544221
                                                                            THREADED STUD
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 13517820 - and 1 more. Click to view details
                                                                            # 024
                                                                            MPN: 100334
                                                                            UNION
                                                                            from £66.93
                                                                            from £66.93
                                                                            # 025
                                                                            MPN: 101033
                                                                            RING
                                                                            from £3.48
                                                                            from £3.48
                                                                            # 026
                                                                            MPN: 101034
                                                                            SEALING RING
                                                                            from £1.00
                                                                            from £1.00
                                                                            # 027
                                                                            MPN: 100335
                                                                            UNION
                                                                            from £84.37
                                                                            from £84.37
                                                                            This part replaces part number 9100842
                                                                            # 028
                                                                            MPN: 13543621
                                                                            STUD
                                                                            Supersession
                                                                            Supersession
                                                                            # 029
                                                                            MPN: 11198074
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                            # 030
                                                                            MPN: 16100821
                                                                            NUT
                                                                            from £0.49
                                                                            from £0.49
                                                                            This part replaces part number 16100825 which we have in stock
                                                                            # 031
                                                                            MPN: 10260160
                                                                            GASKET
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10260170
                                                                            # 032
                                                                            MPN: 110459
                                                                            PIPE CONNECTING FILTERS BASE TO THE DEPRESSOR
                                                                            from £140.44
                                                                            from £140.44
                                                                            # 033
                                                                            MPN: 12574211
                                                                            NUT
                                                                            from £0.49
                                                                            from £0.49
                                                                            # 034
                                                                            MPN: 12643724
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                            # 035
                                                                            MPN: 10441990
                                                                            JUBILEE CLIP
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 036
                                                                            MPN: 111163
                                                                            THREADED STUD
                                                                            from £14.67
                                                                            from £14.67
                                                                            # 037
                                                                            MPN: 106850
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516473 - and 1 more. Click to view details
