ferrari 400i (1983 mechanical) fuel tanks, pumps, lines parts diagram

009 - fuel tanks, pumps, lines

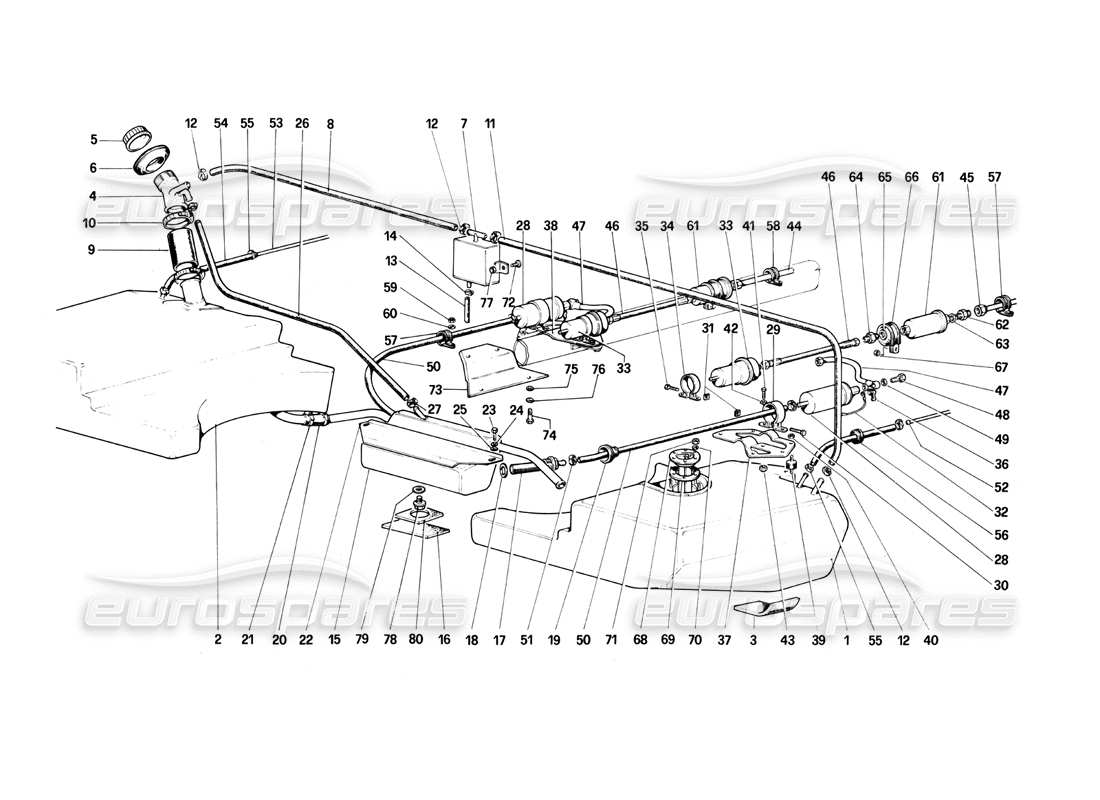

Ferrari 400i (1983 Mechanical) Fuel Tanks, Pumps, Lines Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                      #
                                                                                                                                                      Part number
                                                                                                                                                      Description
                                                                                                                                                      Price
                                                                                                                                                      # 002
                                                                                                                                                      MPN: 114255
                                                                                                                                                      Serbatoio destro
                                                                                                                                                      from £2,030.90
                                                                                                                                                      from £2,030.90
                                                                                                                                                      # 002

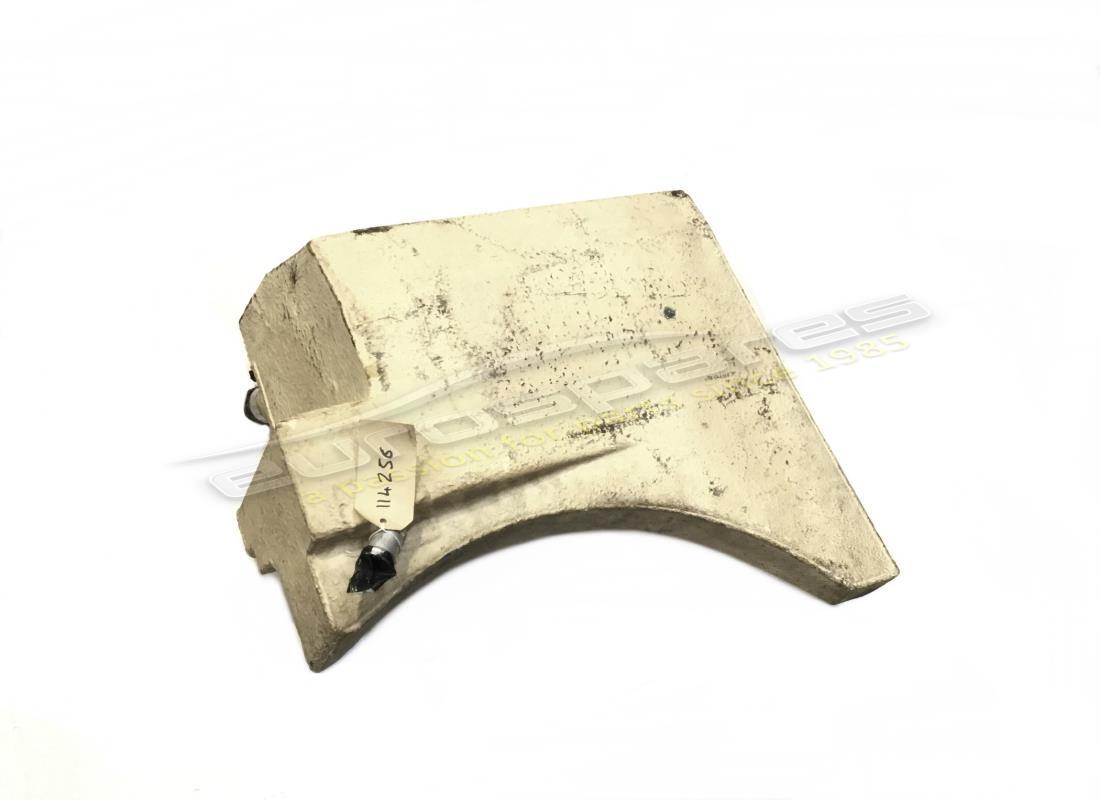

                                                                                                                                                      MPN: 114256
                                                                                                                                                      SERBATOIO SINISTRO
                                                                                                                                                      from £807.96
                                                                                                                                                      from £807.96
                                                                                                                                                      # 003
                                                                                                                                                      MPN: 105997
                                                                                                                                                      FELT FOR TANK ADAPTATION
                                                                                                                                                      # 004
                                                                                                                                                      MPN: 114257
                                                                                                                                                      FUEL FILLER
                                                                                                                                                      from £184.28
                                                                                                                                                      from £184.28
                                                                                                                                                      # 005
                                                                                                                                                      MPN: 113401
                                                                                                                                                      FUEL FILLER CAP
                                                                                                                                                      from £65.57
                                                                                                                                                      from £65.57
                                                                                                                                                      This part replaces part number 101453 - and 3 more. Click to view details
                                                                                                                                                      # 006
                                                                                                                                                      MPN: 101465
                                                                                                                                                      GASKET OR SEAL
                                                                                                                                                      from £45.30
                                                                                                                                                      from £45.30
                                                                                                                                                      This part replaces part number 821287 - and 3 more. Click to view details
                                                                                                                                                      # 007
                                                                                                                                                      MPN: 116150
                                                                                                                                                      BOX RETAINS PETROL FROM THE TANK VENT
                                                                                                                                                      from £77.06
                                                                                                                                                      from £77.06
                                                                                                                                                      # 008
                                                                                                                                                      MPN: 116152
                                                                                                                                                      TUBO SF IATO
                                                                                                                                                      from £19.61
                                                                                                                                                      from £19.61
                                                                                                                                                      # 009
                                                                                                                                                      MPN: 115677
                                                                                                                                                      SLEEVE
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 101455
                                                                                                                                                      # 010
                                                                                                                                                      MPN: 12174790
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £1.08
                                                                                                                                                      from £1.08
                                                                                                                                                      This part replaces part number 50188200
                                                                                                                                                      # 011
                                                                                                                                                      MPN: 116151
                                                                                                                                                      TUBO SF IATO
                                                                                                                                                      from £11.62
                                                                                                                                                      from £11.62
                                                                                                                                                      # 012
                                                                                                                                                      MPN: 13000390
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                                                      # 013
                                                                                                                                                      MPN: 116153
                                                                                                                                                      TUBO SF IATO
                                                                                                                                                      from £5.12
                                                                                                                                                      from £5.12
                                                                                                                                                      # 014
                                                                                                                                                      MPN: 101296
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      # 015
                                                                                                                                                      MPN: 114237
                                                                                                                                                      SERBATOIO SUPPLEMENTARE
                                                                                                                                                      # 016
                                                                                                                                                      MPN: 115330
                                                                                                                                                      TANK SUPPORT FELT
                                                                                                                                                      from £8.54
                                                                                                                                                      from £8.54
                                                                                                                                                      # 017
                                                                                                                                                      MPN: 114250
                                                                                                                                                      ADDITIONAL TANK FILTER
                                                                                                                                                      from £71.46
                                                                                                                                                      from £71.46
                                                                                                                                                      # 018
                                                                                                                                                      MPN: 117884
                                                                                                                                                      GASKET
                                                                                                                                                      from £18.67
                                                                                                                                                      from £18.67
                                                                                                                                                      # 019
                                                                                                                                                      MPN: 114967
                                                                                                                                                      SOFFIETTO
                                                                                                                                                      # 020
                                                                                                                                                      MPN: 117616
                                                                                                                                                      SLEEVE
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 114259
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 108785
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 022
                                                                                                                                                      MPN: 116560
                                                                                                                                                      BRACKET / SUPPORT
                                                                                                                                                      from £42.16
                                                                                                                                                      from £42.16
                                                                                                                                                      # 023
                                                                                                                                                      MPN: 16043321
                                                                                                                                                      SCREW
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 024
                                                                                                                                                      MPN: 10519624
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                                                      # 025
                                                                                                                                                      MPN: 106852
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 10516670 - and 2 more. Click to view details
                                                                                                                                                      # 026
                                                                                                                                                      MPN: 116779
                                                                                                                                                      TUBO SF IATO
                                                                                                                                                      from £104.45
                                                                                                                                                      from £104.45
                                                                                                                                                      This part replaces part number 114262 - and 2 more. Click to view details
                                                                                                                                                      # 027
                                                                                                                                                      MPN: 13000390
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                                                      # 028
                                                                                                                                                      MPN: 121727
                                                                                                                                                      fuel pump
                                                                                                                                                      (replaces: 113976)
                                                                                                                                                      from £96.49
                                                                                                                                                      from £96.49
                                                                                                                                                      This part replaces part number 113976 - and 3 more. Click to view details
                                                                                                                                                      # 028
                                                                                                                                                      MPN: 121727
                                                                                                                                                      fuel pump
                                                                                                                                                      from £96.49
                                                                                                                                                      from £96.49
                                                                                                                                                      This part replaces part number 113976 - and 3 more. Click to view details
                                                                                                                                                      # 029
                                                                                                                                                      MPN: 113673
                                                                                                                                                      FASCETTA TENUTA POMPA
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 030
                                                                                                                                                      MPN: 10377311
                                                                                                                                                      SCREW
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 031
                                                                                                                                                      MPN: 14089311
                                                                                                                                                      NUT
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 032
                                                                                                                                                      MPN: 115153
                                                                                                                                                      CAVETTO DI MASSA
                                                                                                                                                      from £3.16
                                                                                                                                                      from £3.16
                                                                                                                                                      # 033
                                                                                                                                                      MPN: 113978
                                                                                                                                                      ACCUMULATOR
                                                                                                                                                      from £225.00
                                                                                                                                                      from £225.00
                                                                                                                                                      # 034
                                                                                                                                                      MPN: 113674
                                                                                                                                                      ACCUMULATOR HOLDING CLAMP
                                                                                                                                                      from £17.54
                                                                                                                                                      from £17.54
                                                                                                                                                      # 035
                                                                                                                                                      MPN: 10378111
                                                                                                                                                      SCREW
                                                                                                                                                      # 036
                                                                                                                                                      MPN: 107003
                                                                                                                                                      TERMINAL PROTECTION CAP
                                                                                                                                                      from £5.79
                                                                                                                                                      from £5.79
                                                                                                                                                      # 037
                                                                                                                                                      MPN: 113675
                                                                                                                                                      SUPPORT
                                                                                                                                                      from £46.94
                                                                                                                                                      from £46.94
                                                                                                                                                      # 038
                                                                                                                                                      MPN: 113676
                                                                                                                                                      SUPPORTOSX.
                                                                                                                                                      from £49.29
                                                                                                                                                      from £49.29
                                                                                                                                                      # 039
                                                                                                                                                      MPN: 102947
                                                                                                                                                      TASSELLO ELASTICO
                                                                                                                                                      from £6.17
                                                                                                                                                      from £6.17
                                                                                                                                                      This part replaces part number 102007 - and 14 more. Click to view details
                                                                                                                                                      # 040
                                                                                                                                                      MPN: 12774221
                                                                                                                                                      NUT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 041
                                                                                                                                                      MPN: 10902121
                                                                                                                                                      SCREW
                                                                                                                                                      from £0.71
                                                                                                                                                      from £0.71
                                                                                                                                                      This part replaces part number 20146601
                                                                                                                                                      # 042
                                                                                                                                                      MPN: 10519421
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 043
                                                                                                                                                      MPN: 12574221
                                                                                                                                                      NUT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                                                                      # 044
                                                                                                                                                      MPN: 119673
                                                                                                                                                      TUBO SX. MANDATA
                                                                                                                                                      Per G D vale n. 115996
                                                                                                                                                      from £141.92
                                                                                                                                                      from £141.92
                                                                                                                                                      # 045
                                                                                                                                                      MPN: 113680
                                                                                                                                                      TUBO DX. MANDATA
                                                                                                                                                      Per G D vale n. 115994
                                                                                                                                                      from £184.24
                                                                                                                                                      from £184.24
                                                                                                                                                      # 046
                                                                                                                                                      MPN: 115605
                                                                                                                                                      PIPE FROM THE ACCUMULATOR TO THE FILTER
                                                                                                                                                      from £113.13
                                                                                                                                                      from £113.13
                                                                                                                                                      # 047
                                                                                                                                                      MPN: 113681
                                                                                                                                                      PIPE FROM PUMP TO ACCUMULATOR
                                                                                                                                                      from £256.10
                                                                                                                                                      from £256.10
                                                                                                                                                      # 048
                                                                                                                                                      MPN: 111644
                                                                                                                                                      BANJO BOLT
                                                                                                                                                      from £6.38
                                                                                                                                                      from £6.38
                                                                                                                                                      # 049
                                                                                                                                                      MPN: 11270160
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.89
                                                                                                                                                      from £0.89
                                                                                                                                                      # 050
                                                                                                                                                      MPN: 116778
                                                                                                                                                      PIPE FROM FILTER ON TANK TO PUMP
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 113911
                                                                                                                                                      # 051
                                                                                                                                                      MPN: 13000390
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                                                      # 052
                                                                                                                                                      MPN: 114960
                                                                                                                                                      RIGHT PIPE. BY REFLUX
                                                                                                                                                      Per GD vale n. 115998
                                                                                                                                                      # 053
                                                                                                                                                      MPN: 119674
                                                                                                                                                      TUBO SX. PER RIFLUSSO
                                                                                                                                                      Per G D vale n. 116000
                                                                                                                                                      from £171.23
                                                                                                                                                      from £171.23
                                                                                                                                                      # 054
                                                                                                                                                      MPN: 116774
                                                                                                                                                      RUBBER HOSE FOR REFLUX
                                                                                                                                                      from £76.20
                                                                                                                                                      from £76.20
                                                                                                                                                      This part replaces part number 114961
                                                                                                                                                      # 055
                                                                                                                                                      MPN: 13000190
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                                                                                      # 056
                                                                                                                                                      MPN: 10398280
                                                                                                                                                      CABLE GROMMET
                                                                                                                                                      from £1.55
                                                                                                                                                      from £1.55
                                                                                                                                                      # 057
                                                                                                                                                      MPN: 10441990
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 058
                                                                                                                                                      MPN: 10441490
                                                                                                                                                      JUBILEE CLIP
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 059
                                                                                                                                                      MPN: 15896211
                                                                                                                                                      NUT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 15896210
                                                                                                                                                      # 060
                                                                                                                                                      MPN: 106850
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                                                                      # 061

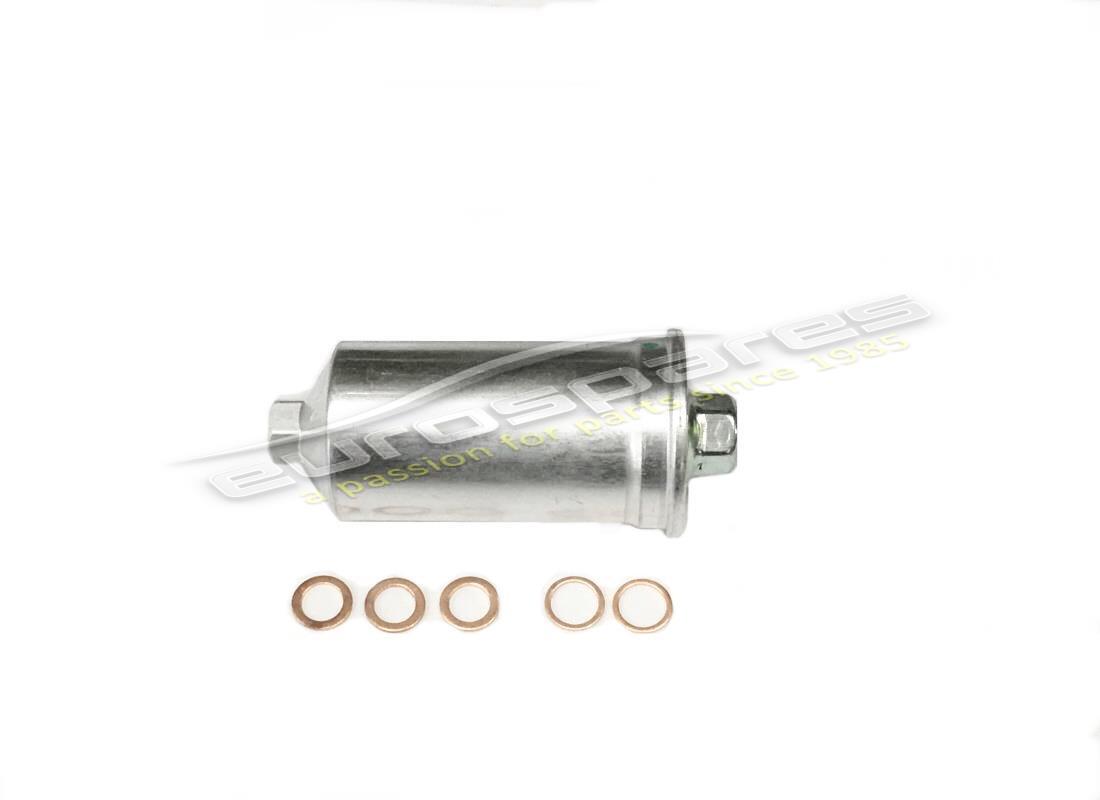

                                                                                                                                                      MPN: 113977
                                                                                                                                                      FUEL FILTER
                                                                                                                                                      from £32.03
                                                                                                                                                      from £32.03
                                                                                                                                                      # 062
                                                                                                                                                      MPN: 109797
                                                                                                                                                      UNION
                                                                                                                                                      from £10.16
                                                                                                                                                      from £10.16
                                                                                                                                                      # 063
                                                                                                                                                      MPN: 11270160
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.92
                                                                                                                                                      from £0.92
                                                                                                                                                      # 064
                                                                                                                                                      MPN: 109889
                                                                                                                                                      UNION
                                                                                                                                                      from £2.06
                                                                                                                                                      from £2.06
                                                                                                                                                      # 065
                                                                                                                                                      MPN: 10280060
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                                                                      # 066
                                                                                                                                                      MPN: 113909
                                                                                                                                                      FILTER SEAL CLAMP
                                                                                                                                                      # 067
                                                                                                                                                      MPN: 104030
                                                                                                                                                      NUT
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 16104125
                                                                                                                                                      # 068
                                                                                                                                                      MPN: MC3701/100
                                                                                                                                                      FUEL TANK LEVEL SENDER (UNIVERSAL)
                                                                                                                                                      from £83.95
                                                                                                                                                      from £83.95
                                                                                                                                                      This part replaces part number 108644 - and 5 more. Click to view details
                                                                                                                                                      # 069
                                                                                                                                                      MPN: 101462
                                                                                                                                                      GASKET
                                                                                                                                                      from £13.47
                                                                                                                                                      from £13.47
                                                                                                                                                      This part replaces part number 820925 - and 1 more. Click to view details
                                                                                                                                                      # 070
                                                                                                                                                      MPN: 11195371
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 071
                                                                                                                                                      MPN: 10794011
                                                                                                                                                      NUT
                                                                                                                                                      from £0.26
                                                                                                                                                      from £0.26
                                                                                                                                                      # 072
                                                                                                                                                      MPN: 11413810
                                                                                                                                                      SCREW
                                                                                                                                                      # 073
                                                                                                                                                      MPN: 105074
                                                                                                                                                      PARATIA PER POMPA SX.
                                                                                                                                                      from £117.63
                                                                                                                                                      from £117.63
                                                                                                                                                      # 073
                                                                                                                                                      MPN: 105078
                                                                                                                                                      BULKHEAD FOR RIGHT PUMP.
                                                                                                                                                      from £93.15
                                                                                                                                                      from £93.15
                                                                                                                                                      # 074
                                                                                                                                                      MPN: 10902121
                                                                                                                                                      SCREW
                                                                                                                                                      from £0.71
                                                                                                                                                      from £0.71
                                                                                                                                                      This part replaces part number 20146601
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 12644401
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 076
                                                                                                                                                      MPN: 106850
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                                                                      # 077
                                                                                                                                                      MPN: 14084111
                                                                                                                                                      NUT
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 14084100
                                                                                                                                                      # 078
                                                                                                                                                      MPN: 10300771
                                                                                                                                                      FUEL DRAIN PLUG
                                                                                                                                                      from £0.57
                                                                                                                                                      from £0.57
                                                                                                                                                      # 079
                                                                                                                                                      MPN: 10278650
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 080
                                                                                                                                                      MPN: 116595
                                                                                                                                                      GASKET
