ferrari 400i (1983 mechanical) cylinder head (right) parts diagram

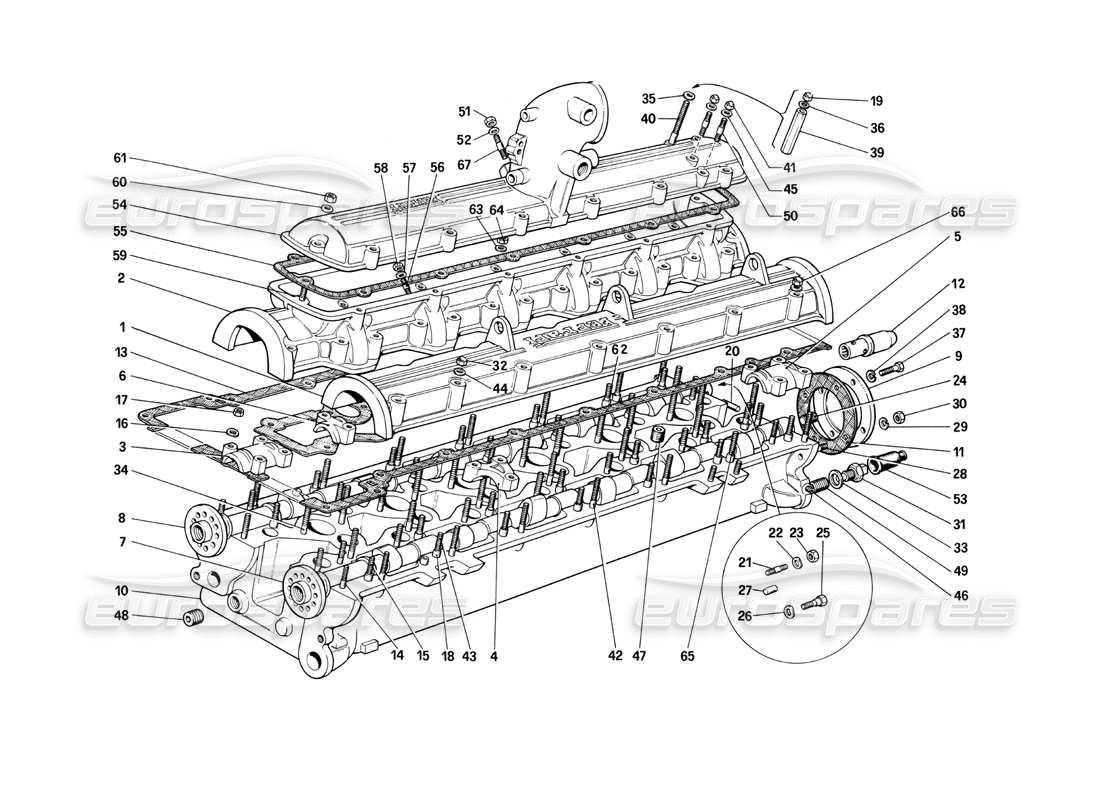

004 - cylinder head (right)

Ferrari 400i (1983 Mechanical) Cylinder Head (Right) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price

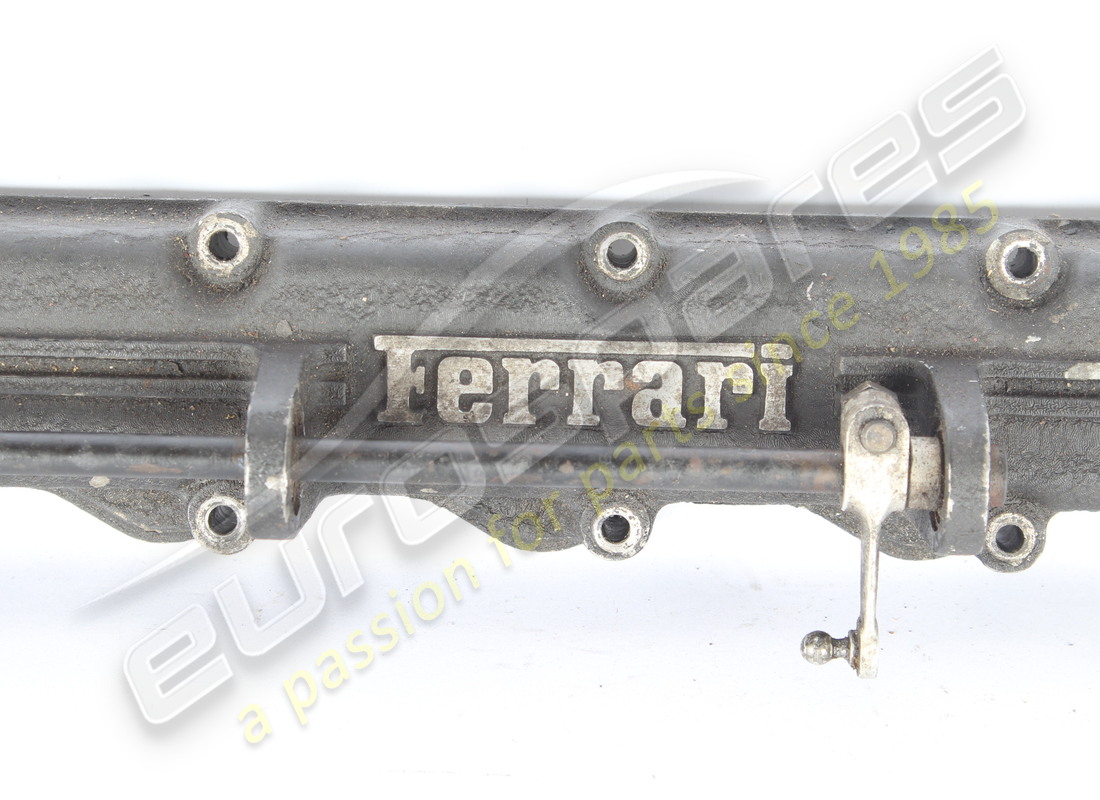

                                                                                                                  # 002
                                                                                                                  MPN: 113284
                                                                                                                  COVER
                                                                                                                  With complete lid
                                                                                                                  # 002
                                                                                                                  MPN: 113939
                                                                                                                  COVER
                                                                                                                  from £757.44
                                                                                                                  from £757.44
                                                                                                                  # 003
                                                                                                                  MPN: 100228
                                                                                                                  BEARING CAP FRONT
                                                                                                                  con la testa cilindri completa
                                                                                                                  # 004
                                                                                                                  MPN: 100226
                                                                                                                  BEARING CAP INTERMEDIATE
                                                                                                                  con la testa cilindri completa
                                                                                                                  # 005
                                                                                                                  MPN: 100229
                                                                                                                  REAR HAT
                                                                                                                  con la testa cilindri completa
                                                                                                                  # 006
                                                                                                                  MPN: 100227
                                                                                                                  BEARING CAP INTERMEDIATE
                                                                                                                  con la testa cilindri completa

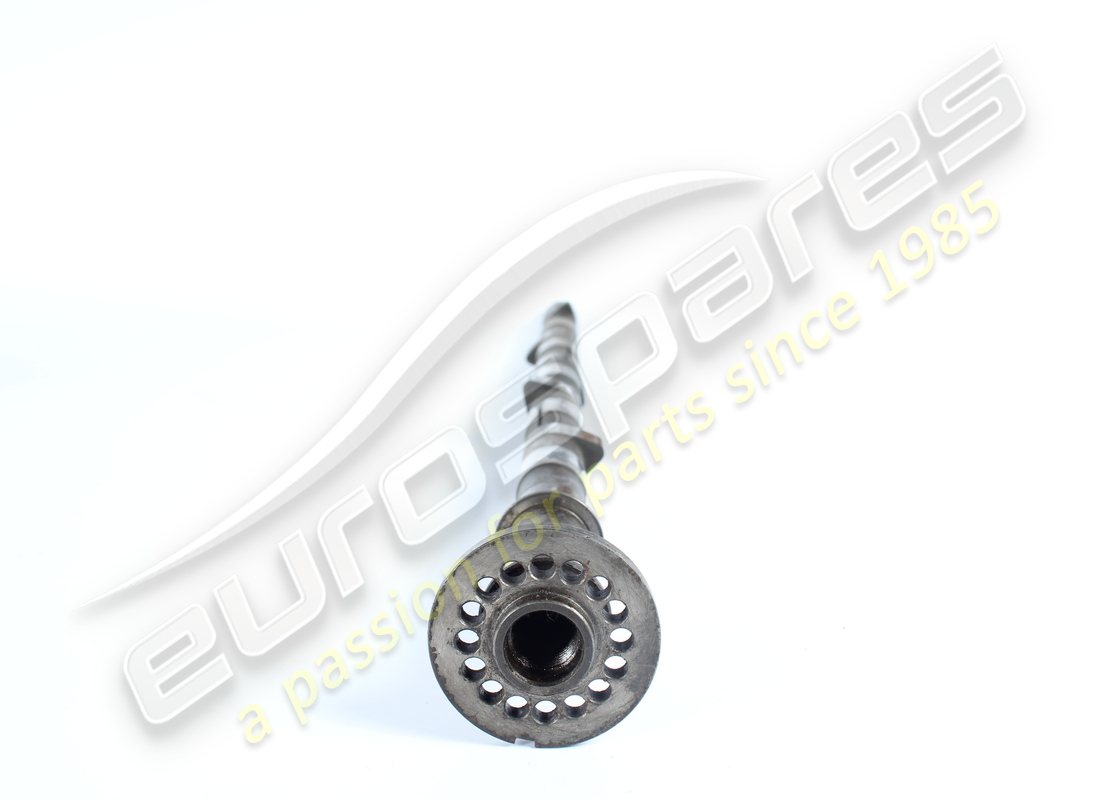

                                                                                                                  # 007
                                                                                                                  MPN: 119613
                                                                                                                  RH INTAKE DISTRIBUTION SHAFT. BUSINESS SUIT
                                                                                                                  from £880.82
                                                                                                                  from £880.82
                                                                                                                  # 007
                                                                                                                  MPN: 119614
                                                                                                                  RH HEAD INTAKE TIMING SHAFT.
                                                                                                                  Col complessivo n. 119613
                                                                                                                  from £838.87
                                                                                                                  from £838.87
                                                                                                                  # 008
                                                                                                                  MPN: 117779
                                                                                                                  RIGHT HEAD EXHAUST TIMING SHAFT.
                                                                                                                  Col complessivo n. 119615
                                                                                                                  from £838.87
                                                                                                                  from £838.87
                                                                                                                  # 008
                                                                                                                  MPN: 119615
                                                                                                                  ALBERO DISTRIBUZIONE SCARICO DX. COMPLETO
                                                                                                                  from £484.45
                                                                                                                  from £484.45
                                                                                                                  # 009
                                                                                                                  MPN: 100112
                                                                                                                  COVER
                                                                                                                  from £71.40
                                                                                                                  from £71.40
                                                                                                                  # 010
                                                                                                                  MPN: 113310
                                                                                                                  CYLINDER HEAD RH
                                                                                                                  con la testa cilindri completa
                                                                                                                  from £7,249.35
                                                                                                                  from £7,249.35
                                                                                                                  # 010
                                                                                                                  MPN: 113937
                                                                                                                  RH cylinder head
                                                                                                                  from £3,150.00
                                                                                                                  from £3,150.00
                                                                                                                  # 011
                                                                                                                  MPN: 100113
                                                                                                                  GASKET OR SEAL
                                                                                                                  USE 147619
                                                                                                                  from £2.49
                                                                                                                  from £2.49
                                                                                                                  This part replaces part number 9161310
                                                                                                                  # 011

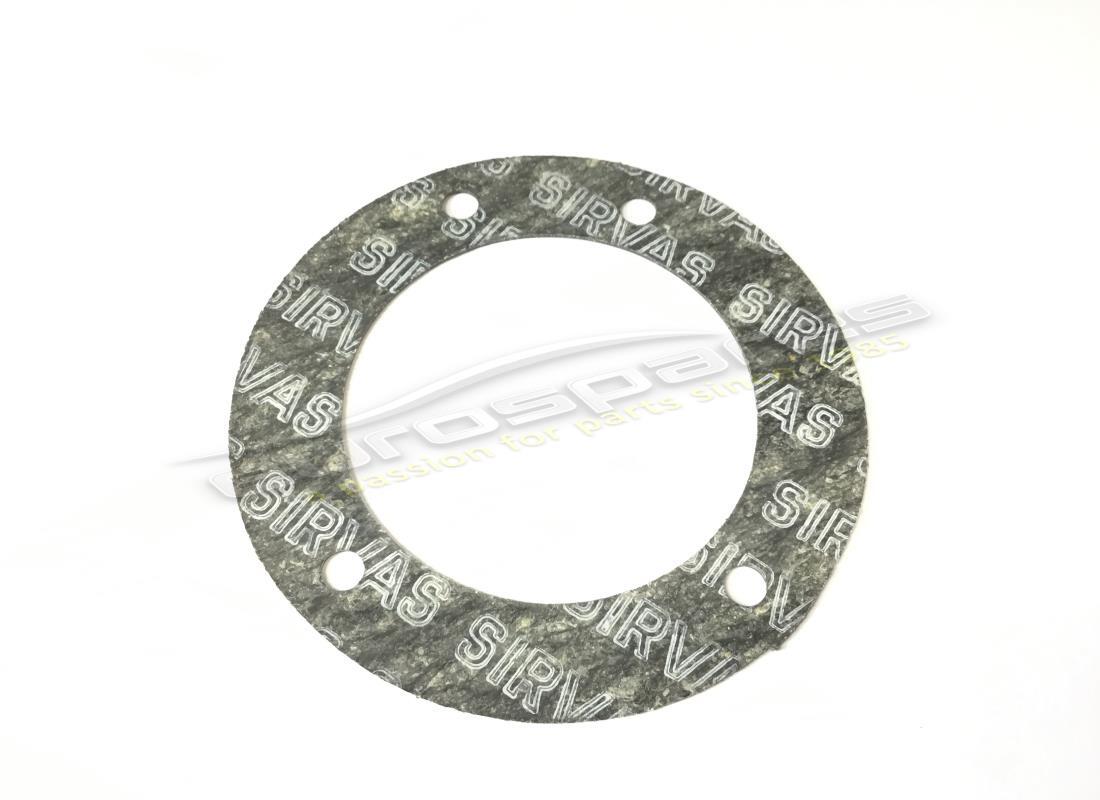

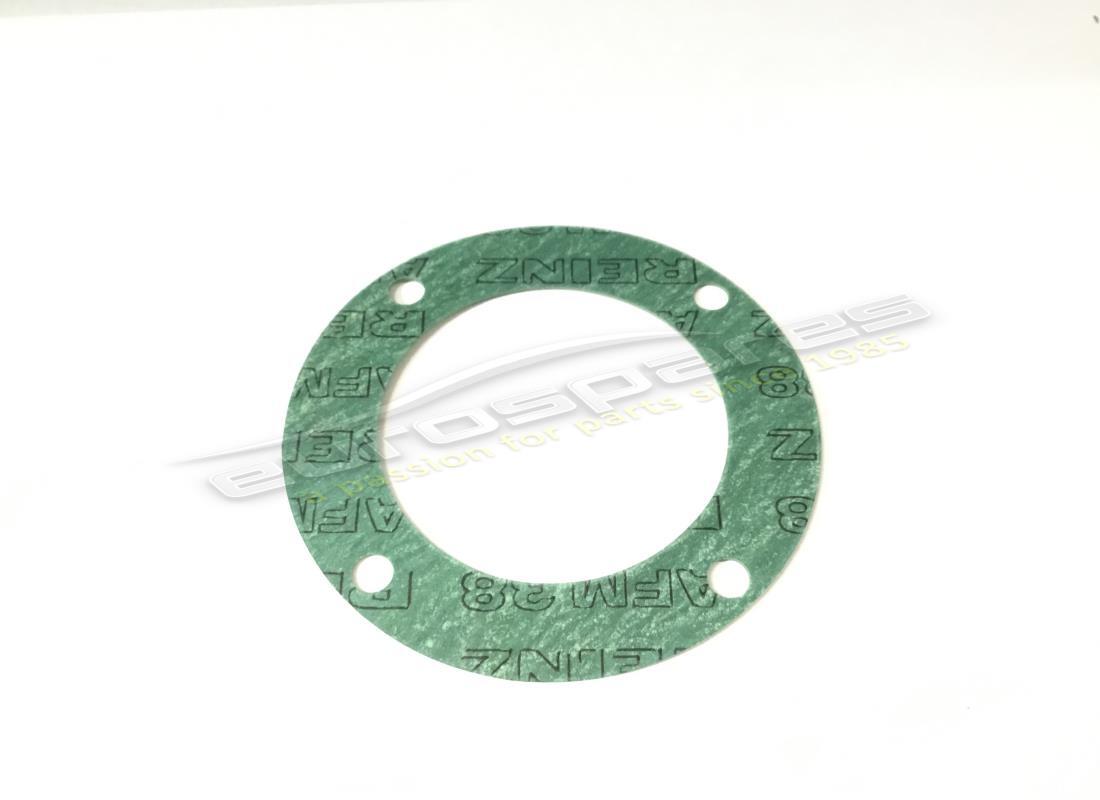

                                                                                                                  MPN: 147619
                                                                                                                  GASKET
                                                                                                                  from £3.20
                                                                                                                  from £3.20
                                                                                                                  This part replaces part number 100113 which we have in stock - and 1 more. Click to view details
                                                                                                                  # 012
                                                                                                                  MPN: 100278
                                                                                                                  Coupling on the distributor control distribution shaft
                                                                                                                  from £35.71
                                                                                                                  from £35.71
                                                                                                                  # 013
                                                                                                                  MPN: 113567
                                                                                                                  GASKET
                                                                                                                  USE 147715
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 013
                                                                                                                  MPN: 147715
                                                                                                                  GASKET
                                                                                                                  from £41.30
                                                                                                                  from £41.30
                                                                                                                  This part replaces part number 113567

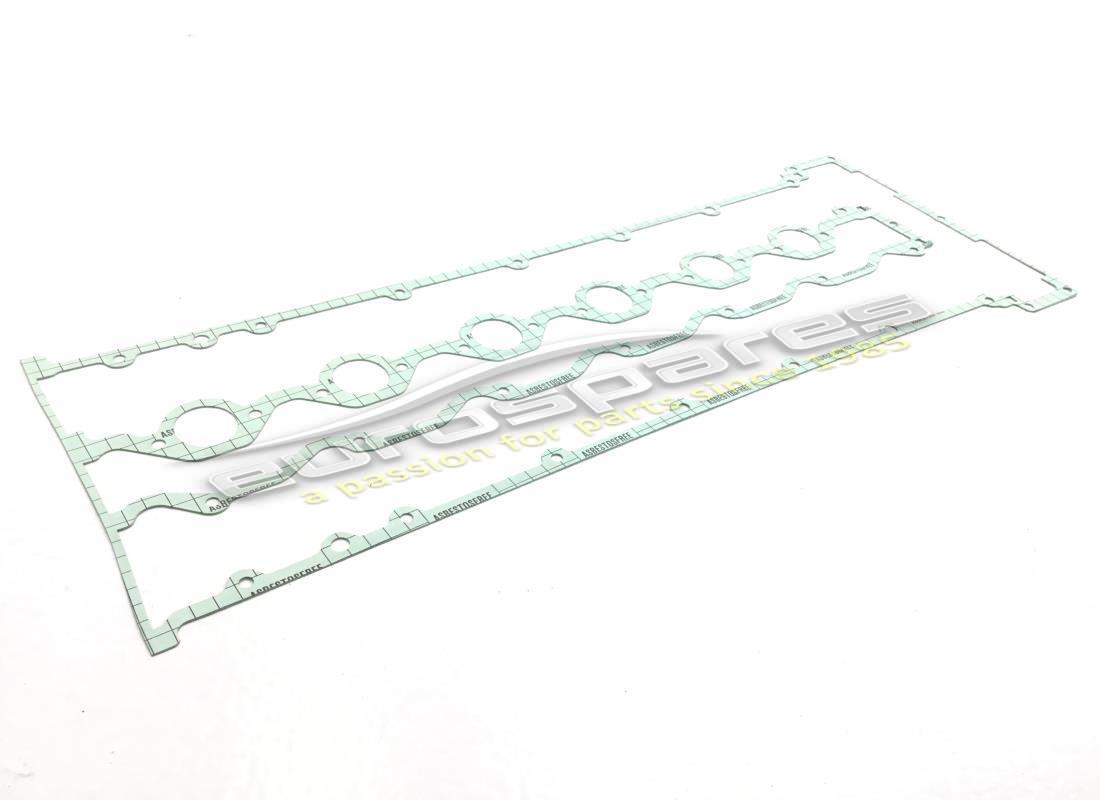

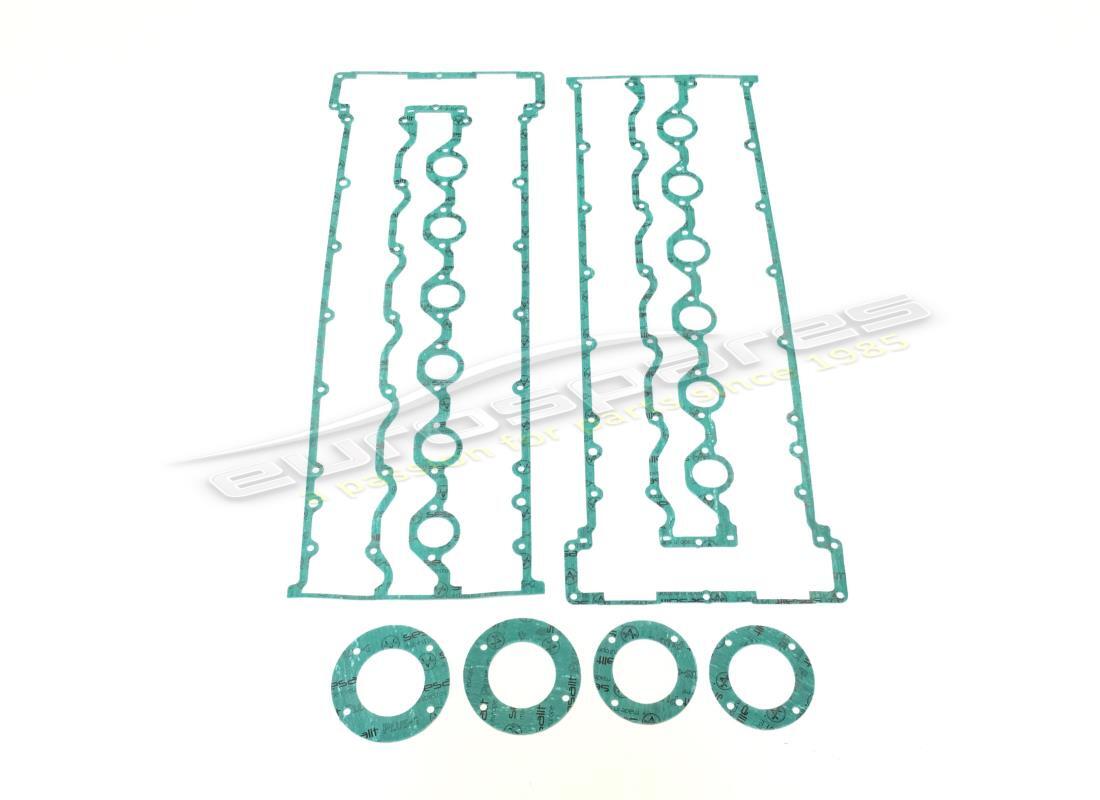

                                                                                                                  # 013
                                                                                                                  MPN: FCCG003
                                                                                                                  CAM COVER GASKET SET
                                                                                                                  Suitable for Injection vehicles only
                                                                                                                  from £66.15
                                                                                                                  from £66.15
                                                                                                                  # 014
                                                                                                                  MPN: 102735
                                                                                                                  THREADED STUD
                                                                                                                  from £11.07
                                                                                                                  from £11.07
                                                                                                                  This part replaces part number 4146561
                                                                                                                  # 015
                                                                                                                  MPN: 104188
                                                                                                                  THREADED STUD
                                                                                                                  from £4.87
                                                                                                                  from £4.87
                                                                                                                  # 016
                                                                                                                  MPN: 11197773
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 017
                                                                                                                  MPN: 15896211
                                                                                                                  NUT
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 15896210
                                                                                                                  # 018
                                                                                                                  MPN: 102725
                                                                                                                  DOWEL
                                                                                                                  from £0.61
                                                                                                                  from £0.61
                                                                                                                  # 019
                                                                                                                  MPN: 101239
                                                                                                                  NUT
                                                                                                                  from £1.60
                                                                                                                  from £1.60
                                                                                                                  # 020
                                                                                                                  MPN: 100279
                                                                                                                  PIN
                                                                                                                  from £11.85
                                                                                                                  from £11.85
                                                                                                                  This part replaces part number 13904770 - and 2 more. Click to view details
                                                                                                                  # 021
                                                                                                                  MPN: 11500321
                                                                                                                  STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 022
                                                                                                                  MPN: 11197773
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 023
                                                                                                                  MPN: 100273
                                                                                                                  NUT
                                                                                                                  from £16.35
                                                                                                                  from £16.35
                                                                                                                  This part replaces part number 94864
                                                                                                                  # 024
                                                                                                                  MPN: 10269750
                                                                                                                  PLUG
                                                                                                                  from £0.82
                                                                                                                  from £0.82
                                                                                                                  This part replaces part number 95184
                                                                                                                  # 025
                                                                                                                  MPN: 100274
                                                                                                                  BOLT
                                                                                                                  from £21.22
                                                                                                                  from £21.22
                                                                                                                  This part replaces part number 94834
                                                                                                                  # 026
                                                                                                                  MPN: 11197773
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 027
                                                                                                                  MPN: 100272
                                                                                                                  SPIN CENTERING GRAIN
                                                                                                                  from £2.66
                                                                                                                  from £2.66
                                                                                                                  This part replaces part number 94043
                                                                                                                  # 028
                                                                                                                  MPN: 11500321
                                                                                                                  THREADED STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 029
                                                                                                                  MPN: 12601271
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                  # 030
                                                                                                                  MPN: 101239
                                                                                                                  NUT
                                                                                                                  from £1.60
                                                                                                                  from £1.60
                                                                                                                  # 031
                                                                                                                  MPN: 100453
                                                                                                                  OIL THERMISTOR
                                                                                                                  from £13.83
                                                                                                                  from £13.83
                                                                                                                  This part replaces part number 100345 - and 1 more. Click to view details
                                                                                                                  # 032
                                                                                                                  MPN: 101239
                                                                                                                  NUT
                                                                                                                  from £1.60
                                                                                                                  from £1.60
                                                                                                                  # 033
                                                                                                                  MPN: 10257060
                                                                                                                  GASKET
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                  # 034
                                                                                                                  MPN: 13541921
                                                                                                                  THREADED STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 035
                                                                                                                  MPN: 12601271
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                  # 036
                                                                                                                  MPN: 12643701
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                                  # 037
                                                                                                                  MPN: 10902321
                                                                                                                  BOLT
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 038
                                                                                                                  MPN: 11197773
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 039
                                                                                                                  MPN: 113916
                                                                                                                  SPACER
                                                                                                                  from £12.03
                                                                                                                  from £12.03
                                                                                                                  # 040
                                                                                                                  MPN: 13952011
                                                                                                                  STUD
                                                                                                                  from £1.18
                                                                                                                  from £1.18
                                                                                                                  # 041
                                                                                                                  MPN: 101239
                                                                                                                  NUT
                                                                                                                  from £1.60
                                                                                                                  from £1.60
                                                                                                                  # 042
                                                                                                                  MPN: 104185
                                                                                                                  THREADED STUD
                                                                                                                  from £18.79
                                                                                                                  from £18.79
                                                                                                                  This part replaces part number P1
                                                                                                                  # 043
                                                                                                                  MPN: 102935
                                                                                                                  STUD
                                                                                                                  from £1.33
                                                                                                                  from £1.33
                                                                                                                  This part replaces part number 4161959
                                                                                                                  # 044
                                                                                                                  MPN: 12601271
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                  # 045
                                                                                                                  MPN: 12601271
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                  # 046
                                                                                                                  MPN: 14326050
                                                                                                                  OIL LINE CAP FOR RIGHT AND LEFT HEAD.
                                                                                                                  from £0.95
                                                                                                                  from £0.95
                                                                                                                  # 047
                                                                                                                  MPN: 10269650
                                                                                                                  PLUG
                                                                                                                  from £1.25
                                                                                                                  from £1.25
                                                                                                                  # 048
                                                                                                                  MPN: 163528
                                                                                                                  PLUG
                                                                                                                  from £2.11
                                                                                                                  from £2.11
                                                                                                                  This part replaces part number 10268450 - and 1 more. Click to view details
                                                                                                                  # 049
                                                                                                                  MPN: 103388
                                                                                                                  HELI - COIL
                                                                                                                  from £6.82
                                                                                                                  from £6.82
                                                                                                                  # 050
                                                                                                                  MPN: 11500021
                                                                                                                  PRIQIONIERO FISS. VALVOLA ARIA SUPPLEMENTARE
                                                                                                                  from £9.50
                                                                                                                  from £9.50
                                                                                                                  # 051
                                                                                                                  MPN: 101239
                                                                                                                  NUT
                                                                                                                  from £1.60
                                                                                                                  from £1.60
                                                                                                                  # 052
                                                                                                                  MPN: 10519401
                                                                                                                  WASHER
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 053
                                                                                                                  MPN: 101505
                                                                                                                  THERMISTOR CAP
                                                                                                                  from £41.51
                                                                                                                  from £41.51

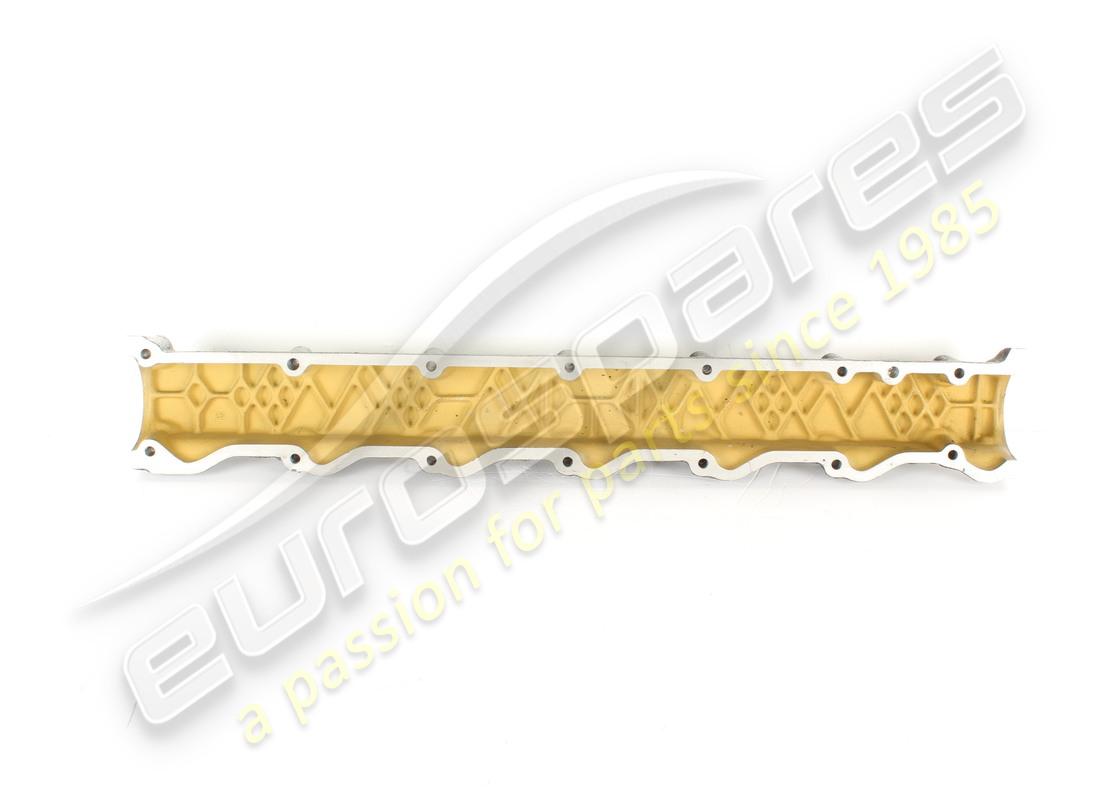

                                                                                                                  # 054
                                                                                                                  MPN: 113278
                                                                                                                  COMPLETE TOP COVER
                                                                                                                  With complete lid
                                                                                                                  from £1,044.75
                                                                                                                  from £1,044.75
                                                                                                                  # 054
                                                                                                                  MPN: 113943
                                                                                                                  COVER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 055
                                                                                                                  MPN: 147717
                                                                                                                  GASKET
                                                                                                                  from £14.48
                                                                                                                  from £14.48
                                                                                                                  This part replaces part number 113572
                                                                                                                  # 055
                                                                                                                  MPN: 147717
                                                                                                                  GASKET
                                                                                                                  from £14.48
                                                                                                                  from £14.48
                                                                                                                  This part replaces part number 113572
                                                                                                                  # 056
                                                                                                                  MPN: 11499921
                                                                                                                  STUD
                                                                                                                  from £6.43
                                                                                                                  from £6.43
                                                                                                                  # 057
                                                                                                                  MPN: 11197774
                                                                                                                  WASHER
                                                                                                                  from £0.52
                                                                                                                  from £0.52
                                                                                                                  This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                  # 058
                                                                                                                  MPN: 15896221
                                                                                                                  NUT
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  This part replaces part number 15896225
                                                                                                                  # 059
                                                                                                                  MPN: 11500721
                                                                                                                  THREADED STUD
                                                                                                                  from £0.80
                                                                                                                  from £0.80
                                                                                                                  # 060
                                                                                                                  MPN: 12601271
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                  # 061
                                                                                                                  MPN: 101239
                                                                                                                  NUT
                                                                                                                  from £1.60
                                                                                                                  from £1.60
                                                                                                                  # 062
                                                                                                                  MPN: 13542021
                                                                                                                  STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 063
                                                                                                                  MPN: 10297760
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 064
                                                                                                                  MPN: 12574211
                                                                                                                  NUT
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 065
                                                                                                                  MPN: 102935
                                                                                                                  THREADED STUD
                                                                                                                  from £1.33
                                                                                                                  from £1.33
                                                                                                                  This part replaces part number 4161959
                                                                                                                  # 066
                                                                                                                  MPN: 12574211
                                                                                                                  NUT
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 067
                                                                                                                  MPN: 13540721
                                                                                                                  THREADED STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
