ferrari 400i (1983 mechanical) crankshaft - connecting rods and pistons parts diagram

003 - crankshaft - connecting rods and pistons

Ferrari 400i (1983 Mechanical) Crankshaft - Connecting Rods and Pistons Parts Diagram

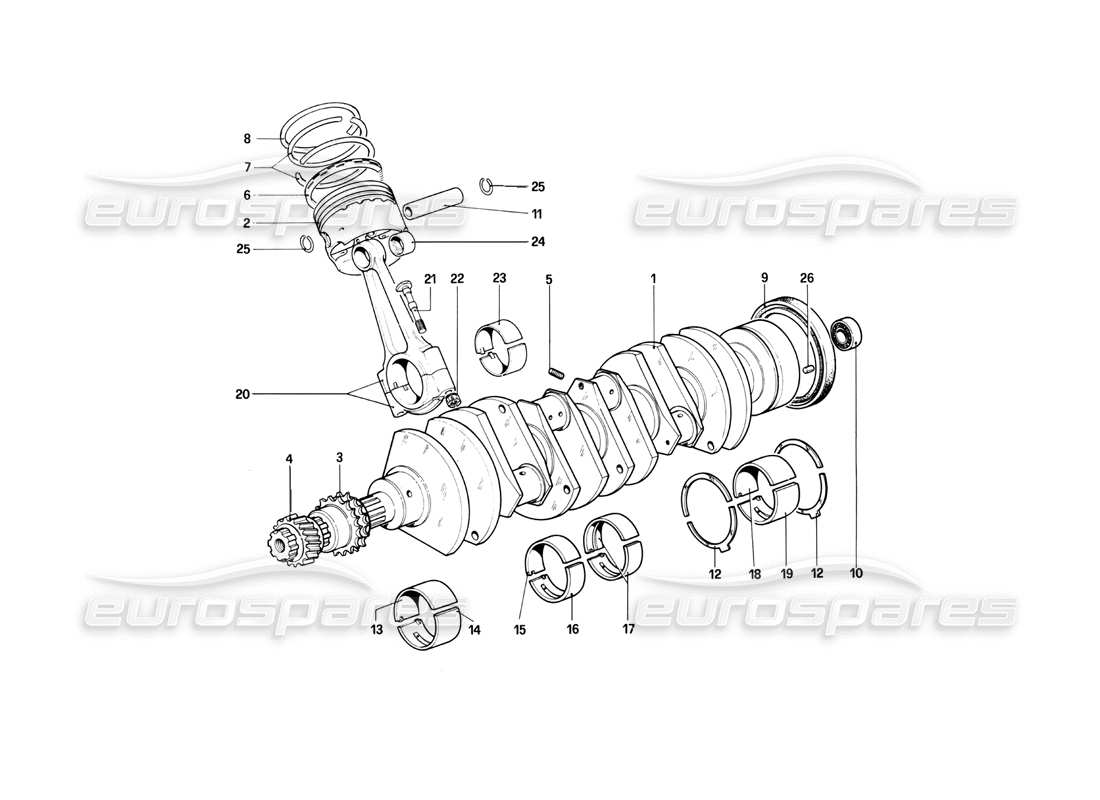

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 108897
                                        crankshaft
                                        from £5,180.19
                                        from £5,180.19
                                        # 001
                                        MPN: 108897+10
                                        CRANKSHAFT +10
                                        Machined to +10
                                        # 002
                                        MPN: 108809

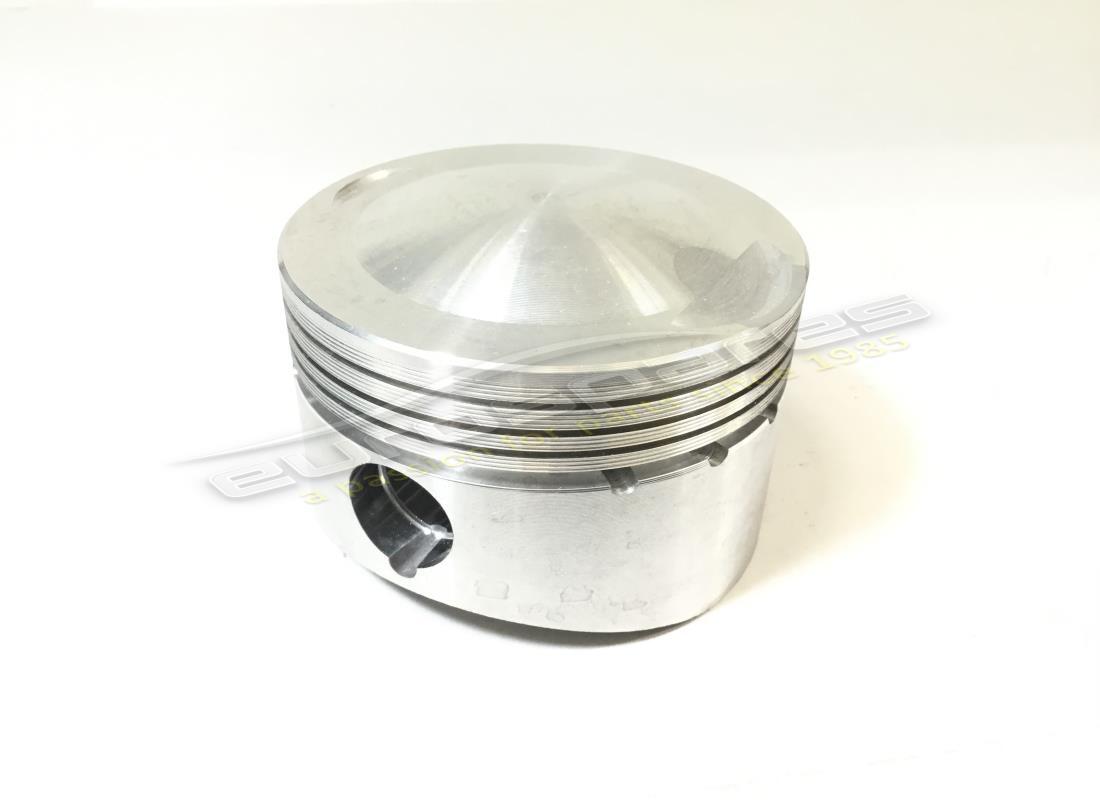

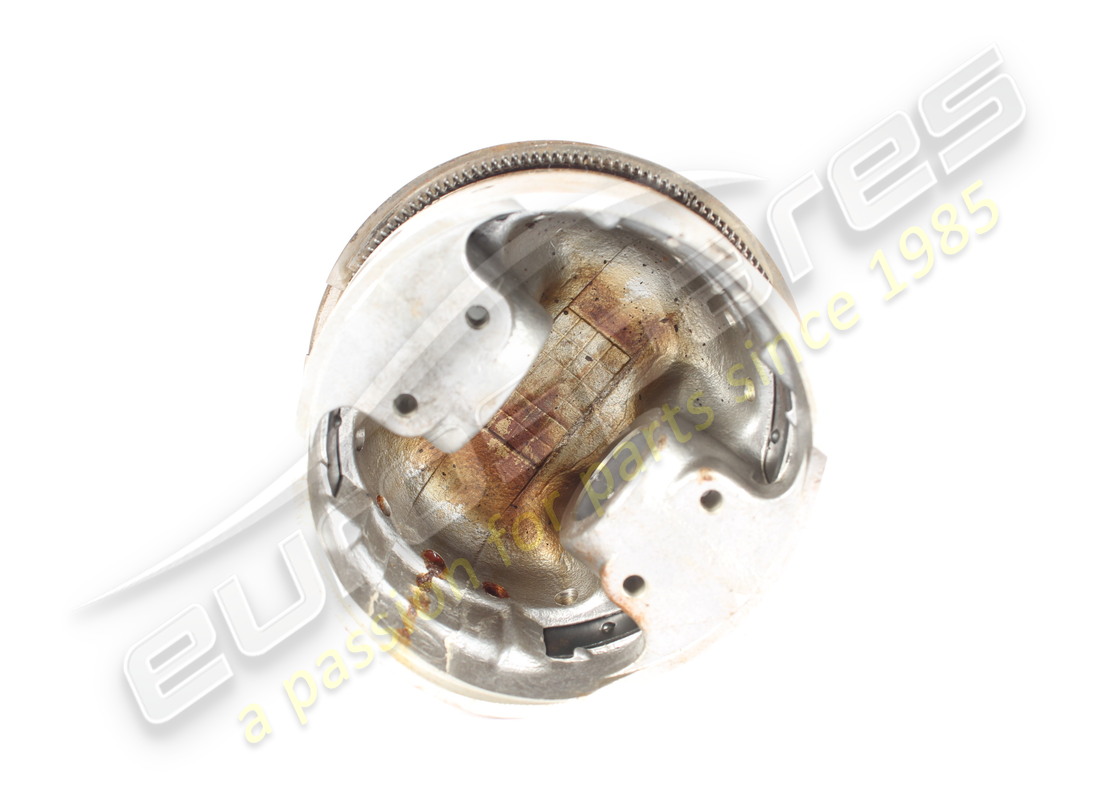

                                        PISTON
                                        from £99.16
                                        from £99.16
                                        # 002
                                        MPN: 108810
                                        1ª MAGGIORAZIONE MM. 0,1 5
                                        from £278.66
                                        from £278.66
                                        # 002
                                        MPN: 108811
                                        2ª MAGGIORAZIONE MM. 0,30
                                        from £214.05
                                        from £214.05
                                        # 003
                                        MPN: 100294
                                        DRIVE GEAR
                                        from £920.34
                                        from £920.34
                                        This part replaces part number 12739
                                        # 004
                                        MPN: 100198
                                        INGRANAGGIO COMANDO CATENA DLSTRIBUZIONE
                                        Supersession
                                        Supersession
                                        # 005
                                        MPN: 108937
                                        Serfe anelli tenuta Ø normale mm. 81
                                        # 005
                                        MPN: 108938
                                        Set of seal rings 1th increase mm. 81 ,15
                                        # 005
                                        MPN: 108939
                                        SEAL RING SET 2th INCREASE MM. 81,30
                                        from £23.25
                                        from £23.25
                                        # 005
                                        MPN: 14328150
                                        TAPPO FILETTATO
                                        # 006
                                        MPN: 107186
                                        RING
                                        Solo con le serie complete n. 106937 - 106938 - 106939
                                        Supersession
                                        Supersession
                                        # 006
                                        MPN: 107198
                                        1ª maggiorazione
                                        Solo con le serie complete n. 106937 - 106938 - 106940
                                        # 006
                                        MPN: 107203
                                        SCRAPER RING (2ND OVERSIZE)
                                        # 007
                                        MPN: 107195
                                        1ª maggiorazione
                                        Solo con le serie complete n. 106937 - 106938 - 106943
                                        # 007
                                        MPN: 107292
                                        2ª maggiorazione
                                        Solo con le serie complete n. 106937 - 106938 - 106944
                                        # 007
                                        MPN: 119451
                                        PISTON RING SET STANDARD MM. 81
                                        from £115.37
                                        from £115.37
                                        This part replaces part number 106937
                                        # 008
                                        MPN: 107201
                                        PISTON RING (2ND OVERSIZE)
                                        # 009
                                        MPN: 138391
                                        SEALING RING
                                        (100x120x13)
                                        from £31.80
                                        from £31.80
                                        This part replaces part number 100014
                                        # 009
                                        MPN: 138391
                                        SEALING RING
                                        (100x120x13)
                                        from £31.80
                                        from £31.80
                                        This part replaces part number 100014
                                        # 010
                                        MPN: 103877
                                        PILOT BEARING
                                        Non vale per 400 automatic
                                        from £18.43
                                        from £18.43
                                        This part replaces part number 24940440
                                        # 011
                                        MPN: 104487
                                        GAUGE PIN
                                        from £46.32
                                        from £46.32
                                        # 012
                                        MPN: 100146
                                        THRUST WASHERS SET STD
                                        sold in pairs -
                                        from £22.19
                                        from £22.19
                                        This part replaces part number 10345 - and 1 more. Click to view details
                                        # 012
                                        MPN: 100147
                                        THRUST WASHERS (2ND OVERSIZE)
                                        from £17.78
                                        from £17.78
                                        This part replaces part number 4153187/C
                                        # 012
                                        MPN: 113984
                                        REAR
                                        from £48.31
                                        from £48.31
                                        # 013
                                        MPN: 100118
                                        UPPER MAIN HALF BEARING SHELL STANDARD
                                        from £42.25
                                        from £42.25
                                        This part replaces part number 9100035
                                        # 013
                                        MPN: 100120
                                        UPPER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                        from £26.93
                                        from £26.93
                                        # 013
                                        MPN: 100121
                                        UPPER MAIN BEARING SHELL 3RD UNDERSIZE 0.762MM
                                        from £41.17
                                        from £41.17
                                        # 013
                                        MPN: 108901
                                        MAIN BEARINGS SET +30
                                        from £507.92
                                        from £507.92
                                        # 013
                                        MPN: 109119
                                        1ª Undersize mm. 0,254
                                        # 014
                                        -
                                        SEMICUSEINETTI INTERMEDI
                                        # 014
                                        MPN: 100122
                                        LOWER MAIN HALF BEARING SHELL STANDARD
                                        from £34.08
                                        from £34.08
                                        This part replaces part number 9100602
                                        # 014
                                        MPN: 100123
                                        LOWER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                        from £70.79
                                        from £70.79
                                        # 014
                                        MPN: 100124
                                        LOWER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                        from £34.49
                                        from £34.49
                                        # 015
                                        MPN: 108880
                                        SFLMI CUSCINETTO SUPERIORE
                                        from £81.81
                                        from £81.81
                                        # 015
                                        MPN: 108881
                                        1ª MJNORAZIOHE MM. .0,254
                                        from £53.52
                                        from £53.52
                                        # 015
                                        MPN: 108882
                                        2ª Undersize mm. 0,508
                                        from £29.14
                                        from £29.14
                                        # 015
                                        MPN: 108883
                                        3ª Undersize mm. 0,762
                                        from £47.09
                                        from £47.09
                                        # 016
                                        MPN: 108876
                                        SEMICUSCINETTO INFERIORE
                                        Supersession
                                        Supersession
                                        # 016
                                        MPN: 108877
                                        1ª Undersize mm. 0,254
                                        from £48.25
                                        from £48.25
                                        # 016
                                        MPN: 108878
                                        2ª Undersize mm. 0,508
                                        from £44.30
                                        from £44.30
                                        # 016
                                        MPN: 108879
                                        3ª UNDERSIZE MIN. 0,762
                                        from £58.78
                                        from £58.78
                                        # 017
                                        MPN: 104023
                                        MAIN HALF BEARING SHELL STANDARD
                                        from £29.30
                                        from £29.30
                                        This part replaces part number 108876 - and 2 more. Click to view details
                                        # 017
                                        MPN: 104024
                                        MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                        from £33.48
                                        from £33.48
                                        # 017
                                        MPN: 104025
                                        MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                        from £32.83
                                        from £32.83
                                        # 017
                                        MPN: 104026
                                        MAIN BEARING SHELL 3RD UNDERSIZE 0.762MM
                                        from £33.89
                                        from £33.89
                                        # 018
                                        MPN: 100138
                                        SERRIICUSCINETTA SUPERIORE
                                        from £29.70
                                        from £29.70
                                        This part replaces part number 9100037
                                        # 018
                                        MPN: 100139
                                        1A UNDERSIZE mm. 0,254
                                        from £53.34
                                        from £53.34
                                        # 018
                                        MPN: 100140
                                        2A MINQRAZIONE MM. 0,508
                                        from £33.57
                                        from £33.57
                                        # 018
                                        MPN: 100141
                                        3A UNDERSIZE'MM. 0/762
                                        from £39.21
                                        from £39.21
                                        # 019
                                        MPN: 100142
                                        SEMICUSCINETTO INIERIORE
                                        from £64.50
                                        from £64.50
                                        This part replaces part number 9100603
                                        # 019
                                        MPN: 100143
                                        1 A MINORAZJOHE MM . 0,254
                                        from £71.61
                                        from £71.61
                                        # 019
                                        MPN: 100144
                                        2A UNDERSIZE mm. 0,508
                                        from £50.99
                                        from £50.99
                                        # 019
                                        MPN: 100145
                                        3A UNDERSIZE mm. 0,762
                                        from £39.21
                                        from £39.21
                                        # 020
                                        MPN: 109738/U
                                        CON ROD
                                        from £230.00
                                        from £230.00
                                        # 021
                                        MPN: 100156
                                        BOLT
                                        from £16.69
                                        from £16.69
                                        This part replaces part number 140020 - and 1 more. Click to view details
                                        # 022
                                        MPN: 104011
                                        NUT
                                        from £9.62
                                        from £9.62
                                        This part replaces part number 14511 which we have in stock - and 2 more. Click to view details
                                        # 023
                                        MPN: 100151
                                        CON ROD BEARING +10
                                        (1st Undersize mm 0,254)
                                        from £45.05
                                        from £45.05
                                        This part replaces part number 106184
                                        # 023
                                        MPN: 100152
                                        CON ROD BEARING +20
                                        (2ª Undersize mm 0,508)
                                        from £63.11
                                        from £63.11
                                        This part replaces part number 106185
                                        # 023
                                        MPN: 106183
                                        CON ROD HALF BEARING STANDARD
                                        from £20.04
                                        from £20.04
                                        This part replaces part number 100150
                                        # 024
                                        MPN: 107100
                                        SMALL END BUSH
                                        from £25.36
                                        from £25.36
                                        This part replaces part number 100155 - and 2 more. Click to view details
                                        # 025
                                        MPN: 100174
                                        GUDGEON PIN CIRCLIP
                                        from £3.47
                                        from £3.47
                                        This part replaces part number 14594
                                        # 026
                                        MPN: 100185
                                        CENTERING DOWEL
                                        from £21.05
                                        from £21.05
                                        This part replaces part number 94129
