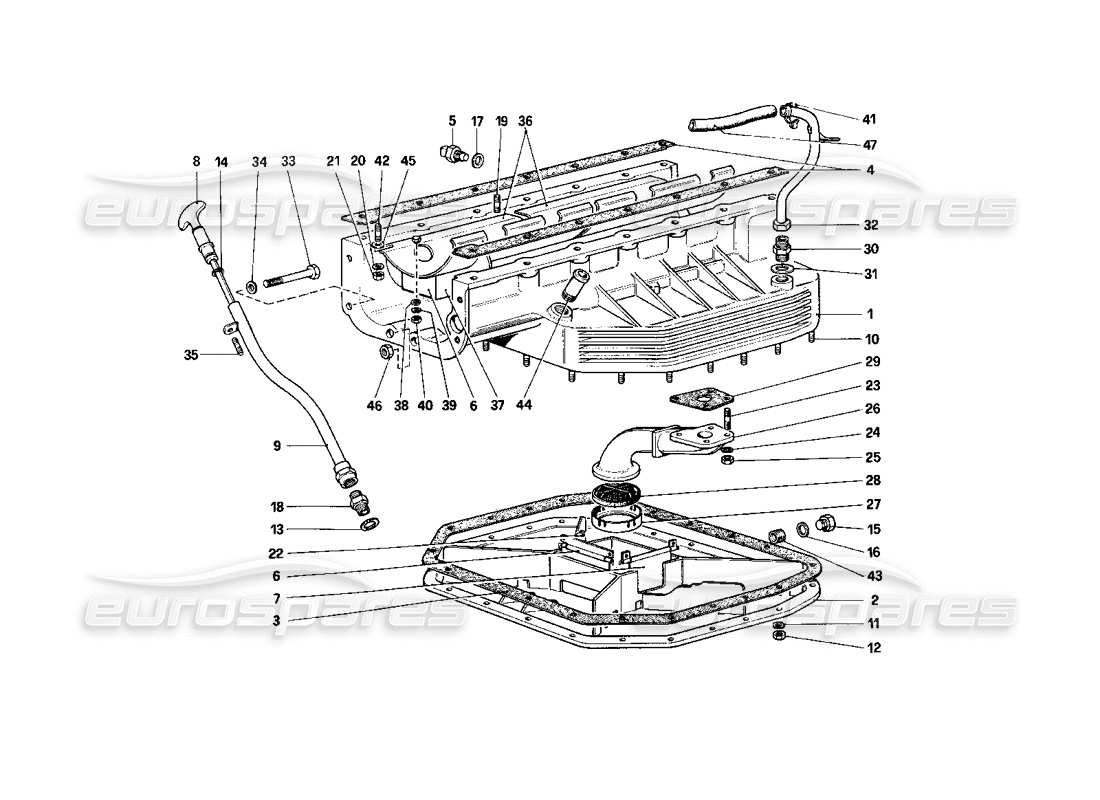

Ferrari 400i (1983 Mechanical) Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 108795
                                                                                          COPPA OLIO
                                                                                          Col complessivo n. 108887
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 001
                                                                                          MPN: 108887

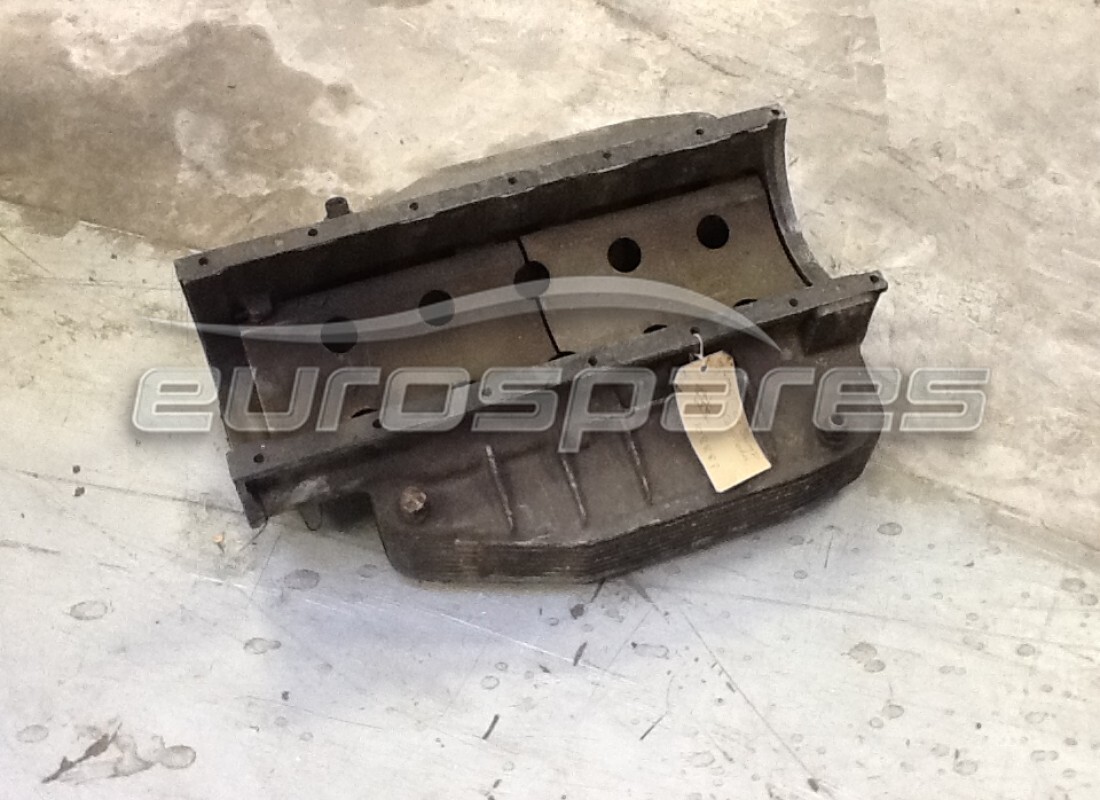

                                                                                          oil sump
                                                                                          from £548.74
                                                                                          from £548.74
                                                                                          This part replaces part number 108795 - and 1 more. Click to view details
                                                                                          # 002
                                                                                          MPN: 100017
                                                                                          COVER
                                                                                          from £906.69
                                                                                          from £906.69
                                                                                          This part replaces part number 9111368
                                                                                          # 003
                                                                                          MPN: 147611
                                                                                          GASKET
                                                                                          from £40.74
                                                                                          from £40.74
                                                                                          This part replaces part number 100018 - and 1 more. Click to view details
                                                                                          # 004
                                                                                          MPN: 147685
                                                                                          GASKET OR SEAL
                                                                                          from £10.86
                                                                                          from £10.86
                                                                                          This part replaces part number 105815
                                                                                          # 005
                                                                                          MPN: 100453
                                                                                          OIL THERMISTOR
                                                                                          from £13.83
                                                                                          from £13.83
                                                                                          This part replaces part number 100345 - and 1 more. Click to view details
                                                                                          # 006
                                                                                          MPN: 107589
                                                                                          SHIELD
                                                                                          from £39.56
                                                                                          from £39.56
                                                                                          This part replaces part number 10-42-07 - and 1 more. Click to view details
                                                                                          # 007
                                                                                          MPN: 100028
                                                                                          SHIELD
                                                                                          from £14.75
                                                                                          from £14.75
                                                                                          This part replaces part number 9111371
                                                                                          # 008
                                                                                          MPN: 100306
                                                                                          DIP STICK
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 009
                                                                                          MPN: 108860
                                                                                          TUBO PER ASTA LIVELLO OLIO
                                                                                          from £94.50
                                                                                          from £94.50
                                                                                          # 010
                                                                                          MPN: 13541021
                                                                                          THREADED STUD
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 011
                                                                                          MPN: 11197773
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 012
                                                                                          MPN: 15896211
                                                                                          NUT
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 15896210
                                                                                          # 013
                                                                                          MPN: 10259960
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 95017
                                                                                          # 014
                                                                                          MPN: 100317
                                                                                          GASKET
                                                                                          (minimum order quantity = 10)
                                                                                          from £0.61
                                                                                          from £0.61
                                                                                          # 015
                                                                                          MPN: 103974
                                                                                          TAPPO SCARICO OLIO
                                                                                          from £25.70
                                                                                          from £25.70
                                                                                          This part replaces part number 101477 - and 1 more. Click to view details
                                                                                          # 016
                                                                                          MPN: 10257060
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                          # 017
                                                                                          MPN: 10257060
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                          # 018
                                                                                          MPN: 100319
                                                                                          UNION
                                                                                          from £34.35
                                                                                          from £34.35
                                                                                          This part replaces part number 95496
                                                                                          # 019
                                                                                          MPN: 13540721
                                                                                          STUD
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 020
                                                                                          MPN: 11197774
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                          # 021
                                                                                          MPN: 15896211
                                                                                          NUT
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 15896210
                                                                                          # 022
                                                                                          MPN: 100033
                                                                                          BULKHEAD FIXING RIVET
                                                                                          # 023
                                                                                          MPN: 13540921
                                                                                          STUD
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 024
                                                                                          MPN: 11197773
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 025
                                                                                          MPN: 15896211
                                                                                          NUT
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 15896210
                                                                                          # 026
                                                                                          MPN: 100330
                                                                                          PESCANTE POM PA DI MANDATA
                                                                                          from £108.37
                                                                                          from £108.37
                                                                                          This part replaces part number 240618
                                                                                          # 027
                                                                                          MPN: 100331
                                                                                          CONTENITORE F ILTRO PESCANTE
                                                                                          from £10.05
                                                                                          from £10.05
                                                                                          This part replaces part number 240619
                                                                                          # 028
                                                                                          MPN: 100332
                                                                                          SUMP FILTER
                                                                                          from £9.31
                                                                                          from £9.31
                                                                                          This part replaces part number 240387 - and 9 more. Click to view details
                                                                                          # 029
                                                                                          MPN: 100333
                                                                                          GASKET
                                                                                          from £1.24
                                                                                          from £1.24
                                                                                          # 030
                                                                                          MPN: 102928
                                                                                          NIPPLE ON THE CUP FOR VENT
                                                                                          from £15.00
                                                                                          from £15.00
                                                                                          # 031
                                                                                          MPN: 10259960
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 95017
                                                                                          # 032
                                                                                          MPN: 110685
                                                                                          PIPE FROM THE DARK TO THE OIL SUMP
                                                                                          from £60.27
                                                                                          from £60.27
                                                                                          # 033
                                                                                          MPN: 16044421
                                                                                          BOLT
                                                                                          from £1.35
                                                                                          from £1.35
                                                                                          # 034
                                                                                          MPN: 11198074
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                          # 035
                                                                                          MPN: 102935
                                                                                          THREADED STUD
                                                                                          from £1.33
                                                                                          from £1.33
                                                                                          This part replaces part number 4161959
                                                                                          # 036
                                                                                          MPN: 108812
                                                                                          COMPLETE OIL BULKHEAD ON THE SUMP
                                                                                          from £153.45
                                                                                          from £153.45
                                                                                          # 037
                                                                                          MPN: 108816
                                                                                          VERTICAL BULKHEAD
                                                                                          Col complessivo n. 108812
                                                                                          # 038
                                                                                          MPN: 10519301
                                                                                          WASHER
                                                                                          from £13.02
                                                                                          from £13.02
                                                                                          This part replaces part number 10517377 - and 2 more. Click to view details
                                                                                          # 039
                                                                                          MPN: 11195470
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 040
                                                                                          MPN: 15896411
                                                                                          NUT
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 15896401
                                                                                          # 041
                                                                                          MPN: 102604
                                                                                          JUBILEE CLIP
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 042
                                                                                          MPN: 13540921
                                                                                          FRONT STUD
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 043
                                                                                          MPN: 103388

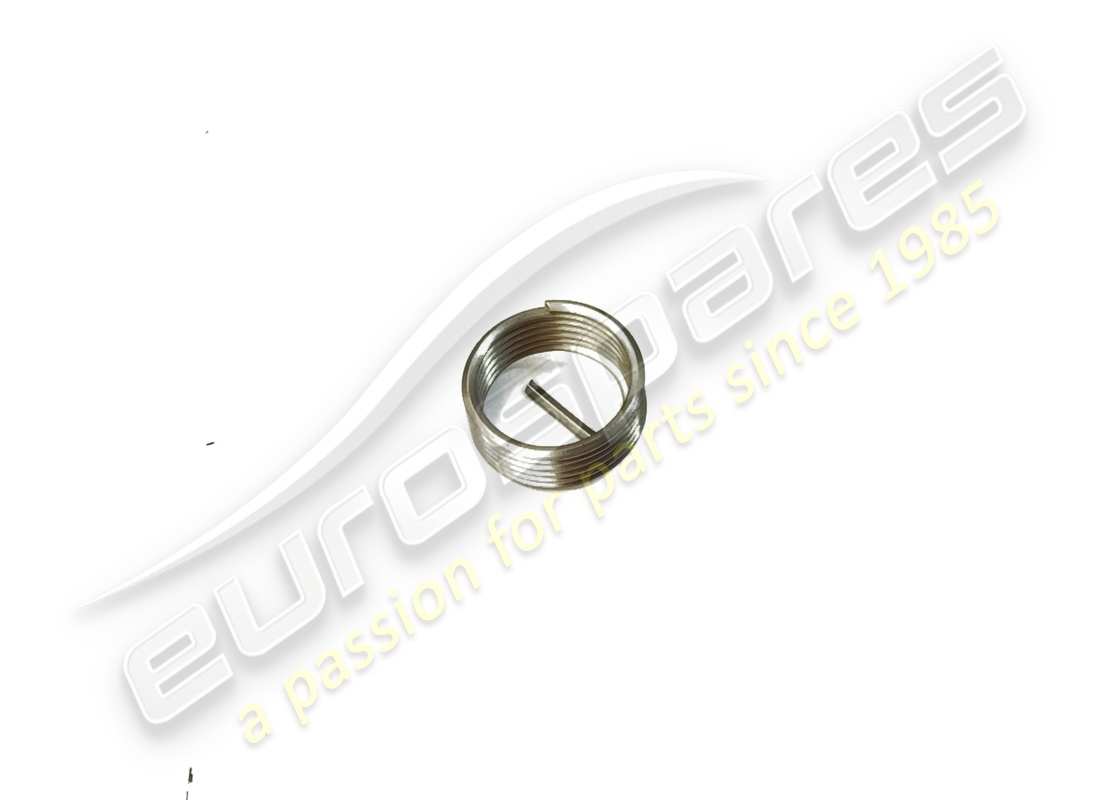

                                                                                          HELI-COIL PER TAPPO SCARICO
                                                                                          from £6.82
                                                                                          from £6.82
                                                                                          # 044
                                                                                          MPN: 111628
                                                                                          TERMINAL FOR OIL PIPE OF THE RELIEF VALVE
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 045
                                                                                          MPN: 12643701
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                          # 046
                                                                                          MPN: 16100824
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                          # 047
                                                                                          MPN: 100073
                                                                                          TUBO DAL BUIOIO ALIA COPPA
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 210176
