ferrari 400i (1983 mechanical) crankcase parts diagram

001 - crankcase

Ferrari 400i (1983 Mechanical) Crankcase Parts Diagram

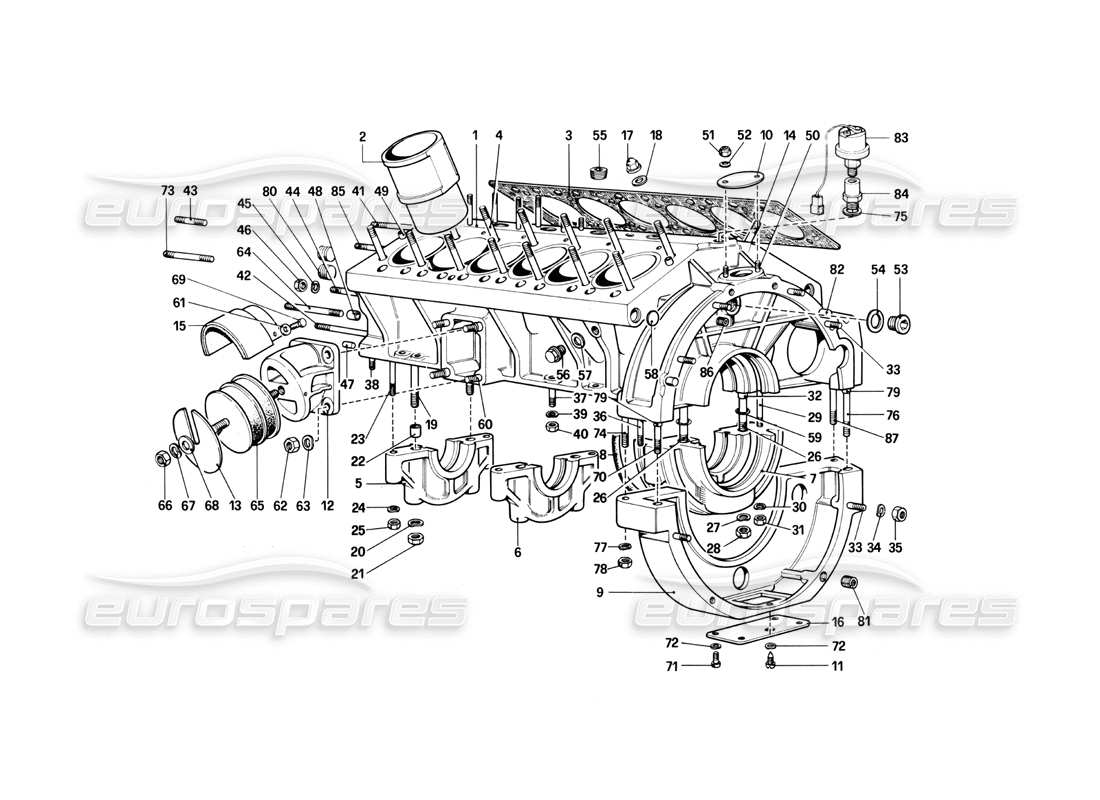

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                        #
                                                                                                                                        Part number
                                                                                                                                        Description
                                                                                                                                        Price
                                                                                                                                        # 000
                                                                                                                                        MPN: 116147

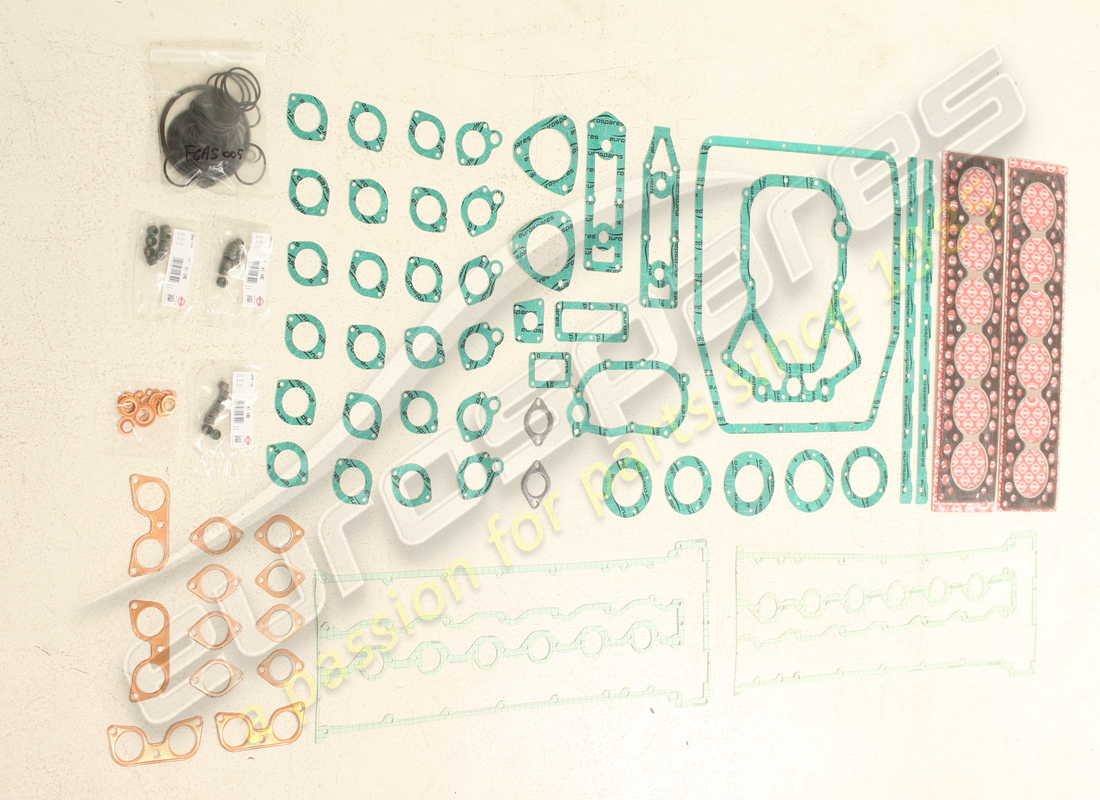

                                                                                                                                        OEM GASKET SET
                                                                                                                                        from £1,662.22
                                                                                                                                        from £1,662.22
                                                                                                                                        # 000
                                                                                                                                        MPN: OILK400

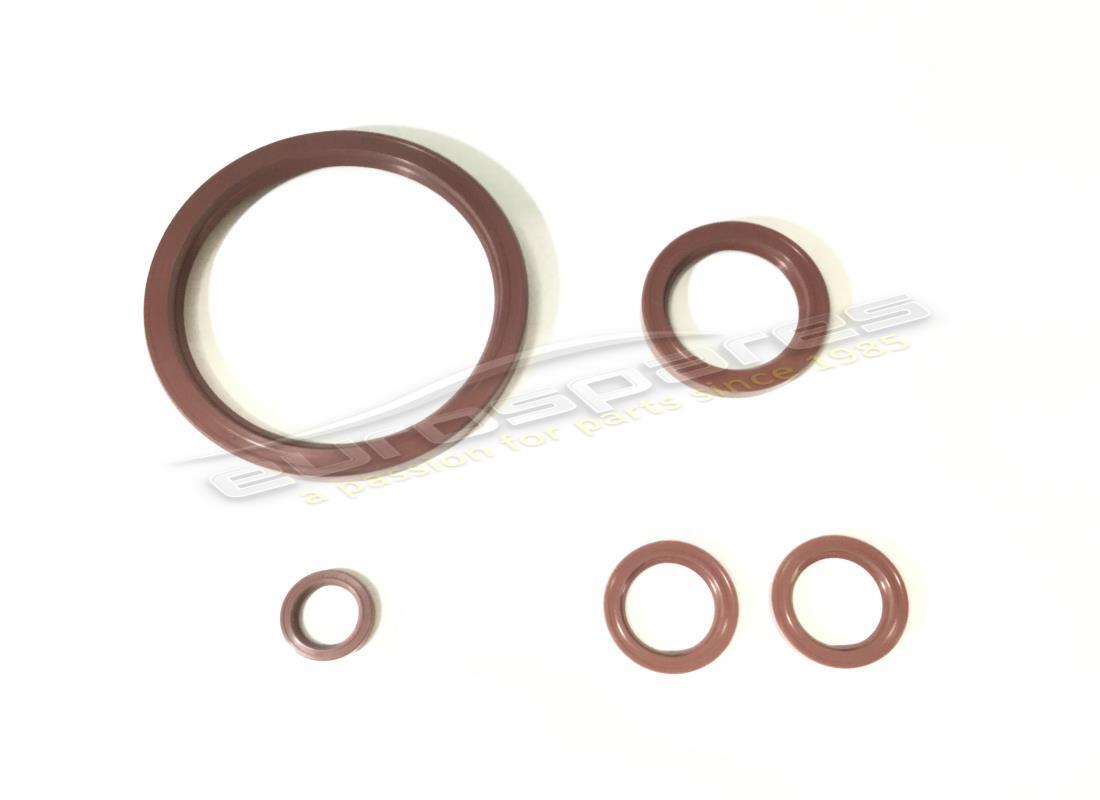

                                                                                                                                        OIL SEAL KIT
                                                                                                                                        # 001
                                                                                                                                        MPN: 119132
                                                                                                                                        COMPLETE ENGINE
                                                                                                                                        Complete Short Engine Assy 400I Auto Rhd
                                                                                                                                        # 002
                                                                                                                                        MPN: 108819

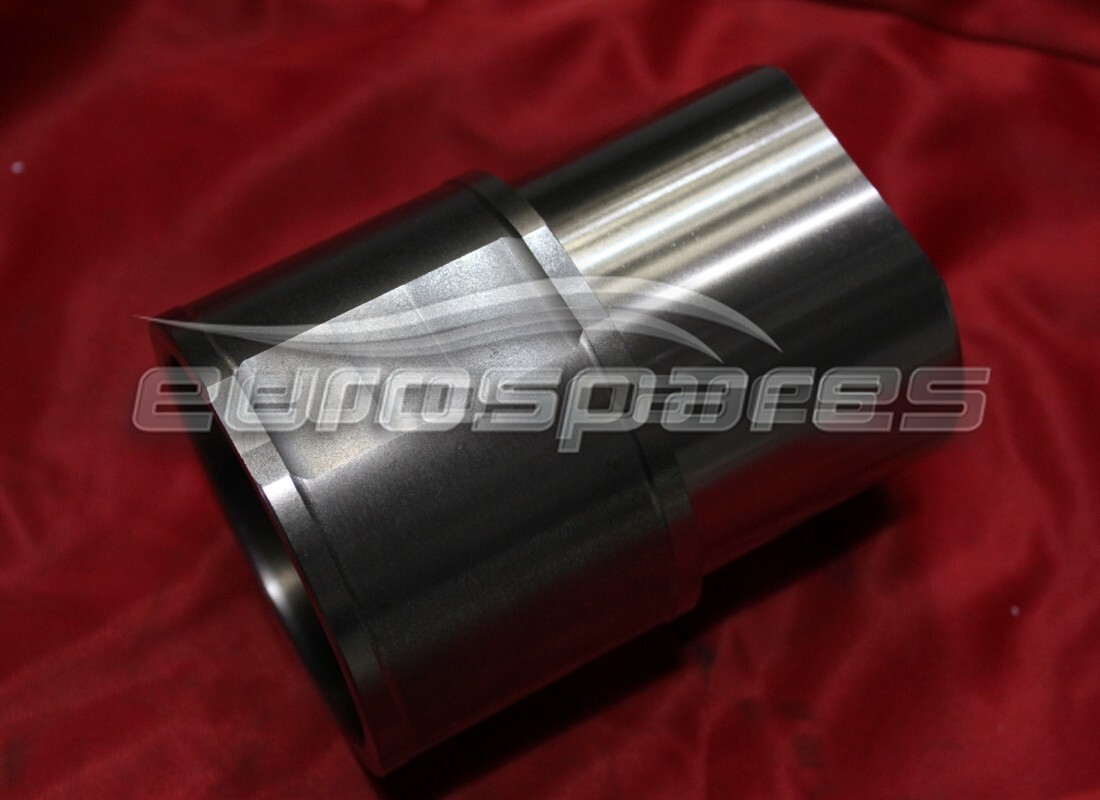

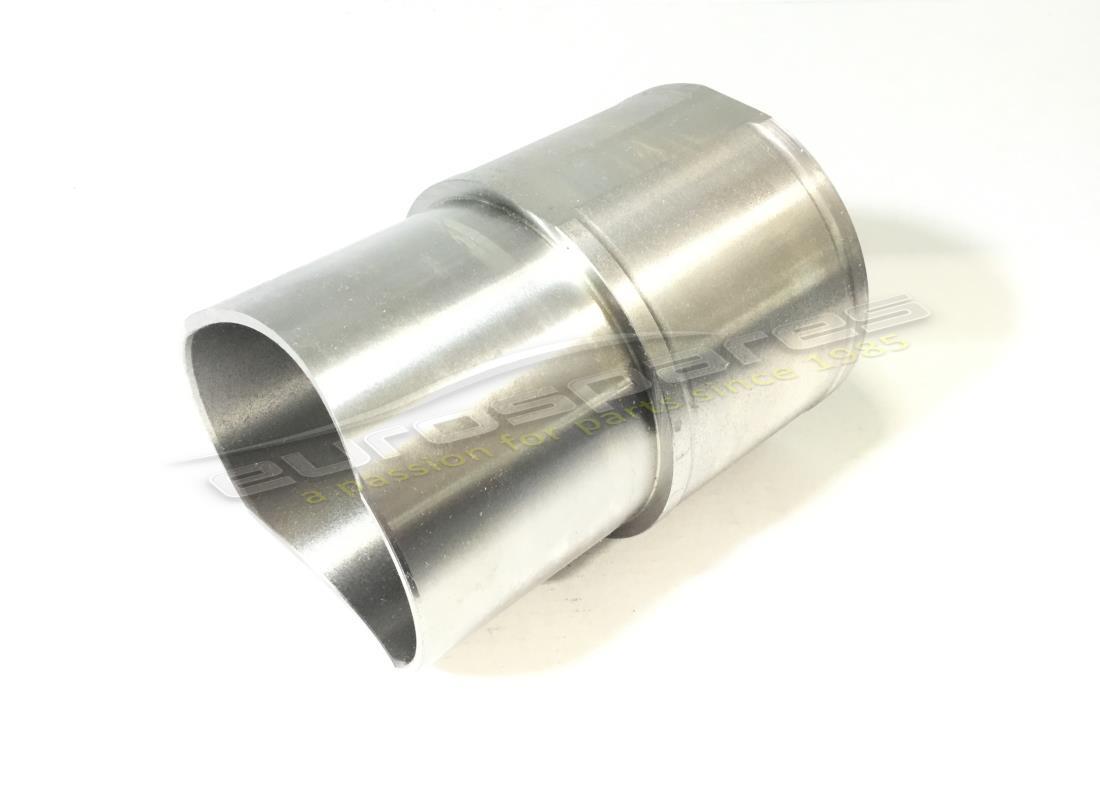

                                                                                                                                        CYLINDER LINER
                                                                                                                                        from £278.25
                                                                                                                                        from £278.25
                                                                                                                                        # 003
                                                                                                                                        MPN: 169129
                                                                                                                                        HEAD GASKET
                                                                                                                                        from £407.63
                                                                                                                                        from £407.63
                                                                                                                                        This part replaces part number 100096
                                                                                                                                        # 004
                                                                                                                                        MPN: 100098
                                                                                                                                        STUD
                                                                                                                                        from £31.68
                                                                                                                                        from £31.68
                                                                                                                                        This part replaces part number 9100505
                                                                                                                                        # 005
                                                                                                                                        MPN: 188829
                                                                                                                                        SUPPORT
                                                                                                                                        # 006
                                                                                                                                        MPN: 188827
                                                                                                                                        SUPPORT
                                                                                                                                        Col basamento completo
                                                                                                                                        # 007
                                                                                                                                        MPN: 188829
                                                                                                                                        SUPPORT
                                                                                                                                        # 008
                                                                                                                                        MPN: 100055
                                                                                                                                        GASKET OR SEAL
                                                                                                                                        from £51.40
                                                                                                                                        from £51.40
                                                                                                                                        This part replaces part number 9100056
                                                                                                                                        # 009
                                                                                                                                        MPN: 109944

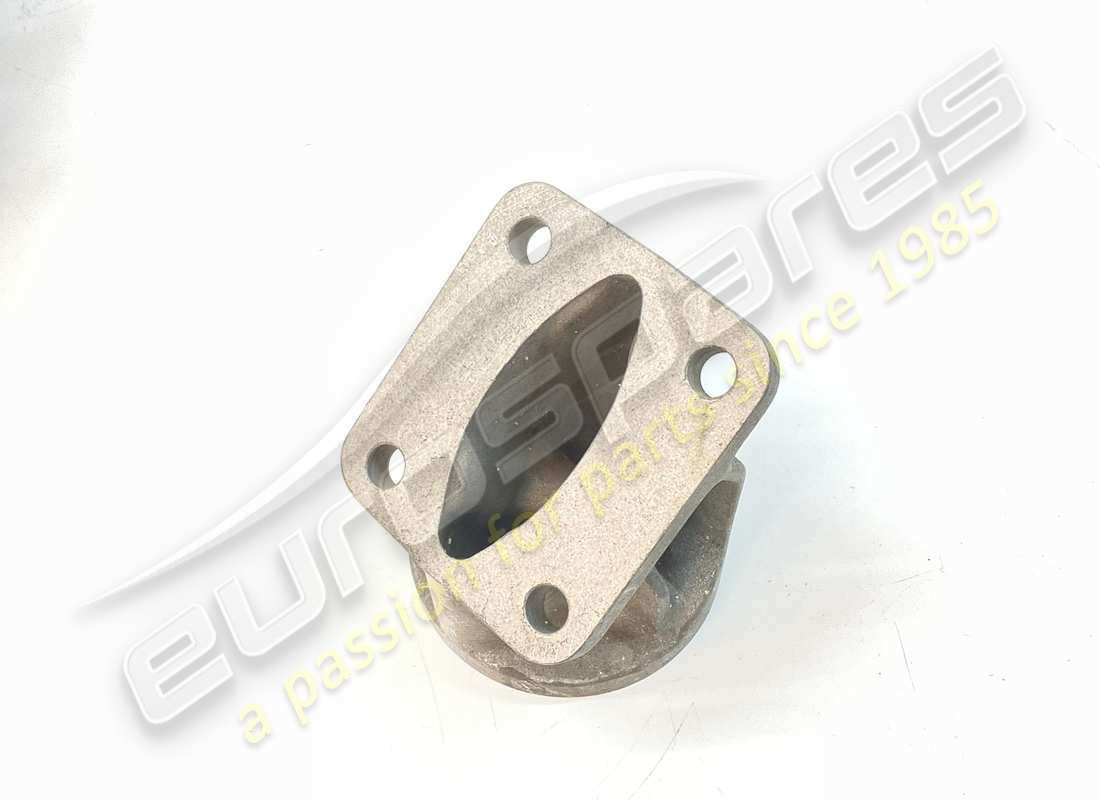

                                                                                                                                        FLANGE
                                                                                                                                        from £190.61
                                                                                                                                        from £190.61
                                                                                                                                        # 010
                                                                                                                                        MPN: 102882
                                                                                                                                        COPERCHIETTO ISPEZIONE
                                                                                                                                        # 011
                                                                                                                                        MPN: 186182
                                                                                                                                        GRANO INDICE FASATURA
                                                                                                                                        from £114.78
                                                                                                                                        from £114.78
                                                                                                                                        # 012
                                                                                                                                        MPN: 105263
                                                                                                                                        SUPPORT FOR CRANKCASE
                                                                                                                                        from £77.07
                                                                                                                                        from £77.07
                                                                                                                                        # 013
                                                                                                                                        MPN: 166684
                                                                                                                                        THICKNESS FOR PAD
                                                                                                                                        from £2.98
                                                                                                                                        from £2.98
                                                                                                                                        # 014
                                                                                                                                        MPN: 166688
                                                                                                                                        PRLGIONIERO FISSAGGIO TESTA
                                                                                                                                        from £21.24
                                                                                                                                        from £21.24
                                                                                                                                        # 015
                                                                                                                                        MPN: 105266
                                                                                                                                        ENGINE MOUNT COVER
                                                                                                                                        from £197.64
                                                                                                                                        from £197.64
                                                                                                                                        This part replaces part number 105265
                                                                                                                                        # 016
                                                                                                                                        MPN: 100183
                                                                                                                                        SHIELD
                                                                                                                                        from £9.55
                                                                                                                                        from £9.55
                                                                                                                                        This part replaces part number 9100698
                                                                                                                                        # 017
                                                                                                                                        MPN: 166161
                                                                                                                                        NUT
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        # 018
                                                                                                                                        MPN: 166166
                                                                                                                                        WASHER
                                                                                                                                        # 018
                                                                                                                                        MPN: 166612
                                                                                                                                        PRIGIOMERO LUNGO
                                                                                                                                        from £212.54
                                                                                                                                        from £212.54
                                                                                                                                        # 021
                                                                                                                                        MPN: 16161521
                                                                                                                                        NUT
                                                                                                                                        # 022
                                                                                                                                        MPN: 166613
                                                                                                                                        DOWEL
                                                                                                                                        # 023
                                                                                                                                        MPN: 163183
                                                                                                                                        PRIGTONIERO CORTO
                                                                                                                                        # 024
                                                                                                                                        MPN: 183186
                                                                                                                                        WASHER
                                                                                                                                        from £84.85
                                                                                                                                        from £84.85
                                                                                                                                        # 027
                                                                                                                                        MPN: 12601571
                                                                                                                                        WASHER
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        This part replaces part number 12601574
                                                                                                                                        # 028
                                                                                                                                        MPN: 104170
                                                                                                                                        PRIGIOMERO LUNGO
                                                                                                                                        from £14.20
                                                                                                                                        from £14.20
                                                                                                                                        This part replaces part number 95562
                                                                                                                                        # 028
                                                                                                                                        MPN: 11188673
                                                                                                                                        WASHER
                                                                                                                                        # 028
                                                                                                                                        MPN: 163170
                                                                                                                                        PRIGTONIERO COITO
                                                                                                                                        from £25.56
                                                                                                                                        from £25.56
                                                                                                                                        # 028
                                                                                                                                        MPN: 18161521
                                                                                                                                        NUT
                                                                                                                                        # 031
                                                                                                                                        MPN: 103181
                                                                                                                                        NUT
                                                                                                                                        from £1.94
                                                                                                                                        from £1.94
                                                                                                                                        This part replaces part number 95209 - and 1 more. Click to view details
                                                                                                                                        # 032
                                                                                                                                        MPN: 100013
                                                                                                                                        DOWEL
                                                                                                                                        from £1.62
                                                                                                                                        from £1.62
                                                                                                                                        This part replaces part number 94379
                                                                                                                                        # 033
                                                                                                                                        MPN: 13843821
                                                                                                                                        THREADED STUD
                                                                                                                                        Vale per 406GT
                                                                                                                                        # 034
                                                                                                                                        MPN: 11168671
                                                                                                                                        WASHER
                                                                                                                                        Vale per 466GT
                                                                                                                                        # 035
                                                                                                                                        MPN: 16100821
                                                                                                                                        NUT
                                                                                                                                        from £0.71
                                                                                                                                        from £0.71
                                                                                                                                        This part replaces part number 16100825 which we have in stock
                                                                                                                                        # 037
                                                                                                                                        MPN: 13517321
                                                                                                                                        STUD
                                                                                                                                        from £16.90
                                                                                                                                        from £16.90
                                                                                                                                        This part replaces part number 13517320
                                                                                                                                        # 038
                                                                                                                                        MPN: 100020
                                                                                                                                        STUD
                                                                                                                                        from £12.40
                                                                                                                                        from £12.40
                                                                                                                                        This part replaces part number 9100964
                                                                                                                                        # 038
                                                                                                                                        MPN: 11188671
                                                                                                                                        WASHER
                                                                                                                                        # 038
                                                                                                                                        MPN: 13518821
                                                                                                                                        THREADED STUD
                                                                                                                                        # 038
                                                                                                                                        MPN: 163180
                                                                                                                                        WASHER
                                                                                                                                        # 041
                                                                                                                                        MPN: 166636
                                                                                                                                        THREADED STUD
                                                                                                                                        # 041
                                                                                                                                        MPN: 166637
                                                                                                                                        THREADED STUD
                                                                                                                                        # 043
                                                                                                                                        MPN: 13517421
                                                                                                                                        THREADED STUD
                                                                                                                                        from £53.42
                                                                                                                                        from £53.42
                                                                                                                                        This part replaces part number 13517420
                                                                                                                                        # 044
                                                                                                                                        MPN: 166638
                                                                                                                                        THREADED STUD
                                                                                                                                        # 045
                                                                                                                                        MPN: 11188671
                                                                                                                                        WASHER
                                                                                                                                        # 046
                                                                                                                                        MPN: 16166821
                                                                                                                                        NUT
                                                                                                                                        # 047
                                                                                                                                        MPN: 106640
                                                                                                                                        DOWEL
                                                                                                                                        from £73.28
                                                                                                                                        from £73.28
                                                                                                                                        # 048
                                                                                                                                        MPN: 106641
                                                                                                                                        DOWEL
                                                                                                                                        from £73.28
                                                                                                                                        from £73.28
                                                                                                                                        # 048
                                                                                                                                        MPN: 166687
                                                                                                                                        DOWEL
                                                                                                                                        # 048
                                                                                                                                        MPN: 18166821
                                                                                                                                        NUT
                                                                                                                                        # 051
                                                                                                                                        MPN: 101239
                                                                                                                                        NUT
                                                                                                                                        from £1.60
                                                                                                                                        from £1.60
                                                                                                                                        This part replaces part number 92310
                                                                                                                                        # 052
                                                                                                                                        MPN: 10414170
                                                                                                                                        WASHER
                                                                                                                                        # 053
                                                                                                                                        MPN: 10275011
                                                                                                                                        PLUG
                                                                                                                                        from £1.05
                                                                                                                                        from £1.05
                                                                                                                                        This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                                                        # 054
                                                                                                                                        MPN: 10263460
                                                                                                                                        GASKET
                                                                                                                                        from £0.53
                                                                                                                                        from £0.53
                                                                                                                                        This part replaces part number 95119
                                                                                                                                        # 055
                                                                                                                                        MPN: 10269950
                                                                                                                                        PLUG
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        This part replaces part number 95124
                                                                                                                                        # 056
                                                                                                                                        MPN: 10300740
                                                                                                                                        WATER DRAIN PLUG
                                                                                                                                        from £12.10
                                                                                                                                        from £12.10
                                                                                                                                        # 056
                                                                                                                                        MPN: 11500021
                                                                                                                                        THREADED STUD
                                                                                                                                        from £9.50
                                                                                                                                        from £9.50
                                                                                                                                        # 057
                                                                                                                                        MPN: 10257060
                                                                                                                                        GASKET
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                                        # 058
                                                                                                                                        MPN: 10158801
                                                                                                                                        EXPANSION PLUG
                                                                                                                                        from £0.80
                                                                                                                                        from £0.80
                                                                                                                                        This part replaces part number 10158800
                                                                                                                                        # 059
                                                                                                                                        MPN: 100015
                                                                                                                                        RING
                                                                                                                                        from £1.21
                                                                                                                                        from £1.21
                                                                                                                                        # 061
                                                                                                                                        MPN: 12601171
                                                                                                                                        WASHER
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 062
                                                                                                                                        MPN: 12164721
                                                                                                                                        NUT
                                                                                                                                        from £0.61
                                                                                                                                        from £0.61
                                                                                                                                        # 063
                                                                                                                                        MPN: 11198373
                                                                                                                                        WASHER
                                                                                                                                        from £0.48
                                                                                                                                        from £0.48
                                                                                                                                        This part replaces part number 11198377
                                                                                                                                        # 064
                                                                                                                                        MPN: 106036
                                                                                                                                        THREADED STUD
                                                                                                                                        # 066
                                                                                                                                        MPN: 13449521
                                                                                                                                        THREADED STUD
                                                                                                                                        from £9.25
                                                                                                                                        from £9.25
                                                                                                                                        # 067
                                                                                                                                        MPN: 10516873
                                                                                                                                        WASHER
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        # 068
                                                                                                                                        MPN: 106686
                                                                                                                                        WASHER
                                                                                                                                        from £49.10
                                                                                                                                        from £49.10
                                                                                                                                        # 069
                                                                                                                                        MPN: 10977611
                                                                                                                                        SCREW
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        # 071
                                                                                                                                        MPN: 100151
                                                                                                                                        CON ROD BEARINGS +10
                                                                                                                                        (1st Undersize mm 0,254)
                                                                                                                                        from £45.05
                                                                                                                                        from £45.05
                                                                                                                                        This part replaces part number 106184
                                                                                                                                        # 072
                                                                                                                                        MPN: 12544171
                                                                                                                                        WASHER
                                                                                                                                        # 073
                                                                                                                                        MPN: 166639
                                                                                                                                        THREADED STUD
                                                                                                                                        # 074
                                                                                                                                        MPN: 162816
                                                                                                                                        THREADED STUD
                                                                                                                                        # 075
                                                                                                                                        MPN: 10257060
                                                                                                                                        GASKET
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                                        # 076
                                                                                                                                        MPN: 13450121
                                                                                                                                        THREADED STUD
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        This part replaces part number 13450120
                                                                                                                                        # 076
                                                                                                                                        MPN: 13450621
                                                                                                                                        THREADED STUD
                                                                                                                                        from £2.66
                                                                                                                                        from £2.66
                                                                                                                                        # 077
                                                                                                                                        MPN: 11198371
                                                                                                                                        WASHER
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 078
                                                                                                                                        MPN: 106052
                                                                                                                                        EXHAUST MOUNT
                                                                                                                                        from £57.78
                                                                                                                                        from £57.78
                                                                                                                                        # 078
                                                                                                                                        MPN: 12164721
                                                                                                                                        NUT
                                                                                                                                        from £0.61
                                                                                                                                        from £0.61
                                                                                                                                        # 080
                                                                                                                                        MPN: 163528
                                                                                                                                        THREADED PLUG
                                                                                                                                        from £2.39
                                                                                                                                        from £2.39
                                                                                                                                        This part replaces part number 10268450 - and 1 more. Click to view details
                                                                                                                                        # 081
                                                                                                                                        MPN: 13525870
                                                                                                                                        HELKOIL
                                                                                                                                        from £1.85
                                                                                                                                        from £1.85
                                                                                                                                        This part replaces part number 105510
                                                                                                                                        # 082
                                                                                                                                        MPN: 10839910
                                                                                                                                        LOCATING DOWEL
                                                                                                                                        from £1.11
                                                                                                                                        from £1.11
                                                                                                                                        # 083
                                                                                                                                        MPN: 118066

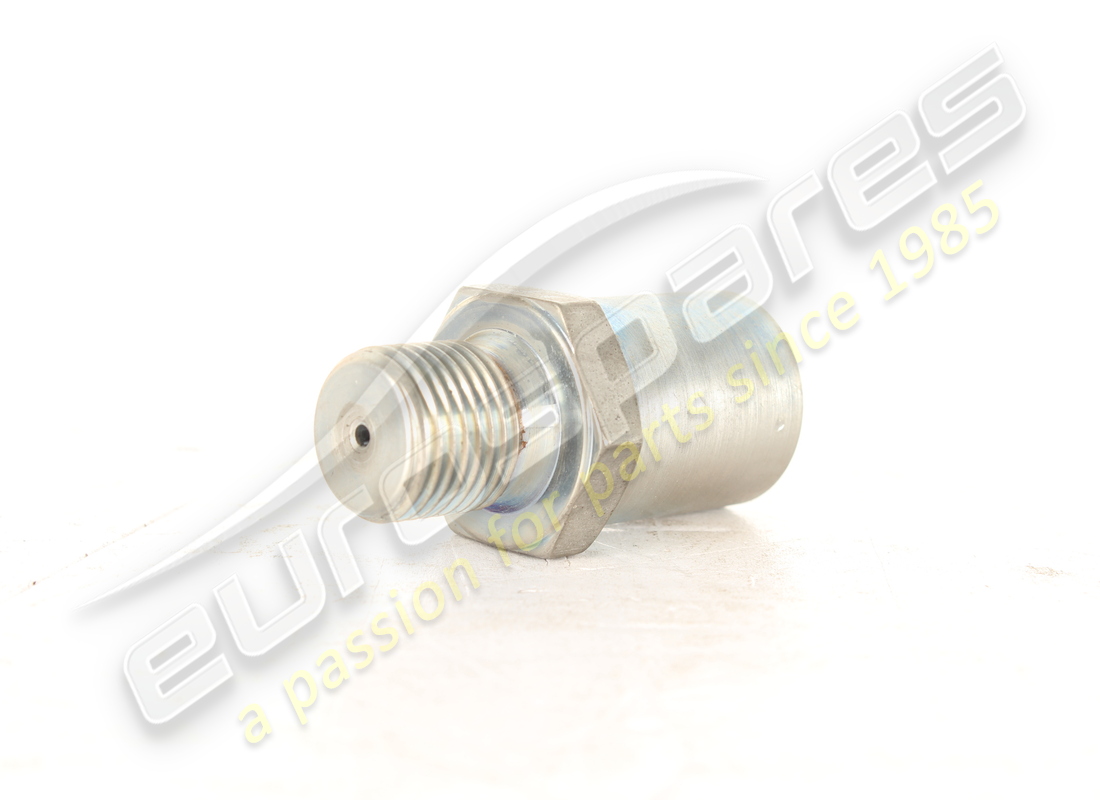

                                                                                                                                        TRASMETTITORE ELETTRICO DI PRESSIONE 1 2V - 0 ÷ 12 KG. / CMQ.
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        # 084
                                                                                                                                        MPN: 118261
                                                                                                                                        UNION
                                                                                                                                        from £132.02
                                                                                                                                        from £132.02
                                                                                                                                        This part replaces part number 100334 which we have in stock - and 2 more. Click to view details
                                                                                                                                        # 085
                                                                                                                                        MPN: 104956

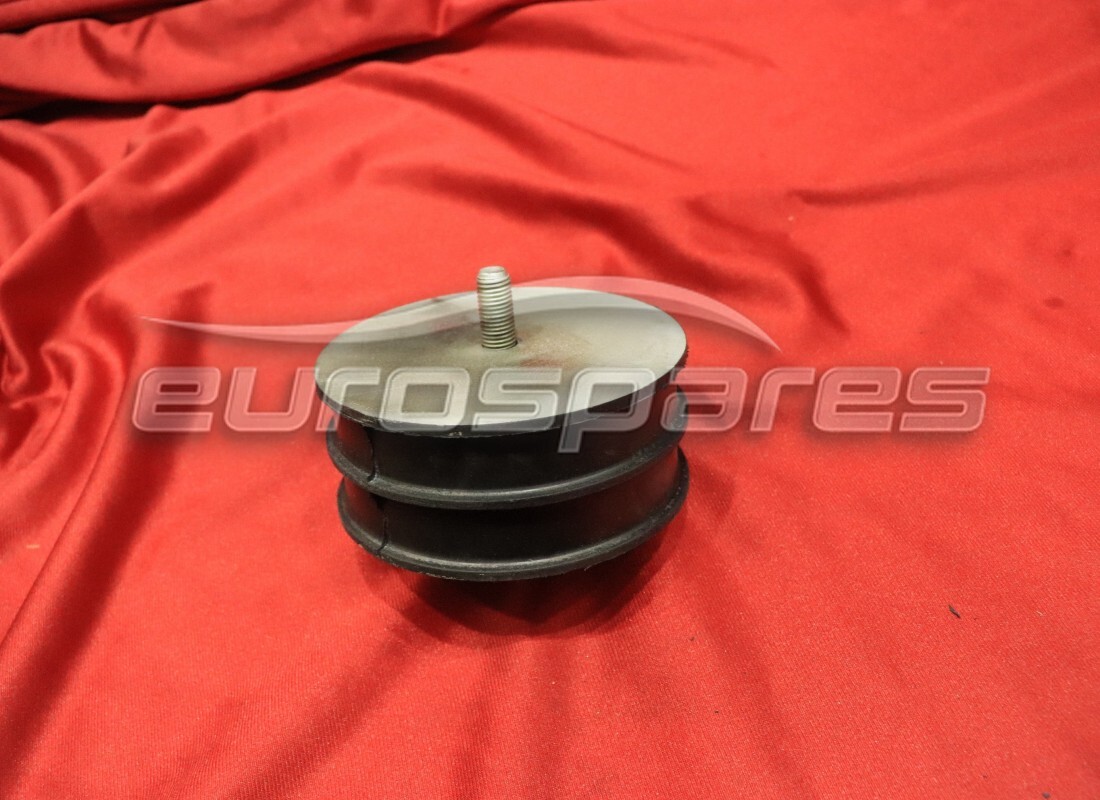

                                                                                                                                        Engine Mount
                                                                                                                                        O.D. 106 mm
                                                                                                                                        from £83.68
                                                                                                                                        from £83.68
                                                                                                                                        # 085
                                                                                                                                        MPN: 131252
                                                                                                                                        MOUNTING (ENGINE)
                                                                                                                                        from £136.58
                                                                                                                                        from £136.58
                                                                                                                                        This part replaces part number 104956 which we have in stock
                                                                                                                                        # 085
                                                                                                                                        MPN: 164187
                                                                                                                                        THREADED STUD
                                                                                                                                        # 086
                                                                                                                                        MPN: 10268356
                                                                                                                                        PLUG
                                                                                                                                        # 087
                                                                                                                                        MPN: 104186
                                                                                                                                        THREADED STUD
                                                                                                                                        from £28.26
                                                                                                                                        from £28.26
                                                                                                                                        This part replaces part number 95567
