ferrari 360 spider glasses and gaskets parts diagram

128 - Glasses and Gaskets

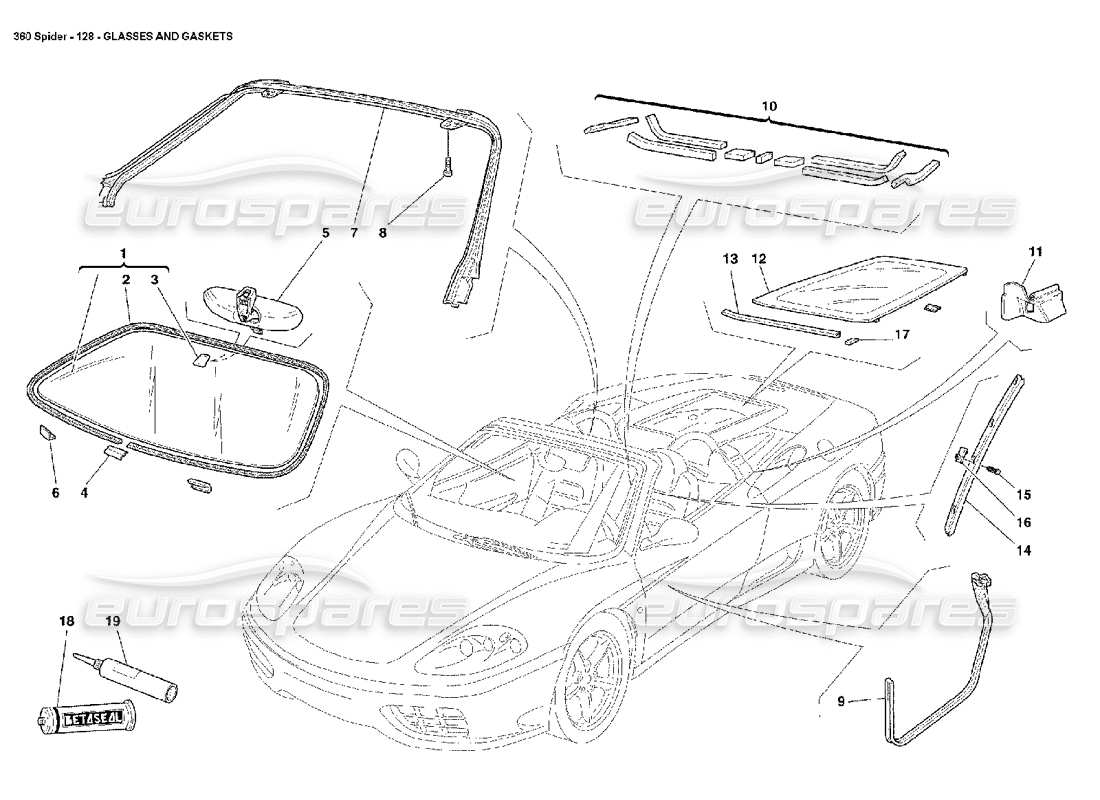

Ferrari 360 Spider Glasses and Gaskets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 65782800
                                      WINDSCREEN
                                      (original OEM)
                                      from £2,081.74
                                      from £2,081.74
                                      This part replaces part number 69494400 - and 1 more. Click to view details
                                      # 002
                                      MPN: 65792500
                                      OUTER GASKET
                                      from £160.57
                                      from £160.57
                                      # 003
                                      MPN: 65695500
                                      BAR
                                      from £13.33
                                      from £13.33
                                      # 004
                                      MPN: 65625100
                                      JOINT COVERING
                                      from £1.94
                                      from £1.94
                                      # 005
                                      MPN: 65547300
                                      INNER REAR VIEW MIRROR
                                      from £29.42
                                      from £29.42
                                      # 006
                                      MPN: 65808700
                                      CMPLETE SPACER
                                      from £1.61
                                      from £1.61
                                      # 007
                                      MPN: 65797300
                                      WINDSCREEN GLASS GASKET
                                      from £1,178.45
                                      from £1,178.45
                                      This part replaces part number 66459100
                                      # 008
                                      MPN: 14432220
                                      SCREW
                                      from £0.71
                                      from £0.71
                                      # 009
                                      MPN: 66328200
                                      COMPLETE RH GASKET FOR DOOR
                                      from £1,013.93
                                      from £1,013.93
                                      # 009
                                      MPN: 66328300
                                      COMPLETE LH GASKET FOR DOOR
                                      from £1,013.93
                                      from £1,013.93
                                      # 010
                                      MPN: 66461100
                                      FOAM SEALING SOFT TOP BAY
                                      from £79.35
                                      from £79.35
                                      # 011
                                      MPN: 66234600
                                      COVER RH GASKET
                                      from £6.85
                                      from £6.85
                                      # 011
                                      MPN: 66234700
                                      COVER LH GASKET
                                      from £6.99
                                      from £6.99
                                      # 012
                                      MPN: 65784900
                                      TRANSPARENT FOR REAR HOOD
                                      from £207.56
                                      from £207.56
                                      # 013
                                      MPN: 65793000
                                      UPPER GASKET
                                      from £52.02
                                      from £52.02
                                      # 014
                                      MPN: 65791100
                                      COMPLETE RH MOULDING
                                      from £157.65
                                      from £157.65
                                      This part replaces part number 66461600
                                      # 014
                                      MPN: 65791300
                                      COMPLETE LH MOULDING
                                      from £254.97
                                      from £254.97
                                      This part replaces part number 66461500
                                      # 015
                                      MPN: 16083501
                                      SCREW
                                      from £0.47
                                      from £0.47
                                      # 016
                                      MPN: 64569500
                                      FIXING CLIP
                                      from £2.03
                                      from £2.03
                                      # 017
                                      MPN: 65714600
                                      SPACER
                                      from £0.91
                                      from £0.91
                                      # 018
                                      MPN: 66091400
                                      WINDSHIELD ADHESIVE
                                      from £28.27
                                      from £28.27
                                      This part replaces part number 63301500
                                      # 019
                                      MPN: 66091400
                                      SEALING
                                      from £28.27
                                      from £28.27
                                      This part replaces part number 63301500
