055 - Current Generator - Starting Motor

Ferrari 360 Spider Current Generator - Starting Motor Parts Diagram

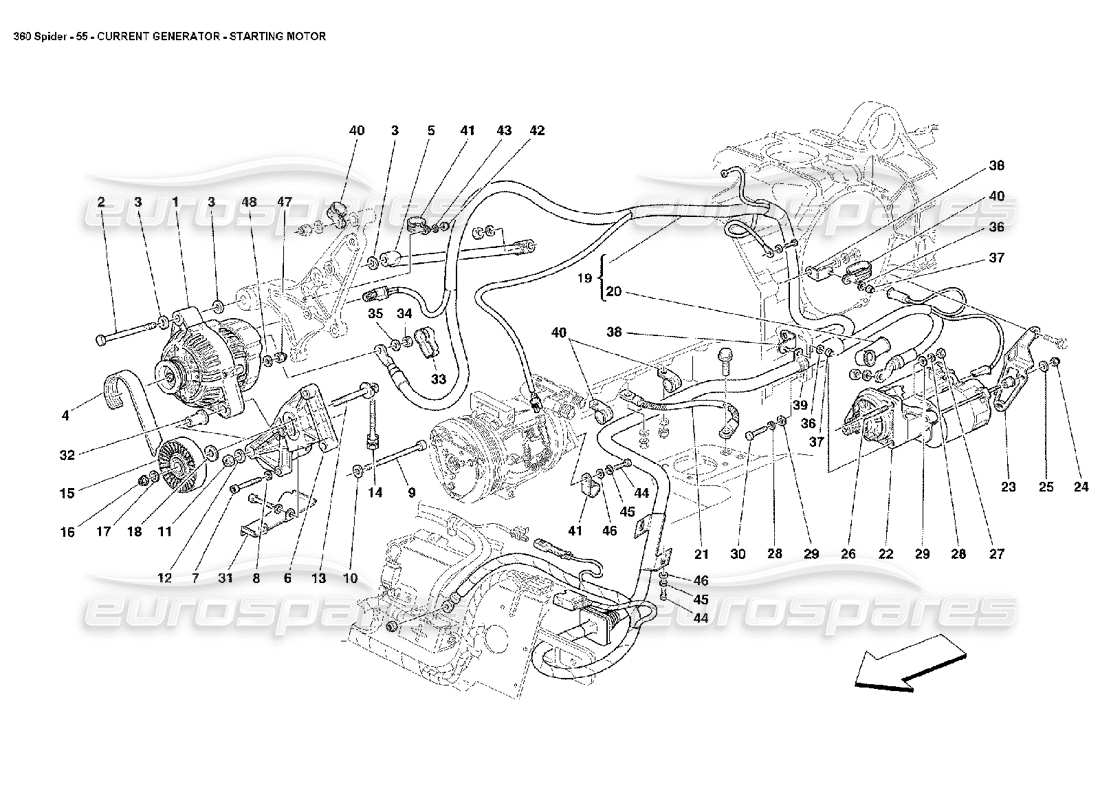

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 179852
                                                                                            150 A. ALTERNATOR
                                                                                            from £562.89
                                                                                            from £562.89
                                                                                            # 002
                                                                                            MPN: 15971324
                                                                                            SCREW
                                                                                            from £0.92
                                                                                            from £0.92
                                                                                            This part replaces part number 123198 - and 1 more. Click to view details
                                                                                            # 004
                                                                                            MPN: 201446
                                                                                            WATER PUMP AND GENERATOR BELT
                                                                                            from £13.42
                                                                                            from £13.42
                                                                                            This part replaces part number 194229
                                                                                            # 005
                                                                                            MPN: 180493
                                                                                            REAR BRACKET
                                                                                            from £30.97
                                                                                            from £30.97
                                                                                            # 006
                                                                                            MPN: 179704
                                                                                            LOWER SUPPORT
                                                                                            from £742.21
                                                                                            from £742.21
                                                                                            # 007
                                                                                            MPN: 14306524
                                                                                            SCREW L=30MM
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 14306521
                                                                                            # 007
                                                                                            MPN: 14306724
                                                                                            SCREW L=40MM
                                                                                            from £0.55
                                                                                            from £0.55
                                                                                            # 008
                                                                                            MPN: 12601374
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                            # 009
                                                                                            MPN: 179664
                                                                                            SCREW
                                                                                            from £12.21
                                                                                            from £12.21
                                                                                            # 010
                                                                                            MPN: 164469
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            # 011
                                                                                            MPN: 177764
                                                                                            NUT
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 149719
                                                                                            # 012
                                                                                            MPN: 126648
                                                                                            WASHER
                                                                                            from £0.61
                                                                                            from £0.61
                                                                                            # 013
                                                                                            MPN: 172527
                                                                                            PIN
                                                                                            from £48.20
                                                                                            from £48.20
                                                                                            # 014
                                                                                            MPN: 157289
                                                                                            SCREW
                                                                                            from £4.11
                                                                                            from £4.11
                                                                                            # 015
                                                                                            MPN: 172537
                                                                                            BELT TIGHTENING PULLEY
                                                                                            from £72.42
                                                                                            from £72.42
                                                                                            # 016
                                                                                            MPN: 133216
                                                                                            NUT
                                                                                            from £4.80
                                                                                            from £4.80
                                                                                            # 017
                                                                                            MPN: 102695
                                                                                            WASHER
                                                                                            from £1.84
                                                                                            from £1.84
                                                                                            # 018
                                                                                            MPN: 174508
                                                                                            WASHER
                                                                                            from £2.88
                                                                                            from £2.88
                                                                                            # 019
                                                                                            MPN: 179833
                                                                                            CONNECTION CABLES FOR MOTOR UTILITIES
                                                                                            - Not as spare part - Replaced by 188108
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 019
                                                                                            MPN: 213155
                                                                                            COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
                                                                                            from £971.42
                                                                                            from £971.42
                                                                                            This part replaces part number 188108
                                                                                            # 020
                                                                                            MPN: 176903
                                                                                            PROTECTION BOOT
                                                                                            from £10.35
                                                                                            from £10.35
                                                                                            # 021
                                                                                            MPN: 155073
                                                                                            CABLE FOR ENGINE - FRAME EARTH
                                                                                            from £7.67
                                                                                            from £7.67
                                                                                            This part replaces part number 115668
                                                                                            # 022
                                                                                            MPN: 183392
                                                                                            STARTER MOTOR
                                                                                            from £649.66
                                                                                            from £649.66
                                                                                            This part replaces part number 179824
                                                                                            # 023
                                                                                            MPN: 179719
                                                                                            STARTER MOTOR SUPPORTING BRACKET
                                                                                            from £13.26
                                                                                            from £13.26
                                                                                            # 024
                                                                                            MPN: 160472
                                                                                            NUT
                                                                                            from £1.27
                                                                                            from £1.27
                                                                                            # 025
                                                                                            MPN: 61148700
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            # 026
                                                                                            MPN: 13517024
                                                                                            STUD
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 027
                                                                                            MPN: 133989
                                                                                            NUT
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 8 D 4-UNI 207
                                                                                            # 028
                                                                                            MPN: 127496
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                            # 029
                                                                                            MPN: 10519624
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                            # 030
                                                                                            MPN: 176212
                                                                                            SCREW
                                                                                            from £0.64
                                                                                            from £0.64
                                                                                            # 031
                                                                                            MPN: 178067
                                                                                            PLATE
                                                                                            - Valid for cars with meccanical gearbox
                                                                                            from £4.33
                                                                                            from £4.33
                                                                                            # 032
                                                                                            MPN: 164467
                                                                                            BUSHING
                                                                                            from £15.91
                                                                                            from £15.91
                                                                                            # 033
                                                                                            MPN: 154803
                                                                                            PROTECTION BOOT
                                                                                            from £2.68
                                                                                            from £2.68
                                                                                            # 034
                                                                                            MPN: 16100814
                                                                                            NUT
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                            # 035
                                                                                            MPN: 12601374
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                            # 036
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 037
                                                                                            MPN: 102741
                                                                                            NUT
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                            # 038
                                                                                            MPN: 149694
                                                                                            FIXING BRACKET
                                                                                            from £3.84
                                                                                            from £3.84
                                                                                            This part replaces part number 223375
                                                                                            # 039
                                                                                            MPN: 10442090
                                                                                            BRACKET WITH SHEATH
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 040
                                                                                            MPN: 10450690
                                                                                            BRACKET WITH SHEATH
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 041
                                                                                            MPN: 10441790
                                                                                            BRACKET WITH SHEATH
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 042
                                                                                            MPN: 102741
                                                                                            NUT
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                            # 043
                                                                                            MPN: 10519424
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                                            # 044
                                                                                            MPN: 10902324
                                                                                            SCREW
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                            # 045
                                                                                            MPN: 127494
                                                                                            WASHER
                                                                                            (minimum order quantity = 20)
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                            # 046
                                                                                            MPN: 12644424
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                            # 047
                                                                                            MPN: 64449900
                                                                                            CAP NUT
                                                                                            from £4.48
                                                                                            from £4.48
                                                                                            # 048
                                                                                            MPN: 127493
                                                                                            WASHER
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 106849 - and 1 more. Click to view details
                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
