-Valid for GD
ferrari 360 spider brake system parts diagram

043 - Brake System

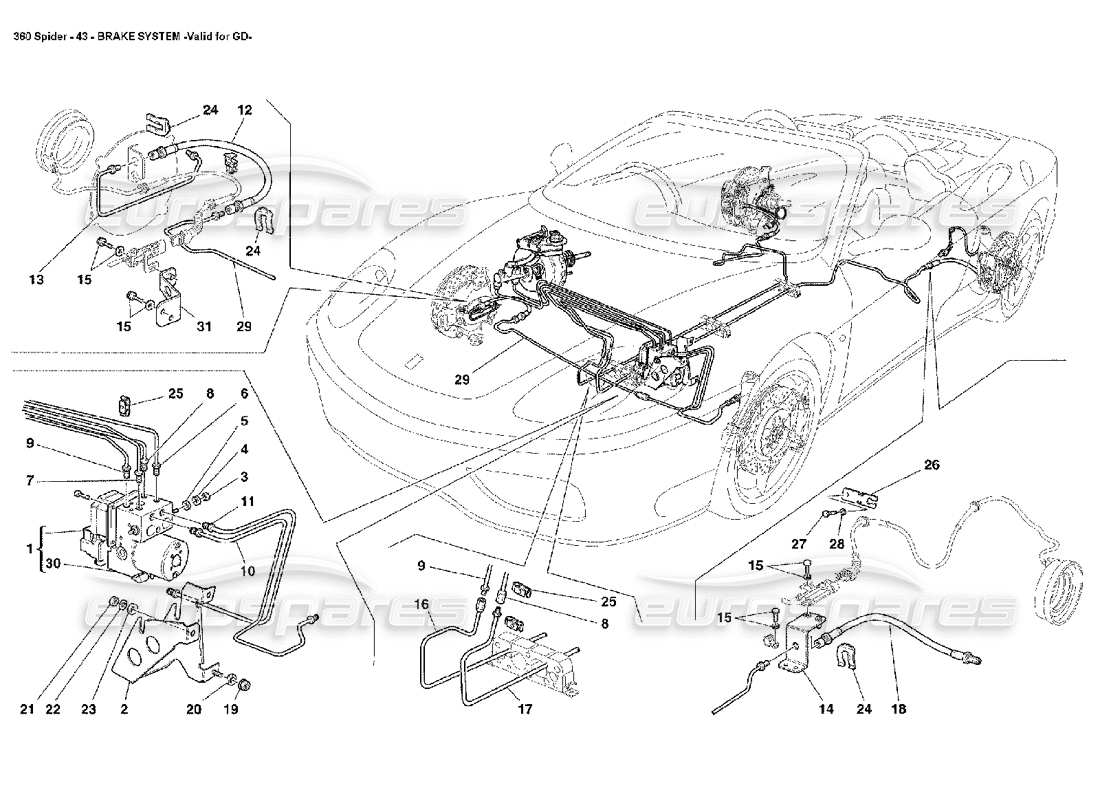

Ferrari 360 Spider Brake System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 168828
                                          ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION
                                          from £2,845.71
                                          from £2,845.71
                                          # 002
                                          MPN: 177512
                                          CONTROL STATION SUPPORTING BRACKET
                                          from £225.85
                                          from £225.85
                                          # 003
                                          MPN: 16100814
                                          NUT
                                          from £0.71
                                          from £0.71
                                          This part replaces part number 16100811 - and 1 more. Click to view details
                                          # 004
                                          MPN: 127496
                                          WASHER
                                          from £0.54
                                          from £0.54
                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                          # 005
                                          MPN: 12638524
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12638501 - and 2 more. Click to view details
                                          # 006
                                          MPN: 177156
                                          BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
                                          - Valid till Ass. Nr. 57487
                                          Supersession
                                          Supersession
                                          # 006
                                          MPN: 213657
                                          BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
                                          - Valid from Ass. Nr. 57488
                                          from £7.88
                                          from £7.88
                                          This part replaces part number 177156
                                          # 007
                                          MPN: 177155
                                          BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
                                          - Valid till Ass. Nr. 57487
                                          Supersession
                                          Supersession
                                          # 007
                                          MPN: 213656
                                          BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
                                          - Valid from Ass. Nr. 57488
                                          from £7.76
                                          from £7.76
                                          This part replaces part number 177155
                                          # 008
                                          MPN: 180386
                                          PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE
                                          - Valid till Ass. Nr. 57487
                                          from £7.16
                                          from £7.16
                                          # 008
                                          MPN: 213661
                                          PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE
                                          - Valid from Ass. Nr. 57488
                                          # 009
                                          MPN: 180385
                                          PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE
                                          - Valid till Ass. Nr. 57487
                                          Supersession
                                          Supersession
                                          # 009
                                          MPN: 213660
                                          PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE
                                          - Valid from Ass. Nr. 57488
                                          from £8.28
                                          from £8.28
                                          This part replaces part number 180385
                                          # 010
                                          MPN: 177158
                                          PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE
                                          - Valid till Ass. Nr. 57487
                                          from £9.29
                                          from £9.29
                                          # 010
                                          MPN: 213659
                                          PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE
                                          - Valid from Ass. Nr. 57488
                                          from £7.84
                                          from £7.84
                                          # 011
                                          MPN: 177157
                                          PIPE FROM CONTROL STATION TO UNION PIPE
                                          - Valid till Ass. Nr. 57487
                                          from £8.72
                                          from £8.72
                                          # 011
                                          MPN: 213658
                                          PIPE FROM CONTROL STATION TO UNION PIPE
                                          - Valid from Ass. Nr. 57488
                                          # 012
                                          MPN: 137313
                                          FRONT HOSE
                                          from £45.00
                                          from £45.00
                                          # 013
                                          MPN: 173805
                                          PIPE TO LH FRONT BRAKE
                                          - Valid till Ass. Nr. 57487
                                          from £30.36
                                          from £30.36
                                          This part replaces part number 205294
                                          # 013
                                          MPN: 173806
                                          PIPE TO RH FRONT BRAKE
                                          - Valid till Ass. Nr. 57487
                                          from £30.36
                                          from £30.36
                                          This part replaces part number 205293
                                          # 013
                                          MPN: 213645
                                          PIPE TO RH FRONT BRAKE
                                          - Valid from Ass. Nr. 57488
                                          # 013
                                          MPN: 213647
                                          PIPE TO LH FRONT BRAKE
                                          - Valid from Ass. Nr. 57488
                                          # 014
                                          MPN: 178939
                                          REAR SUPPORT
                                          - Valid till stock exhaustion
                                          Supersession
                                          Supersession
                                          # 014
                                          MPN: 185283
                                          REAR SUPPORT
                                          from £110.25
                                          from £110.25
                                          This part replaces part number 178939
                                          # 015
                                          MPN: 11625724
                                          SCREW WITH WASHER
                                          from £0.47
                                          from £0.47
                                          # 016
                                          MPN: 180361
                                          PIPE TO RH REAR HOSE
                                          - Valid till Ass. Nr. 57487
                                          from £126.89
                                          from £126.89
                                          # 016
                                          MPN: 213643
                                          PIPE TO RH REAR HOSE
                                          - Valid from Ass. Nr. 57488
                                          # 017
                                          MPN: 180362
                                          PIPE TO LH REAR HOSE
                                          - Valid till Ass. Nr. 57487
                                          from £17.30
                                          from £17.30
                                          # 017
                                          MPN: 213644
                                          PIPE TO LH REAR HOSE
                                          - Valid from Ass. Nr. 57488
                                          # 018
                                          MPN: 271712
                                          REAR BRAKE HOSE
                                          from £14.76
                                          from £14.76
                                          This part replaces part number 118100
                                          # 019
                                          MPN: 101139
                                          NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 16104425
                                          # 020
                                          MPN: 12638524
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12638501 - and 2 more. Click to view details
                                          # 021
                                          MPN: 16100814
                                          NUT
                                          from £0.71
                                          from £0.71
                                          This part replaces part number 16100811 - and 1 more. Click to view details
                                          # 022
                                          MPN: 127496
                                          WASHER
                                          from £0.54
                                          from £0.54
                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                          # 023
                                          MPN: 12638524
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12638501 - and 2 more. Click to view details
                                          # 024
                                          MPN: 116374
                                          CLIP
                                          from £1.15
                                          from £1.15
                                          # 025
                                          MPN: 169476
                                          CLIP
                                          from £1.51
                                          from £1.51
                                          # 026
                                          MPN: 178938
                                          SUPPORT FOR CABLE
                                          from £14.99
                                          from £14.99
                                          This part replaces part number 179236
                                          # 027
                                          MPN: 10977524
                                          SCREW
                                          from £0.53
                                          from £0.53
                                          # 028
                                          MPN: 12605374
                                          WASHER
                                          from £0.71
                                          from £0.71
                                          This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                          # 029
                                          MPN: 177161
                                          UNION PIPE TO RH FRONT BRAKE PIPE
                                          from £125.82
                                          from £125.82
                                          # 030
                                          MPN: 184541
                                          ABS/ASR/EBD ELECTRONIC CONTROL STATION
                                          Supersession
                                          Supersession
                                          # 030
                                          MPN: 185147
                                          ABS/ASR/EBD ELECTRONIC CONTROL STATION
                                          from £1,140.60
                                          from £1,140.60
                                          This part replaces part number 184541
                                          # 031
                                          MPN: 179096
                                          LH FRONT SUPPORT
                                          - Not as spare part now
                                          from £2.30
                                          from £2.30
                                          # 031
                                          MPN: 179237
                                          RH FRONT SUPPORT
                                          - Not as spare part now
                                          from £2.30
                                          from £2.30
