ferrari 360 spider differential & axle shafts parts diagram

038 - Differential & Axle Shafts

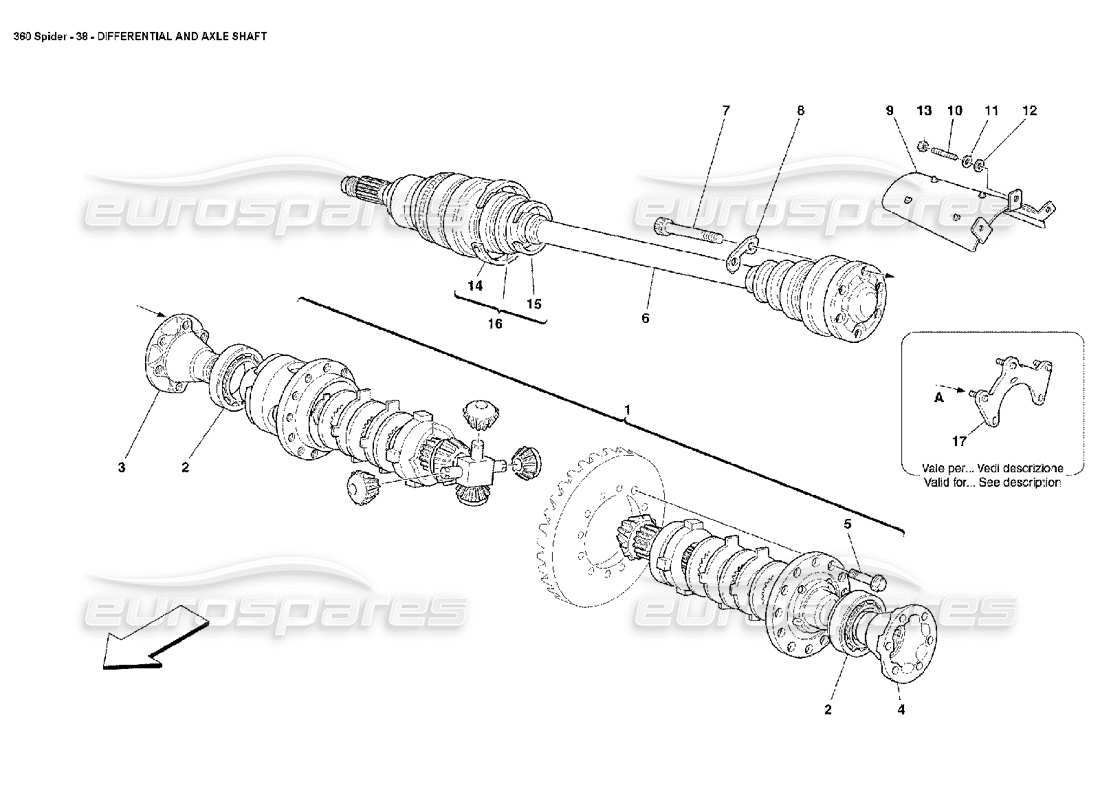

Ferrari 360 Spider Differential & Axle Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 190005
                          COMPLETE DIFFERENTIAL
                          from £1,838.08
                          from £1,838.08
                          This part replaces part number 183943
                          # 002
                          MPN: 184998
                          ROLLER BEARING
                          from £72.34
                          from £72.34
                          # 003
                          MPN: 185013
                          RH SHAFT (LONG VERSION)
                          - Valid till gearbox Nr. 458 and from gearbox Nr. 1089
                          from £347.15
                          from £347.15
                          # 003
                          MPN: 185014
                          RH SHAFT FOR DIFFERENTIAL EXIT
                          - Valid till gearbox Nr. 458 and from gearbox Nr. 1089 - Not as spare part - Replaced by 199055
                          Supersession
                          Supersession
                          # 003
                          MPN: 199055
                          RH SHAFT (SHORT VERSION)
                          from £618.19
                          from £618.19
                          This part replaces part number 185014
                          # 004
                          MPN: 182322
                          LH SHAFT FOR DIFFERENTIAL EXIT
                          - Not as spare part - Replaced by 199056
                          Supersession
                          Supersession
                          # 004
                          MPN: 199056
                          LH SHAFT FOR DIFFERENTIAL EXIT
                          from £615.00
                          from £615.00
                          This part replaces part number 182322
                          # 005
                          MPN: 183909
                          SCREW
                          from £3.36
                          from £3.36
                          # 006
                          MPN: 174756

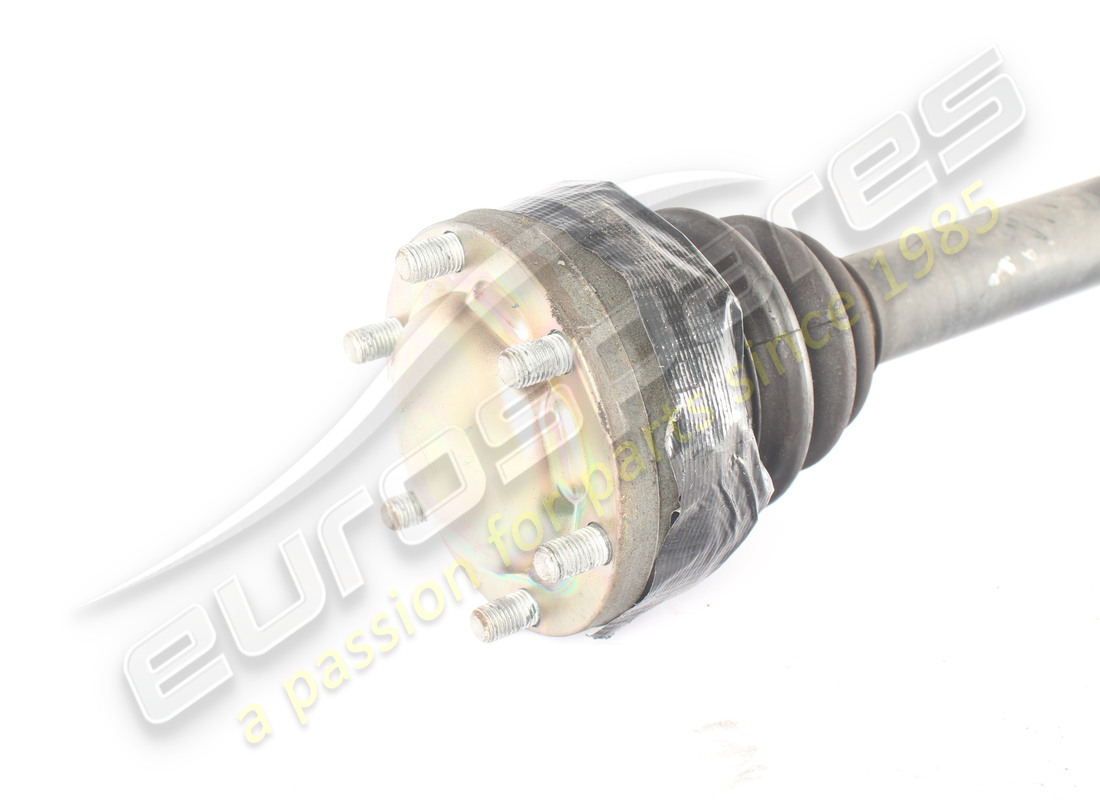

                          AXLE SHAFT
                          - Valid till car Nr. 40311
                          from £684.15
                          from £684.15
                          # 006
                          MPN: 183552
                          AXLE SHAFT
                          - Valid from car Nr. 40312
                          from £672.01
                          from £672.01
                          # 007
                          MPN: 223916
                          SCREW
                          from £1.38
                          from £1.38
                          This part replaces part number 181910
                          # 008
                          MPN: 149415
                          PLATE
                          from £1.00
                          from £1.00
                          # 009
                          MPN: 184083
                          SHIELD FOR AXLE SHAFT PROTECTION
                          from £96.12
                          from £96.12
                          This part replaces part number 179312
                          # 010
                          MPN: 13540924
                          STUD
                          from £0.70
                          from £0.70
                          This part replaces part number 13540921
                          # 011
                          MPN: 12601274
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 12601221 - and 5 more. Click to view details
                          # 012
                          MPN: 12639724
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 12639725 - and 1 more. Click to view details
                          # 013
                          MPN: 14048115
                          NUT
                          from £1.08
                          from £1.08
                          This part replaces part number 14048611 - and 1 more. Click to view details
                          # 014
                          MPN: 172347
                          BIG CLAMP
                          from £4.02
                          from £4.02
                          This part replaces part number 154214 - and 1 more. Click to view details
                          # 015
                          MPN: 154213
                          LITTLE CLAMP
                          from £2.25
                          from £2.25
                          This part replaces part number 167570
                          # 016
                          MPN: 70000868
                          PROTECTION REPLACEMENT SET
                          - Wheel side
                          from £68.38
                          from £68.38
                          This part replaces part number 70000782
                          # 016
                          MPN: 70006022
                          PROTECTION REPLACEMENT SET
                          - Gearbox side
                          from £54.95
                          from £54.95
                          This part replaces part number 70000867
                          # 017
                          MPN: 187648
                          RH BRACKET
                          - Valid for car without holes for shield 184083 - See ref. 9
                          from £44.53
                          from £44.53
                          # 017
                          MPN: 187649
                          LH BRACKET
                          - Valid for car without holes for shield 184083- See ref. 9
                          from £44.53
                          from £44.53
