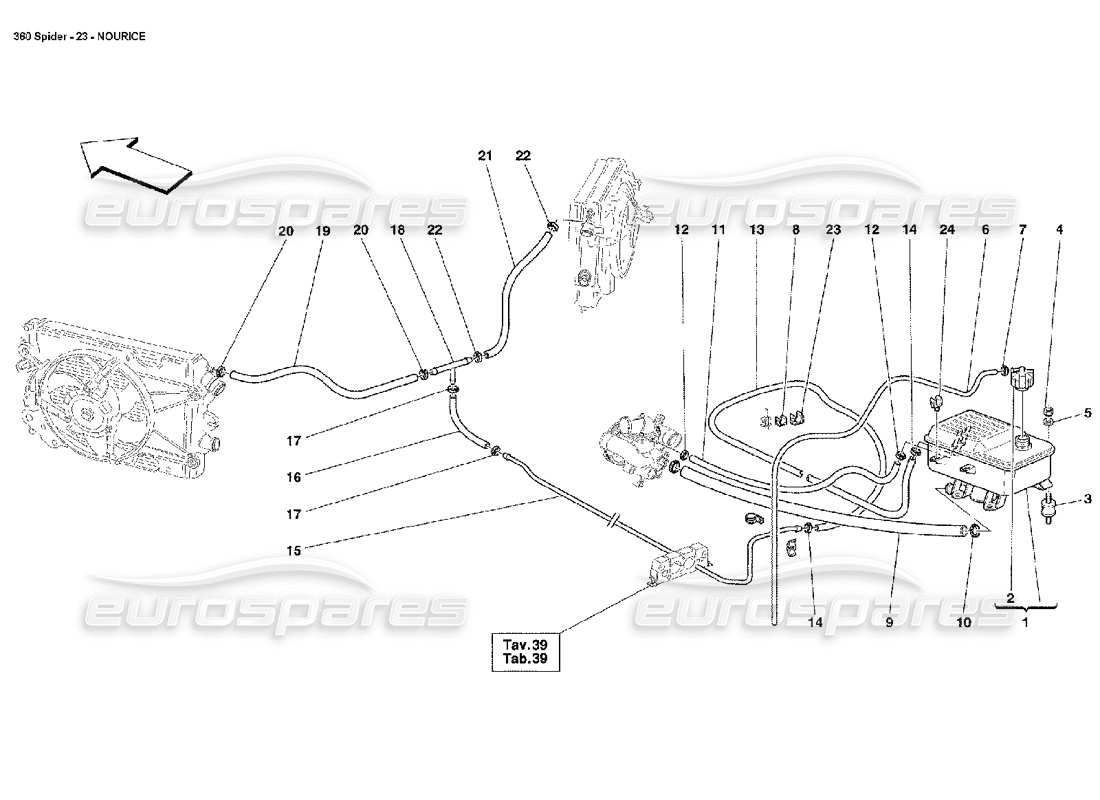

Ferrari 360 Spider Nourice Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 164160
                                                COMPLETE FUEL CANISTER
                                                from £358.30
                                                from £358.30
                                                # 003
                                                MPN: 142202
                                                PAD
                                                from £14.43
                                                from £14.43
                                                # 004
                                                MPN: 15896214
                                                NUT
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 15896211
                                                # 005
                                                MPN: 12643724
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                # 006
                                                MPN: 179280
                                                VENT PIPE
                                                from £103.86
                                                from £103.86
                                                # 007
                                                MPN: 183919
                                                ELASTIC COLLAR
                                                from £0.53
                                                from £0.53
                                                # 008
                                                MPN: 140130
                                                FLEXIBLE CLIP
                                                from £0.47
                                                from £0.47
                                                # 009
                                                MPN: 176161
                                                RUBBER HOSE FROM ENGINE TO NOURICE
                                                from £57.67
                                                from £57.67
                                                # 010
                                                MPN: 13000490
                                                CLAMP
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 10169090 - and 3 more. Click to view details
                                                # 011
                                                MPN: 180741
                                                RUBBER HOSE FROM TANK TO PUMP
                                                Supersession
                                                Supersession
                                                # 012
                                                MPN: 177995
                                                CLAMP
                                                from £0.59
                                                from £0.59
                                                # 013
                                                MPN: 179336
                                                RUBBER HOSE FROM NOURICE TO UNDERFLOOR
                                                from £48.55
                                                from £48.55
                                                # 014
                                                MPN: 177995
                                                CLAMP
                                                from £0.59
                                                from £0.59
                                                # 015
                                                MPN: 179335
                                                UNDERFLOOR PIPE
                                                - Valid till stock exhaustion
                                                from £24.49
                                                from £24.49
                                                # 015
                                                MPN: 195885
                                                UNDERFLOOR PIPE
                                                from £52.82
                                                from £52.82
                                                This part replaces part number 179335 which we have in stock

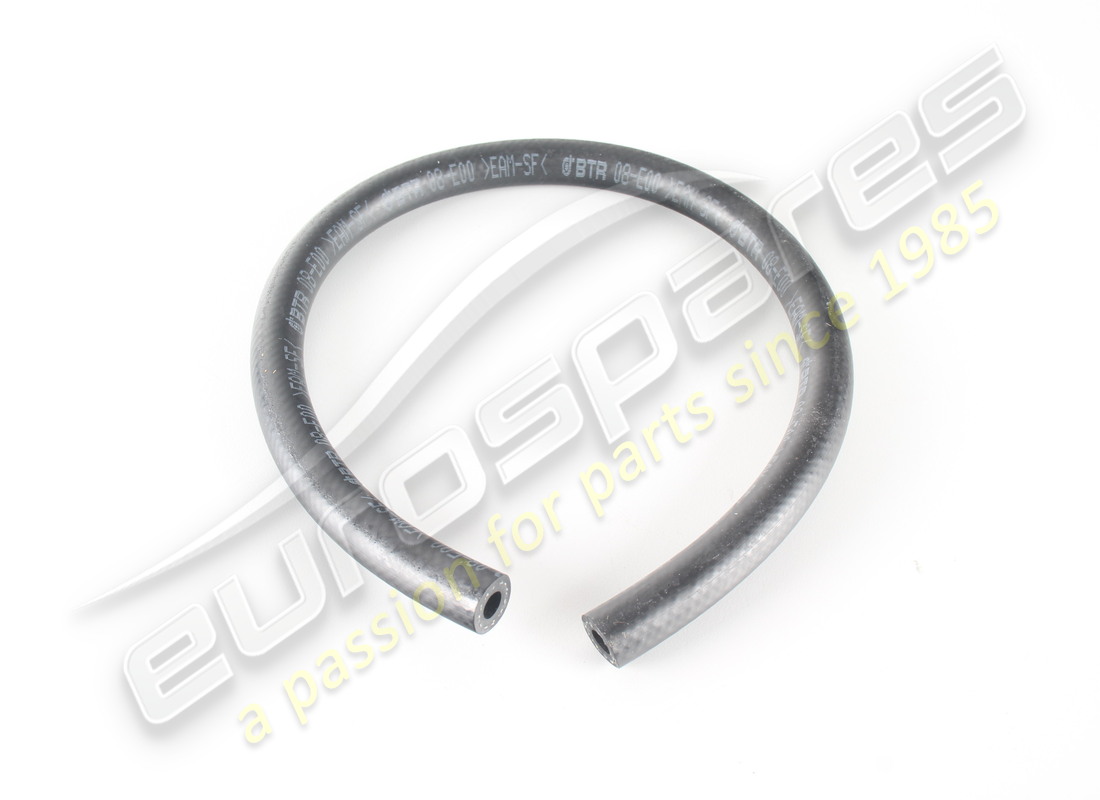

                                                # 016
                                                MPN: 177515
                                                RUBBER HOSE
                                                Supersession
                                                Supersession
                                                # 017
                                                MPN: 13000190
                                                SCREW COLLAR
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 12178990 - and 1 more. Click to view details
                                                # 018
                                                MPN: 181272
                                                3-WAY UNION
                                                from £33.76
                                                from £33.76
                                                This part replaces part number 176086 - and 2 more. Click to view details
                                                # 019
                                                MPN: 177513
                                                RH RUBBER HOSE
                                                from £46.01
                                                from £46.01
                                                # 020
                                                MPN: 13000190
                                                SCREW COLLAR
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 12178990 - and 1 more. Click to view details
                                                # 021
                                                MPN: 177514
                                                LH RUBBER HOSE
                                                from £6.80
                                                from £6.80
                                                # 022
                                                MPN: 13000190
                                                SCREW COLLAR
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 12178990 - and 1 more. Click to view details
                                                # 023
                                                MPN: 140727
                                                FIXING CLIP
                                                from £0.54
                                                from £0.54
                                                # 024
                                                MPN: 14574287
                                                CLIP
                                                from £4.28
                                                from £4.28
