013 - Antievaporation Device

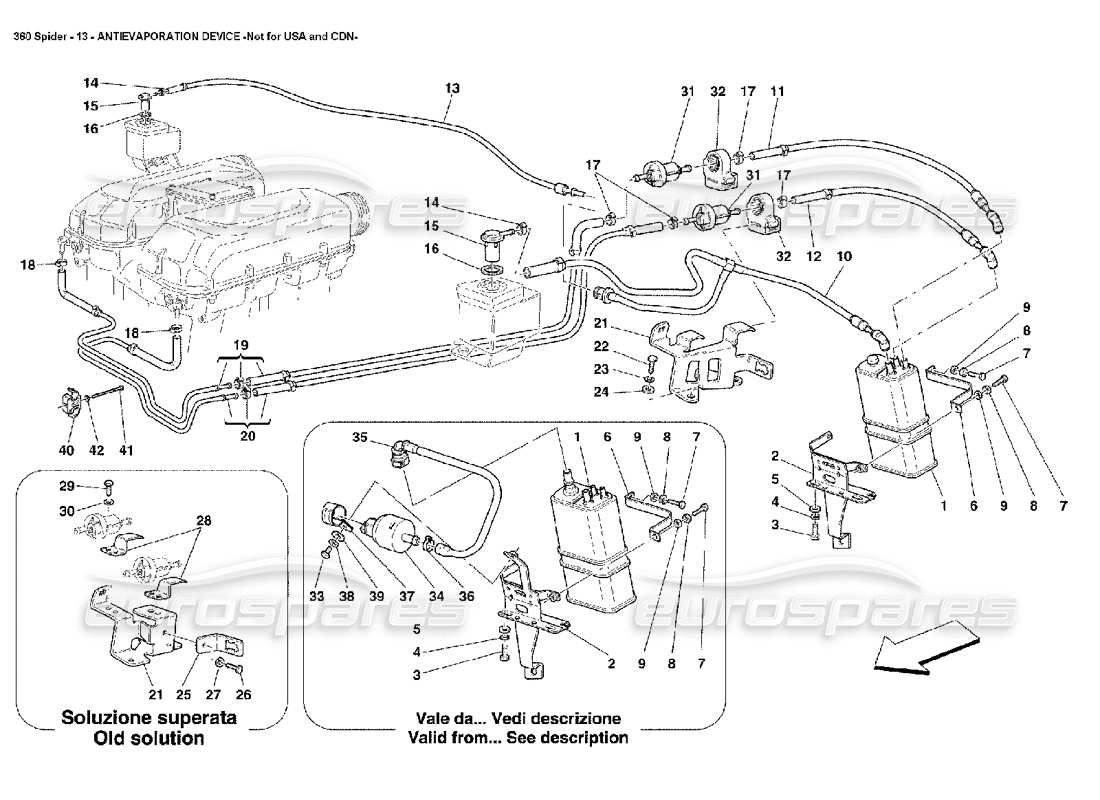

Ferrari 360 Spider Antievaporation Device Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 174782
FUEL VAPOR FILTER
- Valid for EU GS not F1 and J not F1 till car Ass.Nr.39139 - Valid for GB not F1 till car Ass.Nr.39239 - Valid for EU GS F1 and J F1 till car Ass.Nr.39346 - Valid for GB F1 till car Ass.Nr.39121 - Not for AUS
from £232.04
from £232.04
# 001
MPN: 180132
FUEL VAPOR FILTER
- Valid for EU GS Not F1 and J Not F1 from car Ass.Nr.39140 - Valid for GB Not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS
from £239.42
from £239.42
# 002
MPN: 182452
DEWATERER FILTER FIXING BRACKET
- Valid for EU GS not F1 and J not F1 till car Ass.Nr.39139 - Valid for GB not F1 till car Ass.Nr.39239 - Valid for EU GS F1 and J F1 till car Ass.Nr.39346 - Valid for GB F1 till car Ass.Nr.39121 - Not for AUS
from £12.46
from £12.46
# 002
MPN: 185073
DEWATERER FILTER FIXING BRACKET
- Valid for EU GS Not F1 and J Not F1 from car Ass.Nr.39140 - Valid for GB Not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS
from £5.26
from £5.26
# 003
MPN: 10902224
SCREW
from £0.52
from £0.52
# 004
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 005
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 006
MPN: 178456
BRACKET
from £1.52
from £1.52
# 007
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 008
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 009
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 010
MPN: 183037
PIPE FROM VALVE TO DISAREATOR
from £68.95
from £68.95
# 011
MPN: 184080
PIPE FROM RH ANTIEVAPORATION VALVE TO DISAREATOR
from £158.25
from £158.25
# 012
MPN: 183529
PIPE FROM LH ANTIEVAPORATION VALVE TO DISAREATOR
from £34.40
from £34.40
# 013
MPN: 183036
FUEL VAPOR FILTER CONNECTING PIPE
from £51.97
from £51.97
# 014
MPN: 13432070
COLLAR FOR SLEEVE
from £0.51
from £0.51
This part replaces part number 13125570
# 015
MPN: 180030
MULTIFUNTIONAL VALVE
from £89.26
from £89.26
This part replaces part number 179716
# 016
MPN: 195049
GASKET
from £2.40
from £2.40
This part replaces part number 169938
# 017
MPN: 13432070
COLLAR FOR SLEEVE
from £0.48
from £0.48
This part replaces part number 13125570
# 018
MPN: 13432070
COLLAR FOR SLEEVE
from £0.51
from £0.51
This part replaces part number 13125570
# 019
MPN: 179477
PIPE FROM RH ANTIEVAPORATION VALVE TO ENGINE
from £104.45
from £104.45
# 020
MPN: 179478
PIPE FROM LH ANTIEVAPORATION VALVE TO ENGINE
from £57.45
from £57.45
# 021
MPN: 186271
VALVE SUPPORTING BRACKET
- Valid till stock exhaustion
from £23.33
from £23.33
# 021
MPN: 194348
VALVE AND CONNECTORS SUPPORTING BRACKET
- Valid after stock exhaustion of 186271 - Replace also particulars ref. 25,26,27,28,29,30
from £12.38
from £12.38
This part replaces part number 186271 which we have in stock
# 022
MPN: 10979434
SCREW
from £0.56
from £0.56
# 023
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 024
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 025
MPN: 178366
CONNECTOR FIXING BRACKET
from £2.34
from £2.34
# 026
MPN: 10902224
SCREW
from £0.53
from £0.53
# 027
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 028
MPN: 174708
BRACKET
from £2.41
from £2.41
# 029
MPN: 10902224
SCREW
from £0.51
from £0.51
# 030
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 031
MPN: 162412
WASHING VALVE
from £39.73
from £39.73
# 032
MPN: 174623
BUFFER FOR SUPPORT
from £3.75
from £3.75
# 033
MPN: 10979414
SCREW
- Valid for EU GS Not F1 and J Not F1 from car Ass.Nr.39140 - Valid for GB Not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS
from £0.47
from £0.47
# 034
MPN: 179138
ON-OFF VALVE
- Valid for EU GS Not F1 and J Not F1 from car Ass.Nr.39140 - Valid for GB Not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS
from £88.85
from £88.85
# 035
MPN: 185453
COMPLETE TUBE
- Valid for EU GS Not F1 and J Not F1 from car Ass.Nr.39140 - Valid for GB Not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS
from £68.69
from £68.69
# 036
MPN: 164015
COLLAR FOR SLEEVE
- Valid for EU GS Not F1 and J Not F1 from car Ass.Nr.39140 - Valid for GB Not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS
Supersession
Supersession
This part replaces part number 12181290
# 037
MPN: 181607
BRACKET WITH SHEATH
- Valid for EU GS Not F1 and J Not F1 from car Ass.Nr.39140 - Valid for GB Not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS
from £3.98
from £3.98
# 038
MPN: 12644424
WASHER
- Valid for EU GS Not F1 and J Not F1 from car Ass.Nr.39140 - Valid for GB Not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 039
MPN: 127494
WASHER
- Valid for EU GS not F1 and J not F1 from car Ass.Nr.39140 - Valid for GB not F1 from car Ass.Nr.39240 - Valid for EU GS F1 and J F1 from car Ass.Nr.39347 - Valid for GB F1 from car Ass.Nr.39122 - Valid for AUS - (minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 040
MPN: 141699
CLIP
from £0.74
from £0.74
# 041
MPN: 15210824
SCREW
from £0.47
from £0.47
# 042
MPN: 10519224
WASHER
from £0.47
from £0.47
This part replaces part number 10519201 which we have in stock
