Ferrari 360 Spider Pneumatics Actuator System Parts Diagram

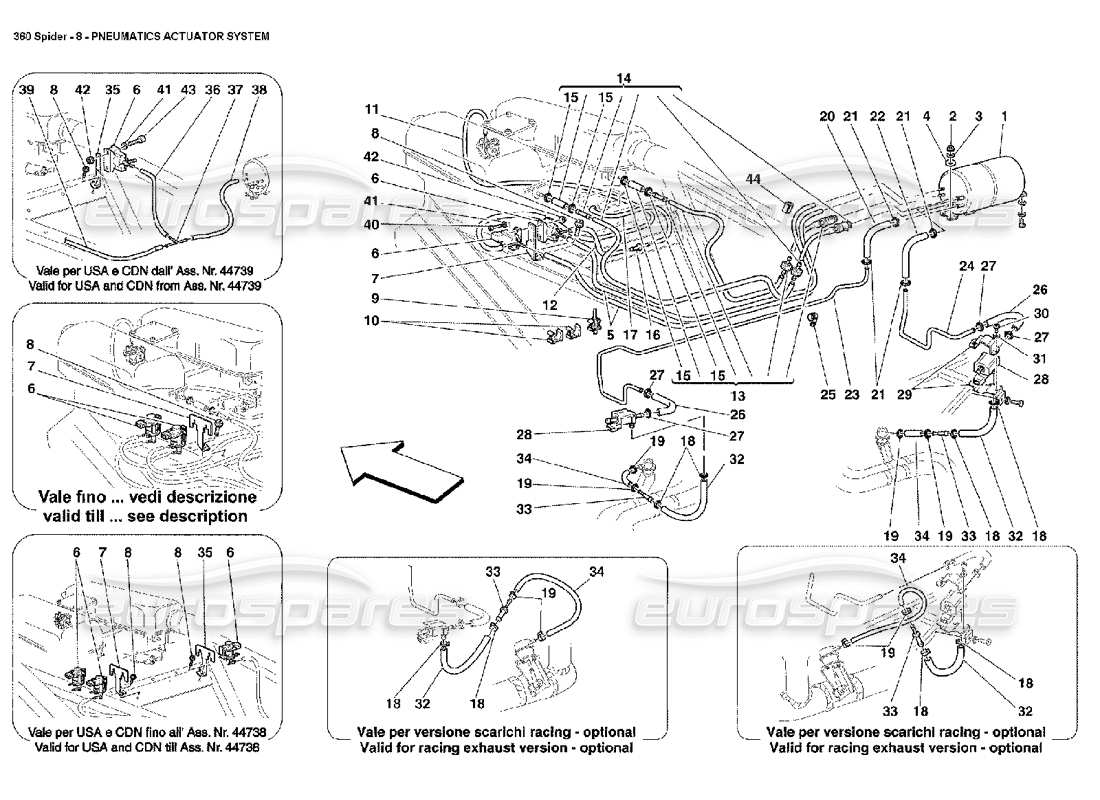

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 177060
                                                                DEPRESSION ACCUMULATION TANK
                                                                - Valid till stock exhaustion
                                                                from £49.30
                                                                from £49.30
                                                                # 001
                                                                MPN: 195645
                                                                VACUUM TANK
                                                                from £107.43
                                                                from £107.43
                                                                This part replaces part number 177060 which we have in stock - and 1 more. Click to view details
                                                                # 002
                                                                MPN: 14059211
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                # 003
                                                                MPN: 12601274
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                # 004
                                                                MPN: 12639724
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12639725 - and 1 more. Click to view details
                                                                # 005
                                                                MPN: 169692
                                                                PIPE FROM TANK TO SOLENOID VALVE
                                                                from £10.80
                                                                from £10.80
                                                                # 006
                                                                MPN: 159177
                                                                SOLENOID VALVE
                                                                - Q.ty 3 for USA and CDN - For cars not USA and CDN valid till Ass. Nr. 44736 - For cars USA and CDN valid till Ass. Nr. 44738
                                                                from £103.88
                                                                from £103.88
                                                                This part replaces part number 154384 which we have in stock
                                                                # 006
                                                                MPN: 315769
                                                                SOLENOID VALVE ON/OFF
                                                                from £29.05
                                                                from £29.05
                                                                This part replaces part number 184363
                                                                # 007
                                                                MPN: 179470
                                                                PLATE
                                                                - For cars not USA and CDN valid till Ass. Nr. 44736 - For cars USA and CDN valid till Ass. Nr. 44738
                                                                from £29.65
                                                                from £29.65
                                                                # 007
                                                                MPN: 189987
                                                                PLATE
                                                                - For cars not USA and CDN valid from Ass. Nr. 44737 - For cars USA and CDN valid from Ass. Nr. 44739
                                                                from £4.86
                                                                from £4.86
                                                                # 009
                                                                MPN: 140162
                                                                ANCHORAGE FOR CLIP
                                                                from £0.47
                                                                from £0.47
                                                                # 010
                                                                MPN: 140130
                                                                FLEXIBLE CLIP
                                                                from £0.47
                                                                from £0.47
                                                                # 011
                                                                MPN: 169692
                                                                PIPE FROM SOLENOID VALVE TO PNEUMATIC CAPSULE
                                                                from £10.80
                                                                from £10.80
                                                                # 012
                                                                MPN: 115411
                                                                PIPE FROM SOLENOID VALVE TO UNION
                                                                from £6.96
                                                                from £6.96
                                                                # 013
                                                                MPN: 178420
                                                                COMPLETE RH DEPRESSION PIPE
                                                                from £728.40
                                                                from £728.40
                                                                # 014
                                                                MPN: 183366
                                                                COMPLETE LH DEPRESSION PIPE
                                                                from £281.55
                                                                from £281.55
                                                                # 015
                                                                MPN: 13434670
                                                                SCREW COLLAR
                                                                from £0.47
                                                                from £0.47
                                                                # 016
                                                                MPN: 178491
                                                                UNION
                                                                from £12.97
                                                                from £12.97

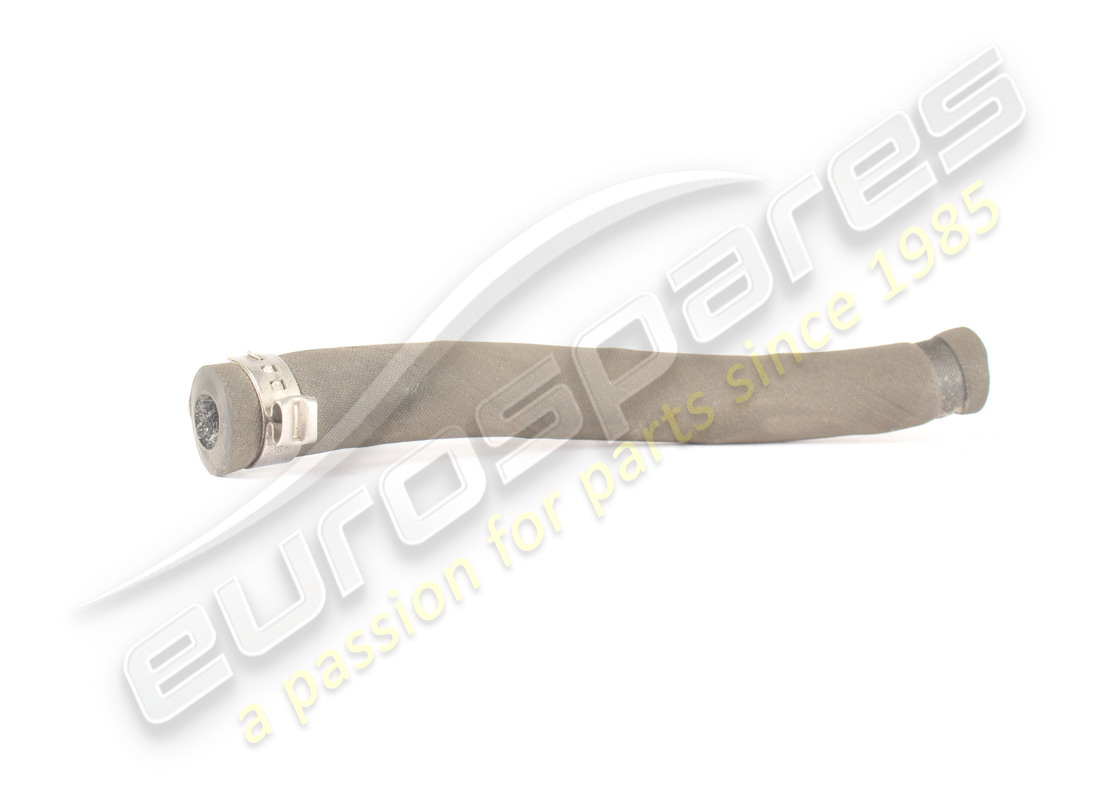

                                                                # 017
                                                                MPN: 168248
                                                                RUBBER HOSE
                                                                from £10.48
                                                                from £10.48
                                                                # 018
                                                                MPN: 13432270
                                                                SCREW COLLAR
                                                                from £0.59
                                                                from £0.59
                                                                # 019
                                                                MPN: 171406
                                                                SCREW COLLAR
                                                                from £0.47
                                                                from £0.47
                                                                # 020
                                                                MPN: 178554
                                                                RUBBER HOSE
                                                                from £16.38
                                                                from £16.38
                                                                # 021
                                                                MPN: 13432270
                                                                SCREW COLLAR
                                                                from £0.59
                                                                from £0.59
                                                                # 022
                                                                MPN: 178552
                                                                RUBBER HOSE
                                                                from £12.71
                                                                from £12.71
                                                                # 023
                                                                MPN: 178503
                                                                LH PIPE
                                                                from £119.83
                                                                from £119.83
                                                                # 024
                                                                MPN: 178497
                                                                RH PIPE
                                                                from £8.46
                                                                from £8.46
                                                                # 025
                                                                MPN: 10441190
                                                                BRACKET WITH SHEATH
                                                                from £0.47
                                                                from £0.47
                                                                # 026
                                                                MPN: 178552
                                                                RUBBER HOSE
                                                                from £12.71
                                                                from £12.71
                                                                # 027
                                                                MPN: 13432270
                                                                SCREW COLLAR
                                                                from £0.59
                                                                from £0.59
                                                                # 028
                                                                MPN: 178309
                                                                SOLENOID VALVE
                                                                from £30.72
                                                                from £30.72
                                                                # 029
                                                                MPN: 178515
                                                                SOLENOID VALVE SUPPORT
                                                                from £2.15
                                                                from £2.15
                                                                # 030
                                                                MPN: 14302924
                                                                SCREW
                                                                from £0.47
                                                                from £0.47
                                                                # 031
                                                                MPN: 127492
                                                                WASHER
                                                                from £0.59
                                                                from £0.59
                                                                This part replaces part number 106848
                                                                # 032
                                                                MPN: 178552
                                                                RUBBER HOSE
                                                                from £12.71
                                                                from £12.71
                                                                # 033
                                                                MPN: 178369
                                                                UNION
                                                                from £1.36
                                                                from £1.36
                                                                # 034
                                                                MPN: 147120
                                                                RUBBER HOSE
                                                                - Valid for racing exhaust version - Optional
                                                                from £22.31
                                                                from £22.31
                                                                This part replaces part number 147127
                                                                # 034
                                                                MPN: 147121
                                                                RUBBER HOSE
                                                                Supersession
                                                                Supersession
                                                                # 035
                                                                MPN: 182480
                                                                RH PLATE
                                                                - Valid for USA and CDN - Valid till car Ass. Nr. 44738
                                                                from £18.34
                                                                from £18.34
                                                                # 035
                                                                MPN: 189993
                                                                RH PLATE
                                                                - Valid for USA and CDN - Valid from car Ass. Nr. 44739
                                                                from £4.86
                                                                from £4.86
                                                                # 036
                                                                MPN: 124347
                                                                PIPE FROM SOLENOID VALVE TO UNION
                                                                - Valid for USA and CDN
                                                                from £6.10
                                                                from £6.10
                                                                # 037
                                                                MPN: 146972
                                                                3- WAY UNION
                                                                - Valid for USA and CDN
                                                                from £2.77
                                                                from £2.77
                                                                # 038
                                                                MPN: 115002
                                                                PIPE FROM TANK TO UNION
                                                                - Valid for USA and CDN
                                                                from £6.22
                                                                from £6.22
                                                                # 039
                                                                MPN: 118901
                                                                PIPE FROM SOLENOID VALVE TO UNION
                                                                - Valid for USA and CDN
                                                                from £3.25
                                                                from £3.25
                                                                # 040
                                                                MPN: 14304224
                                                                SCREW
                                                                - For cars not USA and CDN valid from Ass. Nr. 44737 - For cars USA and CDN valid from Ass. Nr. 44739
                                                                from £0.47
                                                                from £0.47
                                                                # 041
                                                                MPN: 12601174
                                                                WASHER
                                                                - Q.ty 4 for USA and CDN - For cars not USA and CDN valid from Ass. Nr. 44737 - For cars USA and CDN valid from Ass. Nr. 44739
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
                                                                # 042
                                                                MPN: 15896470
                                                                NUT
                                                                - Q.ty 4 for USA and CDN - For cars not USA and CDN valid from Ass. Nr. 44737 - For cars USA and CDN valid from Ass. Nr. 44739 - (minimum order quantity = 20)
                                                                from £0.76
                                                                from £0.76
                                                                This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                # 043
                                                                MPN: 14304124
                                                                SCREW
                                                                - Valid for USA and CDN - Valid from car Ass. Nr. 44739
                                                                from £0.53
                                                                from £0.53
                                                                # 044
                                                                MPN: 152913
                                                                RUBBER HOSE
                                                                from £23.81
                                                                from £23.81
