003 - RH cylinder head

Ferrari 360 Spider R.H. Cylinder Head Parts Diagram

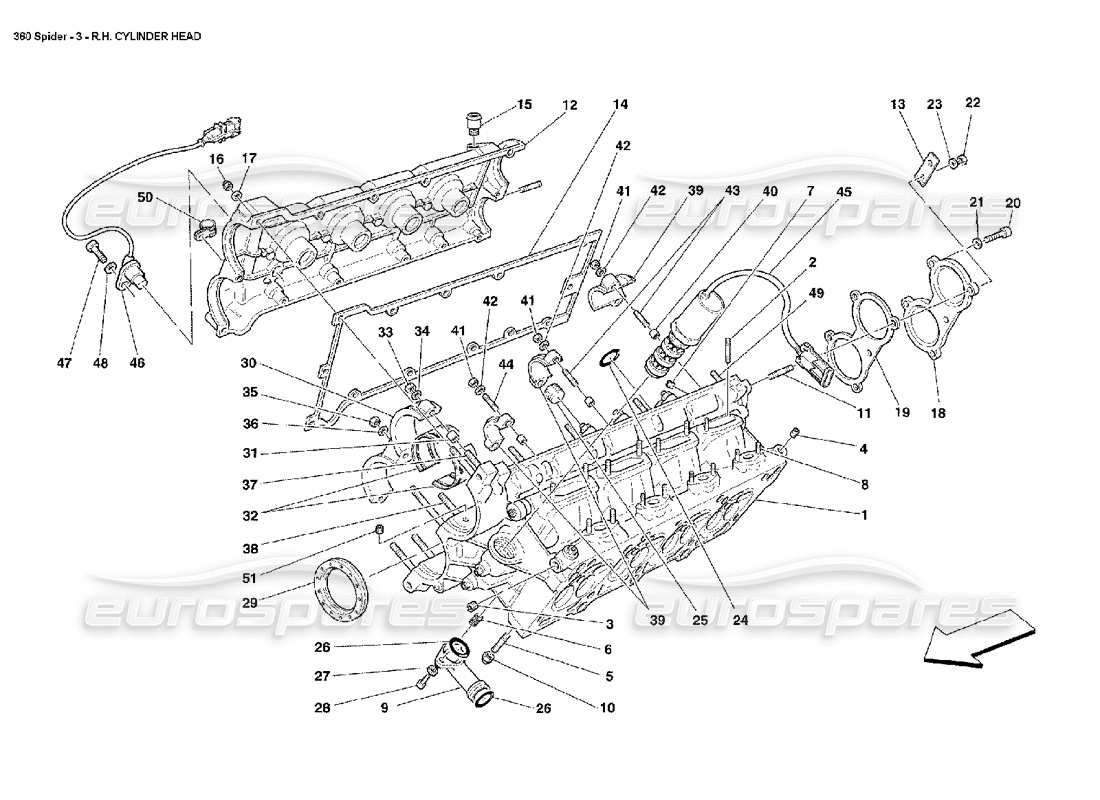

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 000
                                                                              MPN: 180705
                                                                              COMPLETE RH CYLINDERS HEAD
                                                                              - Valid till engine Nr.78048
                                                                              from £2,984.07
                                                                              from £2,984.07
                                                                              # 000
                                                                              MPN: 212395
                                                                              RH CYLINDERS HEAD
                                                                              from £1,885.03
                                                                              from £1,885.03
                                                                              This part replaces part number 180705 which we have in stock
                                                                              # 001
                                                                              MPN: 179305
                                                                              RH HEAD
                                                                              - Not as spare part - With the complete cylinders head 180705 - Valid till engine Nr.78048
                                                                              # 001
                                                                              MPN: 212395
                                                                              RH CYLINDERS HEAD
                                                                              from £1,885.03
                                                                              from £1,885.03
                                                                              This part replaces part number 180705 which we have in stock
                                                                              # 002
                                                                              MPN: 13541224
                                                                              STUD
                                                                              from £34.92
                                                                              from £34.92
                                                                              This part replaces part number 13541221
                                                                              # 003
                                                                              MPN: 14326101
                                                                              THREADED PLUG
                                                                              from £0.61
                                                                              from £0.61
                                                                              # 004
                                                                              MPN: 14326001
                                                                              THREADED PLUG
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 194495
                                                                              # 005
                                                                              MPN: 13543324
                                                                              STUD
                                                                              from £0.83
                                                                              from £0.83
                                                                              This part replaces part number 13543321
                                                                              # 006
                                                                              MPN: 13525170
                                                                              THREADED INSERT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 006
                                                                              MPN: 13525270
                                                                              THREADED INSERT
                                                                              - Not as spare part - Replaced by 13525170
                                                                              from £0.50
                                                                              from £0.50
                                                                              # 007
                                                                              MPN: 141563
                                                                              THREADED PLUG
                                                                              from £0.76
                                                                              from £0.76
                                                                              This part replaces part number 194493
                                                                              # 008
                                                                              MPN: 11500224
                                                                              STUD
                                                                              from £0.48
                                                                              from £0.48
                                                                              This part replaces part number 11500221 - and 1 more. Click to view details
                                                                              # 009
                                                                              MPN: 151485
                                                                              OIL EXHAUST DUCTING
                                                                              from £185.82
                                                                              from £185.82
                                                                              # 010
                                                                              MPN: 138392
                                                                              NUT
                                                                              (minimum order quantity = 25)
                                                                              from £0.58
                                                                              from £0.58
                                                                              # 011
                                                                              MPN: 13541024
                                                                              STUD
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 13541021
                                                                              # 012
                                                                              MPN: 176450

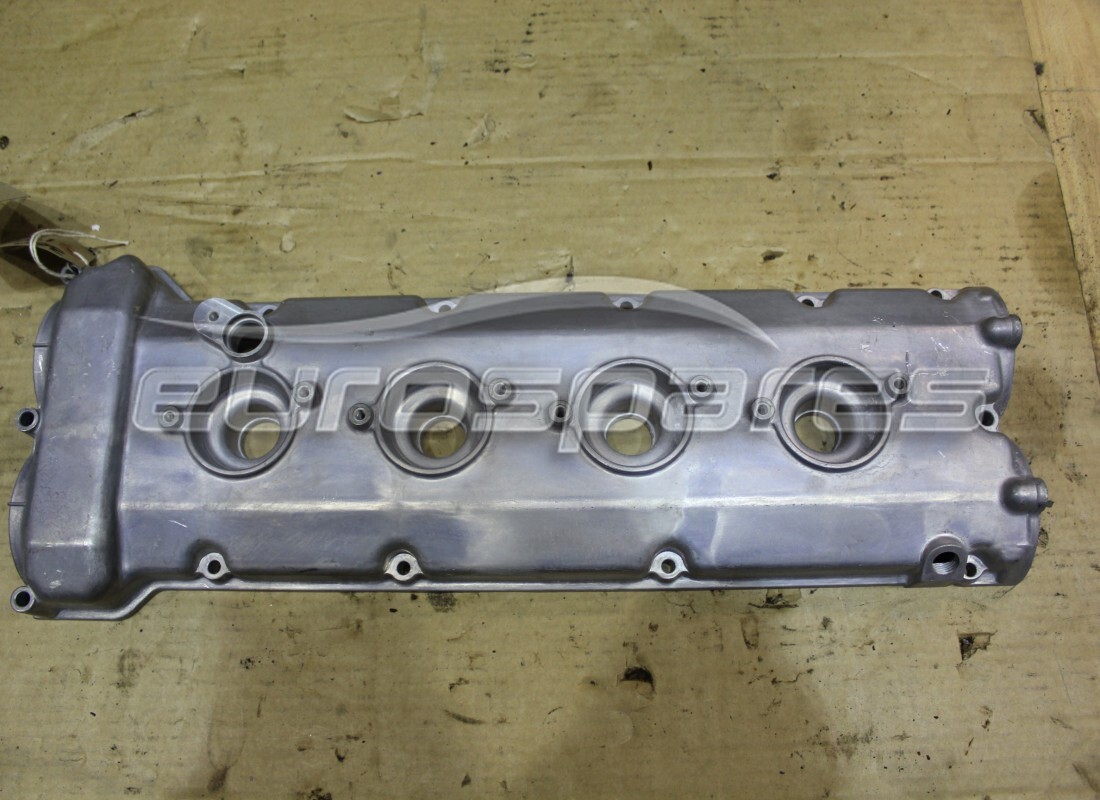

                                                                              RH CYLINDERS HEAD COVER
                                                                              - Not as spare part - With the complete cylinders head 180705
                                                                              from £414.75
                                                                              from £414.75
                                                                              # 013
                                                                              MPN: 178316
                                                                              BRACKET
                                                                              from £0.68
                                                                              from £0.68
                                                                              # 014
                                                                              MPN: 173540

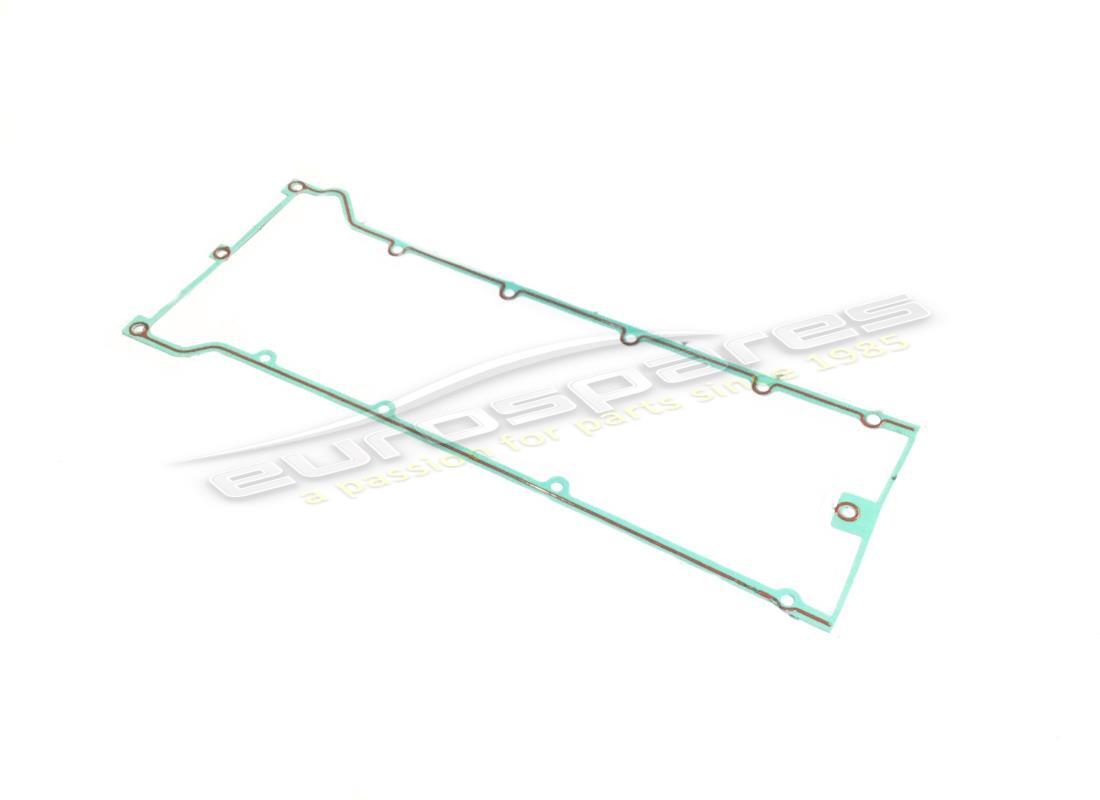

                                                                              GASKET
                                                                              Alternative use - FCCG013 Cam cover gasket kit
                                                                              from £22.56
                                                                              from £22.56
                                                                              # 014
                                                                              MPN: FCCG013

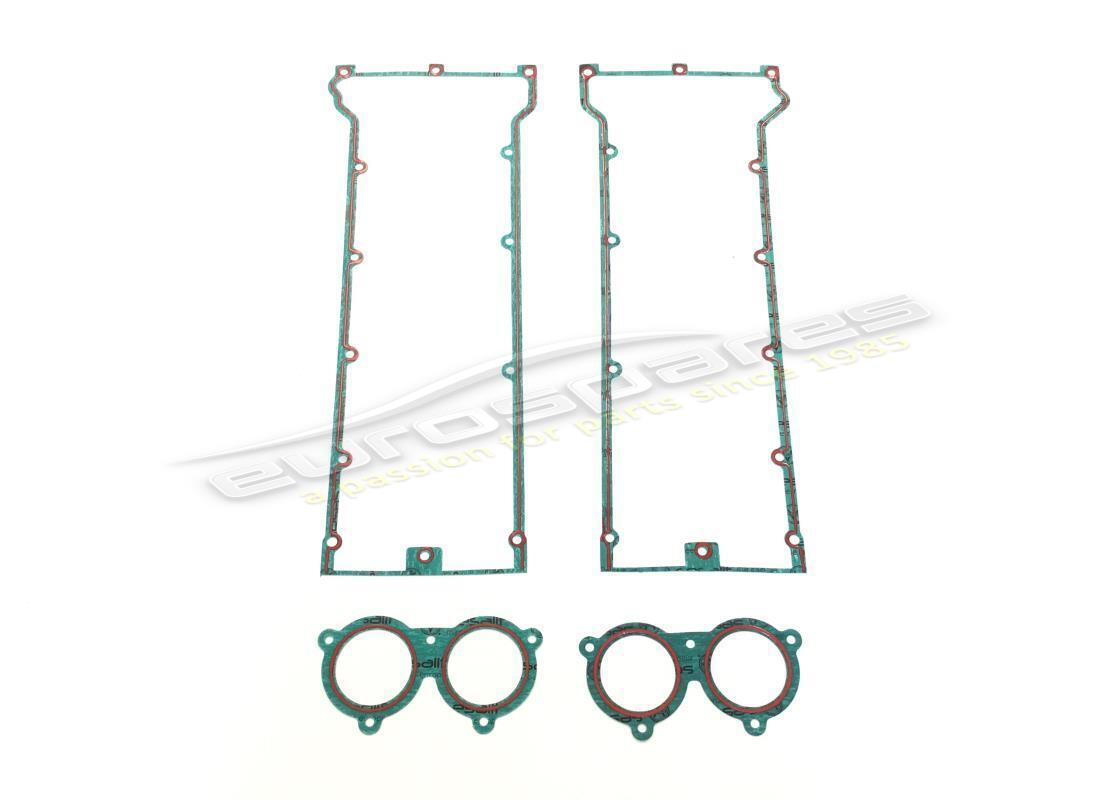

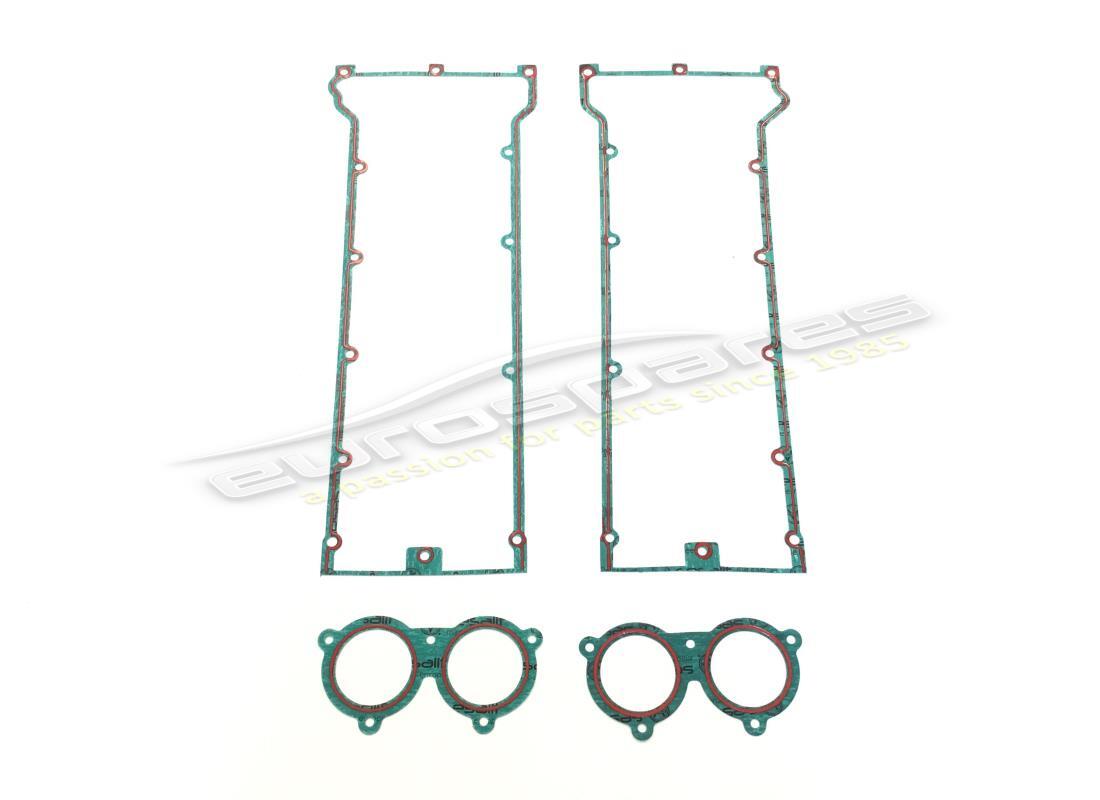

                                                                              CAM COVER GASKET SET
                                                                              Includes: 1x 173540 RH Cover Gasket, 1x 173541 LH Cover Gasket, 2x 177055 End Plate Gasket
                                                                              from £59.95
                                                                              from £59.95
                                                                              # 014
                                                                              MPN: FCCG013/A
                                                                              Cam Cover Gasket & seal set
                                                                              Includes: FCCG013, x4 187140 / x8 167135.
                                                                              # 015
                                                                              MPN: 173985
                                                                              UNION
                                                                              from £1.62
                                                                              from £1.62
                                                                              # 016
                                                                              MPN: 100044
                                                                              NUT
                                                                              from £0.26
                                                                              from £0.26
                                                                              This part replaces part number 151230 - and 1 more. Click to view details
                                                                              # 017
                                                                              MPN: 12604274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12604271 - and 1 more. Click to view details
                                                                              # 018
                                                                              MPN: 177019

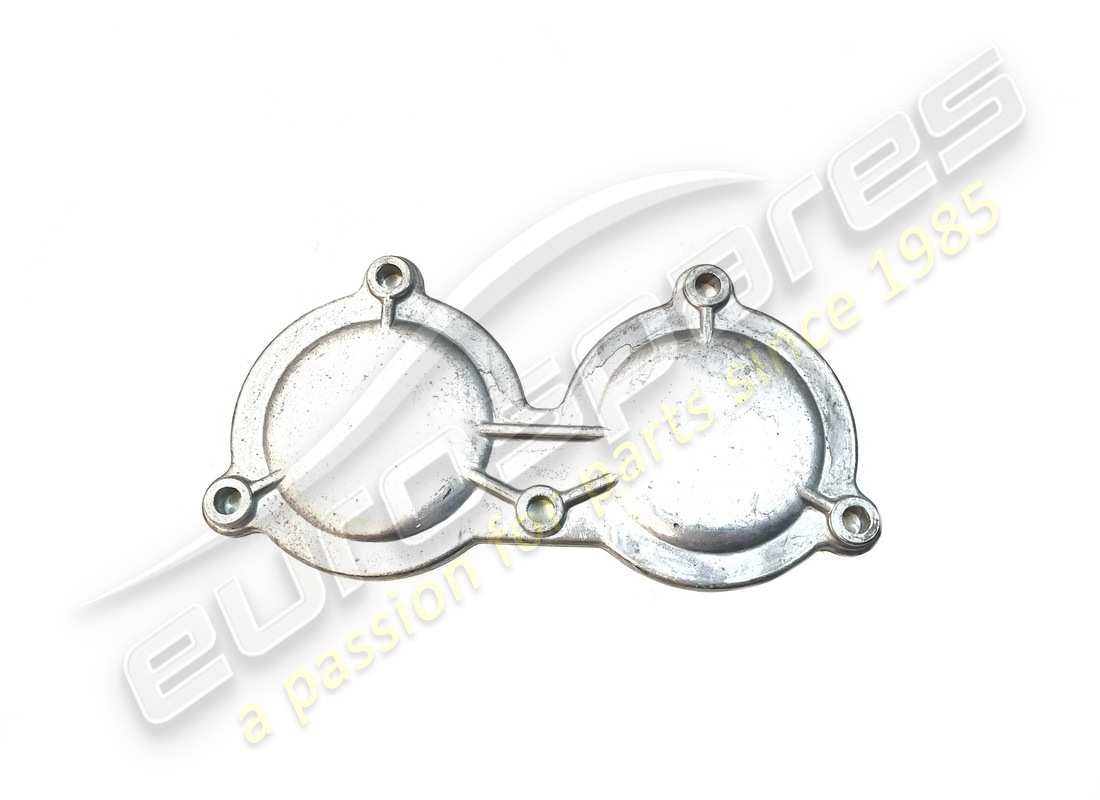

                                                                              REAR SMALL COVER
                                                                              from £7.80
                                                                              from £7.80
                                                                              # 019
                                                                              MPN: 177055

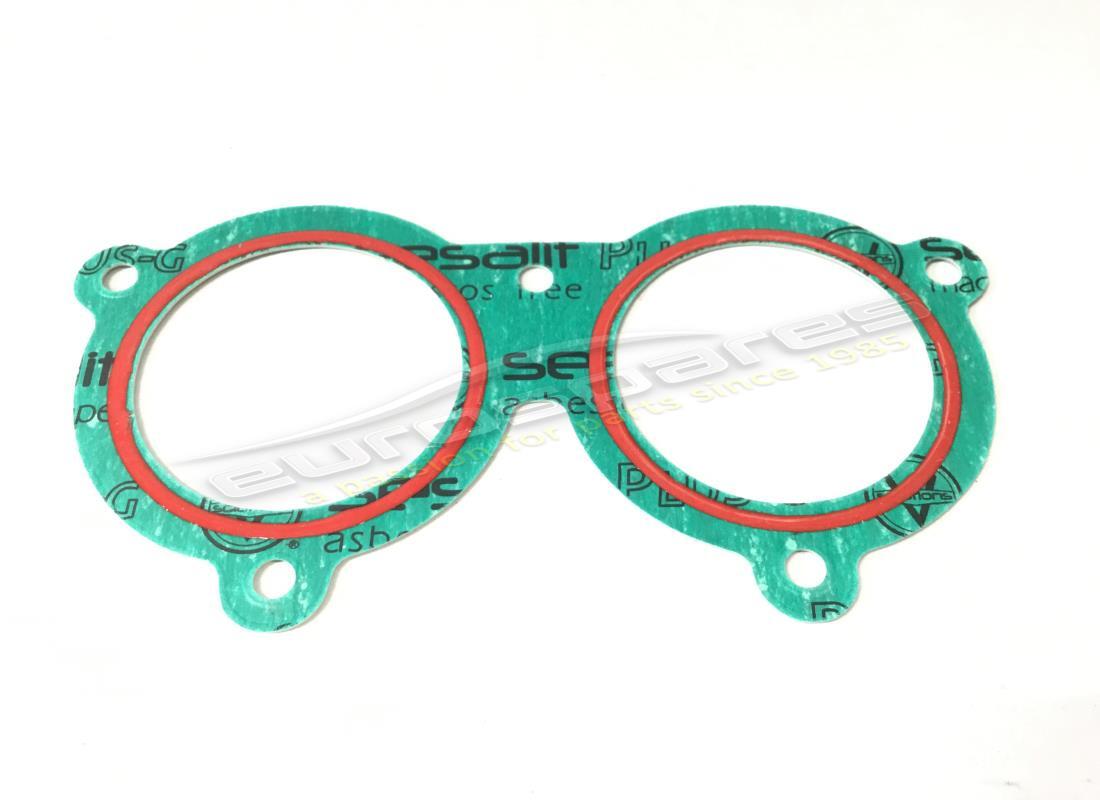

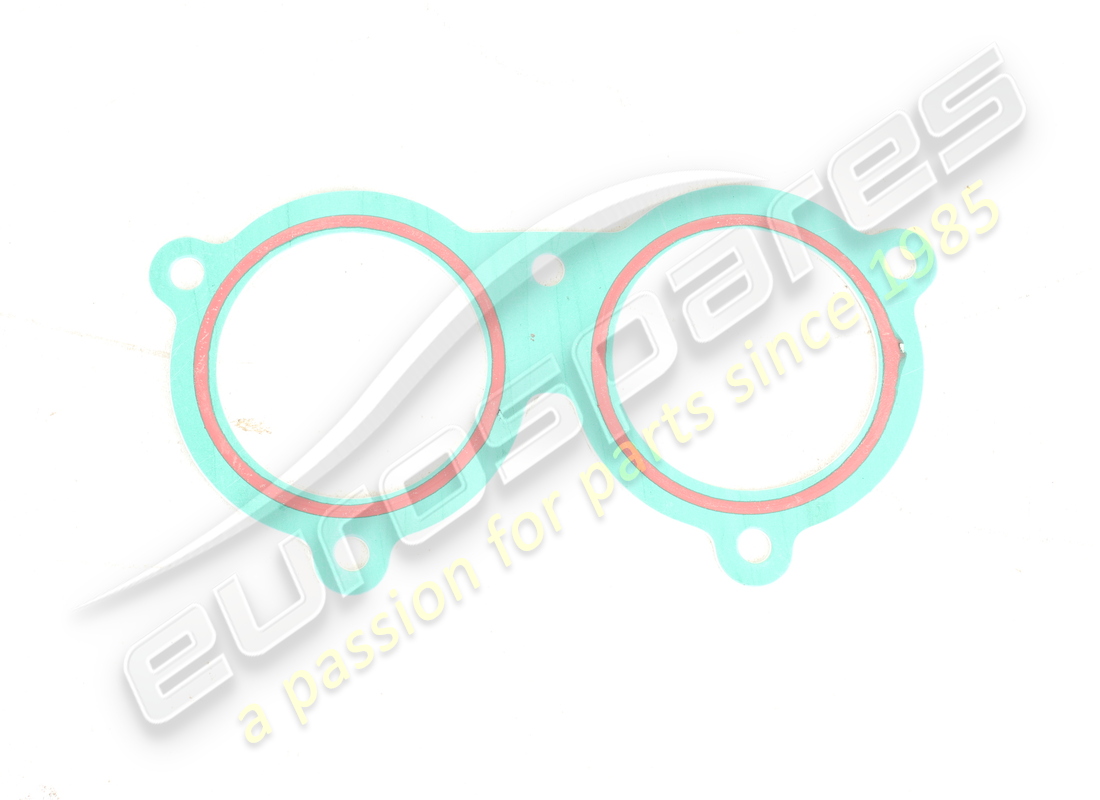

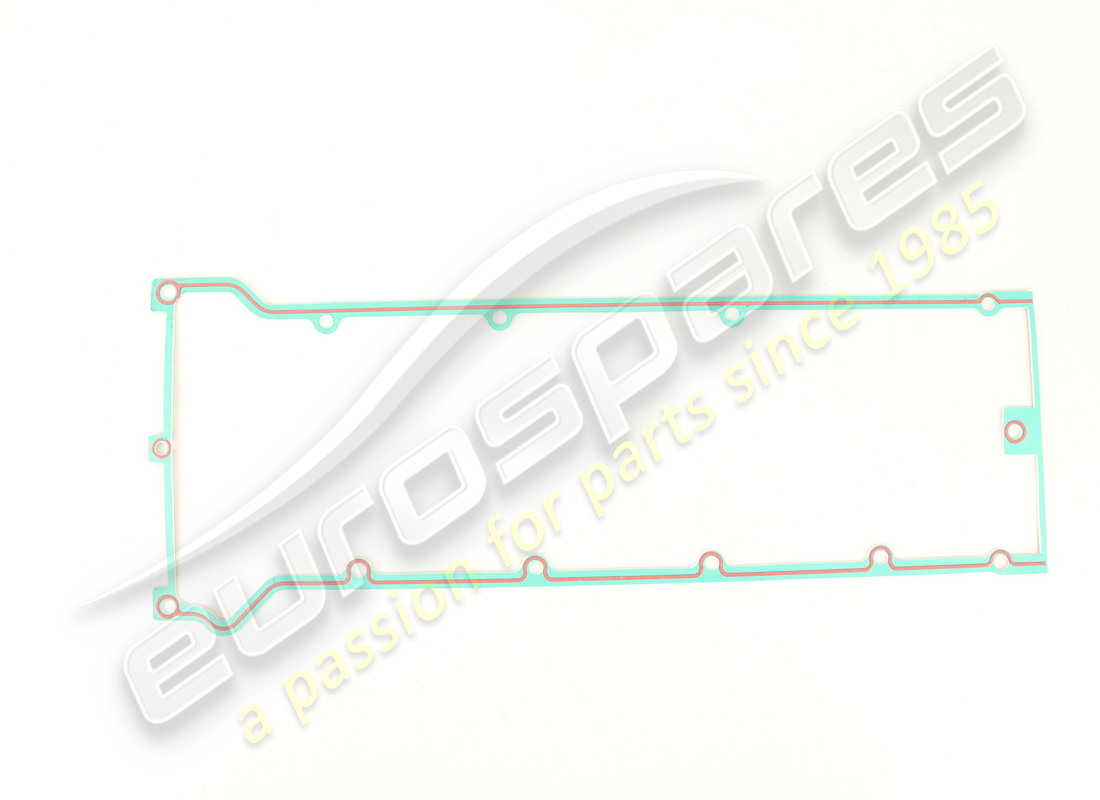

                                                                              COVER GASKET
                                                                              from £5.12
                                                                              from £5.12
                                                                              This part replaces part number 182983
                                                                              # 020
                                                                              MPN: 14432224
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14432221
                                                                              # 021
                                                                              MPN: 12604274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12604271 - and 1 more. Click to view details
                                                                              # 022
                                                                              MPN: 102741
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                              # 023
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 024
                                                                              MPN: 167135

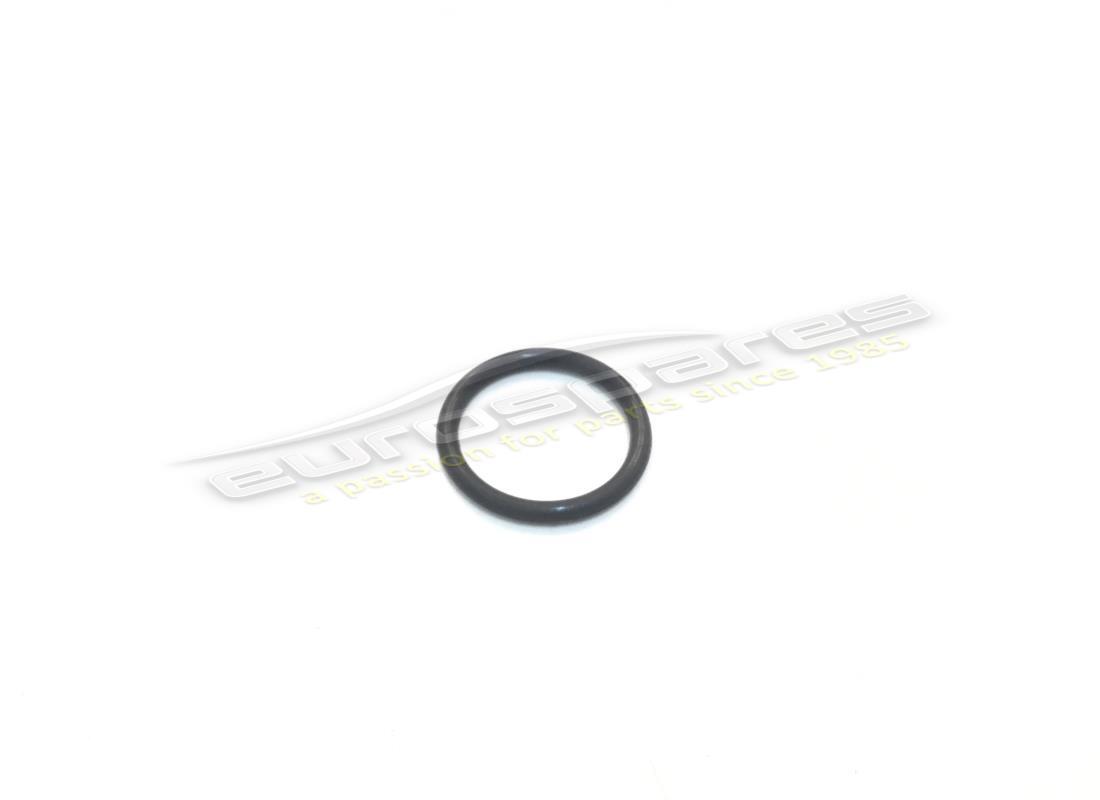

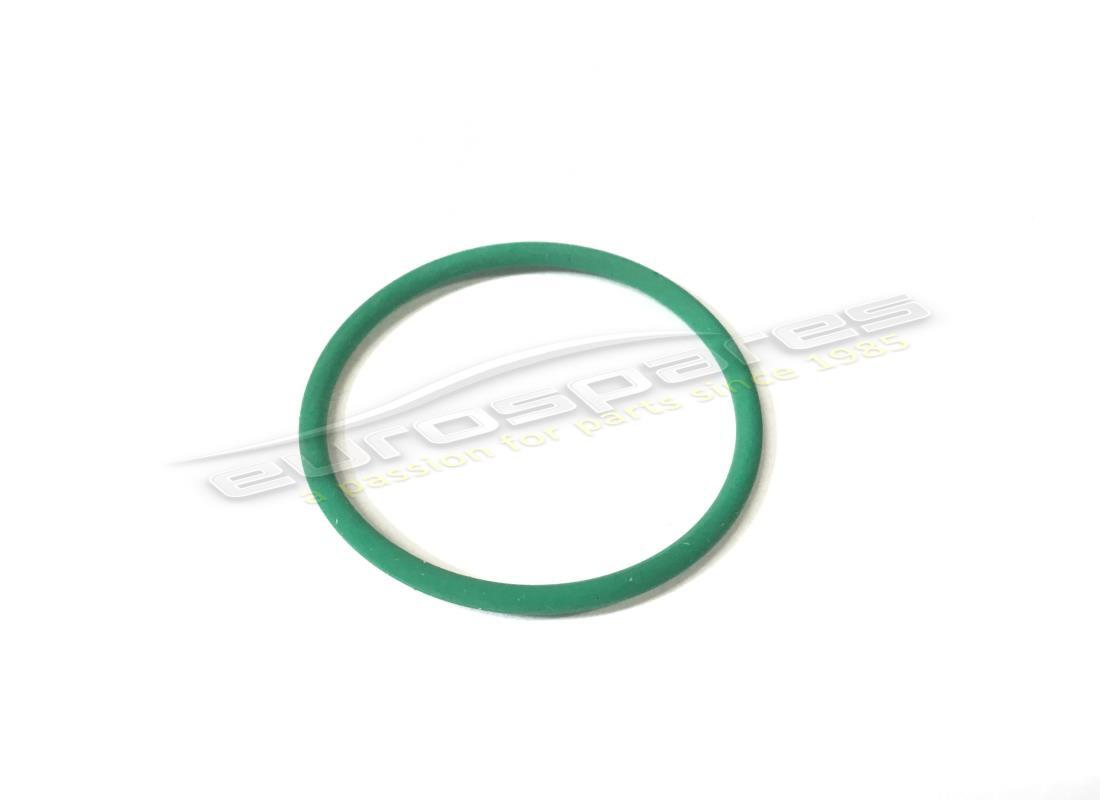

                                                                              O.R. GASKET
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 025
                                                                              MPN: 127635

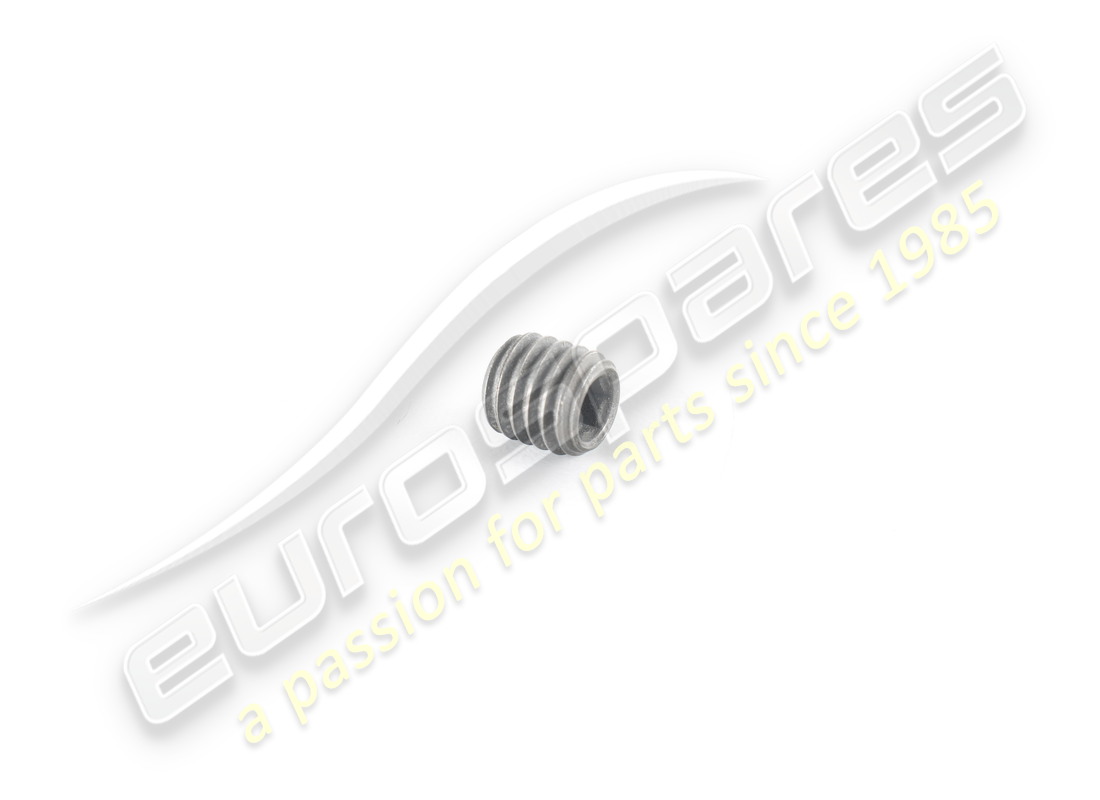

                                                                              THREADED PLUG
                                                                              from £1.48
                                                                              from £1.48
                                                                              This part replaces part number 183447
                                                                              # 026
                                                                              MPN: 147278
                                                                              O.R. GASKET
                                                                              from £0.94
                                                                              from £0.94
                                                                              # 027
                                                                              MPN: 12601174
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12601173 - and 5 more. Click to view details
                                                                              # 028
                                                                              MPN: 14304224
                                                                              SCREW
                                                                              - Not as spare part - Replaced by 212538
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 028
                                                                              MPN: 212538
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 029
                                                                              MPN: 187140

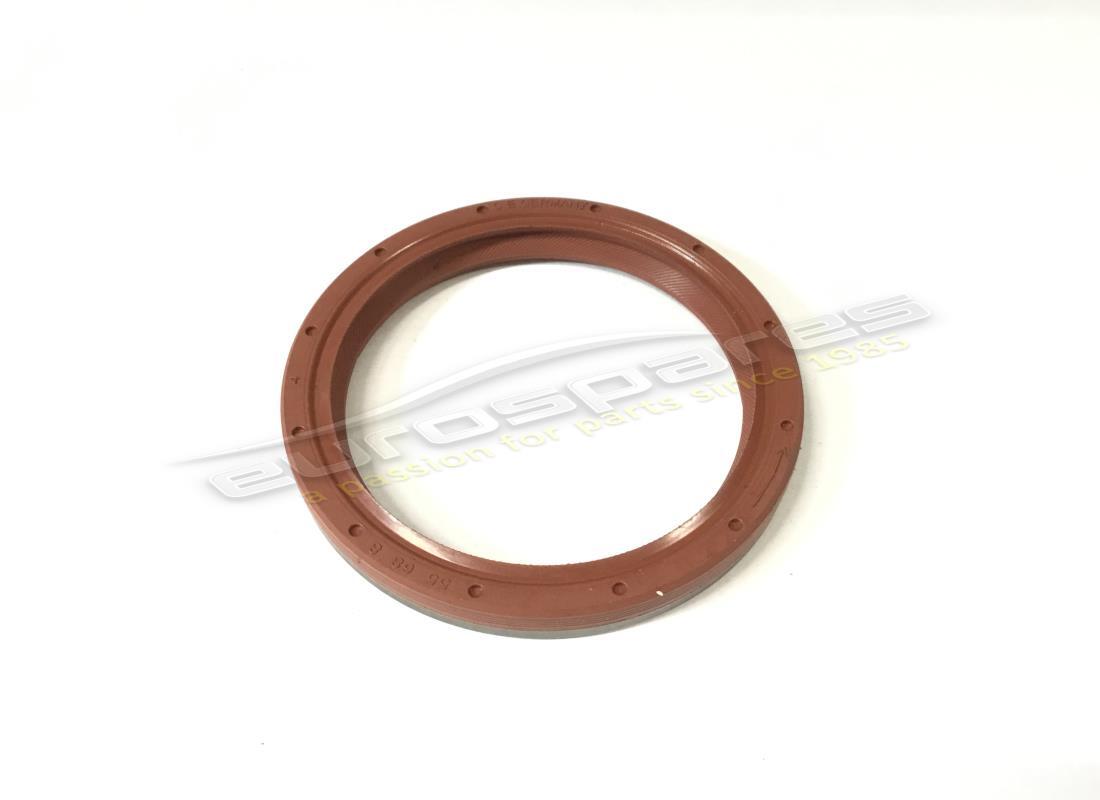

                                                                              SEAL RING
                                                                              - Not as spare part - Replaced by 187140
                                                                              from £11.82
                                                                              from £11.82
                                                                              This part replaces part number 180816
                                                                              # 029
                                                                              MPN: 187140

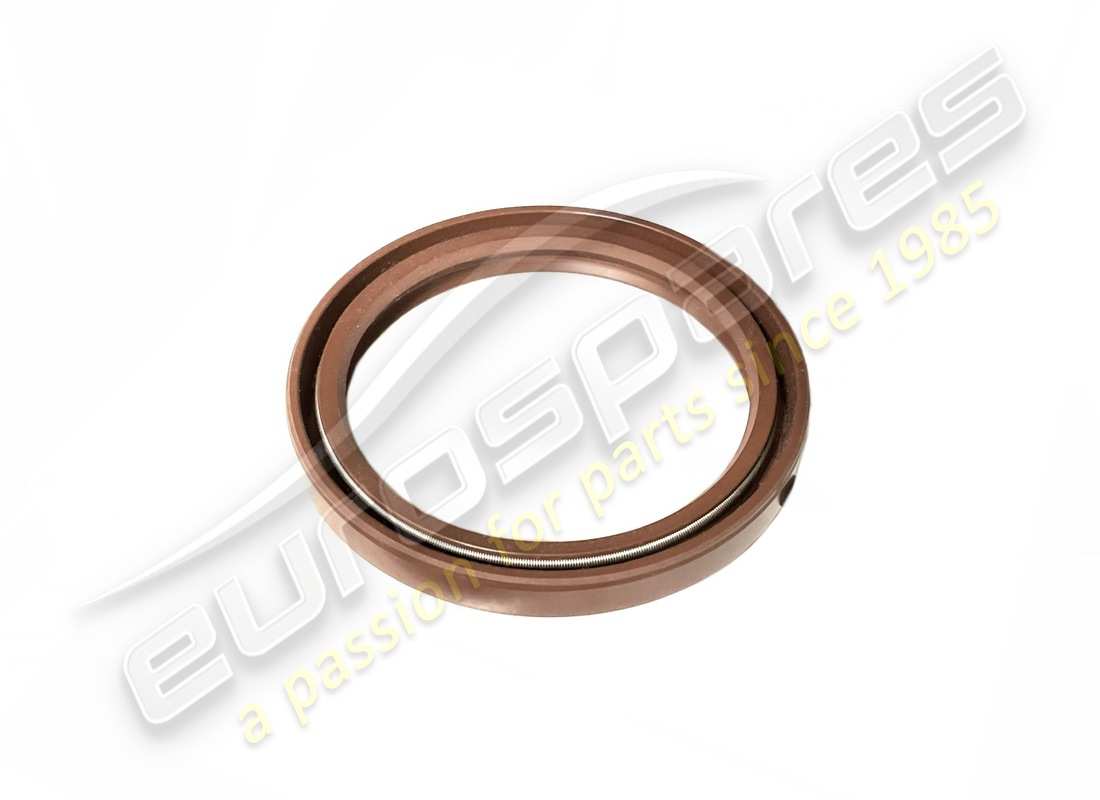

                                                                              SEAL RING
                                                                              from £11.82
                                                                              from £11.82
                                                                              This part replaces part number 180816
                                                                              # 030
                                                                              MPN: 173784
                                                                              FRONT SUPPORT
                                                                              - Not as spare part - With the complete cylinders head 180705
                                                                              # 031
                                                                              MPN: 102725
                                                                              CENTERING DOWEL
                                                                              from £0.65
                                                                              from £0.65
                                                                              # 032
                                                                              MPN: 176174
                                                                              HALF BEARING
                                                                              - Valid till stock exhaustion
                                                                              Supersession
                                                                              Supersession
                                                                              # 032
                                                                              MPN: 182694
                                                                              HALF BEARING
                                                                              - Valid after stock exhaustion of 176174
                                                                              from £48.12
                                                                              from £48.12
                                                                              This part replaces part number 176174
                                                                              # 033
                                                                              MPN: 15896211
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 15896210
                                                                              # 034
                                                                              MPN: 11197774
                                                                              WASHER
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                              # 035
                                                                              MPN: 16100814
                                                                              NUT
                                                                              from £0.71
                                                                              from £0.71
                                                                              This part replaces part number 16100811 - and 1 more. Click to view details
                                                                              # 036
                                                                              MPN: 11193874
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 11193879 which we have in stock
                                                                              # 037
                                                                              MPN: 13541724
                                                                              STUD
                                                                              from £1.55
                                                                              from £1.55
                                                                              This part replaces part number 13541721
                                                                              # 038
                                                                              MPN: 13543424
                                                                              STUD CAP
                                                                              from £1.03
                                                                              from £1.03
                                                                              This part replaces part number 13543421
                                                                              # 039
                                                                              -
                                                                              CAP
                                                                              # 040
                                                                              MPN: 102725
                                                                              CENTERING DOWEL
                                                                              from £0.61
                                                                              from £0.61
                                                                              # 041
                                                                              MPN: 15896211
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 15896210
                                                                              # 042
                                                                              MPN: 11197774
                                                                              WASHER
                                                                              from £0.51
                                                                              from £0.51
                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                              # 043
                                                                              MPN: 13541324
                                                                              STUD
                                                                              from £0.94
                                                                              from £0.94
                                                                              This part replaces part number 13541321
                                                                              # 043
                                                                              MPN: 13541421
                                                                              STUD
                                                                              - Not as spare part - Replaced by 13541321
                                                                              Supersession
                                                                              Supersession
                                                                              # 044
                                                                              MPN: 13541324
                                                                              STUD FOR INTAKE SIDE INTERMEDIATE CAP
                                                                              from £0.94
                                                                              from £0.94
                                                                              This part replaces part number 13541321
                                                                              # 045
                                                                              MPN: 195086
                                                                              VARIATOR CONTROL SOLENOID VALVE
                                                                              (exchange required)
                                                                              from £371.31
                                                                              from £371.31
                                                                              This part replaces part number 182260
                                                                              # 045
                                                                              MPN: 195086
                                                                              VARIATOR CONTROL SOLENOID VALVE
                                                                              (exchange required)
                                                                              from £371.31
                                                                              from £371.31
                                                                              This part replaces part number 182260
                                                                              # 045
                                                                              MPN: 195086
                                                                              VARIATOR CONTROL SOLENOID VALVE
                                                                              (exchange required)
                                                                              from £371.31
                                                                              from £371.31
                                                                              This part replaces part number 182260
                                                                              # 047
                                                                              MPN: 14305724
                                                                              SCREW
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 11567624 - and 2 more. Click to view details
                                                                              # 048
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 049
                                                                              MPN: 11500624
                                                                              STUD
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 11500621 which we have in stock
                                                                              # 049
                                                                              MPN: 13541124
                                                                              STUD
                                                                              from £11.38
                                                                              from £11.38
                                                                              This part replaces part number 13541121
                                                                              # 049
                                                                              MPN: 13541324
                                                                              STUD
                                                                              from £0.94
                                                                              from £0.94
                                                                              This part replaces part number 13541321
                                                                              # 049
                                                                              MPN: 13541624
                                                                              STUD
                                                                              from £9.20
                                                                              from £9.20
                                                                              This part replaces part number 13541621
                                                                              # 049
                                                                              MPN: 13541724
                                                                              STUD
                                                                              from £1.55
                                                                              from £1.55
                                                                              This part replaces part number 13541721
                                                                              # 049
                                                                              MPN: 13541824
                                                                              STUD
                                                                              from £0.99
                                                                              from £0.99
                                                                              This part replaces part number 13541821
                                                                              # 049
                                                                              MPN: 13542024
                                                                              STUD
                                                                              from £14.50
                                                                              from £14.50
                                                                              This part replaces part number 13542021
                                                                              # 050
                                                                              MPN: 10441890
                                                                              BRACKET WITH SHEATH
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 051
                                                                              MPN: 198823

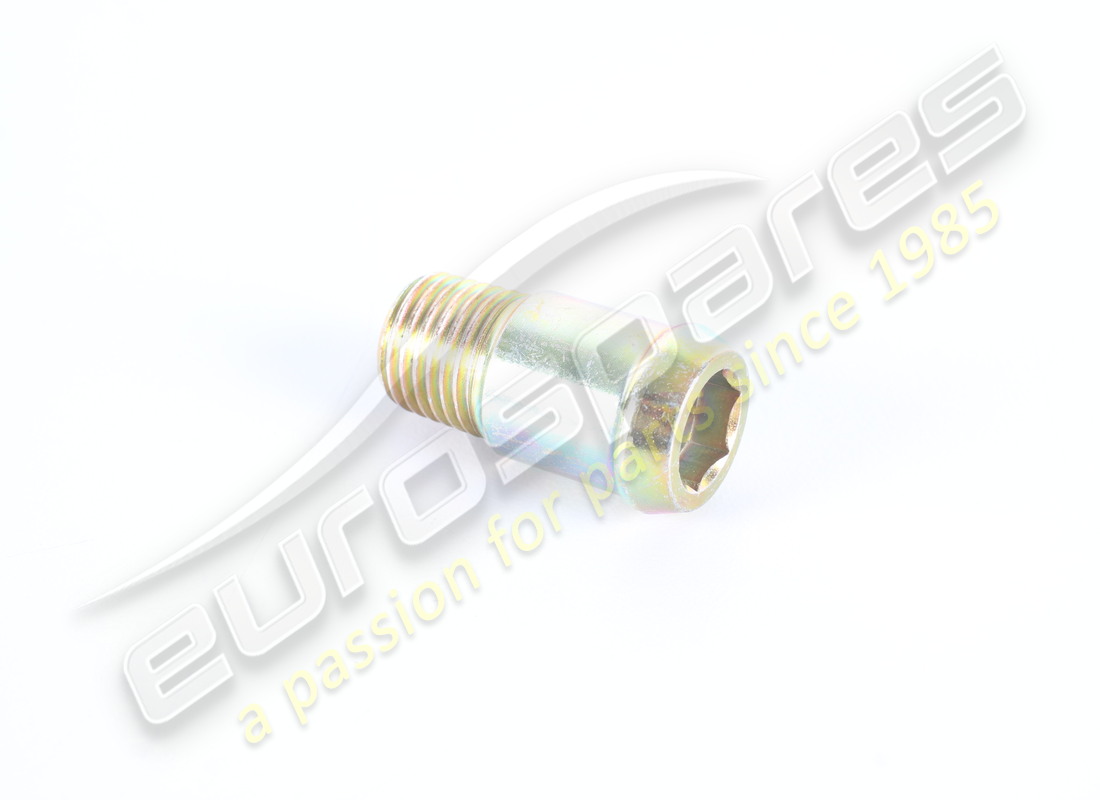

                                                                              THREADED PLUG
                                                                              - Valid from engine Nr. 78049
                                                                              from £2.35
                                                                              from £2.35
