ferrari 360 spider crankcase parts diagram

001 - crankcase

Ferrari 360 Spider Crankcase Parts Diagram

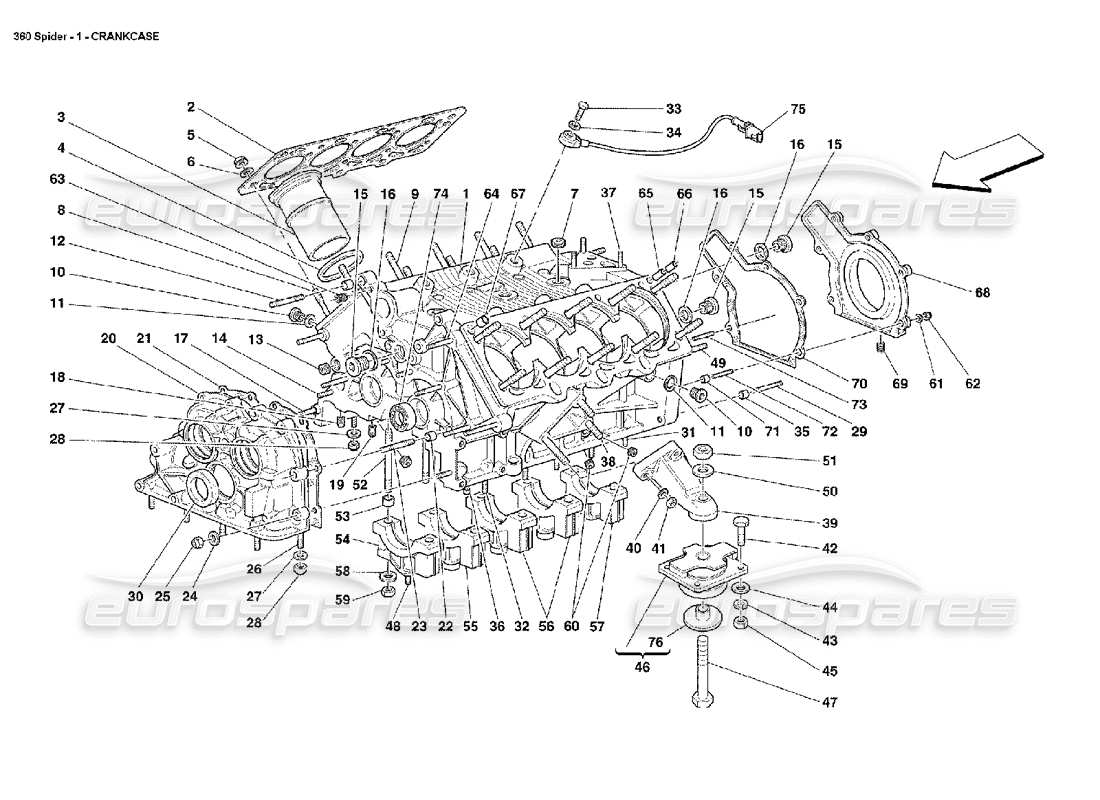

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                  #
                                                                                                                                  Part number
                                                                                                                                  Description
                                                                                                                                  Price
                                                                                                                                  # 000
                                                                                                                                  MPN: 180656
                                                                                                                                  COMPLETE CRANKCASE
                                                                                                                                  from £3,432.63
                                                                                                                                  from £3,432.63
                                                                                                                                  This part replaces part number 169754 - and 5 more. Click to view details
                                                                                                                                  # 001
                                                                                                                                  MPN: 180656
                                                                                                                                  crankcase
                                                                                                                                  from £3,432.63
                                                                                                                                  from £3,432.63
                                                                                                                                  This part replaces part number 169754 - and 5 more. Click to view details
                                                                                                                                  # 003
                                                                                                                                  MPN: 136875
                                                                                                                                  CYLINDER LINER
                                                                                                                                  from £274.88
                                                                                                                                  from £274.88
                                                                                                                                  # 004
                                                                                                                                  MPN: 136258

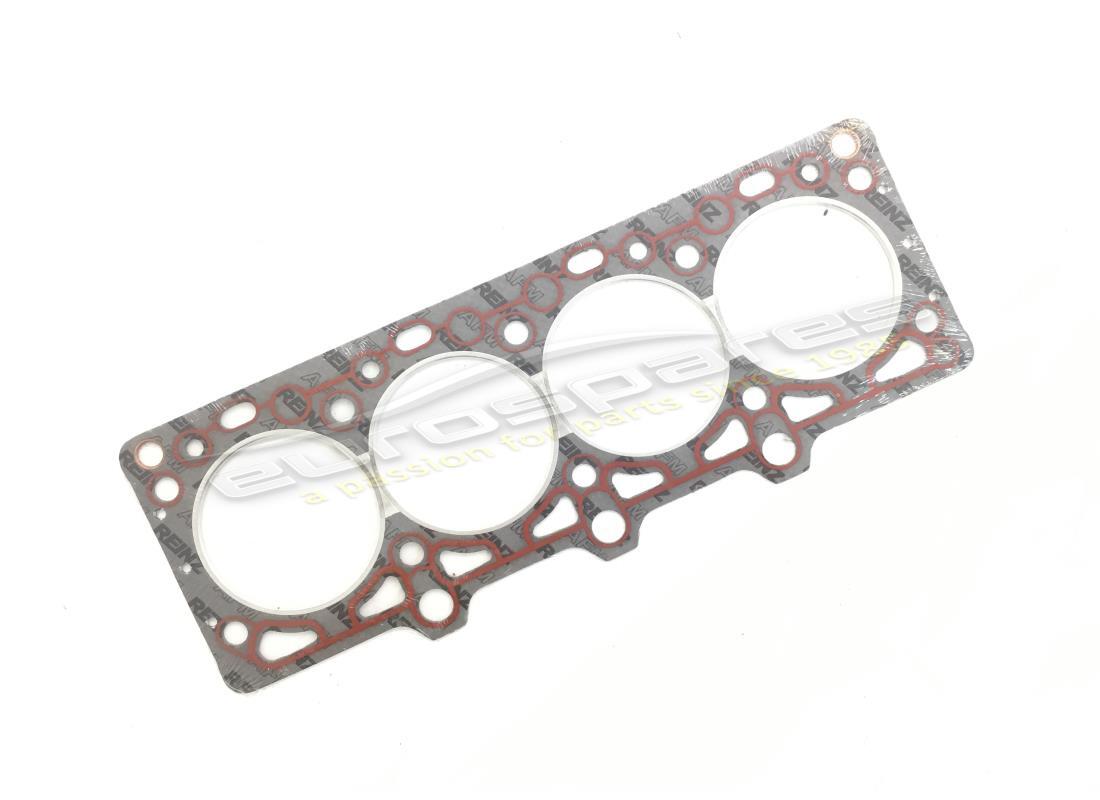

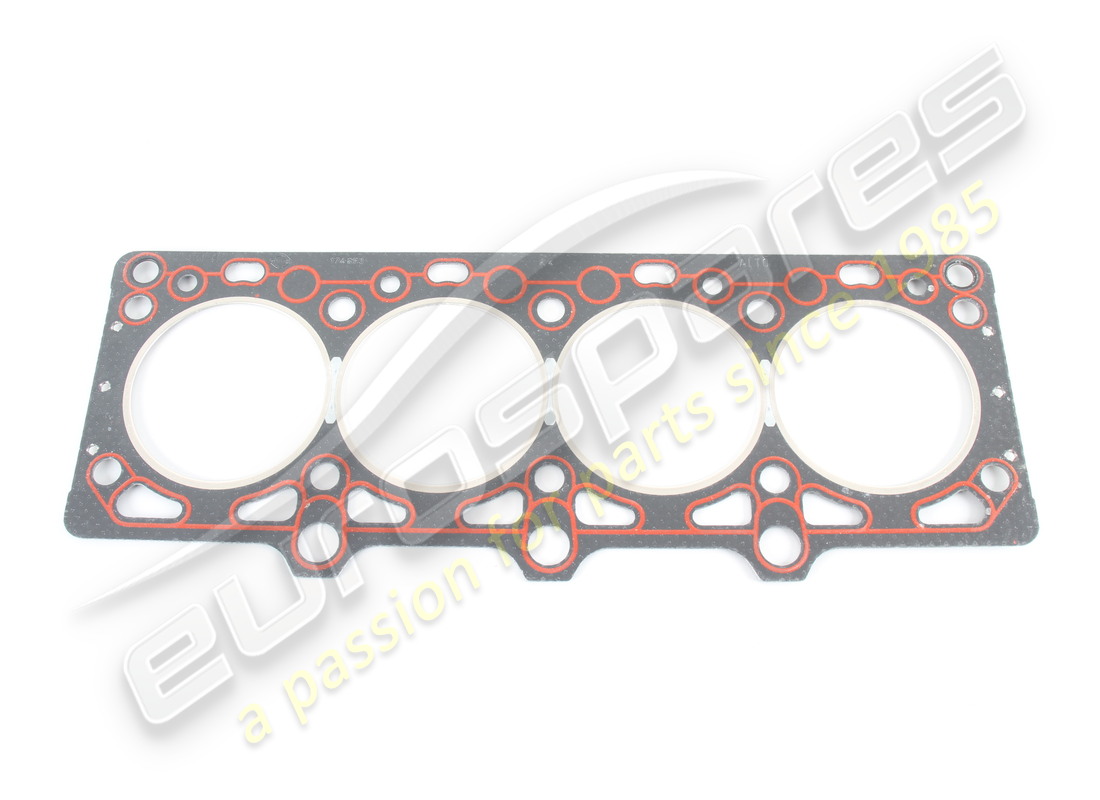

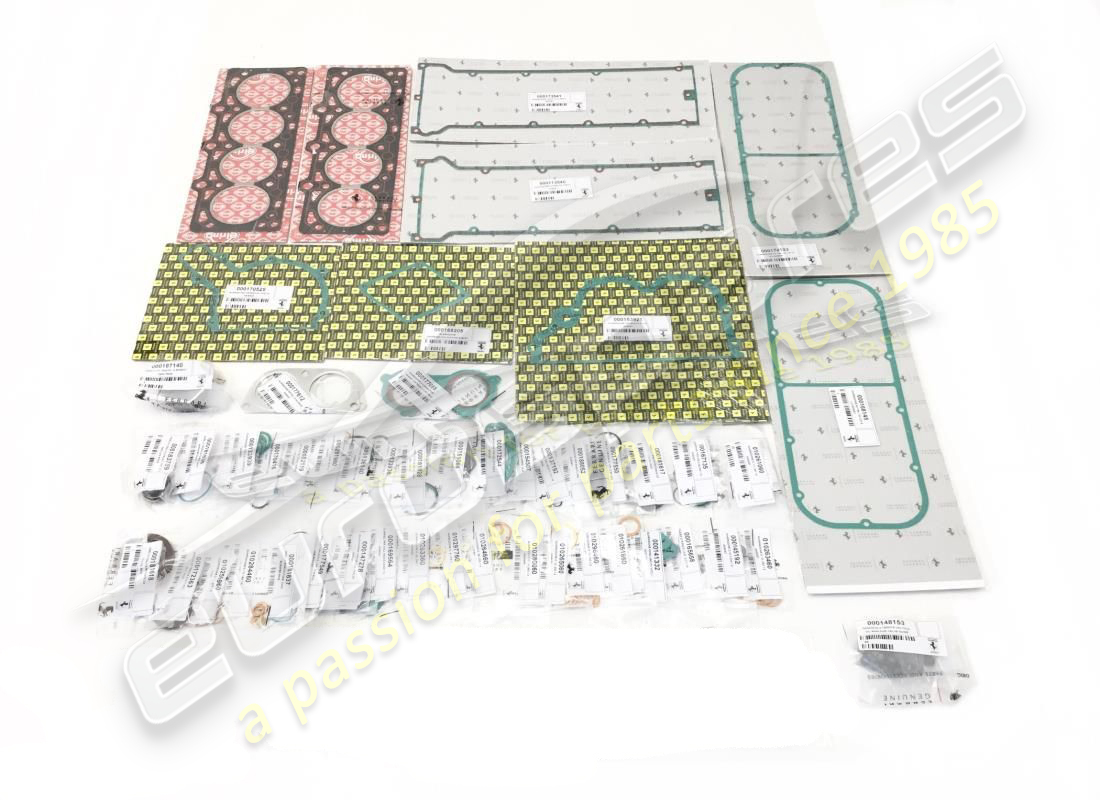

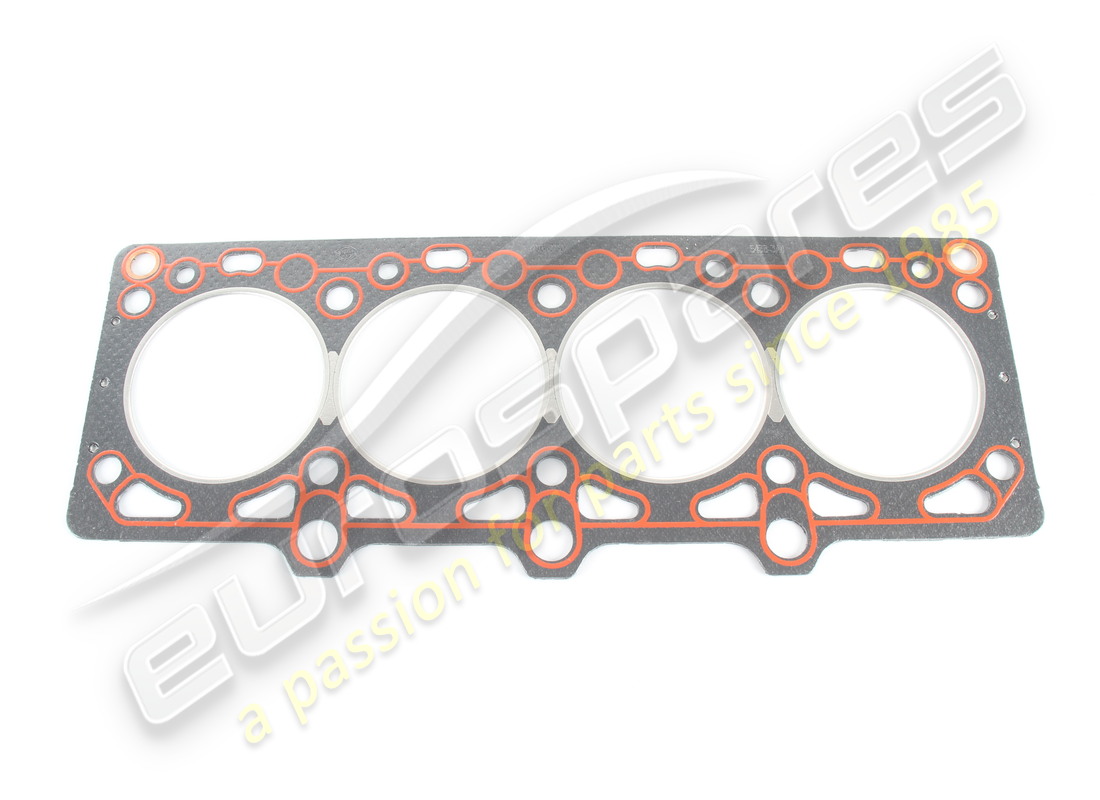

                                                                                                                                  GASKET
                                                                                                                                  from £3.40
                                                                                                                                  from £3.40
                                                                                                                                  This part replaces part number 173529
                                                                                                                                  # 005
                                                                                                                                  MPN: 148093
                                                                                                                                  NUT
                                                                                                                                  from £30.18
                                                                                                                                  from £30.18
                                                                                                                                  # 006
                                                                                                                                  MPN: 151117
                                                                                                                                  WASHER
                                                                                                                                  - Crankcase central side
                                                                                                                                  from £0.33
                                                                                                                                  from £0.33
                                                                                                                                  # 006
                                                                                                                                  MPN: 176208
                                                                                                                                  WASHER
                                                                                                                                  - Crankcase front and rear side
                                                                                                                                  from £2.28
                                                                                                                                  from £2.28
                                                                                                                                  # 007
                                                                                                                                  MPN: 14325540
                                                                                                                                  THREADED PLUG
                                                                                                                                  from £4.14
                                                                                                                                  from £4.14
                                                                                                                                  # 008
                                                                                                                                  MPN: 176148
                                                                                                                                  STUD
                                                                                                                                  - Crankcase front and rear side
                                                                                                                                  from £6.59
                                                                                                                                  from £6.59
                                                                                                                                  # 009
                                                                                                                                  MPN: 148311
                                                                                                                                  STUD
                                                                                                                                  - Crankcase central side
                                                                                                                                  from £20.34
                                                                                                                                  from £20.34
                                                                                                                                  # 010
                                                                                                                                  MPN: 150731
                                                                                                                                  WATER OUTLET PLUG
                                                                                                                                  - Not as spare part - Replaced by 200988
                                                                                                                                  from £2.26
                                                                                                                                  from £2.26
                                                                                                                                  # 010
                                                                                                                                  MPN: 200988
                                                                                                                                  WATER OUTLET PLUG
                                                                                                                                  from £5.03
                                                                                                                                  from £5.03
                                                                                                                                  # 011
                                                                                                                                  MPN: 10280060

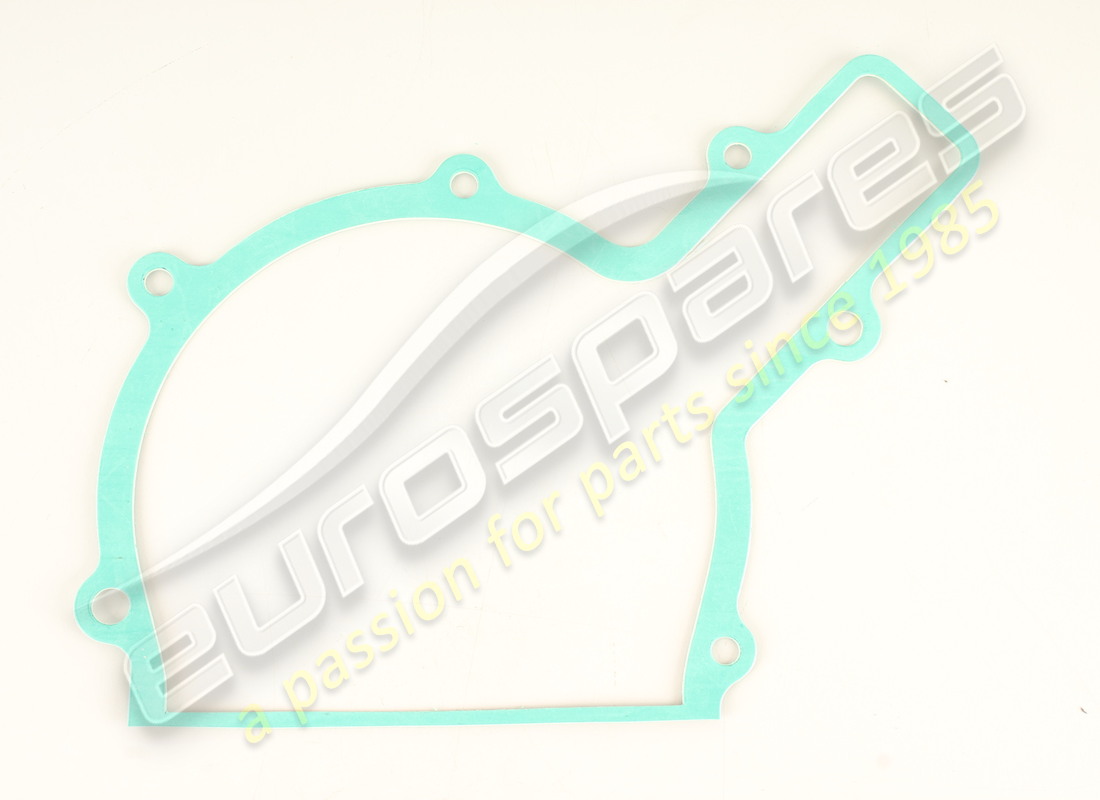

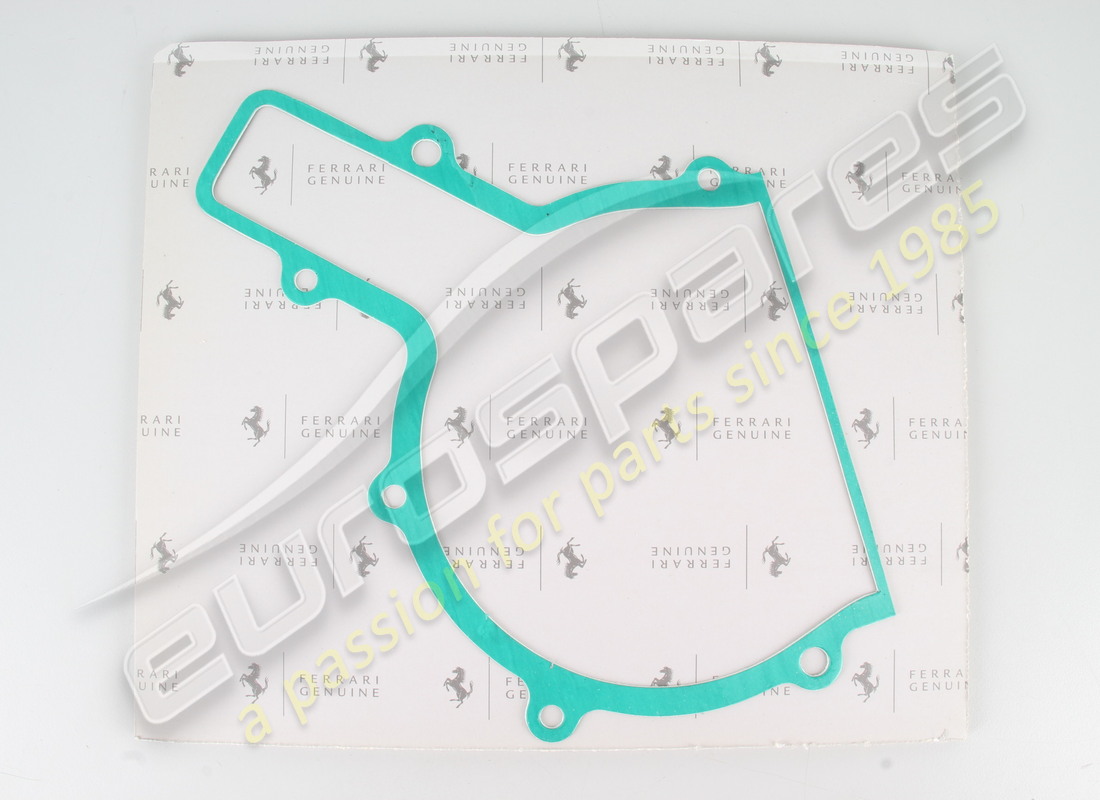

                                                                                                                                  GASKET
                                                                                                                                  from £0.53
                                                                                                                                  from £0.53
                                                                                                                                  This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                                                  # 012
                                                                                                                                  MPN: 13544034
                                                                                                                                  STUD
                                                                                                                                  from £0.73
                                                                                                                                  from £0.73
                                                                                                                                  # 013
                                                                                                                                  MPN: 14325140
                                                                                                                                  THREADED PLUG
                                                                                                                                  from £1.06
                                                                                                                                  from £1.06
                                                                                                                                  # 014
                                                                                                                                  MPN: 13543424
                                                                                                                                  STUD
                                                                                                                                  from £1.01
                                                                                                                                  from £1.01
                                                                                                                                  This part replaces part number 13543421
                                                                                                                                  # 015
                                                                                                                                  MPN: 10275011
                                                                                                                                  THREADED PLUG
                                                                                                                                  from £1.05
                                                                                                                                  from £1.05
                                                                                                                                  This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                                                  # 016
                                                                                                                                  MPN: 10263460
                                                                                                                                  GASKET
                                                                                                                                  from £0.52
                                                                                                                                  from £0.52
                                                                                                                                  This part replaces part number 95119
                                                                                                                                  # 017
                                                                                                                                  MPN: 13544034
                                                                                                                                  STUD
                                                                                                                                  from £0.73
                                                                                                                                  from £0.73
                                                                                                                                  # 018
                                                                                                                                  MPN: 13525870
                                                                                                                                  THREADED INSERT
                                                                                                                                  from £1.80
                                                                                                                                  from £1.80
                                                                                                                                  This part replaces part number 105510
                                                                                                                                  # 019
                                                                                                                                  MPN: 13525770
                                                                                                                                  THREADED INSERT
                                                                                                                                  from £1.54
                                                                                                                                  from £1.54
                                                                                                                                  This part replaces part number 103830
                                                                                                                                  # 020
                                                                                                                                  MPN: 169754
                                                                                                                                  FRONT COVER
                                                                                                                                  - Not as spare part - With the complete crankcase
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 021
                                                                                                                                  MPN: 153921
                                                                                                                                  GASKET
                                                                                                                                  from £10.42
                                                                                                                                  from £10.42
                                                                                                                                  # 022
                                                                                                                                  MPN: 100041
                                                                                                                                  DOWEL
                                                                                                                                  from £4.66
                                                                                                                                  from £4.66
                                                                                                                                  # 023
                                                                                                                                  MPN: 13543624
                                                                                                                                  STUD
                                                                                                                                  from £0.53
                                                                                                                                  from £0.53
                                                                                                                                  This part replaces part number 13543621
                                                                                                                                  # 024
                                                                                                                                  MPN: 12601374
                                                                                                                                  WASHER
                                                                                                                                  from £0.53
                                                                                                                                  from £0.53
                                                                                                                                  This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                                  # 025
                                                                                                                                  MPN: 101139
                                                                                                                                  NUT
                                                                                                                                  from £0.53
                                                                                                                                  from £0.53
                                                                                                                                  This part replaces part number 16104425
                                                                                                                                  # 026
                                                                                                                                  MPN: 13543524
                                                                                                                                  STUD
                                                                                                                                  from £2.00
                                                                                                                                  from £2.00
                                                                                                                                  This part replaces part number 13543521
                                                                                                                                  # 027
                                                                                                                                  MPN: 12604474
                                                                                                                                  WASHER
                                                                                                                                  from £0.52
                                                                                                                                  from £0.52
                                                                                                                                  This part replaces part number 12604479 which we have in stock
                                                                                                                                  # 028
                                                                                                                                  MPN: 101139
                                                                                                                                  NUT
                                                                                                                                  from £0.52
                                                                                                                                  from £0.52
                                                                                                                                  This part replaces part number 16104425
                                                                                                                                  # 029
                                                                                                                                  MPN: 13547034
                                                                                                                                  STUD
                                                                                                                                  from £1.67
                                                                                                                                  from £1.67
                                                                                                                                  # 030
                                                                                                                                  MPN: 163985
                                                                                                                                  FRONT OIL SEAL
                                                                                                                                  from £25.60
                                                                                                                                  from £25.60
                                                                                                                                  # 031
                                                                                                                                  MPN: 13543524
                                                                                                                                  STUD
                                                                                                                                  from £2.00
                                                                                                                                  from £2.00
                                                                                                                                  This part replaces part number 13543521
                                                                                                                                  # 032
                                                                                                                                  MPN: 13543624
                                                                                                                                  STUD
                                                                                                                                  from £0.48
                                                                                                                                  from £0.48
                                                                                                                                  This part replaces part number 13543621
                                                                                                                                  # 033
                                                                                                                                  MPN: 16043834
                                                                                                                                  SCREW
                                                                                                                                  from £0.51
                                                                                                                                  from £0.51
                                                                                                                                  This part replaces part number 16043824
                                                                                                                                  # 034
                                                                                                                                  MPN: 11198074
                                                                                                                                  WASHER
                                                                                                                                  from £0.53
                                                                                                                                  from £0.53
                                                                                                                                  This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                  # 035
                                                                                                                                  MPN: 165351
                                                                                                                                  CENTERING DOWEL
                                                                                                                                  from £1.87
                                                                                                                                  from £1.87
                                                                                                                                  # 036
                                                                                                                                  MPN: 102725
                                                                                                                                  DOWEL
                                                                                                                                  from £0.64
                                                                                                                                  from £0.64
                                                                                                                                  # 037
                                                                                                                                  MPN: 13543524
                                                                                                                                  STUD
                                                                                                                                  from £2.00
                                                                                                                                  from £2.00
                                                                                                                                  This part replaces part number 13543521
                                                                                                                                  # 038
                                                                                                                                  MPN: 13546624
                                                                                                                                  STUD
                                                                                                                                  from £0.58
                                                                                                                                  from £0.58
                                                                                                                                  # 038
                                                                                                                                  MPN: 13547124
                                                                                                                                  STUD
                                                                                                                                  - Right side support
                                                                                                                                  from £0.83
                                                                                                                                  from £0.83
                                                                                                                                  # 039
                                                                                                                                  MPN: 183804

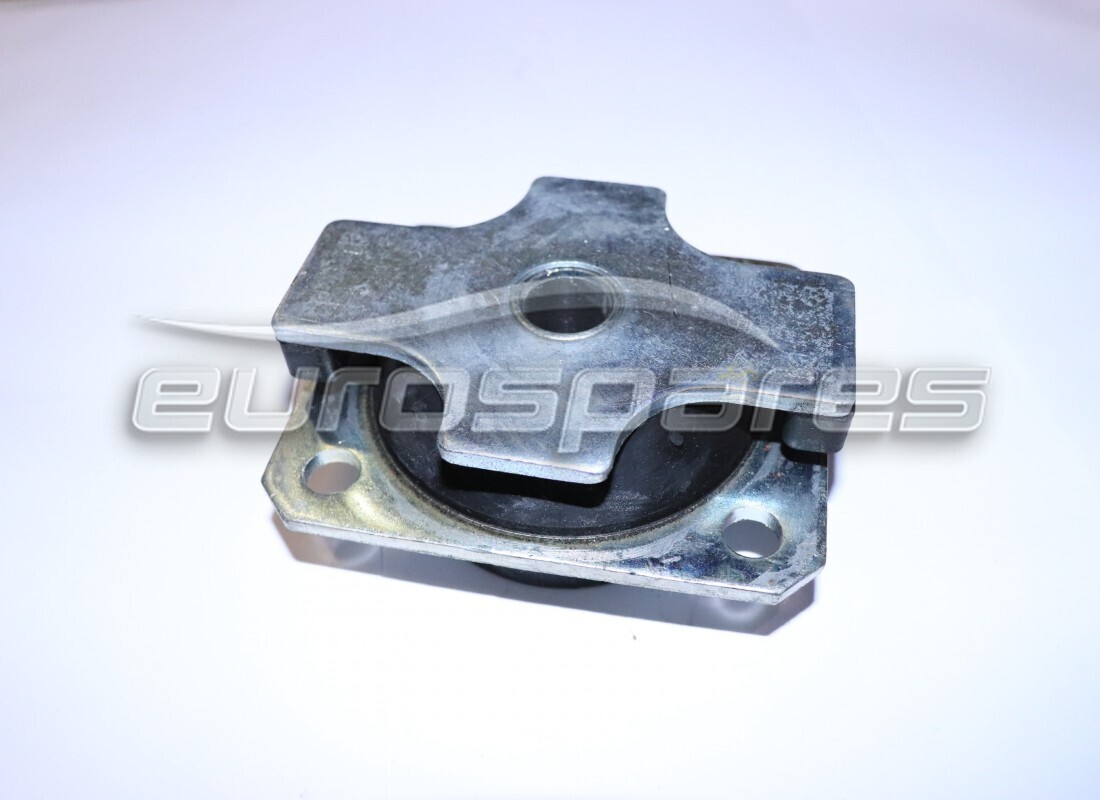

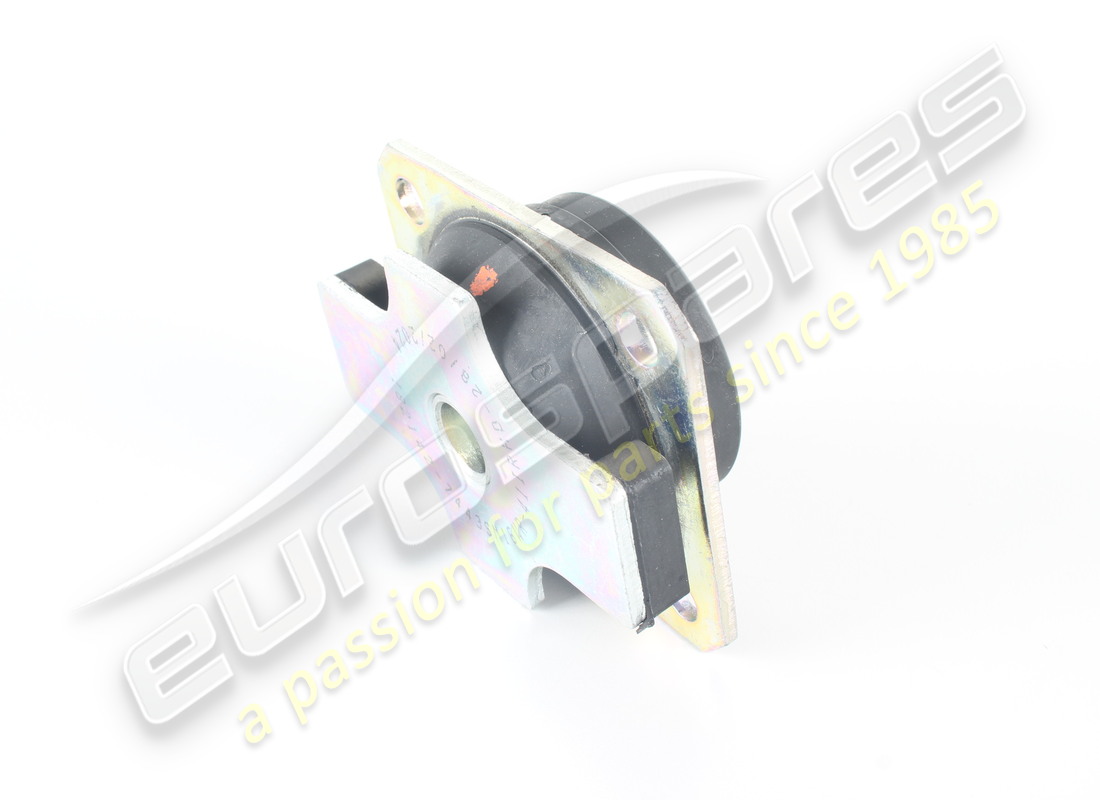

                                                                                                                                  ENGINE FIXING SUPPORT
                                                                                                                                  from £72.52
                                                                                                                                  from £72.52
                                                                                                                                  # 040
                                                                                                                                  MPN: 11190574
                                                                                                                                  WASHER
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  This part replaces part number 14499504
                                                                                                                                  # 041
                                                                                                                                  MPN: 133988
                                                                                                                                  NUT
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                                                                  # 042
                                                                                                                                  MPN: 15970634
                                                                                                                                  SCREW
                                                                                                                                  - Not as spare part - Replaced by 15970734
                                                                                                                                  from £1.54
                                                                                                                                  from £1.54
                                                                                                                                  # 042
                                                                                                                                  MPN: 15970734
                                                                                                                                  SCREW
                                                                                                                                  from £0.51
                                                                                                                                  from £0.51
                                                                                                                                  # 043
                                                                                                                                  MPN: 127497
                                                                                                                                  WASHER
                                                                                                                                  from £0.53
                                                                                                                                  from £0.53
                                                                                                                                  This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                                  # 044
                                                                                                                                  MPN: 12646824
                                                                                                                                  WASHER
                                                                                                                                  from £0.48
                                                                                                                                  from £0.48
                                                                                                                                  # 045
                                                                                                                                  MPN: 133988
                                                                                                                                  NUT
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                                                                  # 046
                                                                                                                                  MPN: 182142
                                                                                                                                  FLEXIBLE PAD
                                                                                                                                  from £78.75
                                                                                                                                  from £78.75
                                                                                                                                  This part replaces part number 180113
                                                                                                                                  # 047
                                                                                                                                  MPN: 11369634
                                                                                                                                  SCREW
                                                                                                                                  from £1.90
                                                                                                                                  from £1.90
                                                                                                                                  This part replaces part number 11369624 - and 1 more. Click to view details
                                                                                                                                  # 048
                                                                                                                                  MPN: 13516624
                                                                                                                                  STUD
                                                                                                                                  from £0.68
                                                                                                                                  from £0.68
                                                                                                                                  This part replaces part number 13516621 which we have in stock
                                                                                                                                  # 049
                                                                                                                                  MPN: 13547234
                                                                                                                                  STUD
                                                                                                                                  from £8.37
                                                                                                                                  from £8.37
                                                                                                                                  # 050
                                                                                                                                  MPN: 12601774
                                                                                                                                  WASHER
                                                                                                                                  from £0.71
                                                                                                                                  from £0.71
                                                                                                                                  This part replaces part number 12601779
                                                                                                                                  # 051
                                                                                                                                  MPN: 176573
                                                                                                                                  NUT
                                                                                                                                  from £1.08
                                                                                                                                  from £1.08
                                                                                                                                  This part replaces part number 158307
                                                                                                                                  # 052
                                                                                                                                  MPN: 180263
                                                                                                                                  STUD
                                                                                                                                  from £3.26
                                                                                                                                  from £3.26
                                                                                                                                  # 053
                                                                                                                                  MPN: 125317
                                                                                                                                  CENTERING DOWEL
                                                                                                                                  from £0.73
                                                                                                                                  from £0.73
                                                                                                                                  # 054
                                                                                                                                  MPN: 152158
                                                                                                                                  FRONT HAT
                                                                                                                                  - Not as spare part - With the complete crankcase
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 055
                                                                                                                                  MPN: 152159
                                                                                                                                  FRONT INTERMEDIATE HAT
                                                                                                                                  - Not as spare part - With the complete crankcase
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 056
                                                                                                                                  MPN: 152098
                                                                                                                                  INTERMEDIATE CENTRAL AND REAR HAT
                                                                                                                                  - Not as spare part - With the complete crankcase
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 057
                                                                                                                                  MPN: 152099
                                                                                                                                  REAR HAT
                                                                                                                                  - Not as spare part - With the complete crankcase
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 058
                                                                                                                                  MPN: 103842
                                                                                                                                  WASHER
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 059
                                                                                                                                  MPN: 103841
                                                                                                                                  NUT
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  This part replaces part number 4146542
                                                                                                                                  # 060
                                                                                                                                  MPN: 164400
                                                                                                                                  THREADED PLUG
                                                                                                                                  from £2.10
                                                                                                                                  from £2.10
                                                                                                                                  This part replaces part number 194490
                                                                                                                                  # 061
                                                                                                                                  MPN: 12620474
                                                                                                                                  WASHER
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  This part replaces part number 12620479 - and 1 more. Click to view details
                                                                                                                                  # 062
                                                                                                                                  MPN: 15896214
                                                                                                                                  NUT
                                                                                                                                  from £0.53
                                                                                                                                  from £0.53
                                                                                                                                  This part replaces part number 15896211
                                                                                                                                  # 063
                                                                                                                                  MPN: 13525870
                                                                                                                                  THREADED INSERT
                                                                                                                                  from £1.75
                                                                                                                                  from £1.75
                                                                                                                                  This part replaces part number 105510
                                                                                                                                  # 064
                                                                                                                                  MPN: 13544034
                                                                                                                                  STUD
                                                                                                                                  from £0.73
                                                                                                                                  from £0.73
                                                                                                                                  # 065
                                                                                                                                  MPN: 156862
                                                                                                                                  NONRETURN VALVE
                                                                                                                                  from £5.10
                                                                                                                                  from £5.10
                                                                                                                                  # 066
                                                                                                                                  MPN: 175644
                                                                                                                                  REAR DOWEL
                                                                                                                                  from £2.19
                                                                                                                                  from £2.19
                                                                                                                                  # 067
                                                                                                                                  MPN: 173479
                                                                                                                                  FRONT DOWEL
                                                                                                                                  from £11.60
                                                                                                                                  from £11.60
                                                                                                                                  # 068
                                                                                                                                  MPN: 170527
                                                                                                                                  REAR COVER
                                                                                                                                  - Not as spare part - With the complete crankcase
                                                                                                                                  from £117.00
                                                                                                                                  from £117.00
                                                                                                                                  # 069
                                                                                                                                  MPN: 13525570
                                                                                                                                  THREADED INSERT
                                                                                                                                  from £3.26
                                                                                                                                  from £3.26
                                                                                                                                  This part replaces part number 109668
                                                                                                                                  # 070
                                                                                                                                  MPN: 170529
                                                                                                                                  GASKET
                                                                                                                                  from £12.72
                                                                                                                                  from £12.72
                                                                                                                                  # 071
                                                                                                                                  MPN: 103038
                                                                                                                                  DOWEL
                                                                                                                                  from £0.76
                                                                                                                                  from £0.76
                                                                                                                                  # 072
                                                                                                                                  MPN: 13541124
                                                                                                                                  STUD
                                                                                                                                  from £12.30
                                                                                                                                  from £12.30
                                                                                                                                  This part replaces part number 13541121
                                                                                                                                  # 073
                                                                                                                                  MPN: 13540824
                                                                                                                                  STUD
                                                                                                                                  from £14.21
                                                                                                                                  from £14.21
                                                                                                                                  This part replaces part number 13540821
                                                                                                                                  # 074
                                                                                                                                  MPN: 171177
                                                                                                                                  BEARING
                                                                                                                                  from £10.01
                                                                                                                                  from £10.01
                                                                                                                                  This part replaces part number 144713
                                                                                                                                  # 075
                                                                                                                                  MPN: 177672

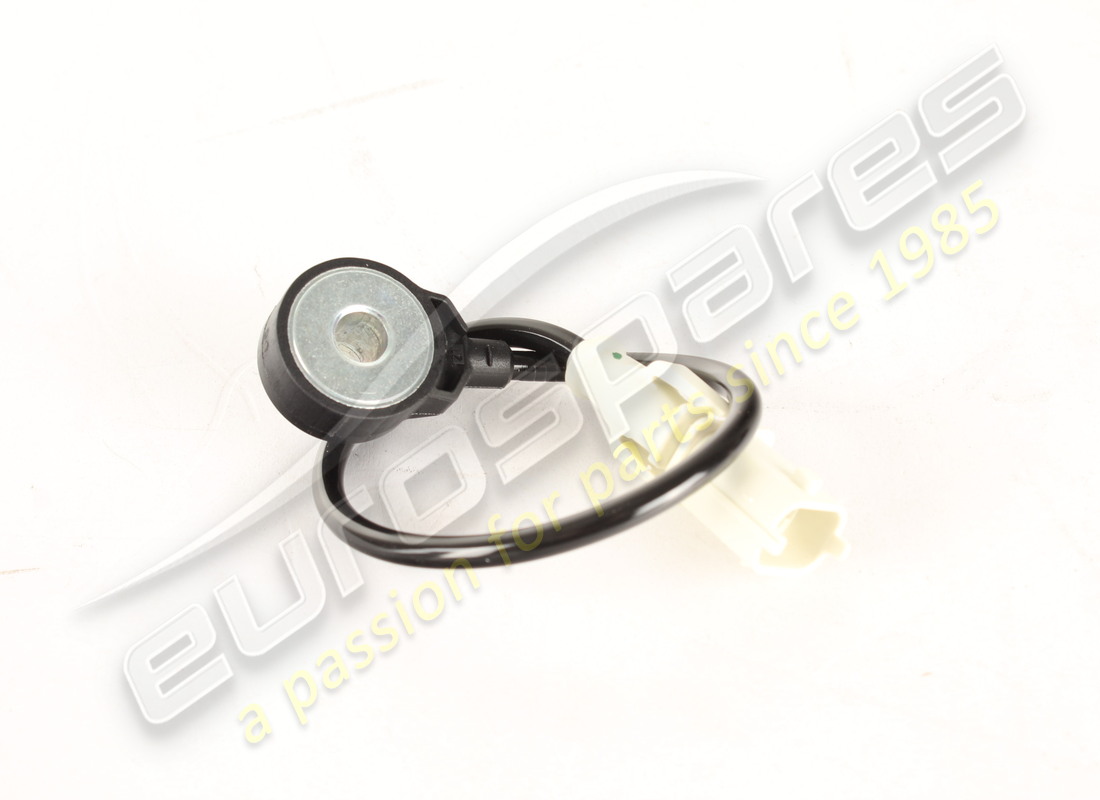

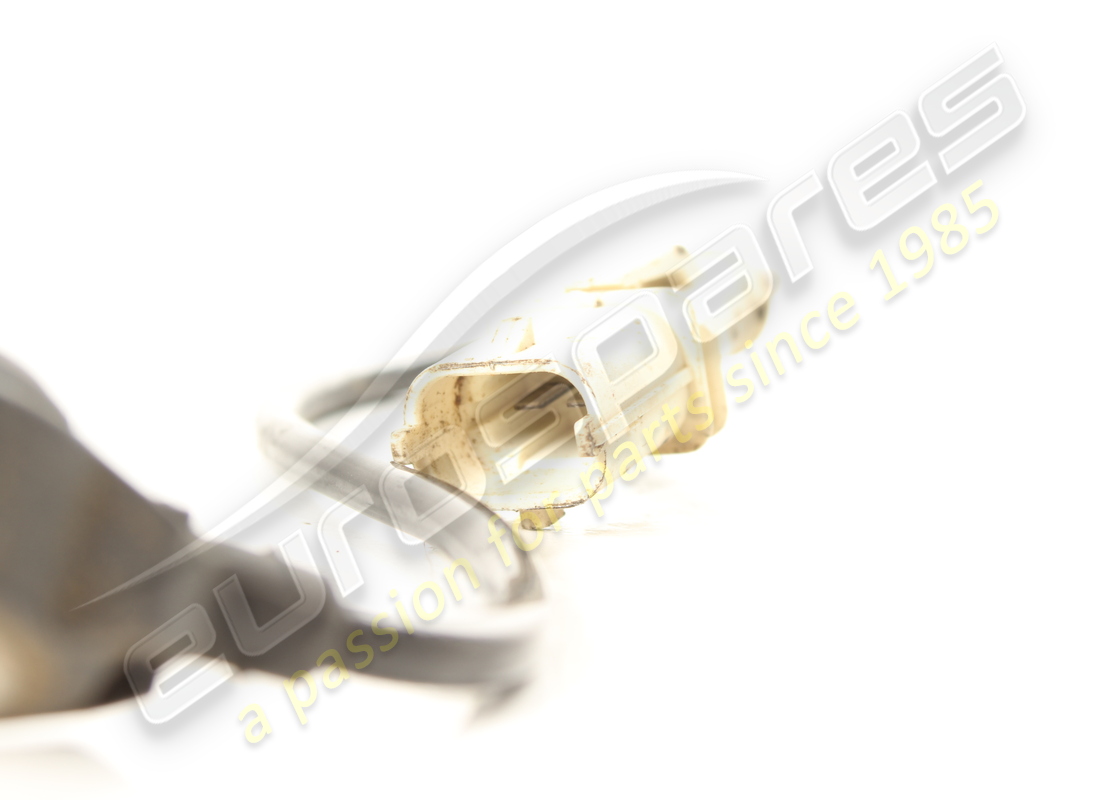

                                                                                                                                  SENSOR FOR FIRING
                                                                                                                                  from £55.97
                                                                                                                                  from £55.97
                                                                                                                                  # 076
                                                                                                                                  MPN: 204086
                                                                                                                                  RETAINING WASHER
                                                                                                                                  from £21.32
                                                                                                                                  from £21.32
