ferrari 360 modena front bumper parts diagram

119 - FRONT BUMPER

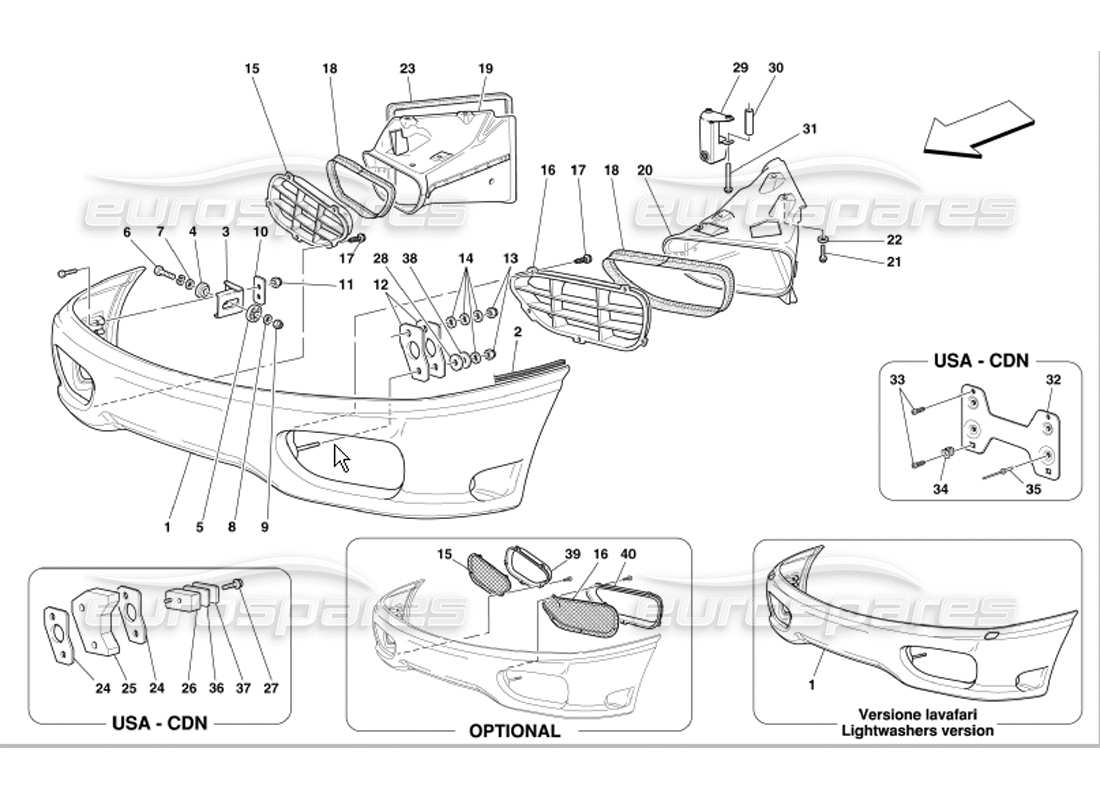

Ferrari 360 Modena Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price

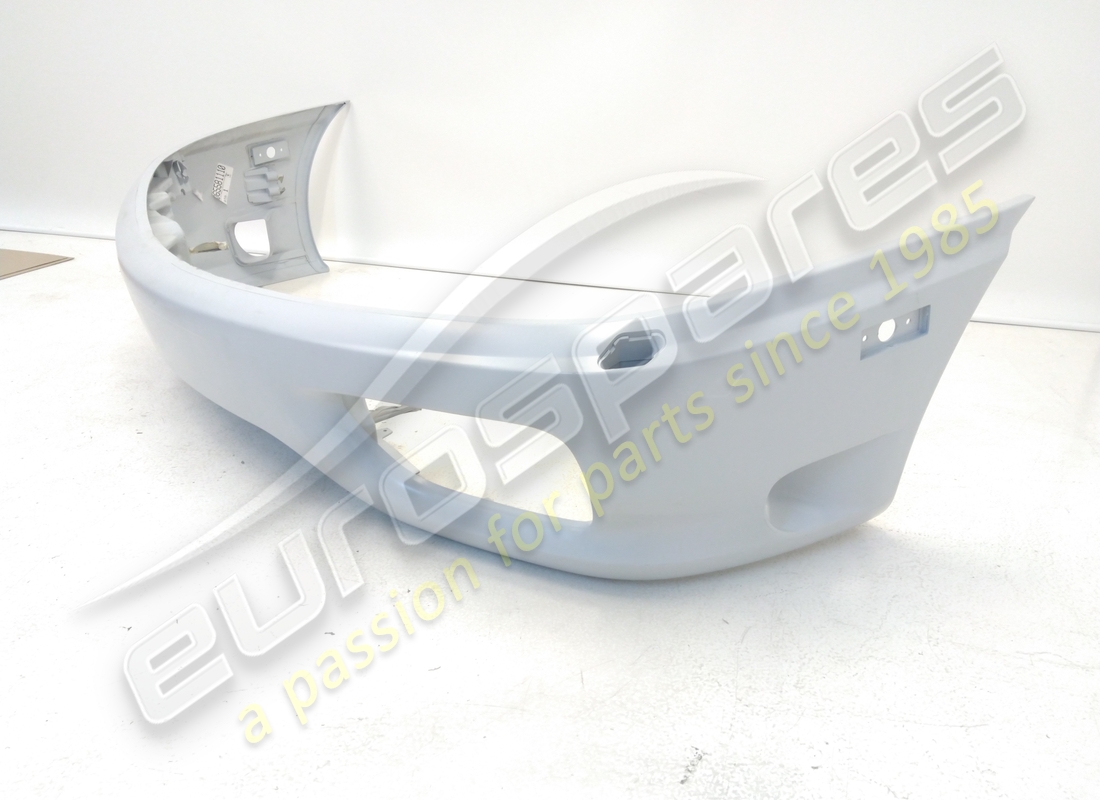

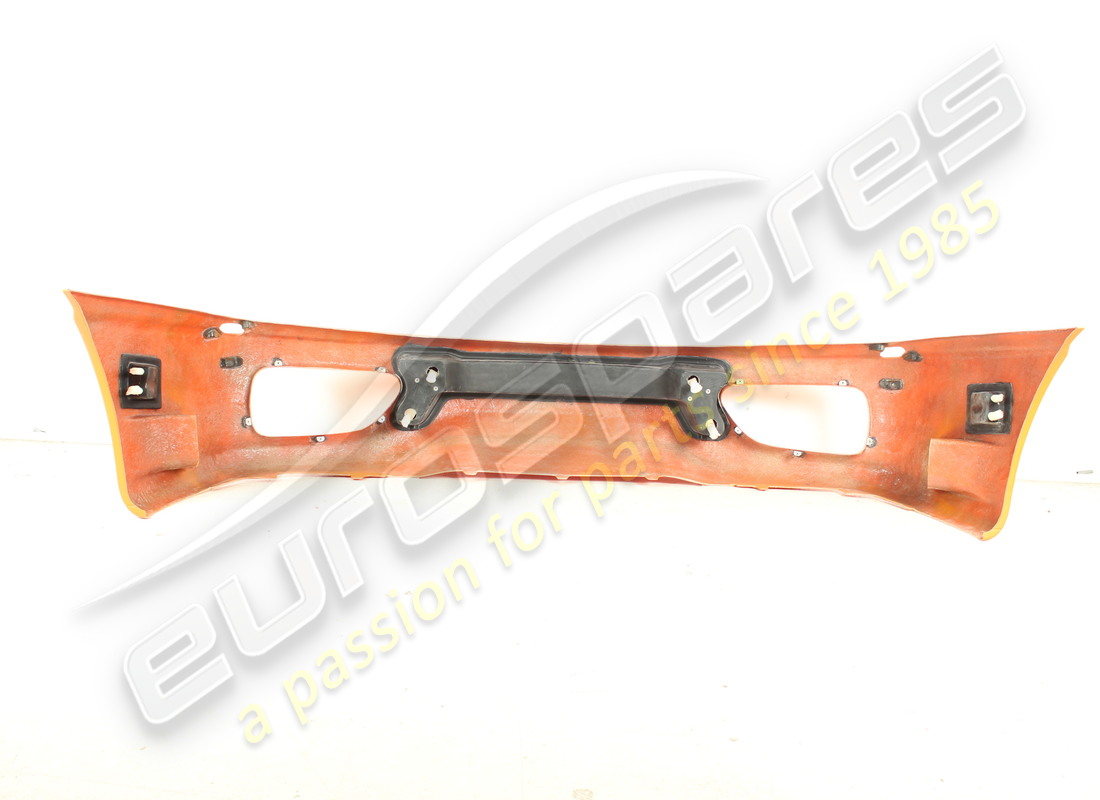

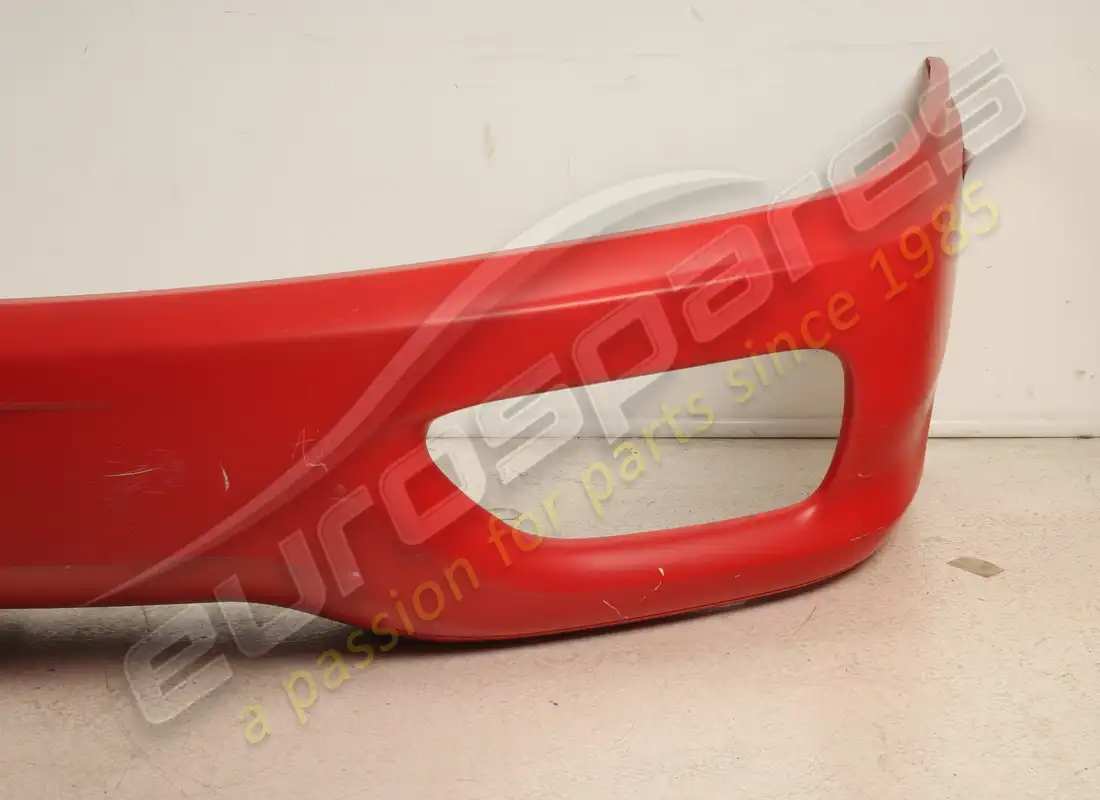

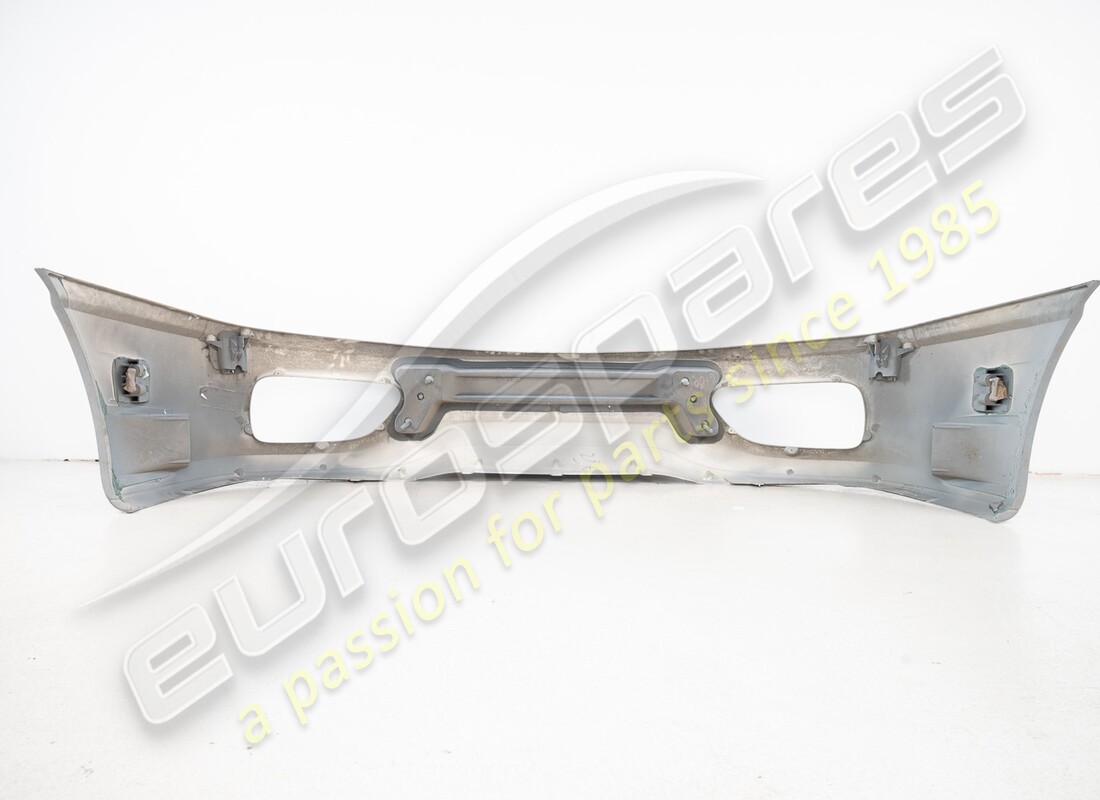

                                          # 001
                                          MPN: 65005310
                                          FRONT BUMPER
                                          Without lightwashers - Valid for USA and CDN
                                          from £3,429.99
                                          from £3,429.99
                                          # 001
                                          MPN: 65580710
                                          FRONT BUMPER
                                          With lightwashers - Not for USA and CDN
                                          from £1,995.00
                                          from £1,995.00
                                          # 001
                                          MPN: 65581110
                                          FRONT BUMPER
                                          With lightwashers - Valid for USA and CDN
                                          from £1,699.49
                                          from £1,699.49

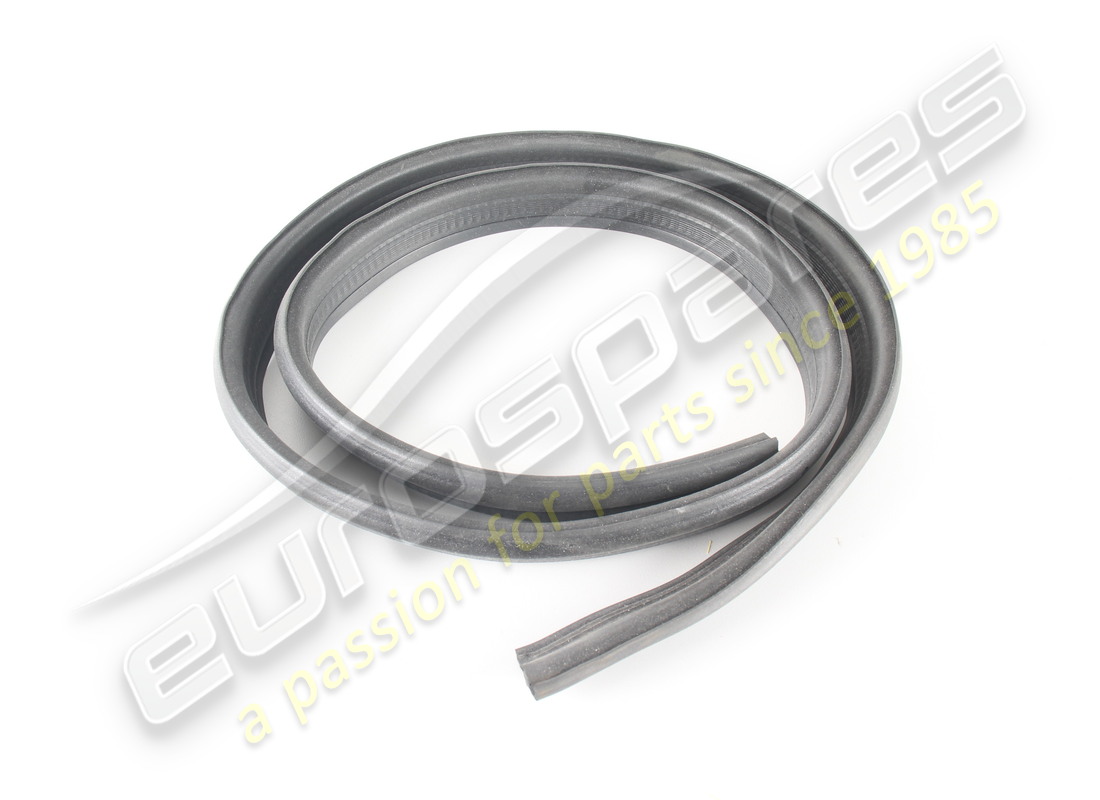

                                          # 002
                                          MPN: 65856500
                                          RUBBER PROFILE
                                          from £161.01
                                          from £161.01
                                          # 003
                                          MPN: 62126500
                                          BUMPER LATERAL FIXING BRACKET
                                          from £5.63
                                          from £5.63
                                          # 004
                                          MPN: 62128200
                                          EXTERNAL SMALL BLOCK
                                          from £1.01
                                          from £1.01
                                          # 005
                                          MPN: 62128300
                                          INTERNAL SMALL BLOCK
                                          from £0.59
                                          from £0.59
                                          This part replaces part number 83203700
                                          # 006
                                          MPN: 11307021
                                          SCREW
                                          (minimum order quantity = 5)
                                          from £3.29
                                          from £3.29
                                          # 007
                                          MPN: 12646801
                                          WASHER
                                          from £0.68
                                          from £0.68
                                          This part replaces part number 12644682
                                          # 008
                                          MPN: 127497
                                          WASHER
                                          from £0.54
                                          from £0.54
                                          This part replaces part number 10516871 - and 2 more. Click to view details
                                          # 009
                                          MPN: 104114
                                          NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 15503711 - and 1 more. Click to view details
                                          # 010
                                          MPN: 62126600
                                          PLATE
                                          from £1.54
                                          from £1.54
                                          # 011
                                          MPN: 104030
                                          NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 16104125
                                          # 012
                                          MPN: 65311700
                                          SPACER PLATE
                                          Not for USA and CDN
                                          from £60.71
                                          from £60.71
                                          # 013
                                          MPN: 104114
                                          NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 15503711 - and 1 more. Click to view details
                                          # 014
                                          MPN: 12646801
                                          WASHER
                                          from £0.68
                                          from £0.68
                                          This part replaces part number 12644682

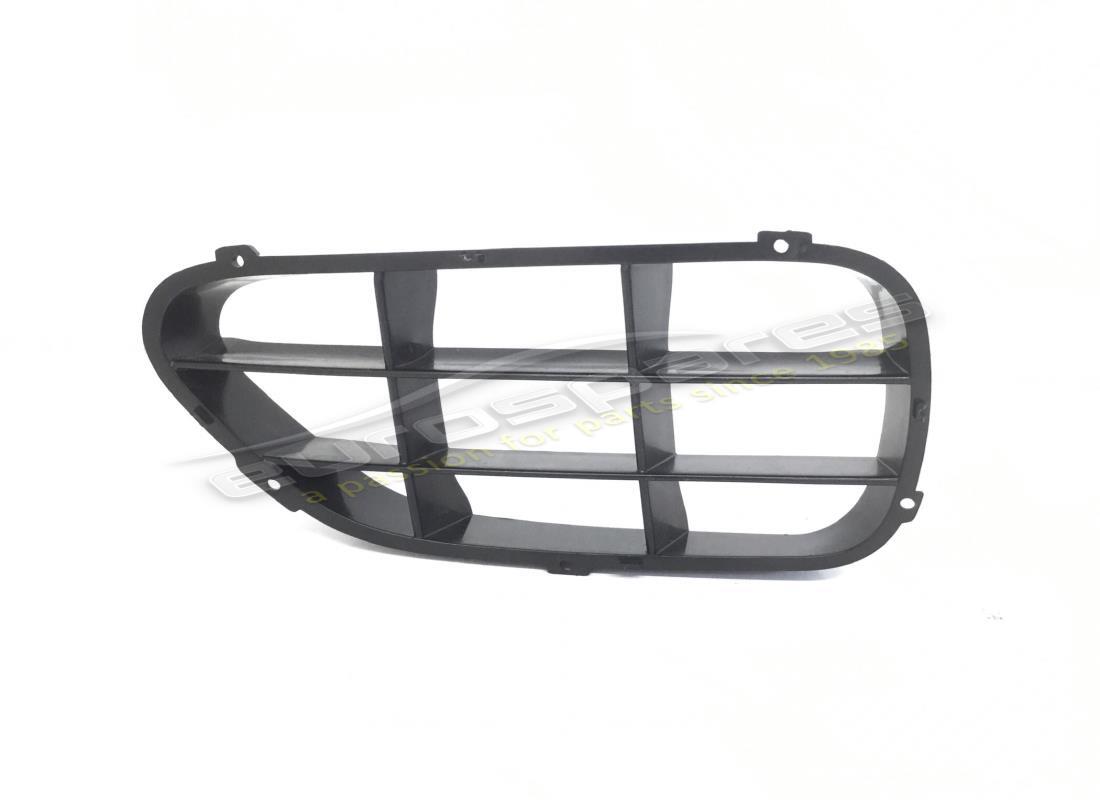

                                          # 015
                                          MPN: 63330200
                                          RH FRONT BUMPER GRILL
                                          optional
                                          from £183.12
                                          from £183.12
                                          # 015
                                          MPN: 65871000
                                          RH FRONT BUMPER GRILL
                                          from £94.40
                                          from £94.40
                                          # 016
                                          MPN: 63330300
                                          LH FRONT BUMPER GRILL
                                          optional
                                          from £183.12
                                          from £183.12
                                          # 016
                                          MPN: 65871100
                                          LH FRONT BUMPER GRILL
                                          from £178.98
                                          from £178.98
                                          # 017
                                          MPN: 16084304
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          # 018
                                          MPN: 65871300
                                          GASKET
                                          Valid till stock exhaustion
                                          from £13.50
                                          from £13.50
                                          # 019
                                          MPN: 65870800
                                          RH AIR INLET
                                          from £138.81
                                          from £138.81
                                          # 020
                                          MPN: 65870900
                                          LH AIR INLET
                                          from £138.81
                                          from £138.81
                                          # 021
                                          MPN: 64686900
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 14778818
                                          # 022
                                          MPN: 12644424
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12644401 - and 1 more. Click to view details
                                          # 023
                                          MPN: 65714200
                                          RH REAR GASKET
                                          Valid till stock exhaustion
                                          Supersession
                                          Supersession
                                          # 023
                                          MPN: 65973200
                                          RH REAR GASKET
                                          Valid after stock exhaustion of 65714200
                                          from £9.92
                                          from £9.92
                                          This part replaces part number 65714200
                                          # 024
                                          MPN: 65892600
                                          SPACER PLATE
                                          Valid for USA and CDN
                                          from £2.96
                                          from £2.96
                                          # 024
                                          MPN: 65899600
                                          SPACER PLATE
                                          Possible fitting - Valid for USA and CDN
                                          from £1.40
                                          from £1.40
                                          # 025
                                          MPN: 64875500
                                          PAD
                                          Valid for USA and CDN
                                          from £45.07
                                          from £45.07
                                          # 026
                                          MPN: 65537700
                                          SIDE PAD
                                          Valid for USA and CDN
                                          from £20.55
                                          from £20.55
                                          # 027
                                          MPN: 16287224
                                          SCREW
                                          Valid for USA and CDN
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 16287221
                                          # 028
                                          MPN: 65921200
                                          SPACER
                                          Possible fitting
                                          from £1.45
                                          from £1.45
                                          # 029
                                          MPN: 65311800
                                          TOW HOOK BRACKET
                                          from £86.70
                                          from £86.70
                                          # 030
                                          MPN: 65802300
                                          SPACER
                                          from £2.30
                                          from £2.30
                                          # 031
                                          MPN: 16297824
                                          SCREW
                                          from £0.82
                                          from £0.82
                                          # 032
                                          MPN: 65886300
                                          FRONT PLATE FRAME
                                          Valid for USA and CDN
                                          from £47.64
                                          from £47.64
                                          # 033
                                          MPN: 16084370
                                          SCREW
                                          Valid for USA and CDN
                                          from £0.70
                                          from £0.70
                                          # 034
                                          MPN: 14201980
                                          BLOCK
                                          Valid for USA and CDN
                                          from £0.54
                                          from £0.54
                                          # 035
                                          MPN: 14295696
                                          RIVET
                                          Valid for USA and CDN
                                          from £0.53
                                          from £0.53
                                          # 036
                                          MPN: 65537800
                                          SPACER FOR WICK
                                          Valid for USA and CDN
                                          from £1.26
                                          from £1.26
                                          # 037
                                          MPN: 65899500
                                          SPACER FOR WICK
                                          Valid for USA and CDN - Possible fitting
                                          from £12.37
                                          from £12.37
                                          # 038
                                          MPN: 65998400
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          # 039
                                          MPN: 66307300
                                          RH FRAME
                                          optional
                                          from £101.72
                                          from £101.72
                                          # 040
                                          MPN: 66307400
                                          LH FRAME
                                          optional
                                          from £290.63
                                          from £290.63
