ferrari 360 modena insulations parts diagram

108 - Insulations

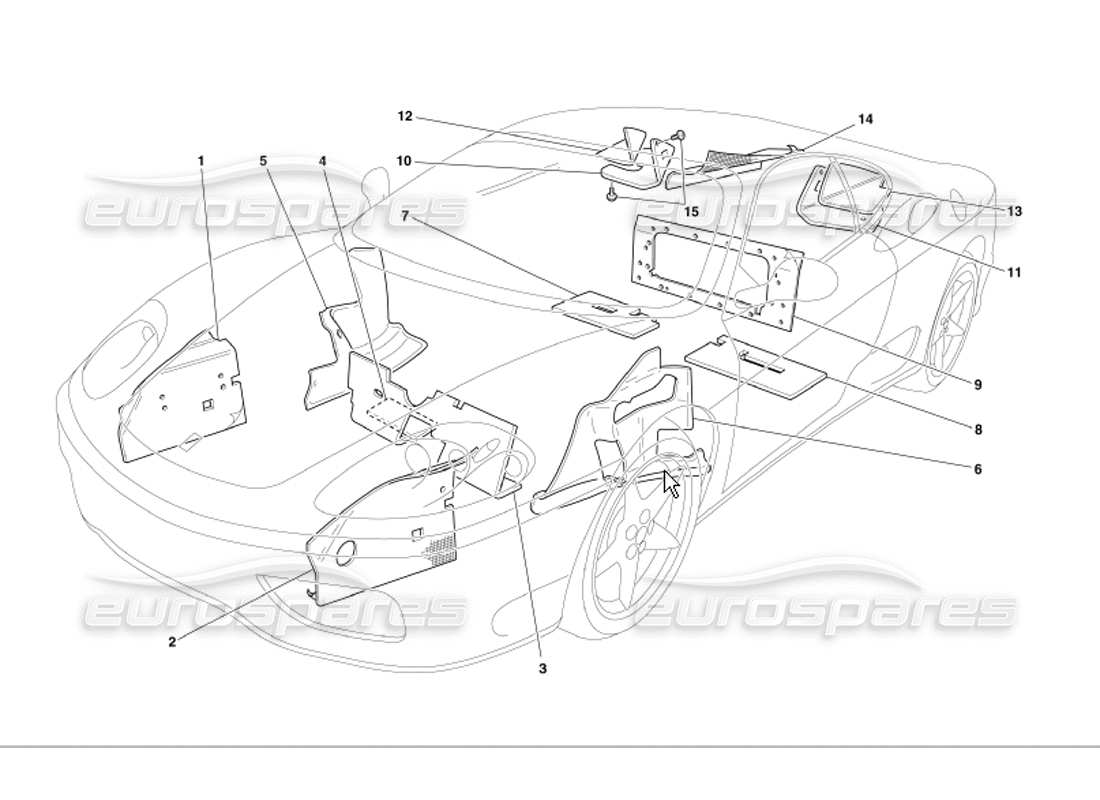

Ferrari 360 Modena Insulations Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 65774500
                          OUTER FRONT RH INSULATION
                          from £165.74
                          from £165.74
                          # 002
                          MPN: 65774400
                          OUTER FRONT LH INSULATION
                          from £176.73
                          from £176.73
                          # 003
                          MPN: 65524200
                          DASH PANEL SIDE INSULATION
                          Not for GD
                          from £58.61
                          from £58.61
                          # 003
                          MPN: 65856600
                          DASH PANEL SIDE INSULATION
                          Valid for GD
                          from £78.94
                          from £78.94
                          # 004
                          MPN: 65390800
                          FRONT RH INSULATION UNDER BATTERY
                          from £32.02
                          from £32.02
                          # 005
                          MPN: 65302900
                          FRONT RH WHEELHOUSE INSULATION
                          Not for GD
                          from £50.90
                          from £50.90
                          # 005
                          MPN: 67293100
                          FRONT RH WHEELHOUSE INSULATION
                          Valid for GD
                          from £118.37
                          from £118.37
                          # 006
                          MPN: 65303000
                          FRONT LH WHEELHOUSE INSULATION
                          Not for GD
                          from £72.50
                          from £72.50
                          # 006
                          MPN: 67293200
                          FRONT LH WHEELHOUSE INSULATION
                          Valid for GD
                          from £118.37
                          from £118.37
                          # 007
                          MPN: 65303100
                          UPPER REAR RH INSULATION FOR PLATFORM
                          from £116.31
                          from £116.31
                          # 008
                          MPN: 65303200
                          UPPER REAR LH INSULATION FOR PLATFORM
                          from £118.40
                          from £118.40
                          # 009
                          MPN: 65524300
                          MOTOR COMPARTMENT REAR SIDE INSULATIONSIDE INSULATION
                          from £263.22
                          from £263.22
                          # 010
                          MPN: 65840800
                          MOTOR COMPARTMENT/FUEL TANK RH INSULATION
                          from £147.32
                          from £147.32
                          # 011
                          MPN: 65840700
                          MOTOR COMPARTMENT/FUEL TANK LH INSULATION
                          from £147.32
                          from £147.32
                          # 012
                          MPN: 65303300
                          RH SMALL PLANE INSULATION
                          from £402.52
                          from £402.52
                          # 013
                          MPN: 65303400
                          LH SMALL PLANE INSULATION
                          from £460.67
                          from £460.67
                          # 014
                          MPN: 65774600
                          RH REAR MUDGUARD INSULATION
                          from £255.24
                          from £255.24
                          # 015
                          MPN: 66252500
                          button
                          from £0.47
                          from £0.47
