054 - Battery

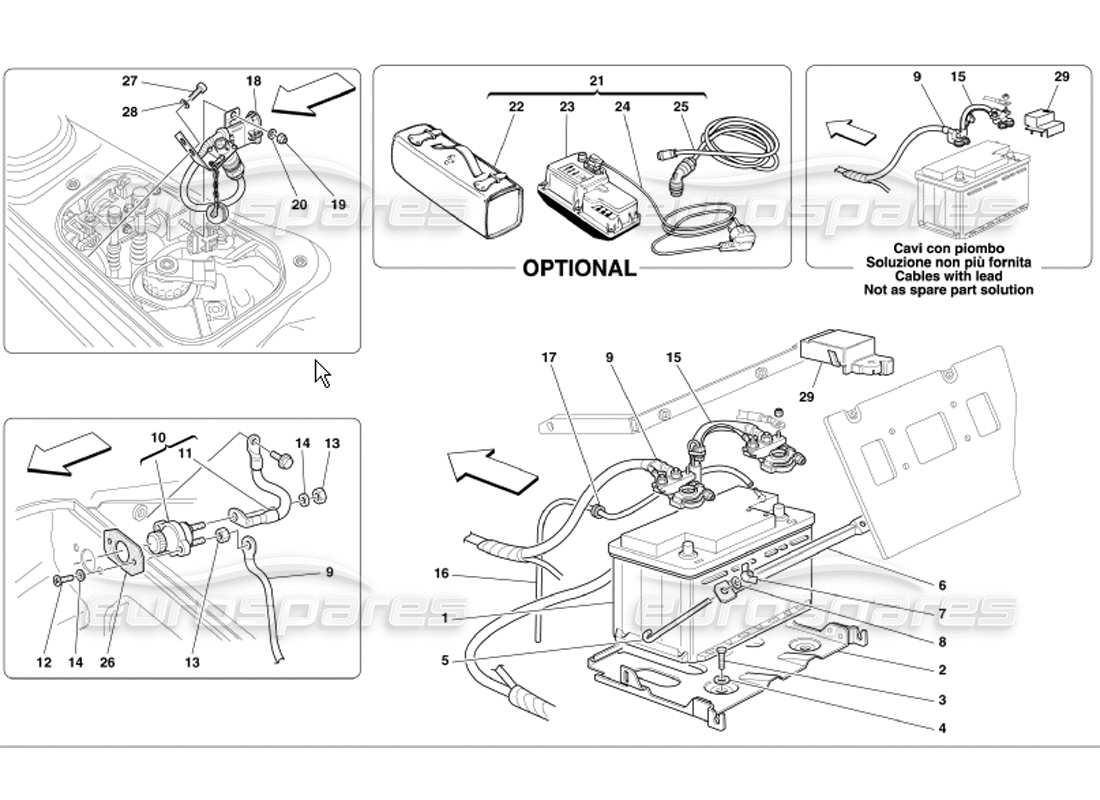

Ferrari 360 Modena Battery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001

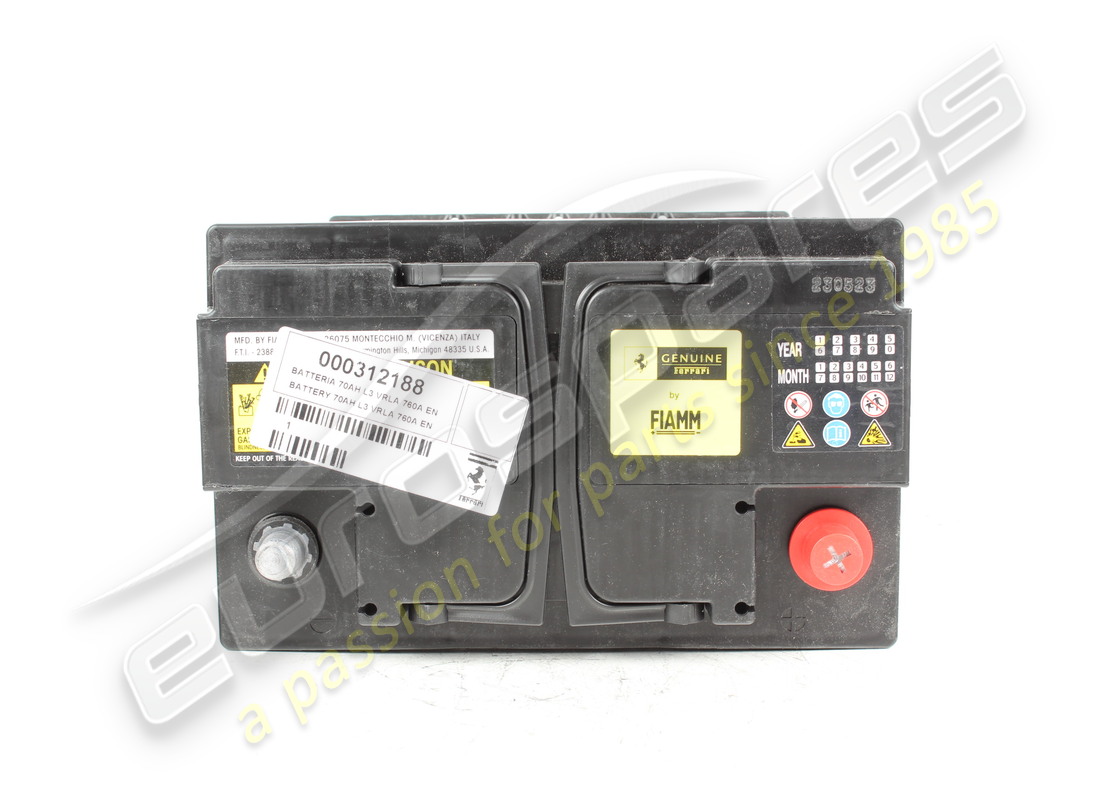

                                      MPN: 312188
                                      BATTERIA 70AH L3 VRLA 760A
                                      from £310.58
                                      from £310.58
                                      This part replaces part number 214466
                                      # 002
                                      MPN: 65521500
                                      BATTERY BIN
                                      from £53.98
                                      from £53.98
                                      # 003
                                      MPN: 10902124
                                      SCREW
                                      from £0.52
                                      from £0.52
                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                      # 004
                                      MPN: 12647701
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      # 005
                                      MPN: 65071000
                                      TIE ROD
                                      from £3.12
                                      from £3.12
                                      # 006
                                      MPN: 69836200
                                      BRACKET
                                      from £10.62
                                      from £10.62
                                      This part replaces part number 65071100 - and 1 more. Click to view details
                                      # 007
                                      MPN: 102741
                                      NUT
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                      # 008
                                      MPN: 14499324
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 14499301 which we have in stock
                                      # 009
                                      MPN: 168832
                                      CABLE

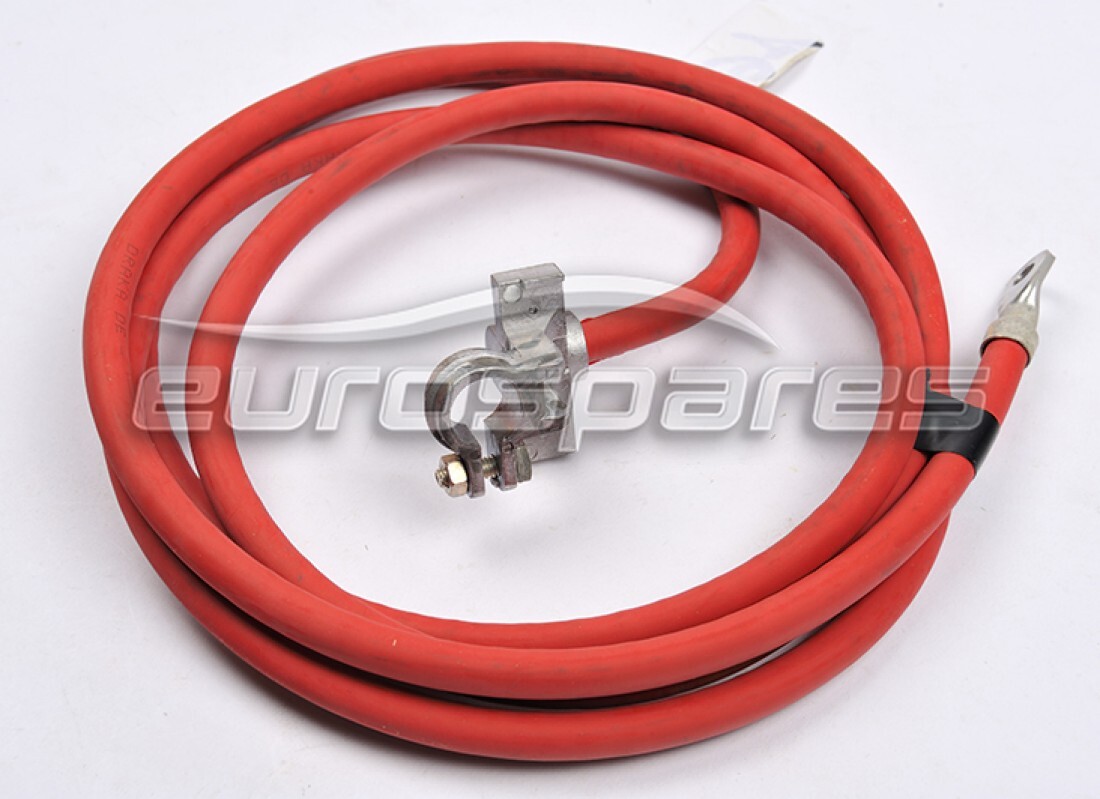

                                      BATTERY CABLE
                                      from £205.43
                                      from £205.43
                                      # 009
                                      MPN: 177911
                                      DASHBOARD CONNECTION CABLES
                                      Valid till Ass. Nr. 34124 - Not for GD - Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
                                      from £2,162.92
                                      from £2,162.92
                                      # 009
                                      MPN: 179194
                                      DASHBOARD CONNECTION CABLES
                                      Valid from Ass. Nr. 36995 and till Ass. Nr. 41813 - Not for GD - Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
                                      from £1,515.42
                                      from £1,515.42
                                      # 009
                                      MPN: 180206
                                      DASHBOARD CONNECTION CABLES
                                      Valid from Ass. Nr. 34125 and till Ass. Nr. 36994 - Not for GD - Not for USA MY 2000,2001,2002,2003,2004 - and CDN MY 2000,2001,2002,2003,2004
                                      from £1,975.66
                                      from £1,975.66
                                      # 009
                                      MPN: 180207
                                      DASHBOARD CONNECTION CABLES
                                      Valid till Ass. Nr. 36945 - Valid for GD
                                      from £1,588.40
                                      from £1,588.40
                                      # 009
                                      MPN: 181323
                                      DASHBOARD CONNECTION CABLES
                                      Valid from Ass. Nr. 36946 and till Ass. Nr. 40324
                                      from £2,338.31
                                      from £2,338.31
                                      # 009
                                      MPN: 186522
                                      DASHBOARD CONNECTION CABLES
                                      Valid from Ass. Nr. 40325 and till Ass. Nr. 41709 - Valid for GD
                                      from £5,016.36
                                      from £5,016.36
                                      # 009
                                      MPN: 188897
                                      DASHBOARD CONNECTION CABLES
                                      Valid from Ass. Nr. 41814 till Ass. Nr. 46967 - Not for GD - Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000, 2001,2002,2003,2004
                                      from £1,491.95
                                      from £1,491.95
                                      # 009
                                      MPN: 189234
                                      DASHBOARD CONNECTION CABLES
                                      Valid from Ass. Nr. 41710 - Valid for GD - Not as spare part - Replaced by 198553
                                      from £650.82
                                      from £650.82
                                      # 009
                                      MPN: 195353
                                      DASHBOARD CONNECTION CABLES
                                      Valid from Ass. Nr. 46968 - Not for GD - Not as spare part - Replaced by 198552
                                      Supersession
                                      Supersession
                                      This part replaces part number 188897 which we have in stock
                                      # 009
                                      MPN: 198552
                                      DASHBOARD CONNECTION CABLES
                                      Not for GD
                                      from £759.72
                                      from £759.72
                                      This part replaces part number 195353 - and 1 more. Click to view details
                                      # 009
                                      MPN: 198553
                                      DASHBOARD CONNECTION CABLES
                                      Not for GD
                                      from £1,424.47
                                      from £1,424.47
                                      This part replaces part number 189234 which we have in stock
                                      # 010
                                      MPN: 188055
                                      CUT OUT SWITCH ASSEMBLY
                                      from £333.63
                                      from £333.63
                                      # 011
                                      MPN: 172892

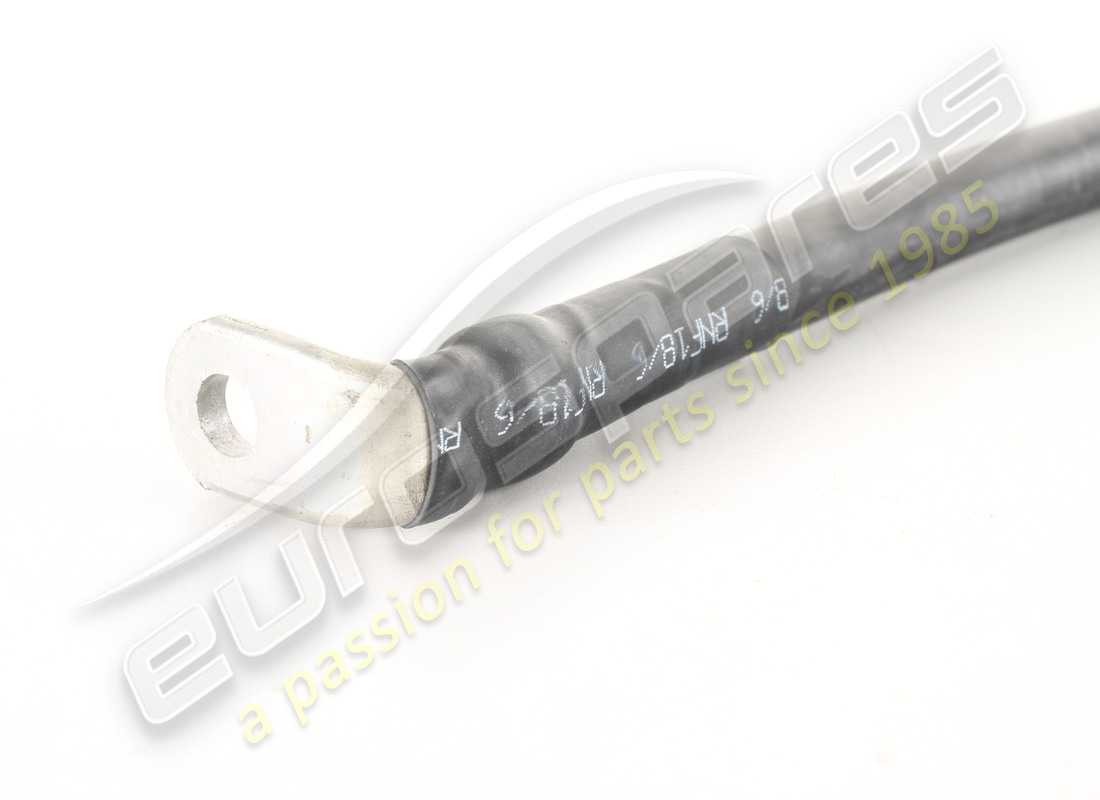

                                      GROUND CABLE
                                      Not as spare part - Replaced by 188056
                                      Supersession
                                      Supersession
                                      # 011
                                      MPN: 188056
                                      GROUND CABLE
                                      from £65.55
                                      from £65.55
                                      This part replaces part number 172892 - and 1 more. Click to view details
                                      # 012
                                      MPN: 13272472
                                      SCREW
                                      from £0.47
                                      from £0.47
                                      # 013
                                      MPN: 10721911
                                      NUT
                                      from £0.53
                                      from £0.53
                                      # 014
                                      MPN: 14496277
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      # 015
                                      MPN: 177913
                                      CABLES FOR RH REAR TUNNEL CONNECTION
                                      Not for USA MY 2000,2001,2002,2003 and CDN MY 2000,2001,2002,2003 - Not as spare part - Replaced by 198554
                                      from £284.60
                                      from £284.60
                                      # 015
                                      MPN: 182200
                                      CABLES FOR RH REAR TUNNEL CONNECTION
                                      Valid for USA MY 2000, 2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004 - Not as spare part - Replaced by 198555
                                      Supersession
                                      Supersession
                                      # 015
                                      MPN: 198554
                                      CABLES FOR RH REAR TUNNEL CONNECTION
                                      Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
                                      from £2,038.19
                                      from £2,038.19
                                      This part replaces part number 177913 which we have in stock - and 3 more. Click to view details
                                      # 015
                                      MPN: 198555
                                      CABLES FOR RH REAR TUNNEL CONNECTION
                                      Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000,2001,2002,2003,2004
                                      from £224.18
                                      from £224.18
                                      This part replaces part number 182200
                                      # 016
                                      MPN: 181056
                                      BATTERY VENT PIPE
                                      from £2.57
                                      from £2.57
                                      # 017
                                      MPN: 10396280
                                      CABLE BUSHING
                                      from £1.90
                                      from £1.90
                                      # 018
                                      MPN: 178566
                                      BATTERY CHARGING CONNECTION CABLE
                                      Optional - Valid till Ass. Nr. 43439
                                      from £334.38
                                      from £334.38
                                      # 018
                                      MPN: 200857
                                      BATTERY CHARGING CONNECTION CABLE
                                      Optional - Valid from Ass. Nr. 43440
                                      from £93.10
                                      from £93.10
                                      This part replaces part number 184585
                                      # 019
                                      MPN: 102741
                                      NUT
                                      optional
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                      # 020
                                      MPN: 10519424
                                      WASHER
                                      optional
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                      # 021
                                      MPN: 178682
                                      BATTERY CHARGER KIT
                                      Not for USA, CDN, J, GB, Hong Kong and AUS - Optional
                                      from £1,359.75
                                      from £1,359.75
                                      This part replaces part number 70000941
                                      # 021
                                      MPN: 178684
                                      BATTERY CHARGER KIT
                                      Valid for AUS - Optional
                                      from £539.56
                                      from £539.56
                                      This part replaces part number 70000943
                                      # 021
                                      MPN: 178685
                                      BATTERY CHARGER KIT
                                      Valid for GB and Hong Kong - Optional
                                      from £604.32
                                      from £604.32
                                      This part replaces part number 70000944
                                      # 021
                                      MPN: 70002820
                                      BATTERY CHARGER KIT
                                      from £202.09
                                      from £202.09
                                      This part replaces part number 70001700
                                      # 021
                                      MPN: 70002821
                                      BATTERY CHARGER KIT
                                      -Valid for USA, CDN and J - Optional
                                      from £202.09
                                      from £202.09
                                      This part replaces part number 70001701
                                      # 022
                                      MPN: 65699200
                                      BATTERY BAG CASE
                                      optional
                                      from £414.21
                                      from £414.21
                                      # 023
                                      MPN: 177791
                                      battery charger
                                      230V - Not for USA, CDN and J - Optional
                                      from £480.95
                                      from £480.95
                                      # 023
                                      MPN: 177792
                                      battery charger
                                      110V - Not for USA, CDN and J - Optional
                                      from £1,206.22
                                      from £1,206.22
                                      # 024
                                      MPN: 177794
                                      POWER SUPPLY CABLE
                                      Not for USA, CDN, J, GB, Hong Kong and AUS - Optional
                                      from £16.44
                                      from £16.44
                                      # 024
                                      MPN: 177795
                                      POWER SUPPLY CABLE
                                      Valid for USA, CDN and J - Optional
                                      from £12.33
                                      from £12.33
                                      # 024
                                      MPN: 177796
                                      POWER SUPPLY CABLE
                                      Valid for AUS - Optional
                                      from £24.15
                                      from £24.15
                                      # 024
                                      MPN: 178294
                                      POWER SUPPLY CABLE
                                      Valid for GB and Hong Kong - Optional
                                      from £39.48
                                      from £39.48
                                      # 025
                                      MPN: 178676
                                      CABLE WITH CONNECTOR
                                      optional
                                      from £258.50
                                      from £258.50
                                      # 026
                                      MPN: 66079900
                                      GASKET
                                      from £1.33
                                      from £1.33
                                      # 027
                                      MPN: 10902224
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      # 028
                                      MPN: 12644424
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12644401 - and 1 more. Click to view details
                                      # 029
                                      MPN: 185418
                                      PROTECTION COVER
                                      from £8.08
                                      from £8.08
                                      This part replaces part number 172207
