ferrari 360 modena secondary air system parts diagram

009 - secondary air system

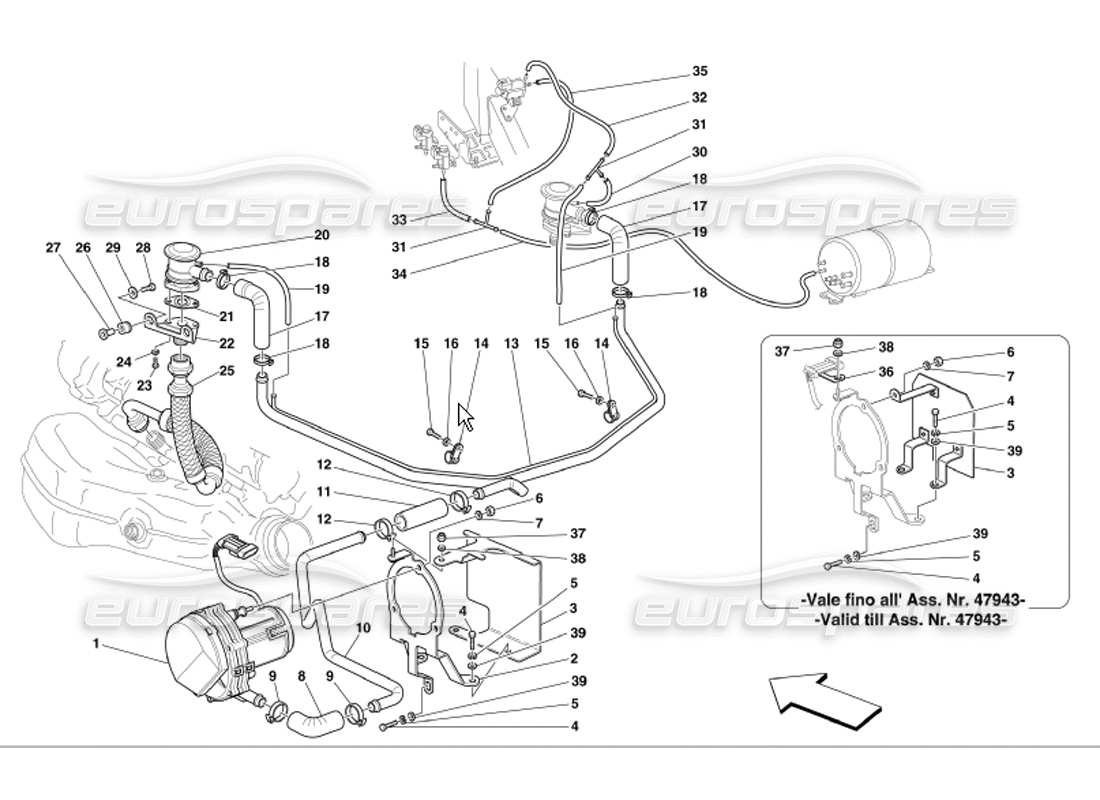

Ferrari 360 Modena Secondary Air System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 002
                                                                    MPN: 182759
                                                                    BRACKET FOR PUMP
                                                                    from £8.01
                                                                    from £8.01
                                                                    # 003
                                                                    MPN: 181988
                                                                    SHIELD FOR PUMP PROTECTION
                                                                    Valid till ass. Nr. 47943
                                                                    from £122.63
                                                                    from £122.63
                                                                    # 003
                                                                    MPN: 195887
                                                                    SHIELD FOR PUMP PROTECTION
                                                                    Valid from Ass. Nr. 47944
                                                                    from £8.47
                                                                    from £8.47
                                                                    # 004
                                                                    MPN: 10902624
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 10902621
                                                                    # 005
                                                                    MPN: 127494
                                                                    WASHER
                                                                    (minimum order quantity = 20)
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                    # 006
                                                                    MPN: 15896214
                                                                    NUT
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 15896211
                                                                    # 007
                                                                    MPN: 12601274
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                    # 008
                                                                    MPN: 181994
                                                                    AIR PUMP CONNECTION SLEEVE
                                                                    from £43.95
                                                                    from £43.95
                                                                    # 009
                                                                    MPN: 178054
                                                                    CLAMP
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 010
                                                                    MPN: 181963
                                                                    PIPE FROM PUMP TO SLEEVE
                                                                    from £197.81
                                                                    from £197.81
                                                                    # 012
                                                                    MPN: 178054
                                                                    CLAMP
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 013
                                                                    MPN: 178435
                                                                    AIR DELIVERY TUBE
                                                                    from £95.40
                                                                    from £95.40
                                                                    # 014
                                                                    MPN: 10441990
                                                                    BRACKET WITH SHEATH
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 015
                                                                    MPN: 10902224
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 016
                                                                    MPN: 12620474
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12620479 - and 1 more. Click to view details
                                                                    # 017
                                                                    MPN: 154652
                                                                    SLEEVE
                                                                    from £33.51
                                                                    from £33.51
                                                                    # 018
                                                                    MPN: 178054
                                                                    CLAMP
                                                                    from £0.47
                                                                    from £0.47

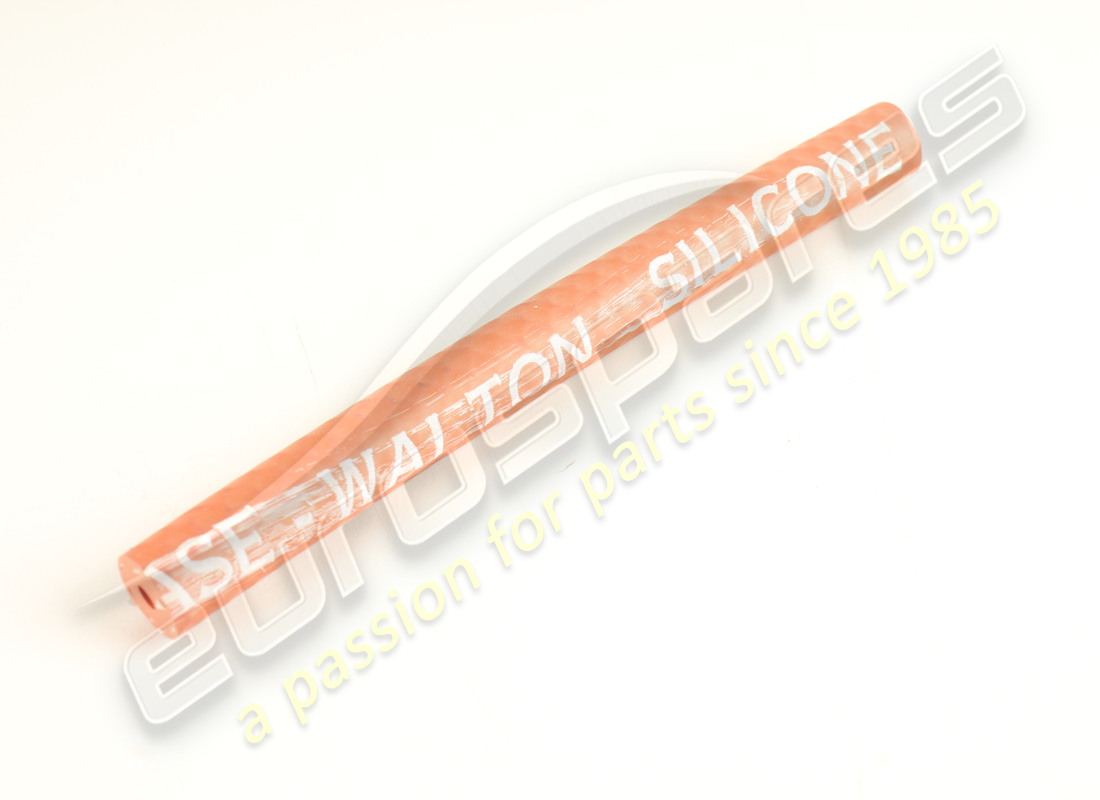

                                                                    # 019
                                                                    MPN: 147119
                                                                    RUBBER HOSE
                                                                    from £12.86
                                                                    from £12.86
                                                                    This part replaces part number 148205 which we have in stock
                                                                    # 019
                                                                    MPN: 148205
                                                                    RUBBER HOSE
                                                                    Not as spare part - Replaced by 147119
                                                                    from £9.92
                                                                    from £9.92
                                                                    # 019
                                                                    MPN: 178513
                                                                    RUBBER HOSE
                                                                    Not as spare part - Replaced by 148205
                                                                    from £11.42
                                                                    from £11.42
                                                                    # 021
                                                                    MPN: 172303
                                                                    GASKET
                                                                    from £0.81
                                                                    from £0.81
                                                                    # 022
                                                                    MPN: 184859
                                                                    COMPLETE BRACKET
                                                                    from £49.78
                                                                    from £49.78
                                                                    # 023
                                                                    MPN: 10902224
                                                                    SCREW
                                                                    from £0.51
                                                                    from £0.51
                                                                    # 024
                                                                    MPN: 127494
                                                                    WASHER
                                                                    (minimum order quantity = 20)
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                    # 025
                                                                    MPN: 178062
                                                                    CONNECTION PIPE
                                                                    from £494.73
                                                                    from £494.73
                                                                    # 026
                                                                    MPN: 177576
                                                                    CABLE GROMMET
                                                                    from £1.11
                                                                    from £1.11
                                                                    # 027
                                                                    MPN: 149707
                                                                    SPACER
                                                                    from £0.63
                                                                    from £0.63
                                                                    # 028
                                                                    MPN: 10902824
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 10902821 which we have in stock
                                                                    # 029
                                                                    MPN: 12643724
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                    # 030
                                                                    MPN: 147121
                                                                    RUBBER HOSE
                                                                    Supersession
                                                                    Supersession
                                                                    # 031
                                                                    MPN: 146972
                                                                    3-WAY UNION
                                                                    from £2.77
                                                                    from £2.77
                                                                    # 032
                                                                    MPN: 124790
                                                                    RUBBER HOSE
                                                                    Replaced by 159542
                                                                    from £3.09
                                                                    from £3.09
                                                                    # 033
                                                                    MPN: 121828
                                                                    RUBBER HOSE
                                                                    from £2.73
                                                                    from £2.73
                                                                    # 034
                                                                    MPN: 117170
                                                                    RUBBER HOSE
                                                                    from £8.24
                                                                    from £8.24
                                                                    # 035
                                                                    MPN: 159542
                                                                    RUBBER HOSE
                                                                    from £1.29
                                                                    from £1.29
                                                                    This part replaces part number 264424 - and 1 more. Click to view details
                                                                    # 036
                                                                    MPN: 156198
                                                                    CLIP
                                                                    Valid till ass. Nr. 47943
                                                                    from £8.53
                                                                    from £8.53
                                                                    # 037
                                                                    MPN: 62790300
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12574011 - and 1 more. Click to view details
                                                                    # 038
                                                                    MPN: 10519224
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 10519201
                                                                    # 039
                                                                    MPN: 10519424
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
