ferrari 360 challenge stradale air conditioning system parts diagram

136 - air conditioning system

Ferrari 360 Challenge Stradale Air Conditioning System Parts Diagram

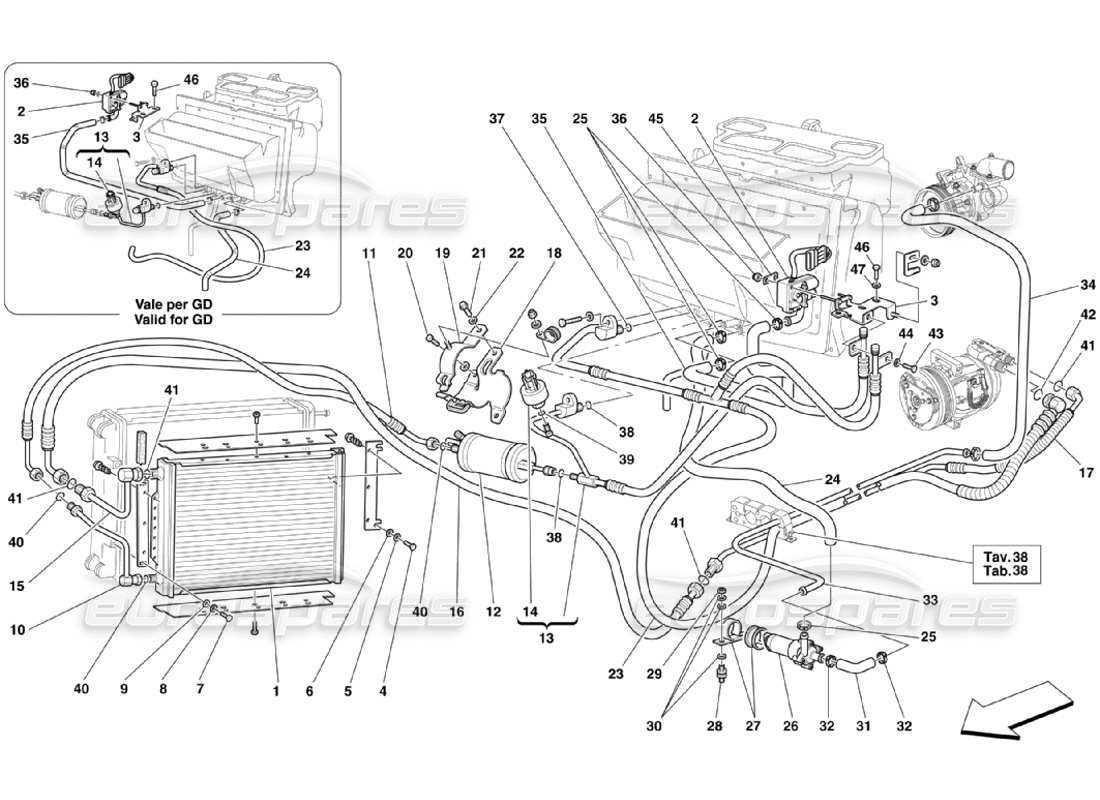

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 178565

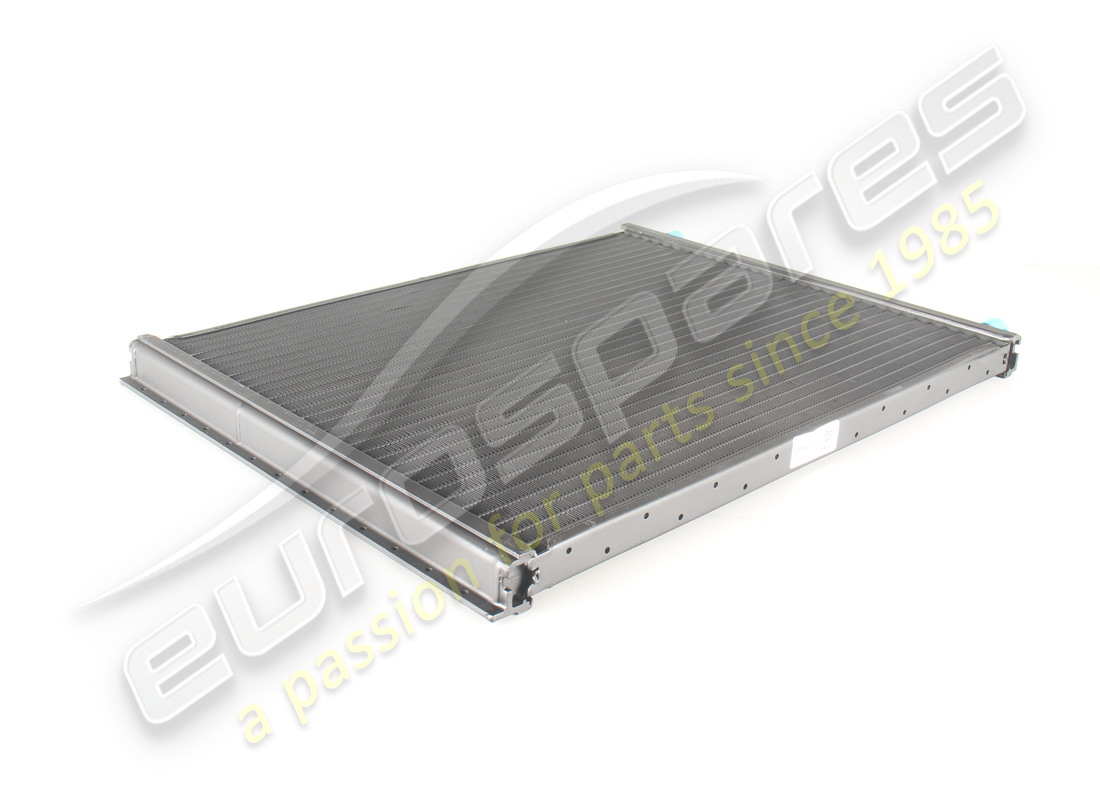

                                                                A.C. CONDENSER
                                                                from £312.37
                                                                from £312.37
                                                                # 002
                                                                MPN: 65066400
                                                                TGK VALVE
                                                                from £99.53
                                                                from £99.53
                                                                # 003
                                                                MPN: 65882200
                                                                BRACKET FOR VALVE FIXING
                                                                -Valid for GD
                                                                from £7.89
                                                                from £7.89
                                                                # 003
                                                                MPN: 66150300
                                                                BRACKET FOR VALVE FIXING
                                                                -Not for GD
                                                                from £12.64
                                                                from £12.64
                                                                This part replaces part number 81035400
                                                                # 004
                                                                MPN: 10902124
                                                                SCREW
                                                                from £0.52
                                                                from £0.52
                                                                This part replaces part number 10902111 - and 1 more. Click to view details
                                                                # 005
                                                                MPN: 12601274
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                # 006
                                                                MPN: 14496424
                                                                WASHER
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 14496401 - and 3 more. Click to view details
                                                                # 007
                                                                MPN: 60909500
                                                                SCREW
                                                                from £1.06
                                                                from £1.06
                                                                # 008
                                                                MPN: 12601274
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                # 009
                                                                MPN: 12643724
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                # 010
                                                                MPN: 65830900
                                                                DELIVERY METAL PIPE
                                                                from £190.57
                                                                from £190.57
                                                                # 011
                                                                MPN: 65830700
                                                                HOSE FROM CONDENSER TO FILTER
                                                                from £82.60
                                                                from £82.60
                                                                # 012
                                                                MPN: 65628300
                                                                DEHYDRATING FILTER
                                                                from £68.01
                                                                from £68.01
                                                                # 013
                                                                MPN: 66090200
                                                                PIPE FROM FILTER TO A.C. SYSTEM
                                                                -Valid for GD
                                                                from £252.99
                                                                from £252.99
                                                                This part replaces part number 66643000 - and 1 more. Click to view details
                                                                # 013
                                                                MPN: 66147900
                                                                PIPE FROM FILTER TO A.C. SYSTEM
                                                                -Not for GD
                                                                from £213.60
                                                                from £213.60
                                                                # 014
                                                                MPN: 65628200

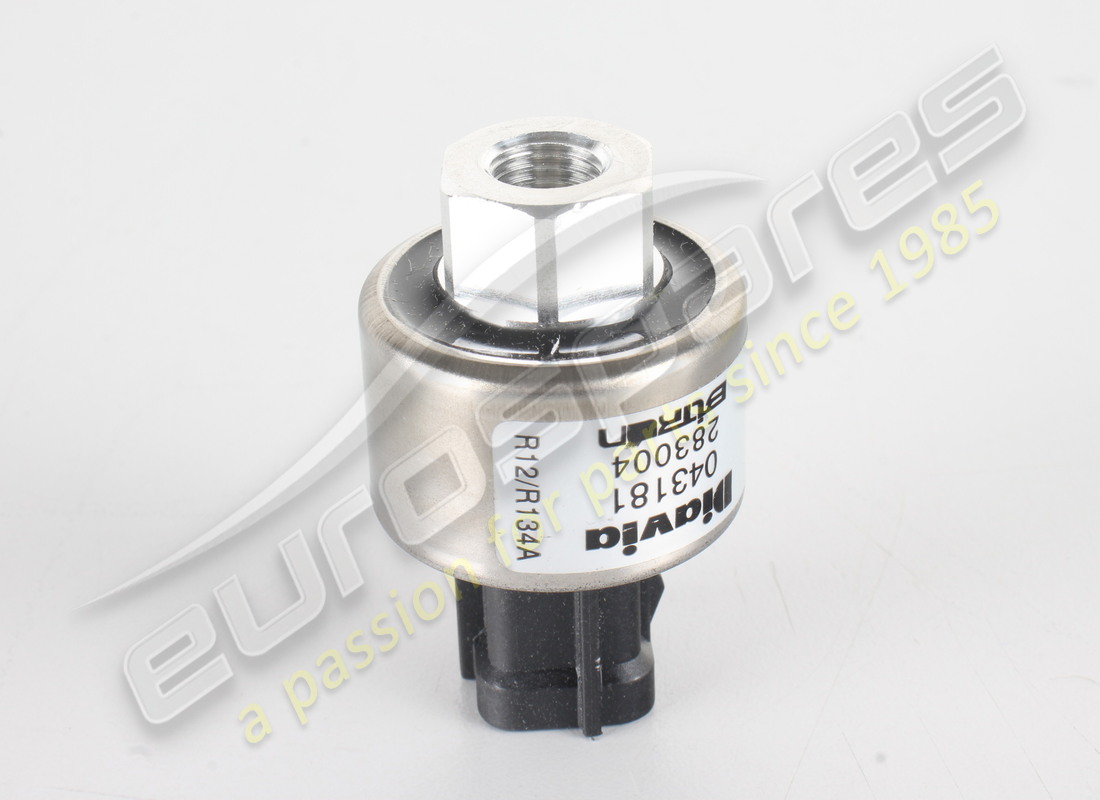

                                                                PRESSOSTAT
                                                                from £87.41
                                                                from £87.41
                                                                # 015
                                                                MPN: 65830800
                                                                INLET METAL PIPE
                                                                from £166.71
                                                                from £166.71
                                                                # 016
                                                                MPN: 65744300
                                                                PIPE FROM UNDERFLOOR PIPE TO CONDENSER
                                                                -Valid for GD
                                                                from £167.52
                                                                from £167.52
                                                                # 016
                                                                MPN: 65830600
                                                                PIPE FROM UNDERFLOOR PIPE TO CONDENSER
                                                                -Not for GD
                                                                from £177.95
                                                                from £177.95
                                                                # 017
                                                                MPN: 65230500
                                                                UNDERFLOOR DELIVERY TUBE FROM COMPRESSOR
                                                                from £224.30
                                                                from £224.30
                                                                # 018
                                                                MPN: 65539400
                                                                FILTER SUPPORT
                                                                -Not for GD
                                                                from £3.22
                                                                from £3.22
                                                                # 018
                                                                MPN: 65880700
                                                                FILTER SUPPORT
                                                                -Valid for GD
                                                                from £10.71
                                                                from £10.71
                                                                # 019
                                                                MPN: 65547700
                                                                BRACKET
                                                                -Not for GD
                                                                from £2.08
                                                                from £2.08
                                                                # 019
                                                                MPN: 65880900
                                                                BRACKET
                                                                -Valid for GD
                                                                from £2.47
                                                                from £2.47
                                                                # 020
                                                                MPN: 10902224
                                                                SCREW
                                                                from £0.53
                                                                from £0.53
                                                                # 021
                                                                MPN: 13840511
                                                                SCREW
                                                                -Not as SPARE PART - Replaced by 68721400
                                                                from £2.29
                                                                from £2.29
                                                                # 021
                                                                MPN: 68721400
                                                                SCREW
                                                                from £0.48
                                                                from £0.48
                                                                # 022
                                                                MPN: 12644424
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                                # 023
                                                                MPN: 66148000
                                                                PIPE FROM A.C. SYSTEM TO COMPRESSOR
                                                                -Not for GD
                                                                from £174.08
                                                                from £174.08
                                                                # 023
                                                                MPN: 66643100
                                                                PIPE FROM A.C. SYSTEM TO COMPRESSOR
                                                                -Valid for GD
                                                                from £482.87
                                                                from £482.87
                                                                # 024
                                                                MPN: 65460800
                                                                PIPE FROM MINIMUM PUMP TO A.C. SYSTEM
                                                                -Not for GD
                                                                from £101.76
                                                                from £101.76
                                                                # 024
                                                                MPN: 65744600
                                                                PIPE FROM MINIMUM PUMP TO A.C. SYSTEM
                                                                -Valid for GD
                                                                from £26.50
                                                                from £26.50
                                                                # 025
                                                                MPN: 13000390
                                                                SCREW COLLAR
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12179590 - and 1 more. Click to view details
                                                                # 026
                                                                MPN: 65460300
                                                                MINIMUM PUMP
                                                                from £50.00
                                                                from £50.00
                                                                This part replaces part number 70000900 - and 4 more. Click to view details
                                                                # 027
                                                                MPN: 63994900
                                                                COMPLETE BRACKET
                                                                from £4.15
                                                                from £4.15
                                                                This part replaces part number 64246500
                                                                # 028
                                                                MPN: 142202
                                                                PAD
                                                                from £14.43
                                                                from £14.43
                                                                # 029
                                                                MPN: 15896214
                                                                NUT
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 15896211
                                                                # 030
                                                                MPN: 10571570
                                                                WASHER
                                                                from £0.84
                                                                from £0.84
                                                                # 031
                                                                MPN: 65460700
                                                                PIPE FROM UNDERFLOOR PIPE TO MINIMUM PUMP
                                                                from £29.02
                                                                from £29.02
                                                                # 032
                                                                MPN: 13000390
                                                                SCREW COLLAR
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12179590 - and 1 more. Click to view details
                                                                # 033
                                                                MPN: 65231400
                                                                WATER PIPE UNDERFLOOR
                                                                from £29.06
                                                                from £29.06
                                                                # 034
                                                                MPN: 65831500
                                                                PIPE FROM WATER PUMP TO UNDRFLOOR PIPE
                                                                from £101.76
                                                                from £101.76
                                                                # 035
                                                                MPN: 65231700
                                                                PIPE FROM A.C. HEATER TO TGK VALVE
                                                                -Not for GD
                                                                from £9.98
                                                                from £9.98
                                                                # 035
                                                                MPN: 65744700
                                                                PIPE FROM A.C. HEATER TO TGK VALVE
                                                                -Valid for GD
                                                                from £19.50
                                                                from £19.50
                                                                # 036
                                                                MPN: 14078010
                                                                NUT
                                                                -Valid for GD
                                                                from £0.86
                                                                from £0.86
                                                                # 036
                                                                MPN: 62790300
                                                                NUT
                                                                -Not for GD
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12574011 - and 1 more. Click to view details
                                                                # 037
                                                                MPN: 66309800
                                                                O.R. GASKET
                                                                from £2.21
                                                                from £2.21
                                                                # 038
                                                                MPN: 66309700
                                                                O.R. GASKET
                                                                from £6.15
                                                                from £6.15
                                                                # 039
                                                                MPN: 66309600
                                                                O.R. GASKET
                                                                -Not for GD
                                                                from £1.03
                                                                from £1.03
                                                                # 040
                                                                MPN: 66309300
                                                                O.R. GASKET
                                                                from £0.85
                                                                from £0.85
                                                                This part replaces part number 175835 which we have in stock
                                                                # 041
                                                                MPN: 66309400
                                                                O.R. GASKET
                                                                from £10.26
                                                                from £10.26
                                                                # 042
                                                                MPN: 66309500
                                                                O.R. GASKET
                                                                from £10.68
                                                                from £10.68
                                                                # 043
                                                                MPN: 10977524
                                                                SCREW
                                                                -Not for GD
                                                                from £0.53
                                                                from £0.53
                                                                # 044
                                                                MPN: 11188079
                                                                WASHER
                                                                -Not for GD
                                                                from £0.71
                                                                from £0.71
                                                                # 045
                                                                MPN: 65929400

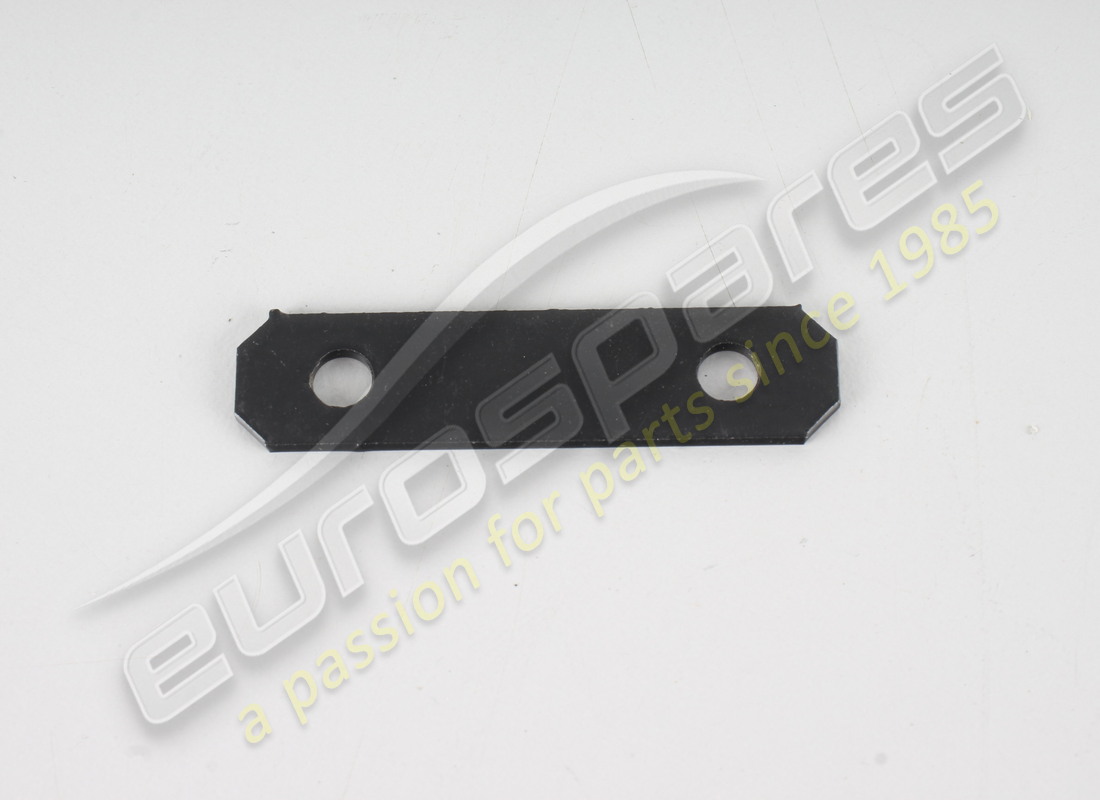

                                                                SMALL PLATE
                                                                -Not for GD
                                                                from £1.40
                                                                from £1.40
                                                                # 046
                                                                MPN: 11193274
                                                                SCREW
                                                                -Not for GD
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 11193279 which we have in stock
                                                                # 046
                                                                MPN: 15210624
                                                                SCREW
                                                                -Valid for GD
                                                                from £1.39
                                                                from £1.39
                                                                # 047
                                                                MPN: 11193274
                                                                WASHER
                                                                -Not for GD
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 11193279 which we have in stock
