ferrari 360 challenge stradale front and rear lights parts diagram

127 - Front and Rear Lights

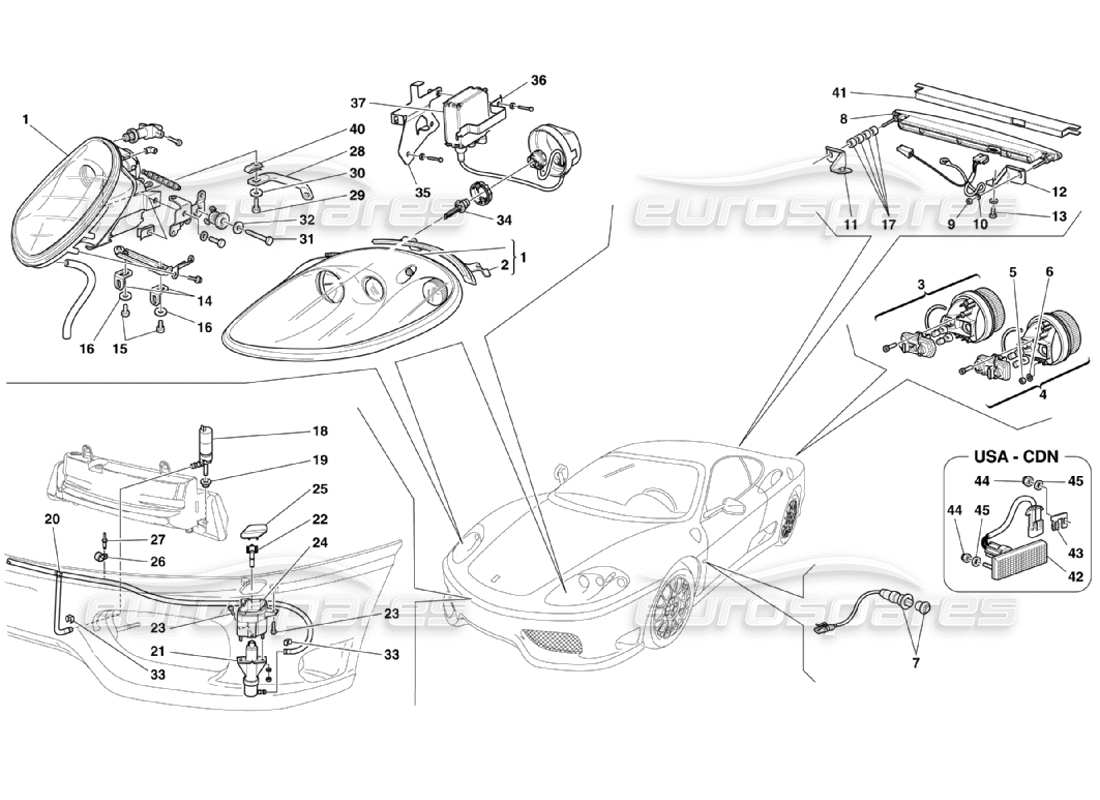

Ferrari 360 Challenge Stradale Front and Rear Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price

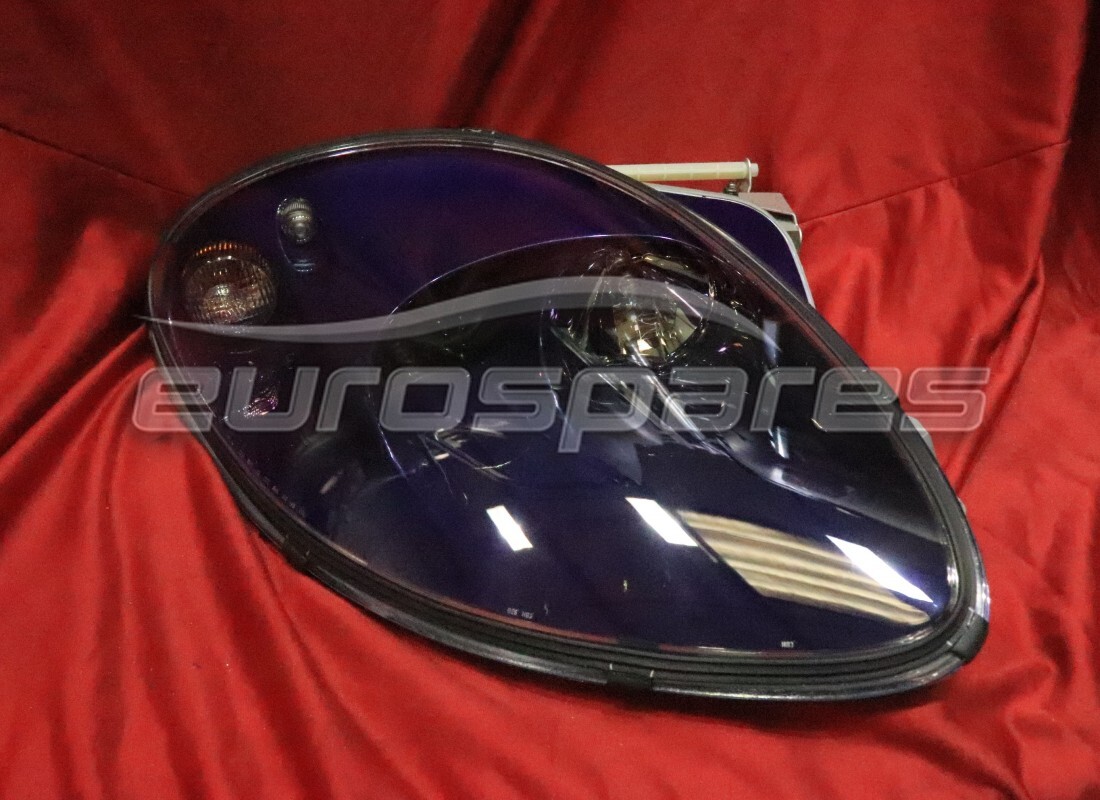

# 001
MPN: 65994798
RH HEADLIGHT ''LAGUNA BLUE''
-Gas lamps - Valid for USA and CDN
# 001
MPN: 65994971
LH HEADLIGHT LOW/HIGH BEAM BLACK
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £2,016.00
from £2,016.00
# 001
MPN: 65994972
LH HEADLIGHT LOW/HIGH BEAM TITANIUM GREY
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,806.00
from £1,806.00
# 001
MPN: 65994976
LH HEADLIGHT LOW/HIGH BEAM ROSSO FIORANO
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,750.00
from £1,750.00
# 001
MPN: 65994979
LH HEADLIGHT LOW/HIGH BEAM NART BLUE
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,596.00
from £1,596.00
# 001
MPN: 65994980
LH HEADLIGHT LOW/HIGH BEAM CALIFORNIA LIGHT BLUE
- Not gas lamps - Not for USA, CDN, GB, AUS and J
Supersession
Supersession
# 001
MPN: 65994981
LH HEADLIGHT LOW/HIGH BEAM ZELTWEG GREEN
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,701.00
from £1,701.00
# 001
MPN: 65994982
LH HEADLIGHT LOW/HIGH BEAM BRITISH RACING GREEN
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,701.00
from £1,701.00
# 001
MPN: 65994986
LH HEADLIGHT LOW/HIGH BEAM DAYTONA BLACK
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,596.00
from £1,596.00
# 001
MPN: 65994990
LH HEADLIGHT LOW/HIGH BEAM ARGENTO GREY
- Not gas lamps - Not for USA, CDN, GB, AUS and J
Supersession
Supersession
# 001
MPN: 65994991
LH HEADLIGHT LOW/HIGH BEAM POZZI BLUE
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,701.00
from £1,701.00
# 001
MPN: 65994992
LH HEADLIGHT LOW/HIGH BEAM INGRID GREY
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,701.00
from £1,701.00
# 001
MPN: 65994993
LH HEADLIGHT LOW/HIGH BEAM ALLOY GREY
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,701.00
from £1,701.00
# 001
MPN: 65994995
LH HEADLIGHT LOW/HIGH BEAM ''LIGHT BLUE''
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,701.00
from £1,701.00
# 001
MPN: 65995398
LH HEADLIGHT ''LAGUNA BLUE''
-Gas lamps - Valid for USA and CDN
from £1,890.00
from £1,890.00
# 001
MPN: 72000369
RH HEADLIGHT LOW/HIGH BEAM CORSA RED
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,032.56
from £1,032.56
This part replaces part number 65994369 - and 1 more. Click to view details
# 001
MPN: 72000370
RH HEADLIGHT LOW/HIGH BEAM MODENA YELLOW
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,877.38
from £1,877.38
This part replaces part number 65994370 - and 1 more. Click to view details
# 001
MPN: 72000371
RH HEADLIGHT LOW/HIGH BEAM BLACK
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,877.38
from £1,877.38
This part replaces part number 65994371 which we have in stock - and 1 more. Click to view details
# 001
MPN: 72000372
RH HEADLIGHT LOW/HIGH BEAM TITANIUM GREY
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,596.00
from £1,596.00
This part replaces part number 65994372
# 001
MPN: 72000379
RH HEADLIGHT LOW/HIGH BEAM NART BLUE
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,750.00
from £1,750.00
This part replaces part number 65994379 - and 1 more. Click to view details
# 001
MPN: 72000380
RH HEADLIGHT LOW/HIGH BEAM CALIFORNIA LIGHT BLUE
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,783.51
from £1,783.51
This part replaces part number 65994380 - and 2 more. Click to view details
# 001
MPN: 72000390
RH HEADLIGHT LOW/HIGH BEAM ARGENTO GREY
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,596.00
from £1,596.00
# 001
MPN: 72000391
RH HEADLIGHT LOW/HIGH BEAM POZZI BLUE
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,701.00
from £1,701.00
# 001
MPN: 72000393
RH HEADLIGHT LOW/HIGH BEAM ALLOY GREY
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,596.00
from £1,596.00
# 001
MPN: 72000394
RH HEADLIGHT LOW/HIGH BEAM AVUS WHITE
Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,596.00
from £1,596.00
# 001
MPN: 72000480
LH HEADLIGHT LOW/HIGH BEAM LIGHT BLUE
- Not gas lamps - Not for USA, CDN, GB, AUS and J
from £1,877.38
from £1,877.38
This part replaces part number 65994980
# 001
MPN: 72001172
RH HEADLIGHT ''GRIGIO TITANIUM''
-Gas lamps - Not for USA, CDN, GD and J -
from £2,366.37
from £2,366.37
This part replaces part number 65994672
# 001
MPN: 72001179
RH HEADLIGHT BLU NART
-Gas lamps - Not for USA, CDN, GD and J -
from £2,057.71
from £2,057.71
This part replaces part number 65994679
# 001
MPN: 72001186
RH HEADLIGHT ''NERO DAYTONA''
-Gas lamps - Not for USA, CDN, GD and J -
from £1,131.74
from £1,131.74
This part replaces part number 65994686 - and 1 more. Click to view details
# 001
MPN: 72001279
LH HEADLIGHT BLUE NART
-Gas lamps - Not for USA, CDN, GD and J
from £1,797.91
from £1,797.91
This part replaces part number 65995279
# 001
MPN: 72001369
RH HEADLIGHT LOW/HIGH BEAM
from £1,878.19
from £1,878.19
This part replaces part number 65994569
# 001
MPN: 72001370

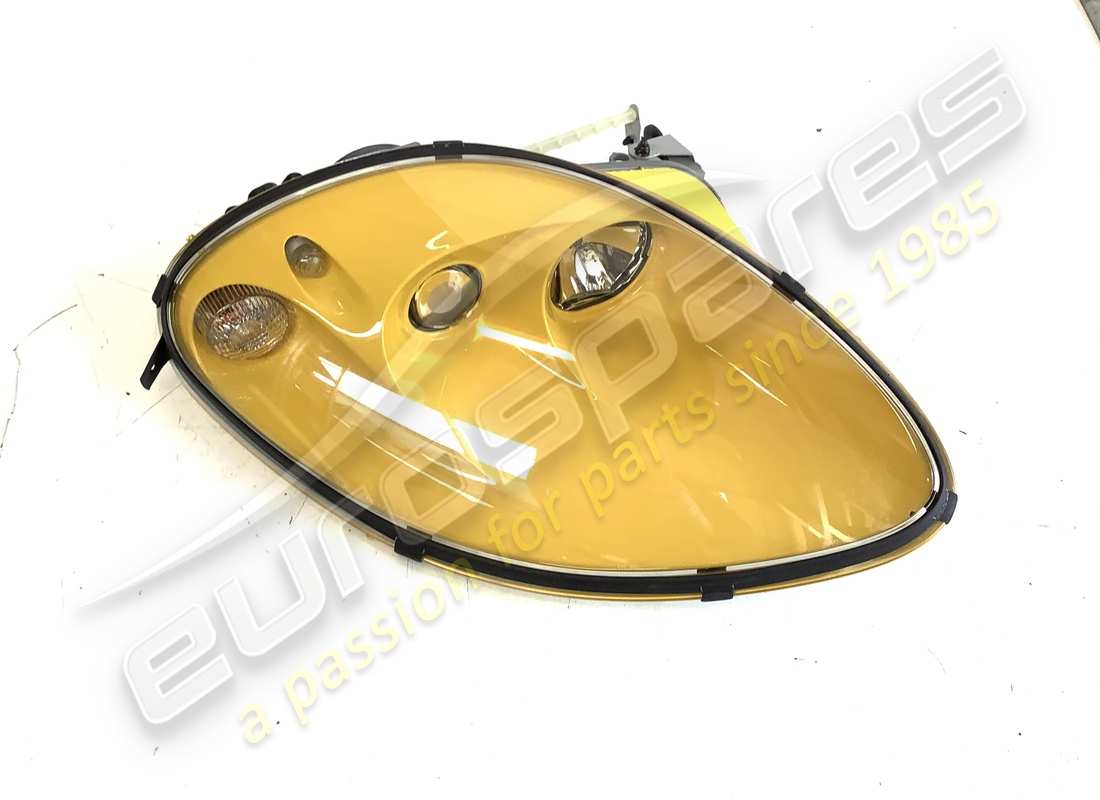

RH HEADLIGHT LOW/HIGH BEAM GIALLO MODENA YELLOW
-Not gas lamps - Valid for GD and J
from £1,977.82
from £1,977.82
This part replaces part number 65994570 - and 2 more. Click to view details
# 001
MPN: 72001371
RH HEADLIGHT ''BLACK''
-Not gas lamps - Valid for GD and J -
from £884.50
from £884.50
This part replaces part number 65994571 - and 1 more. Click to view details
# 001
MPN: 72001372
RH HEADLIGHT LOW/HIGH BEAM GRIGIO TITANIO
-Not gas lamps - Valid for GD and J
from £1,596.00
from £1,596.00
This part replaces part number 65994572
# 001
MPN: 72001376
RH HEADLIGHT LOW/HIGH BEAM ROSSO FIORANO RED
-Not gas lamps - Valid for GD and J
from £1,701.00
from £1,701.00
This part replaces part number 65994576 - and 1 more. Click to view details
# 001
MPN: 72001379
RH HEADLIGHT LOW/HIGH BEAM BLUE NART BLUE
-Not gas lamps - Valid for GD and J
from £1,596.00
from £1,596.00
This part replaces part number 65994579
# 001
MPN: 72001390
RH HEADLIGHT LOW/HIGH BEAM ARGENTO GREY
-Not gas lamps - Valid for GD and J
from £1,596.00
from £1,596.00
# 001
MPN: 72001393
RH HEADLIGHT LOW/HIGH BEAM GRIGIO ALLOY SILVER
-Not gas lamps - Valid for GD and J
from £939.75
from £939.75
# 001
MPN: 72001394
RH HEADLIGHT LOW/HIGH BEAM AUVUS WHITE
-Not gas lamps - Valid for GD and J
from £1,596.00
from £1,596.00
# 001
MPN: 72001395
RH HEADLIGHT LOW/HIGH BEAM TOUR DE FRANCE BLUE
-Not gas lamps - Valid for GD and J
# 001
MPN: 72001470
LH HEADLIGHT LOW/HIGH BEAM GIALLO MODENA YELLOW
-Not gas lamps - Valid for GD and J
from £1,032.56
from £1,032.56
This part replaces part number 65995170 - and 3 more. Click to view details
# 001
MPN: 72001471
LH HEADLIGHT ''BLACK''
-Not gas lamps - Valid for GD and J -
from £1,032.56
from £1,032.56
This part replaces part number 65995171 - and 3 more. Click to view details
# 001
MPN: 72001472
LH HEADLIGHT LOW/HIGH BEAM GRIGIO TITANIO
-Not gas lamps - Valid for GD and J
from £1,701.00
from £1,701.00
This part replaces part number 65995172
# 001
MPN: 72001490
LH HEADLIGHT LOW/HIGH BEAM ARGENTO GREY
-Not gas lamps - Valid for GD and J
from £1,701.00
from £1,701.00
# 001
MPN: 72001493
LH HEADLIGHT LOW/HIGH BEAM GRIGIO ALLOY SILVER
-Not gas lamps - Valid for GD and J
from £1,750.00
from £1,750.00
# 001
MPN: 72001495
LH HEADLIGHT LOW/HIGH BEAM TOUR DE FRANCE BLUE
-Not gas lamps - Valid for GD and J
from £1,984.50
from £1,984.50
# 001
MPN: 72001569
RH HEADLIGHT ''ROSSO CORSA''
(RHD model) -
from £2,057.71
from £2,057.71
This part replaces part number 65994869

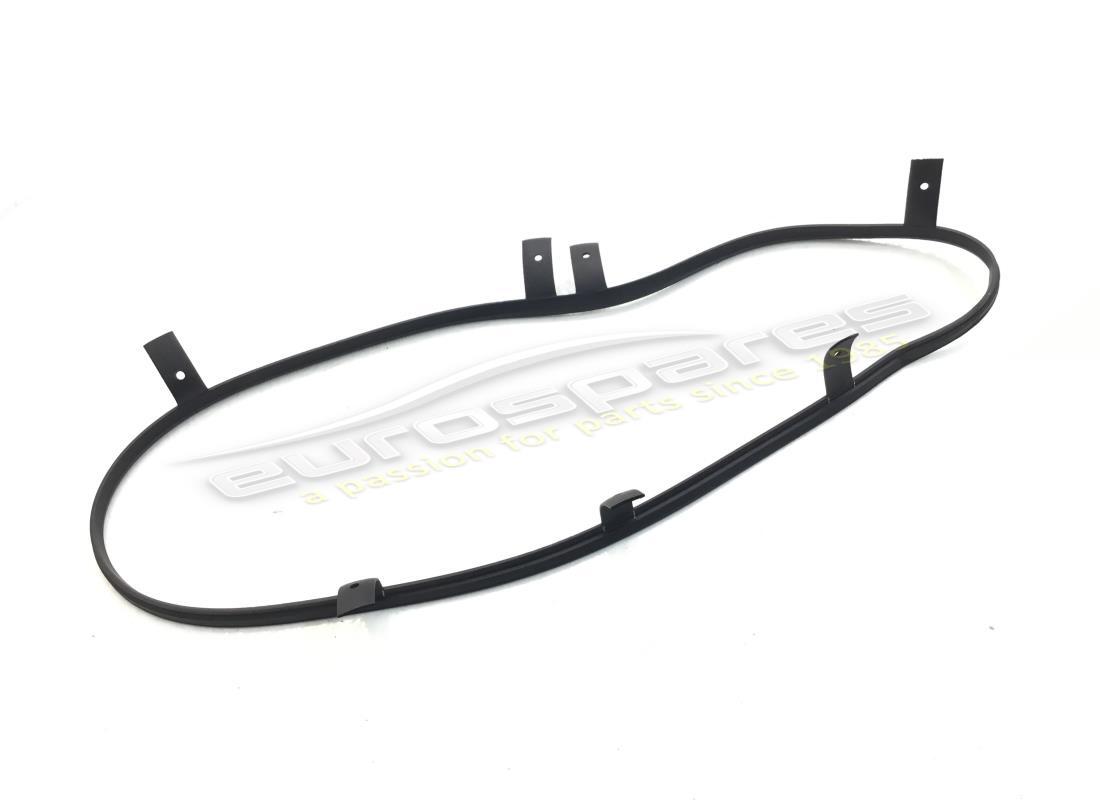

# 002
MPN: 185376
RH HEADLIGHT GASKET
from £47.26
from £47.26
# 002
MPN: 185377
LH HEADLIGHT GASKET
from £47.26
from £47.26
# 003
MPN: 157513
RH INNER REAR LIGHT
-Not for USA and CDN
from £250.00
from £250.00
# 003
MPN: 157514
LH INNER REAR LIGHT
-Not for USA and CDN
from £177.90
from £177.90
# 003
MPN: 157524
RH INNER REAR LIGHT
-Valid for USA and CDN
from £267.57
from £267.57
# 003
MPN: 157525
LH INNER REAR LIGHT
-Valid for USA and CDN
from £267.57
from £267.57
# 004
MPN: 157515
RH OUTER REAR LIGHT
-Not for USA and CDN
from £297.19
from £297.19
# 004
MPN: 157516
LH OUTER REAR LIGHT
-Not for USA and CDN
from £282.33
from £282.33
# 004
MPN: 157522
RH OUTER REAR LIGHT
-Valid for USA and CDN
from £103.95
from £103.95
# 004
MPN: 157523
LH OUTER REAR LIGHT
-Valid for USA and CDN
from £261.36
from £261.36
# 005
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 006
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 007
MPN: 165558
FRONT SIDE DIRECTION LIGHT
from £15.47
from £15.47
This part replaces part number 180415
# 008
MPN: 241531
ADDITIONAL STOP LIGHT
from £125.90
from £125.90
This part replaces part number 164434 - and 1 more. Click to view details
# 009
MPN: 10794014
NUT
from £0.47
from £0.47
This part replaces part number 10794034
# 010
MPN: 10615274
WASHER
from £0.47
from £0.47
This part replaces part number 10615270 - and 2 more. Click to view details
# 011
MPN: 64865900
RH BRACKET
from £2.65
from £2.65
# 012
MPN: 64866000
LH BRACKET
from £2.65
from £2.65
# 013
MPN: 16286027
SCREW
from £0.53
from £0.53
# 014
MPN: 65520000
FRONT FIXING BRACKET
from £0.88
from £0.88
# 015
MPN: 10977524
SCREW
from £0.48
from £0.48
# 016
MPN: 12640677
WASHER
- use part number: 12640678
Supersession
Supersession
This part replaces part number 12640606 - and 1 more. Click to view details
# 017
MPN: 64529600
SPACER
from £0.76
from £0.76
# 018
MPN: 65164700
HEADLIGHTS WASHER PUMP
from £39.86
from £39.86
# 019
MPN: 65511700
GASKET
from £3.23
from £3.23
# 020
MPN: 65363000
HEADLIGHTS WASHER PIPE ASSEMBLY
from £67.58
from £67.58
# 021
MPN: 65380000
HEADLIGHTS WASHER FIXED BODY
from £119.71
from £119.71
# 022
MPN: 65380100
LH HEADLIGHTS WASHER MOBILE BODY
from £19.10
from £19.10
# 022
MPN: 65667200
RH HEADLIGHTS WASHER MOBILE BODY
from £19.10
from £19.10
# 023
MPN: 15517201
SCREW
from £0.50
from £0.50
# 024
MPN: 65896700
LH SUPPORT
from £159.94
from £159.94
# 025
MPN: 65896400
RH COVER
from £34.40
from £34.40
# 025
MPN: 65896500
LH COVER
from £34.40
from £34.40
# 027
MPN: 14296191
RIVET
from £0.47
from £0.47
# 028
MPN: 65161700
L. H. FRONT SIDE LIGHT SUPPORT
from £33.75
from £33.75
# 030
MPN: 116413
WASHER
from £0.54
from £0.54
# 032
MPN: 12646801
WASHER
from £0.68
from £0.68
This part replaces part number 12644682
# 034
MPN: 183672
BULB
-For gas lamps
from £156.15
from £156.15
# 035
MPN: 65705500
RH BRACKET
-For gas lamps
from £35.59
from £35.59
# 035
MPN: 65705600
LH BRACKET
-For gas lamps
from £19.57
from £19.57
# 036
MPN: 65705400
BRACKET
-For gas lamps
from £2.83
from £2.83
# 037
MPN: 185554
FRONT LIGHT CONTROL STATION
-For gas lamps
from £574.83
from £574.83
