052 - Current Generator - Starting Motor

Ferrari 360 Challenge Stradale Current Generator - Starting Motor Parts Diagram

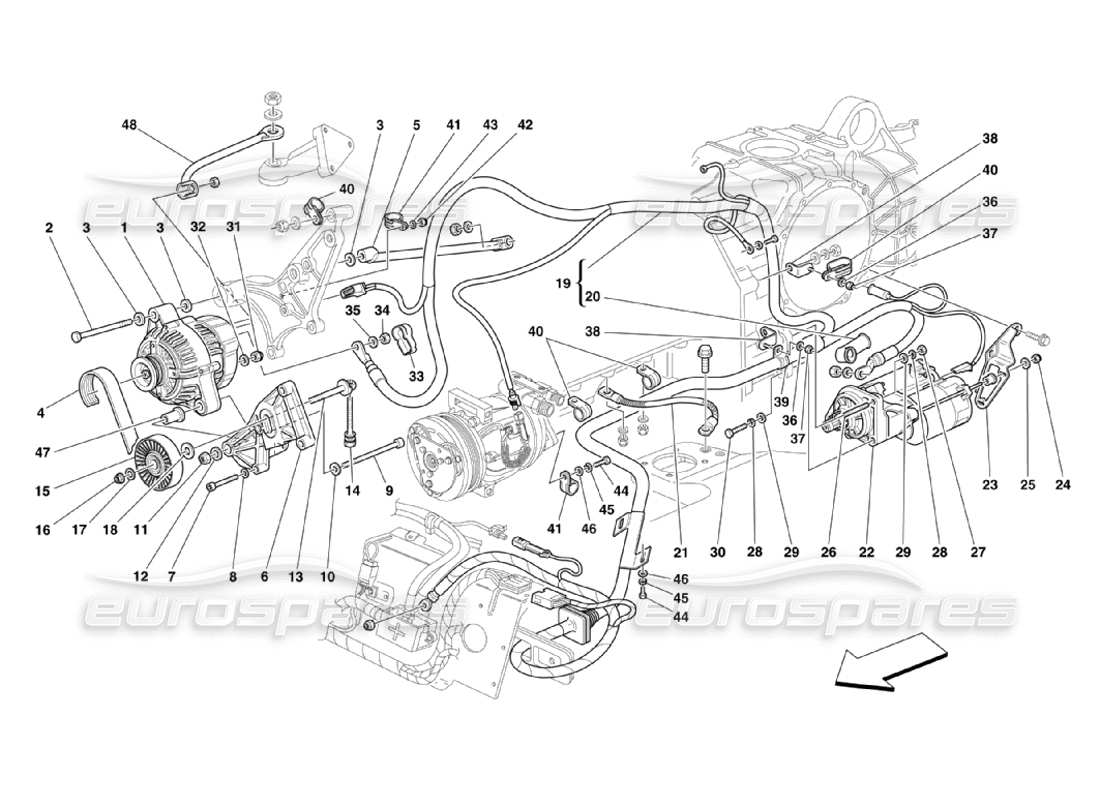

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 179852

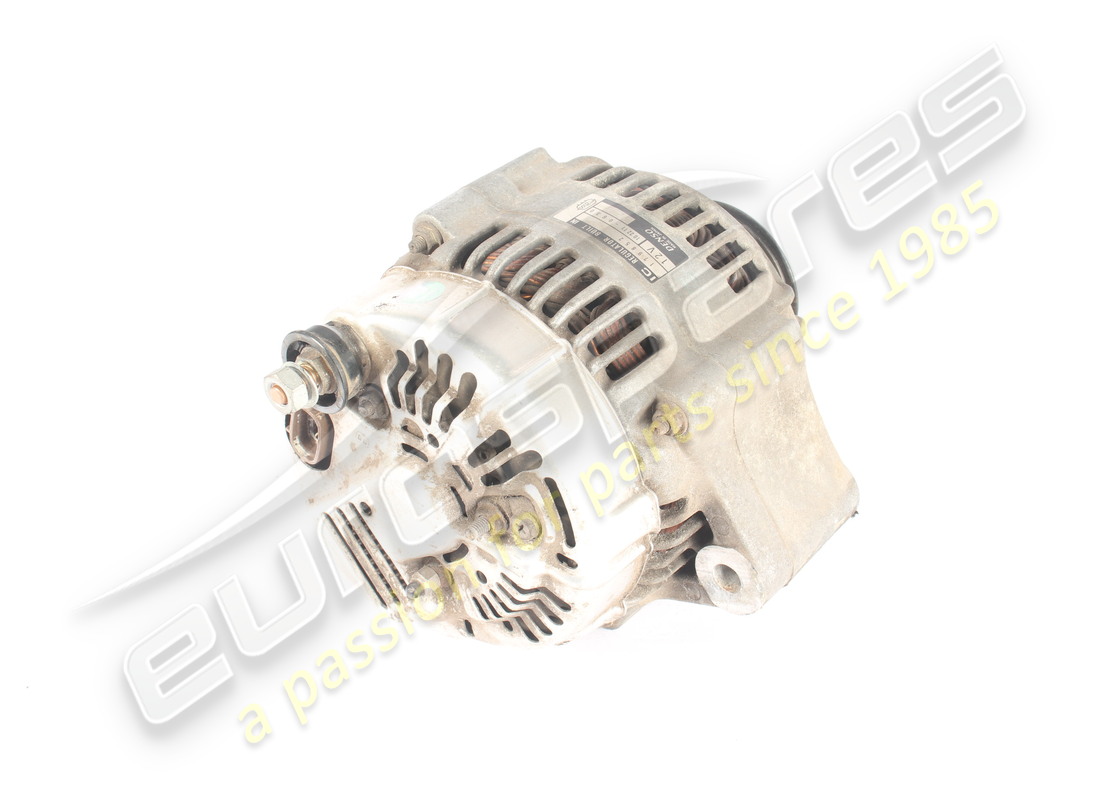

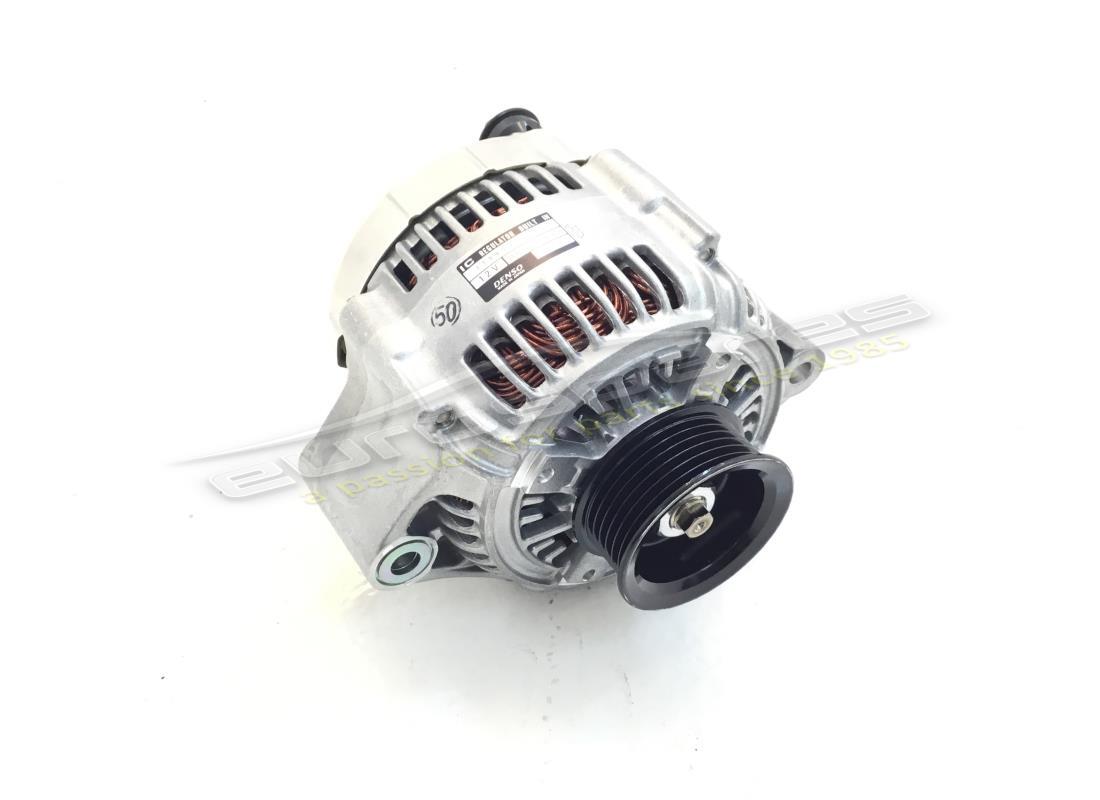

                                                                                                150 A. ALTERNATOR
                                                                                                from £463.15
                                                                                                from £463.15
                                                                                                # 002
                                                                                                MPN: 15971324
                                                                                                SCREW
                                                                                                from £0.82
                                                                                                from £0.82
                                                                                                This part replaces part number 123198 - and 1 more. Click to view details
                                                                                                # 004
                                                                                                MPN: 201446

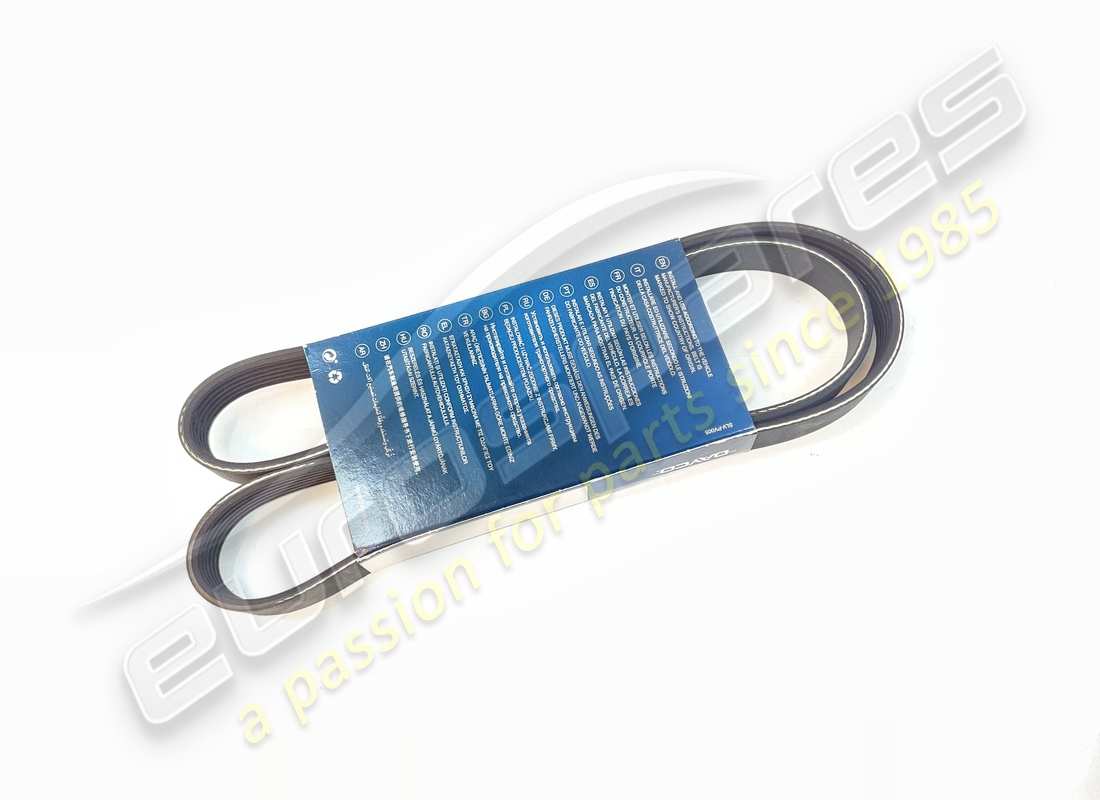

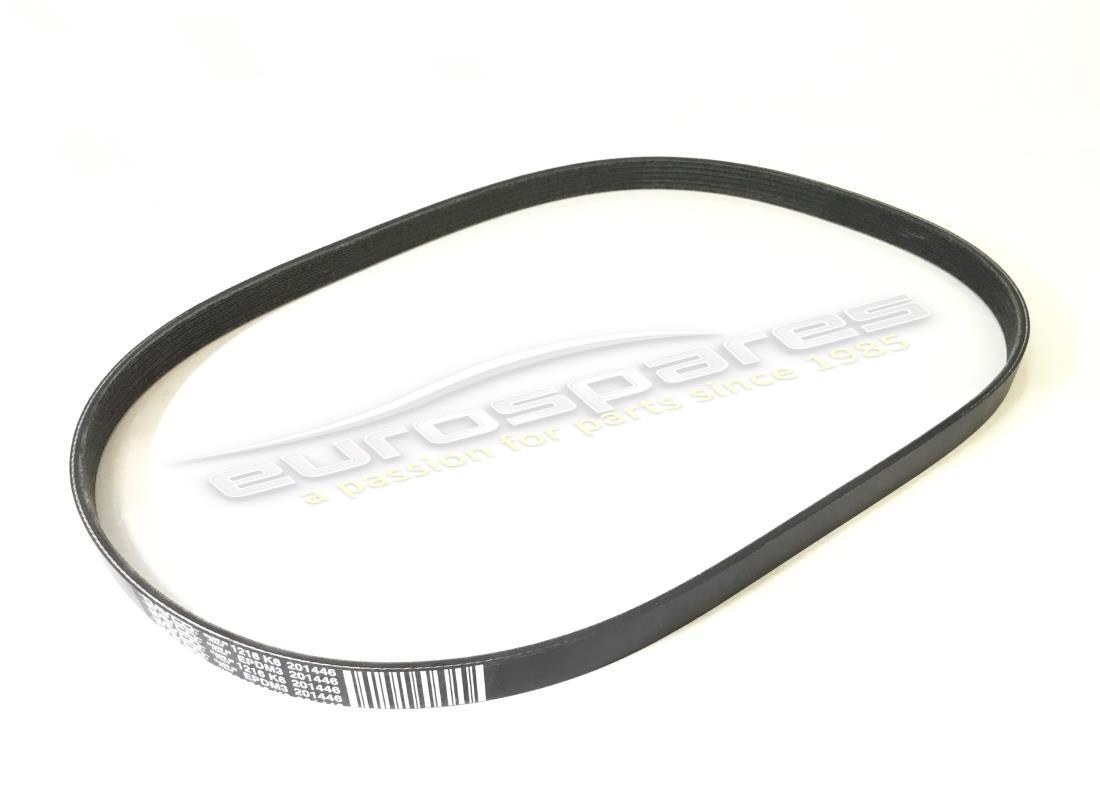

                                                                                                WATER PUMP AND GENERATOR BELT
                                                                                                from £13.42
                                                                                                from £13.42
                                                                                                This part replaces part number 194229
                                                                                                # 005
                                                                                                MPN: 180493
                                                                                                REAR BRACKET
                                                                                                from £31.10
                                                                                                from £31.10
                                                                                                # 006
                                                                                                MPN: 179704
                                                                                                LOWER SUPPORT
                                                                                                from £732.55
                                                                                                from £732.55
                                                                                                # 007
                                                                                                MPN: 14306524
                                                                                                SCREW L=30MM
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 14306521
                                                                                                # 007
                                                                                                MPN: 14306724
                                                                                                SCREW L=40MM
                                                                                                from £0.55
                                                                                                from £0.55
                                                                                                # 008
                                                                                                MPN: 12601374
                                                                                                WASHER
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                # 009
                                                                                                MPN: 179664
                                                                                                SCREW
                                                                                                from £10.01
                                                                                                from £10.01
                                                                                                # 010
                                                                                                MPN: 164469
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 011
                                                                                                MPN: 177764
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 149719
                                                                                                # 012
                                                                                                MPN: 126648
                                                                                                WASHER
                                                                                                from £0.61
                                                                                                from £0.61
                                                                                                # 013
                                                                                                MPN: 172527
                                                                                                PIN
                                                                                                from £48.41
                                                                                                from £48.41
                                                                                                # 014
                                                                                                MPN: 157289
                                                                                                SCREW
                                                                                                from £3.97
                                                                                                from £3.97
                                                                                                # 016
                                                                                                MPN: 133216
                                                                                                NUT
                                                                                                from £4.82
                                                                                                from £4.82
                                                                                                # 017
                                                                                                MPN: 102695
                                                                                                WASHER
                                                                                                from £1.85
                                                                                                from £1.85
                                                                                                # 018
                                                                                                MPN: 174508
                                                                                                WASHER
                                                                                                from £2.48
                                                                                                from £2.48
                                                                                                # 019
                                                                                                MPN: 213155
                                                                                                COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
                                                                                                from £975.56
                                                                                                from £975.56
                                                                                                This part replaces part number 188108
                                                                                                # 020
                                                                                                MPN: 176903
                                                                                                PROTECTION BOOT
                                                                                                from £10.02
                                                                                                from £10.02
                                                                                                # 021
                                                                                                MPN: 155073
                                                                                                CABLE FOR ENGINE-FRAME EARTH
                                                                                                from £7.43
                                                                                                from £7.43
                                                                                                This part replaces part number 115668
                                                                                                # 022
                                                                                                MPN: 183392

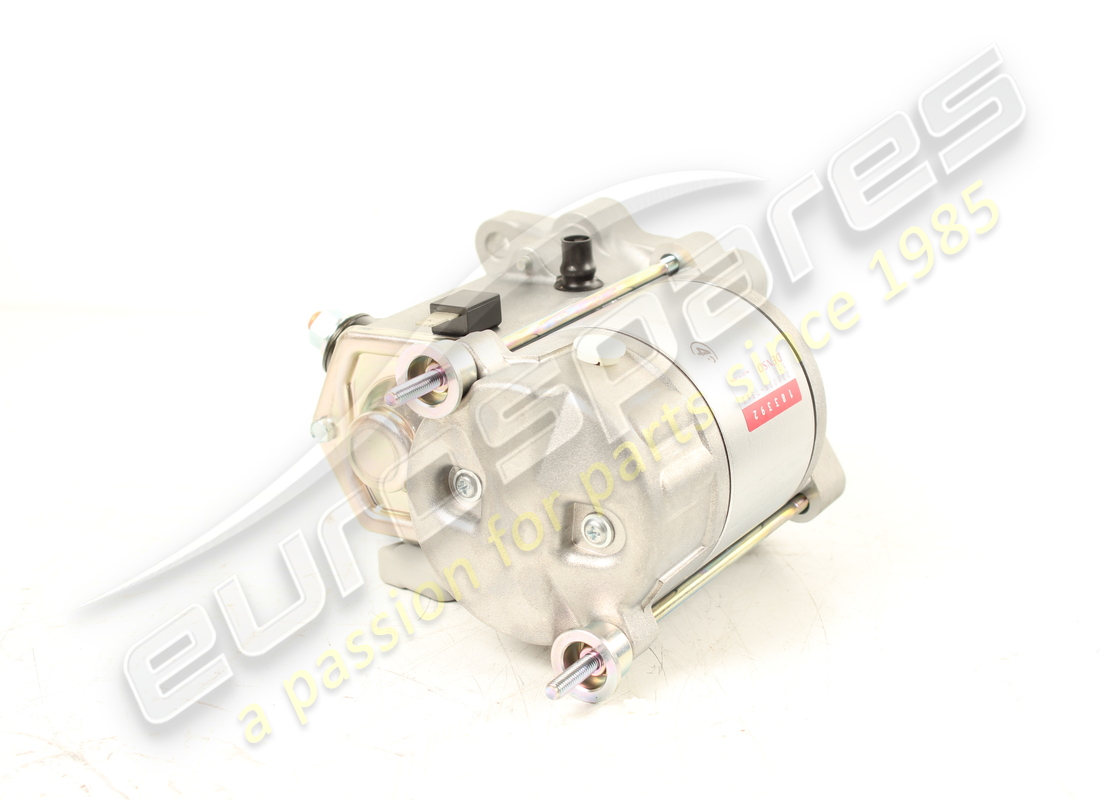

                                                                                                STARTER MOTOR
                                                                                                from £652.43
                                                                                                from £652.43
                                                                                                This part replaces part number 179824
                                                                                                # 023
                                                                                                MPN: 179719
                                                                                                STARTER MOTOR SUPPORTING BRACKET
                                                                                                from £12.84
                                                                                                from £12.84
                                                                                                # 024
                                                                                                MPN: 160472
                                                                                                NUT
                                                                                                from £1.23
                                                                                                from £1.23
                                                                                                # 025
                                                                                                MPN: 61148700
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 026
                                                                                                MPN: 13517024
                                                                                                STUD
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 027
                                                                                                MPN: 133989
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 8 D 4-UNI 207
                                                                                                # 028
                                                                                                MPN: 127496
                                                                                                WASHER
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                # 029
                                                                                                MPN: 10519624
                                                                                                WASHER
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                # 030
                                                                                                MPN: 176212
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 031
                                                                                                MPN: 64449900
                                                                                                CAP NUT
                                                                                                from £3.99
                                                                                                from £3.99
                                                                                                # 032
                                                                                                MPN: 127493
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 106849 - and 1 more. Click to view details
                                                                                                # 033
                                                                                                MPN: 154803
                                                                                                PROTECTION BOOT
                                                                                                from £2.58
                                                                                                from £2.58
                                                                                                # 034
                                                                                                MPN: 16100814
                                                                                                NUT
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                # 035
                                                                                                MPN: 12601374
                                                                                                WASHER
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                # 036
                                                                                                MPN: 12601274
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                # 037
                                                                                                MPN: 102741
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                # 038
                                                                                                MPN: 149694
                                                                                                FIXING BRACKET
                                                                                                from £3.15
                                                                                                from £3.15
                                                                                                This part replaces part number 223375
                                                                                                # 039
                                                                                                MPN: 10442090
                                                                                                BRACKET WITH SHEATH
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 040
                                                                                                MPN: 10450690
                                                                                                BRACKET WITH SHEATH
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 041
                                                                                                MPN: 10441790
                                                                                                BRACKET WITH SHEATH
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 042
                                                                                                MPN: 102741
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                # 043
                                                                                                MPN: 10519424
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                                                # 044
                                                                                                MPN: 10902324
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                # 045
                                                                                                MPN: 127494
                                                                                                WASHER
                                                                                                (minimum order quantity = 20)
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                # 046
                                                                                                MPN: 12644424
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                # 047
                                                                                                MPN: 164467
                                                                                                BUSHING
                                                                                                from £15.98
                                                                                                from £15.98
                                                                                                # 048
                                                                                                MPN: 196131
                                                                                                REAR BRACKET
                                                                                                from £59.67
                                                                                                from £59.67
                                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
