047 - Front Suspension - Wishbones

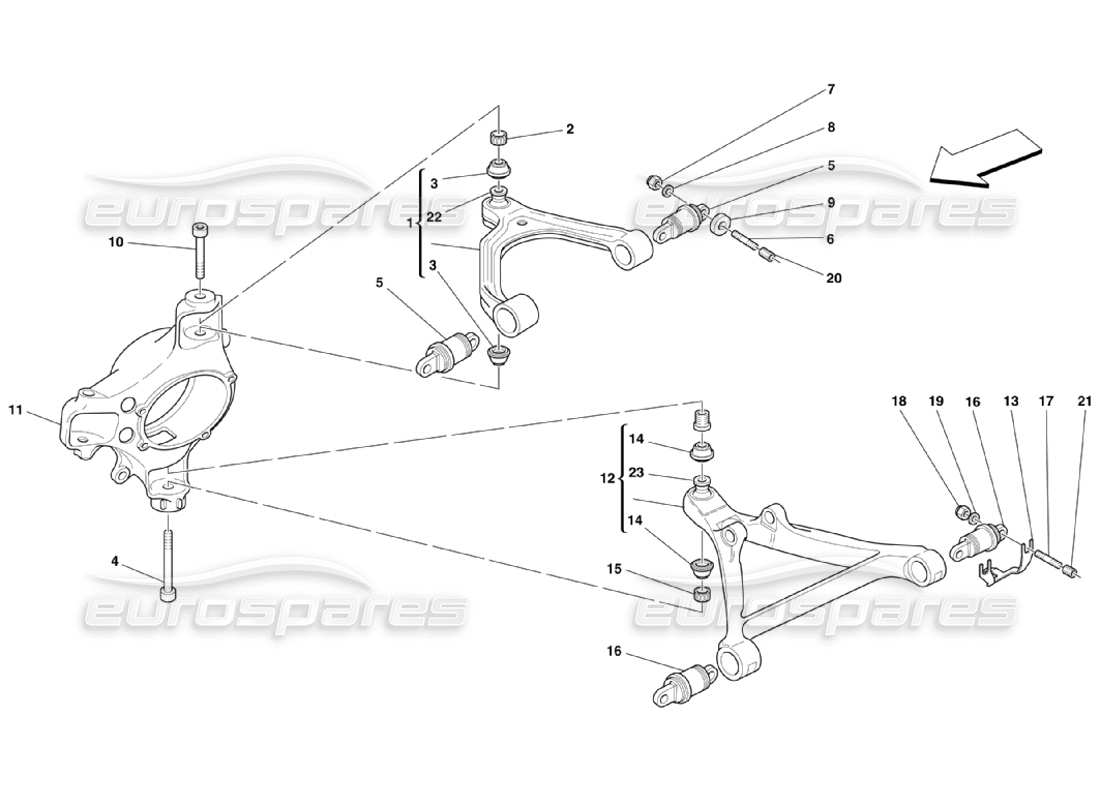

Ferrari 360 Challenge Stradale Front Suspension - Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 200945
FRONT UPPER LEVER
from £227.41
from £227.41
This part replaces part number 193456 - and 14 more. Click to view details
# 002
MPN: 179555
RING
from £3.22
from £3.22
# 003
MPN: 171848
BOOT
from £40.56
from £40.56
# 004
MPN: 181598
SCREW
from £41.01
from £41.01
This part replaces part number 178941
# 005
MPN: 209167
FLAMBLOC
from £96.96
from £96.96
This part replaces part number 194801
# 005
MPN: 209167
FLAMBLOC
-Replace together
from £96.96
from £96.96
This part replaces part number 194801
# 006
MPN: 170155
THREADED BAR
from £8.80
from £8.80
# 007
MPN: 104030
NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 008
MPN: 14496524
WASHER
from £0.47
from £0.47
This part replaces part number 14496525 - and 1 more. Click to view details
# 009
MPN: 12628904
WASHER
from £0.71
from £0.71
This part replaces part number 12628905 which we have in stock
# 010
MPN: 179556
SCREW
from £28.48
from £28.48
# 011
MPN: 179328
RH FRONT & LH REAR STUB AXLE
from £335.19
from £335.19
# 011
MPN: 179330
LH FRONT & RH REAR STUB AXLE
from £335.19
from £335.19
# 012
MPN: 200940
LH/RH LOWER LEVER
from £452.08
from £452.08
This part replaces part number 177659 which we have in stock - and 9 more. Click to view details
# 013
MPN: 178851
ADJUSTING PLATE
-Th. mm. 1 - Possible fitting
from £7.28
from £7.28
# 013
MPN: 178852
ADJUSTING PLATE
-Th. mm. 2 - Possible fitting
from £8.46
from £8.46
# 013
MPN: 178853
ADJUSTING PLATE
-Th. mm. 3 - Possible fitting
from £8.86
from £8.86
# 013
MPN: 178940
ADJUSTING PLATE
-Th. mm. 4 - Possible fitting
from £10.32
from £10.32
# 013
MPN: 186943
ADJUSTING PLATE
-Th. mm. 1,5 - Possible fitting
from £4.53
from £4.53
# 013
MPN: 186944
ADJUSTING PLATE
-Th. mm. 2,5 - Possible fitting
from £2.18
from £2.18
# 014
MPN: 171847
BOOT
from £51.40
from £51.40
# 015
MPN: 179554
RING
from £3.32
from £3.32
# 016
MPN: 209166
FLAMBLOC
-Replace together
from £111.50
from £111.50
This part replaces part number 194800
# 017
MPN: 170154
THREADED BAR
from £1.49
from £1.49
# 018
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 019
MPN: 14496624
WASHER
from £0.47
from £0.47
This part replaces part number 14496601 - and 2 more. Click to view details
# 020
MPN: 13582271
THREADED INSERT
from £4.21
from £4.21
This part replaces part number 13582210
# 021
MPN: 13582310
THREADED INSERT
from £6.66
from £6.66
# 022
MPN: 203633
UPPER BALL JOINT OEM
includes seals -
from £140.03
from £140.03
# 023
MPN: 203632
LOWER BALL JOINT OEM
from £156.95
from £156.95
This part replaces part number 178928 - and 1 more. Click to view details
# 024
MPN: 184241
HYSOL EA9360 ADHESIVE BALL JOINT GLUE
(50ml)
from £124.10
from £124.10
