ferrari 360 challenge stradale hydraulic steering box and serpentine parts diagram

043 - Hydraulic Steering Box and Serpentine

Ferrari 360 Challenge Stradale Hydraulic Steering Box and Serpentine Parts Diagram

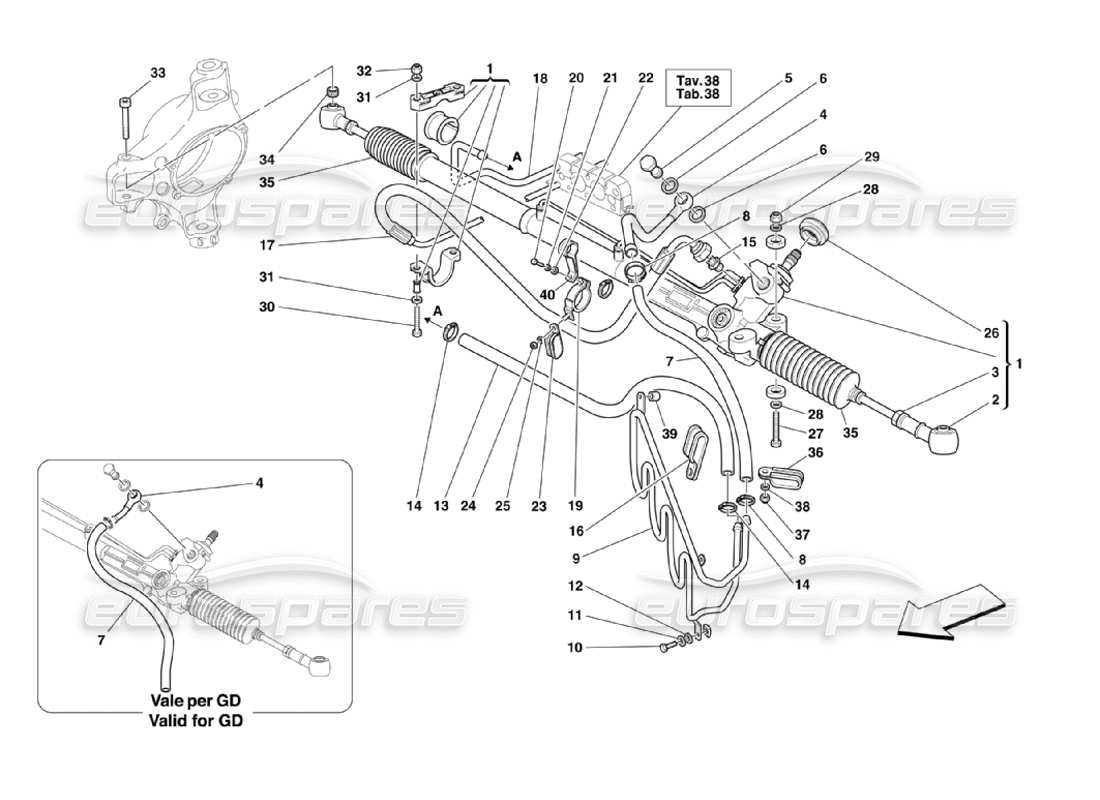

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 196171
                                                                          LHD STEERING RACK
                                                                          from £13,616.66
                                                                          from £13,616.66
                                                                          This part replaces part number 184449
                                                                          # 001
                                                                          MPN: 196172
                                                                          RHD STEERING RACK
                                                                          from £8,459.51
                                                                          from £8,459.51
                                                                          This part replaces part number 184562 - and 1 more. Click to view details
                                                                          # 002
                                                                          MPN: 181882
                                                                          BALL TIE ROD
                                                                          from £215.33
                                                                          from £215.33
                                                                          This part replaces part number 178930 - and 1 more. Click to view details
                                                                          # 003
                                                                          MPN: 10791324
                                                                          NUT
                                                                          from £4.72
                                                                          from £4.72
                                                                          This part replaces part number 10791321
                                                                          # 004
                                                                          MPN: 177943
                                                                          SWINGING UNION
                                                                          -Valid for GD
                                                                          from £13.94
                                                                          from £13.94
                                                                          This part replaces part number 177944 - and 3 more. Click to view details
                                                                          # 004
                                                                          MPN: 186719
                                                                          SWINGING UNION
                                                                          -Not for GD
                                                                          from £37.53
                                                                          from £37.53
                                                                          # 005
                                                                          MPN: 10185111
                                                                          UNION
                                                                          from £2.25
                                                                          from £2.25
                                                                          # 006
                                                                          MPN: 10280060
                                                                          GASKET
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 100501 - and 3 more. Click to view details
                                                                          # 007
                                                                          MPN: 169890
                                                                          RUBBER HOSE
                                                                          -Valid for GD
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 177978
                                                                          # 007
                                                                          MPN: 187696
                                                                          RUBBER HOSE
                                                                          -Not for GD
                                                                          from £38.12
                                                                          from £38.12
                                                                          This part replaces part number 179256 - and 1 more. Click to view details
                                                                          # 008
                                                                          MPN: 161490
                                                                          SCREW COLLAR
                                                                          from £1.02
                                                                          from £1.02
                                                                          # 009
                                                                          MPN: 179106
                                                                          REFRIGERATING COIL
                                                                          from £219.13
                                                                          from £219.13
                                                                          # 010
                                                                          MPN: 10902124
                                                                          SCREW
                                                                          from £0.52
                                                                          from £0.52
                                                                          This part replaces part number 10902111 - and 1 more. Click to view details
                                                                          # 011
                                                                          MPN: 12601274
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                          # 012
                                                                          MPN: 14496424
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 14496401 - and 3 more. Click to view details
                                                                          # 013
                                                                          MPN: 181920
                                                                          RUBBER HOSE
                                                                          from £24.43
                                                                          from £24.43
                                                                          # 014
                                                                          MPN: 13000390
                                                                          SCREW COLLAR
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12179590 - and 1 more. Click to view details
                                                                          # 015
                                                                          MPN: 201706
                                                                          THREADED UNION
                                                                          from £3.21
                                                                          from £3.21
                                                                          This part replaces part number 177237
                                                                          # 016
                                                                          MPN: 66076900
                                                                          BRACKET WITH SHEATH
                                                                          from £1.15
                                                                          from £1.15
                                                                          # 017
                                                                          MPN: 185514
                                                                          COMPLETE DELIVERY PIPE UNDER THE FLOOR
                                                                          USE: 204080/204081/204084/66212900/10261460 - Not for GD
                                                                          from £481.46
                                                                          from £481.46
                                                                          This part replaces part number 181632
                                                                          # 017
                                                                          MPN: 185515
                                                                          COMPLETE DELIVERY PIPE UNDER THE FLOOR
                                                                          Valid for GD
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 182320
                                                                          # 017
                                                                          MPN: 204084
                                                                          LH DELIVERY PIPE FROM UNION TO STEERING BOX
                                                                          -Valid from Ass. Nr. 53103 - Not for GD
                                                                          from £128.02
                                                                          from £128.02
                                                                          # 017
                                                                          MPN: 209769
                                                                          COMPLETE DELIVERY PIPE UNDER THE FLOOR
                                                                          -Valid till Ass. Nr.53102 - Valid for GD
                                                                          from £128.02
                                                                          from £128.02
                                                                          This part replaces part number 185515 - and 1 more. Click to view details
                                                                          # 017
                                                                          MPN: 209769
                                                                          RH DELIVERY PIPE FROM UNION TO STEERING BOX
                                                                          -Valid from Ass. Nr. 53103 - Valid for GD
                                                                          from £128.02
                                                                          from £128.02
                                                                          This part replaces part number 185515 - and 1 more. Click to view details
                                                                          # 018
                                                                          MPN: 184980
                                                                          RETURN PIPE UNDER THE FLOOR
                                                                          from £21.33
                                                                          from £21.33
                                                                          This part replaces part number 181728 - and 1 more. Click to view details
                                                                          # 019
                                                                          MPN: 177631
                                                                          PIPES FIXING BRACKET
                                                                          from £4.40
                                                                          from £4.40
                                                                          # 020
                                                                          MPN: 10902424
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                          # 021
                                                                          MPN: 127494
                                                                          WASHER
                                                                          (minimum order quantity = 20)
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                          # 022
                                                                          MPN: 12639724
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12639725 - and 1 more. Click to view details
                                                                          # 023
                                                                          MPN: 10441690
                                                                          BRACKET WITH SHEATH
                                                                          from £1.07
                                                                          from £1.07
                                                                          This part replaces part number 1044690
                                                                          # 024
                                                                          MPN: 102948
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12574211 - and 3 more. Click to view details
                                                                          # 025
                                                                          MPN: 12639724
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12639725 - and 1 more. Click to view details
                                                                          # 026
                                                                          MPN: 171519
                                                                          COMPLETE RING
                                                                          from £11.06
                                                                          from £11.06
                                                                          # 027
                                                                          MPN: 16237174
                                                                          SCREW
                                                                          Supersession
                                                                          Supersession
                                                                          # 028
                                                                          MPN: 14496624
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 14496601 - and 2 more. Click to view details
                                                                          # 029
                                                                          MPN: 102742
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12557621 - and 2 more. Click to view details
                                                                          # 030
                                                                          MPN: 16237074
                                                                          SCREW
                                                                          from £2.76
                                                                          from £2.76
                                                                          This part replaces part number 16237174
                                                                          # 031
                                                                          MPN: 14496624
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 14496601 - and 2 more. Click to view details
                                                                          # 032
                                                                          MPN: 102742
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12557621 - and 2 more. Click to view details
                                                                          # 033
                                                                          MPN: 179556
                                                                          SCREW
                                                                          from £27.93
                                                                          from £27.93
                                                                          # 034
                                                                          MPN: 179555
                                                                          RING
                                                                          from £3.22
                                                                          from £3.22
                                                                          # 035
                                                                          MPN: 70000948
                                                                          BELLOWS REPLACEMENT KIT
                                                                          from £38.80
                                                                          from £38.80
                                                                          # 036
                                                                          MPN: 139512
                                                                          BRACKET WITH SHEATH
                                                                          from £1.20
                                                                          from £1.20
                                                                          # 037
                                                                          MPN: 102741
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                          # 038
                                                                          MPN: 12644424
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12644401 - and 1 more. Click to view details
                                                                          # 039
                                                                          MPN: 166730
                                                                          SPACER
                                                                          from £3.29
                                                                          from £3.29
                                                                          # 040
                                                                          MPN: 65996800
                                                                          BRACKET
                                                                          from £3.61
                                                                          from £3.61
