ferrari 360 challenge stradale exhaust system parts diagram

019 - Exhaust System

Ferrari 360 Challenge Stradale Exhaust System Parts Diagram

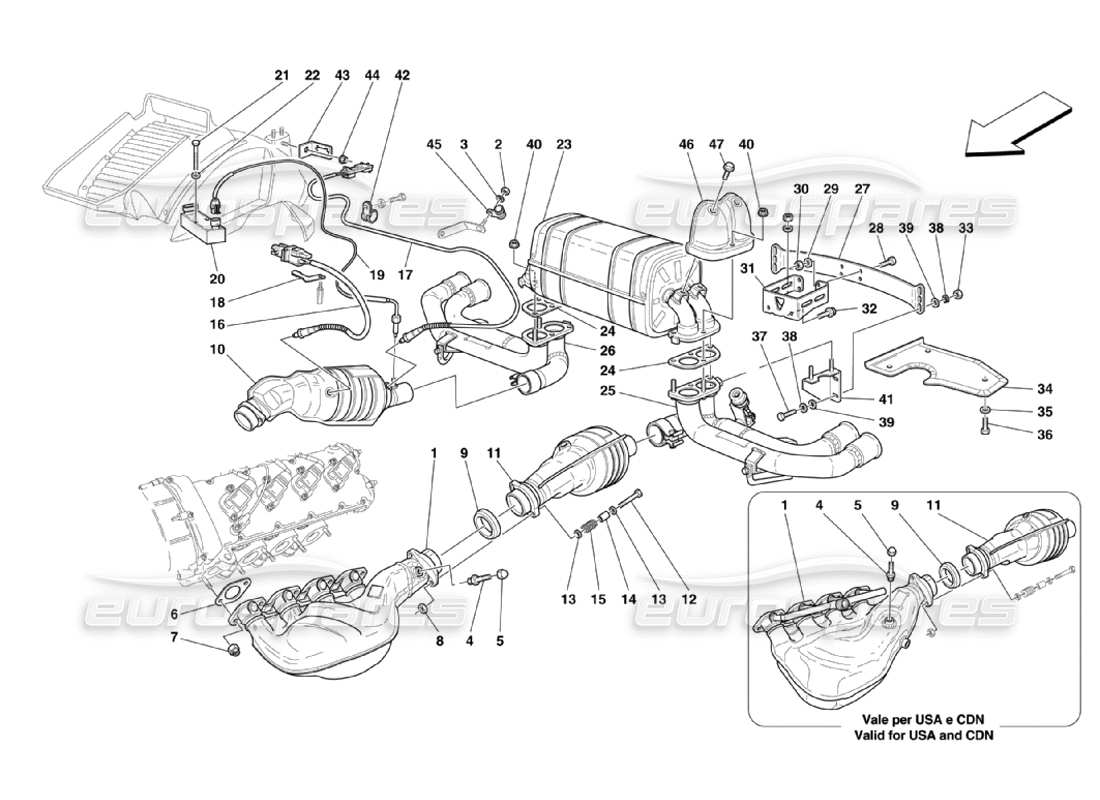

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price

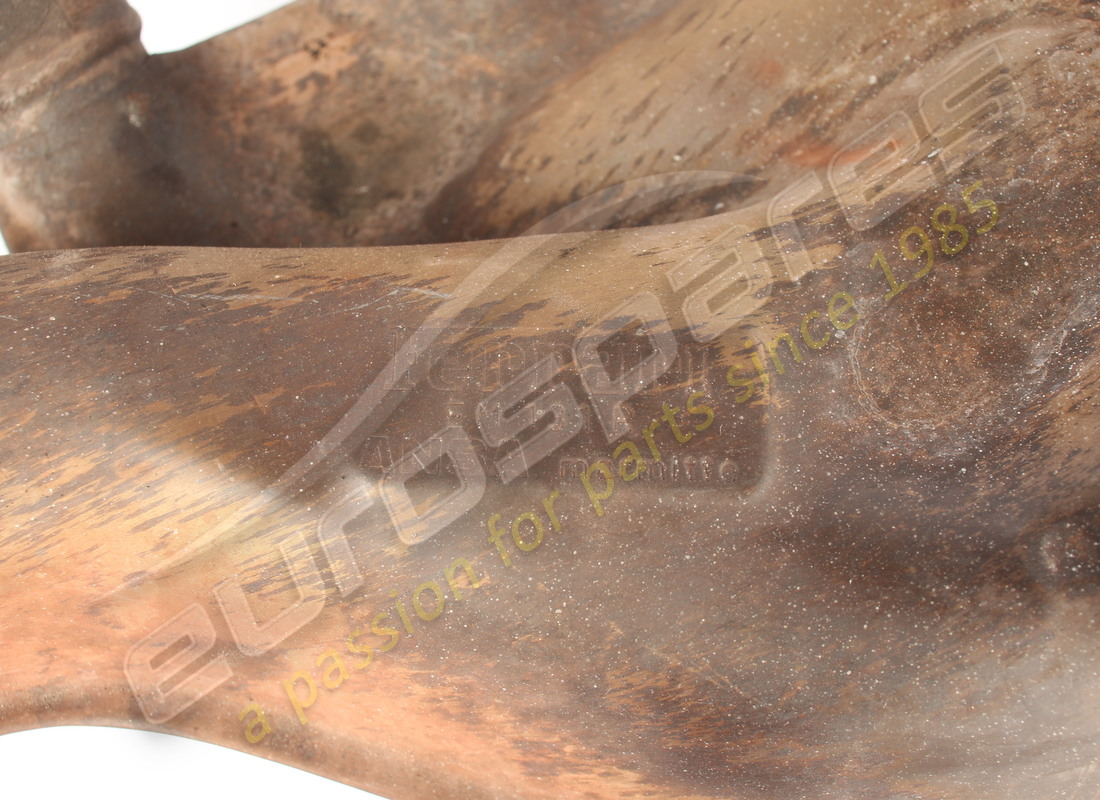

                                                                                # 001
                                                                                MPN: 184393

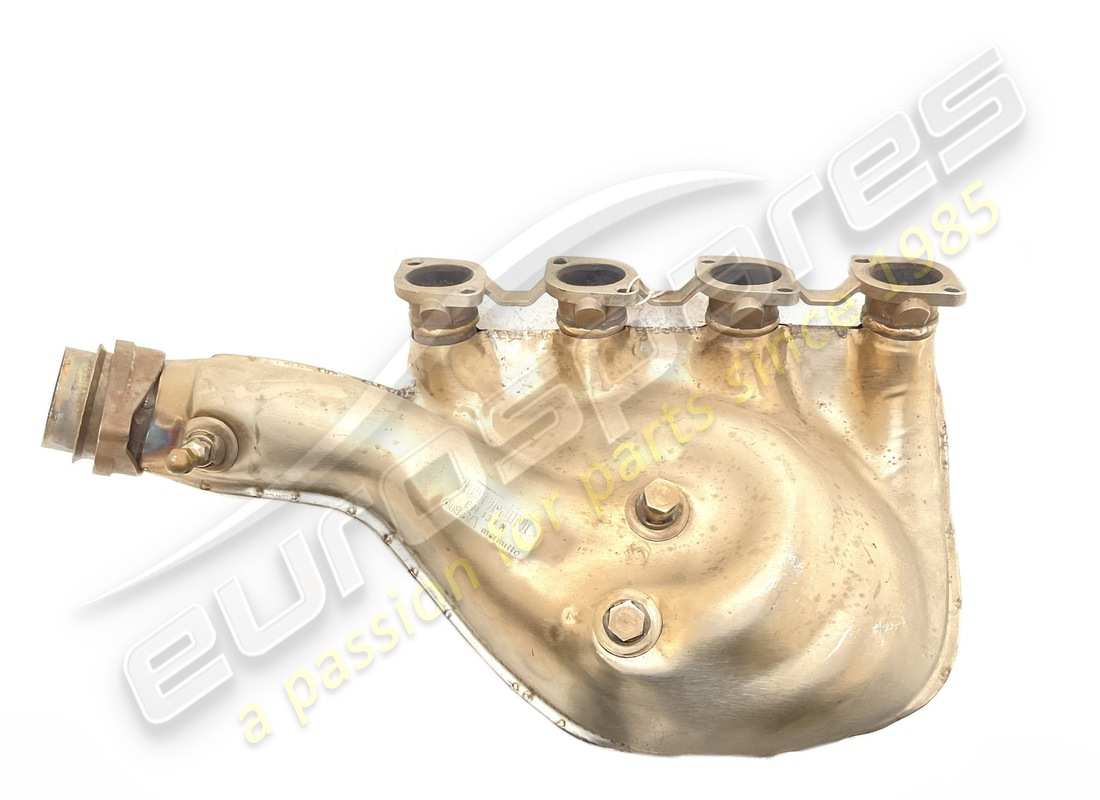

                                                                                RH EXHAUST MANIFOLD
                                                                                -Valid for USA,CDN and J
                                                                                from £3,398.91
                                                                                from £3,398.91
                                                                                # 001
                                                                                MPN: 184394
                                                                                LH EXHAUST MANIFOLD
                                                                                -Valid for USA, CDN and J
                                                                                from £3,398.91
                                                                                from £3,398.91
                                                                                # 001
                                                                                MPN: 189665
                                                                                RH EXHAUST MANIFOLD
                                                                                -Not for USA, CDN and J
                                                                                from £931.37
                                                                                from £931.37
                                                                                # 001
                                                                                MPN: 189666
                                                                                LH EXHAUST MANIFOLD
                                                                                -Not for USA, CDN and J
                                                                                from £931.37
                                                                                from £931.37
                                                                                # 002
                                                                                MPN: 10725914
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10725911 - and 1 more. Click to view details
                                                                                # 003
                                                                                MPN: 14498804
                                                                                WASHER
                                                                                from £0.71
                                                                                from £0.71
                                                                                # 004
                                                                                MPN: 144240
                                                                                THREADED UNION
                                                                                from £17.15
                                                                                from £17.15
                                                                                # 005
                                                                                MPN: 150595
                                                                                CAP NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 16109642

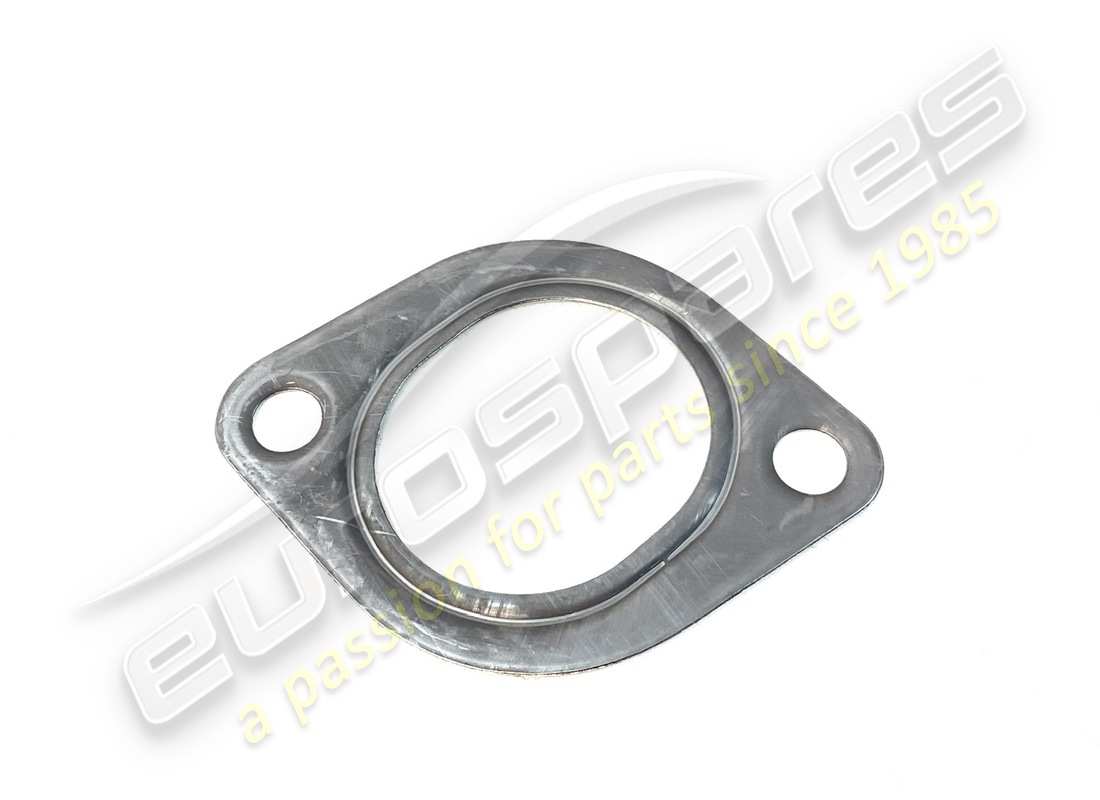

                                                                                # 006
                                                                                MPN: 151064
                                                                                GASKET
                                                                                from £3.22
                                                                                from £3.22
                                                                                # 007
                                                                                MPN: 138392
                                                                                NUT
                                                                                (minimum order quantity = 25)
                                                                                from £0.58
                                                                                from £0.58
                                                                                # 008
                                                                                MPN: 114748
                                                                                NUT
                                                                                from £9.07
                                                                                from £9.07
                                                                                # 009
                                                                                MPN: 159914
                                                                                GASKET
                                                                                from £10.50
                                                                                from £10.50
                                                                                # 010
                                                                                MPN: 181966
                                                                                RH CATALYST
                                                                                -Valid for USA, CDN e J
                                                                                from £6,261.75
                                                                                from £6,261.75
                                                                                # 010
                                                                                MPN: 199064
                                                                                RH CATALYST
                                                                                -Not for USA, CDN and J
                                                                                from £3,607.91
                                                                                from £3,607.91
                                                                                # 011
                                                                                MPN: 181967
                                                                                LH CATALYST
                                                                                -Valid for USA, CDN and J
                                                                                from £3,875.19
                                                                                from £3,875.19
                                                                                # 011
                                                                                MPN: 199065
                                                                                LH CATALYST
                                                                                -Not for USA, CDN and J
                                                                                from £3,607.91
                                                                                from £3,607.91

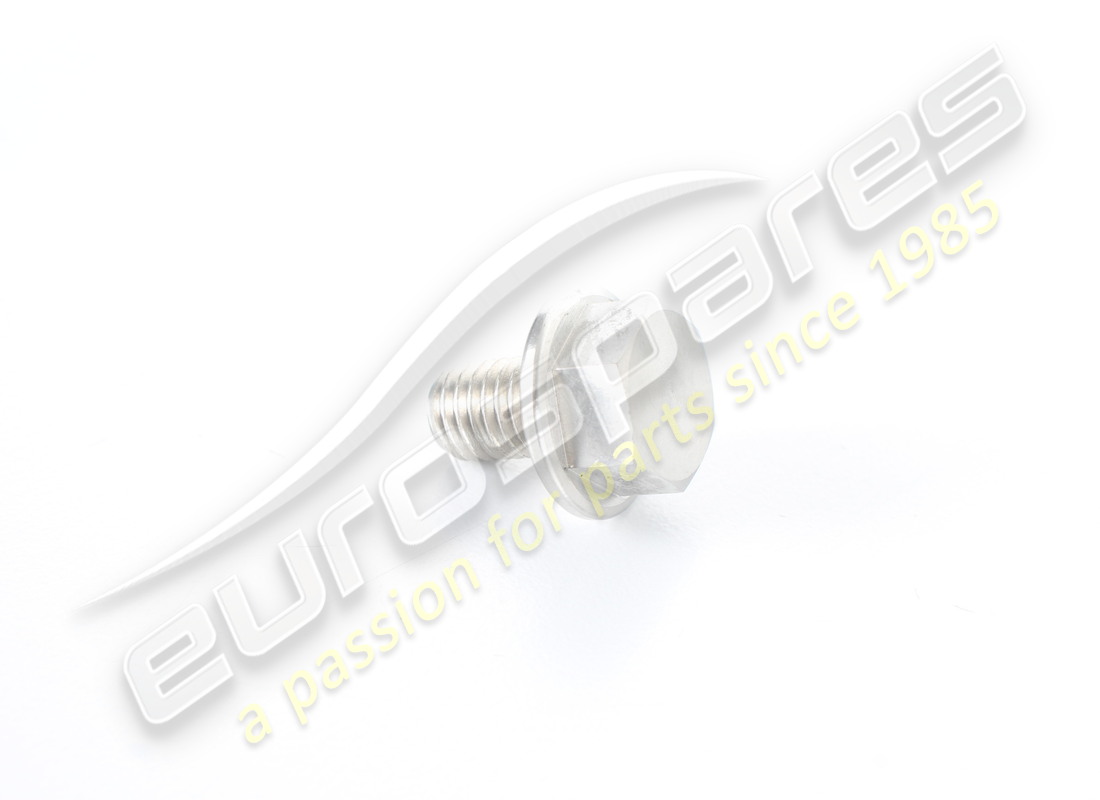

                                                                                # 012
                                                                                MPN: 16044834
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 013
                                                                                MPN: 12646778
                                                                                WASHER
                                                                                from £0.52
                                                                                from £0.52
                                                                                This part replaces part number 156093
                                                                                # 014
                                                                                MPN: 114749
                                                                                SPACER
                                                                                from £1.24
                                                                                from £1.24
                                                                                # 015
                                                                                MPN: 111743
                                                                                SPRING
                                                                                from £6.91
                                                                                from £6.91
                                                                                # 016
                                                                                MPN: 182837
                                                                                FRONT LAMBDA FEELER
                                                                                from £141.54
                                                                                from £141.54
                                                                                This part replaces part number 178290 - and 1 more. Click to view details
                                                                                # 017
                                                                                MPN: 180915
                                                                                REAR LAMBDA FEELER
                                                                                from £26.25
                                                                                from £26.25
                                                                                This part replaces part number 177674 - and 2 more. Click to view details
                                                                                # 018
                                                                                MPN: 199901
                                                                                CONNECTOR FIXING BRACKET
                                                                                from £5.66
                                                                                from £5.66
                                                                                # 019
                                                                                MPN: 193467
                                                                                THERMOCOUPLE
                                                                                from £140.02
                                                                                from £140.02
                                                                                This part replaces part number 168824 which we have in stock
                                                                                # 020
                                                                                MPN: 179278
                                                                                CATALYST TEMPERATURE CONTROL STATION
                                                                                from £316.50
                                                                                from £316.50
                                                                                This part replaces part number 173533
                                                                                # 021
                                                                                MPN: 15210824
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 022
                                                                                MPN: 10519224
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10519201
                                                                                # 023
                                                                                MPN: 195811

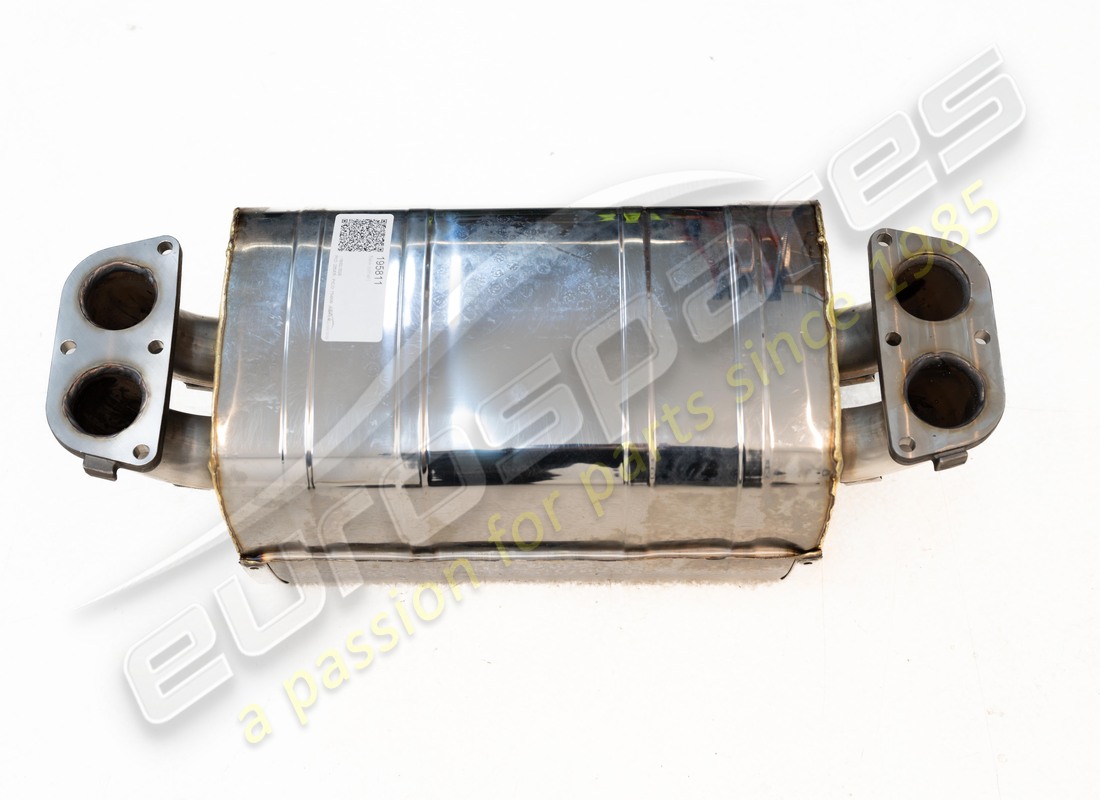

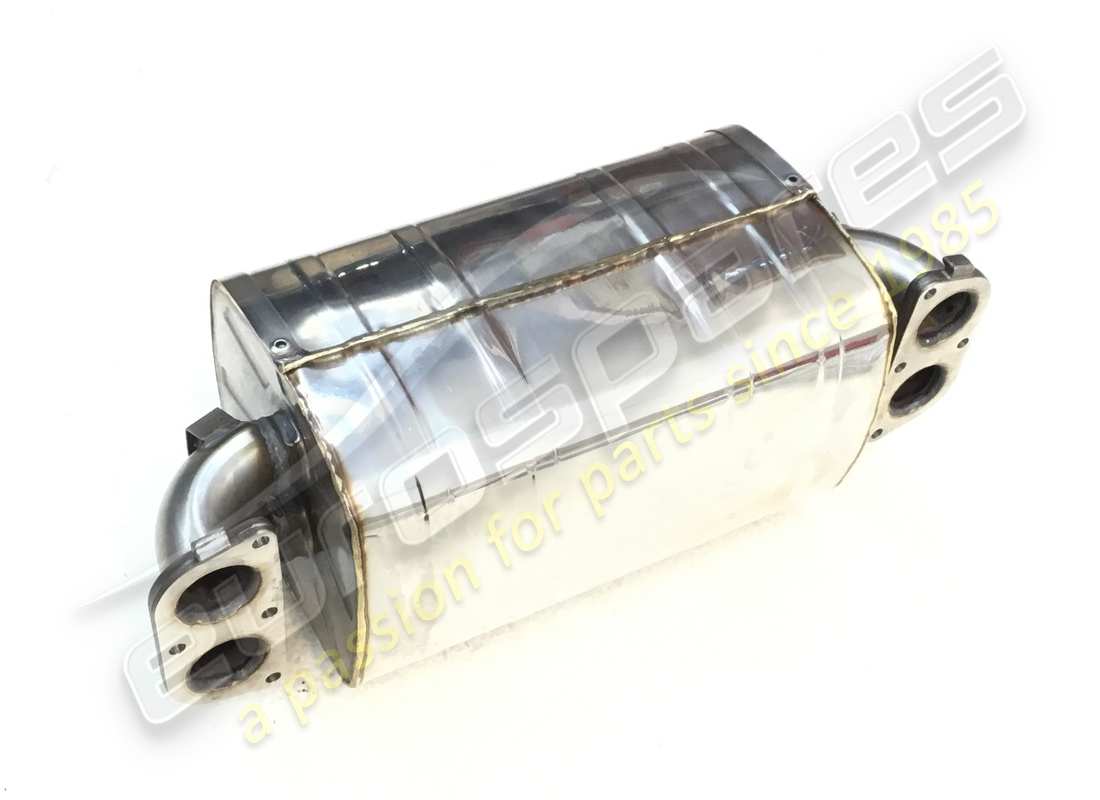

                                                                                COMPLETE EXHAUST SILENCER
                                                                                from £1,841.30
                                                                                from £1,841.30
                                                                                # 024
                                                                                MPN: 177612
                                                                                GASKET
                                                                                from £32.04
                                                                                from £32.04
                                                                                # 025
                                                                                MPN: 199061
                                                                                COMPLETE LH OUTLET PIPE
                                                                                -Valid till Ass. Nr. 53910 for AUS
                                                                                from £1,139.50
                                                                                from £1,139.50
                                                                                # 025
                                                                                MPN: 212938
                                                                                COMPLETE LH OUTLET PIPE
                                                                                -Valid from Ass. Nr. 53911 for AUS
                                                                                from £1,515.17
                                                                                from £1,515.17
                                                                                # 026
                                                                                MPN: 199060
                                                                                COMPLETE RH OUTLET PIPE
                                                                                -Valid till Ass. Nr. 53910 for AUS
                                                                                from £1,139.50
                                                                                from £1,139.50
                                                                                # 026
                                                                                MPN: 212937
                                                                                COMPLETE RH OUTLET PIPE
                                                                                -Valid from Ass. Nr. 53911 for AUS
                                                                                from £2,056.52
                                                                                from £2,056.52

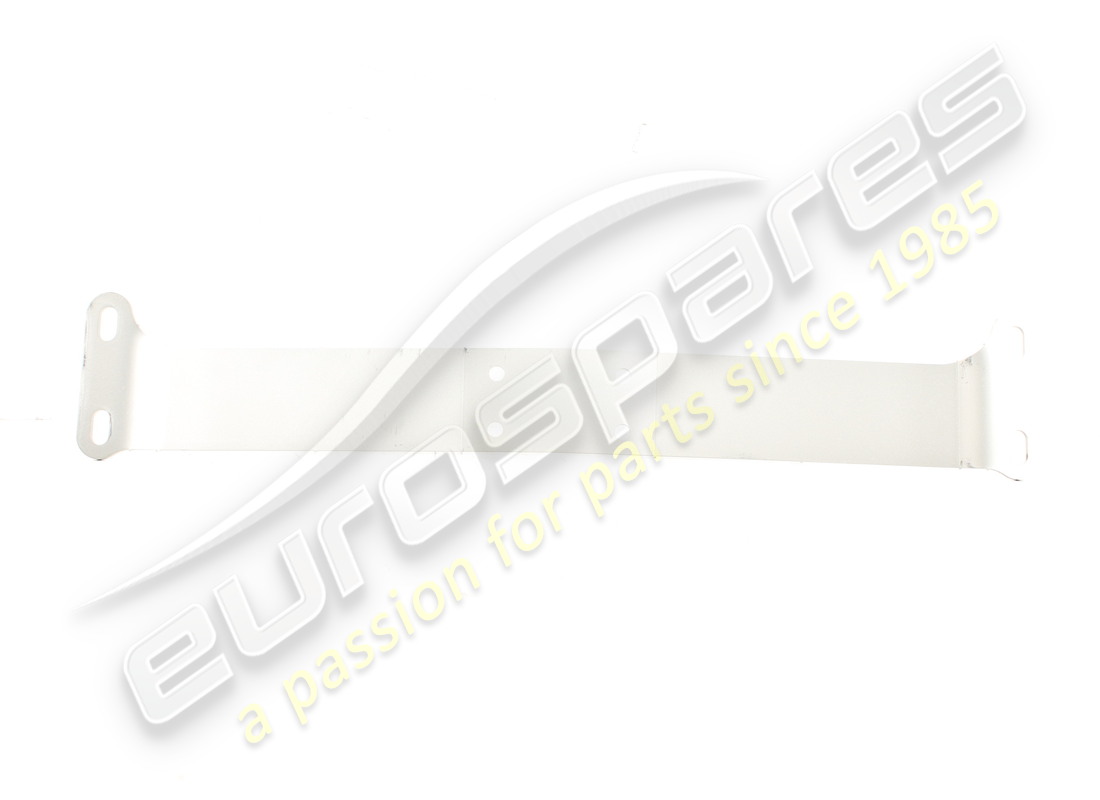

                                                                                # 027
                                                                                MPN: 195803
                                                                                SILENCER SUPPORT EXHAUST SIDE
                                                                                from £151.46
                                                                                from £151.46
                                                                                # 028
                                                                                MPN: 16043324
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 16043321
                                                                                # 029
                                                                                MPN: 127496
                                                                                WASHER
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                # 030
                                                                                MPN: 16100824
                                                                                NUT
                                                                                from £0.51
                                                                                from £0.51
                                                                                This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                # 031
                                                                                MPN: 212691
                                                                                SILENCER SUPPORT GEAR SIDE
                                                                                from £85.37
                                                                                from £85.37
                                                                                This part replaces part number 181383 - and 1 more. Click to view details
                                                                                # 032
                                                                                MPN: 16043434
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 13825824 - and 1 more. Click to view details
                                                                                # 033
                                                                                MPN: 16100824
                                                                                NUT
                                                                                from £0.51
                                                                                from £0.51
                                                                                This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                # 034
                                                                                MPN: 196339
                                                                                RH SHIELD
                                                                                from £205.72
                                                                                from £205.72
                                                                                This part replaces part number 176286
                                                                                # 034
                                                                                MPN: 196340
                                                                                LH SHIELD
                                                                                from £201.90
                                                                                from £201.90
                                                                                This part replaces part number 176374 which we have in stock
                                                                                # 035
                                                                                MPN: 12625224
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12625201 which we have in stock - and 2 more. Click to view details
                                                                                # 035
                                                                                MPN: 12643724
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                                # 036
                                                                                MPN: 10902324
                                                                                SCREW
                                                                                -M6x18
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                # 036
                                                                                MPN: 16043324
                                                                                SCREW
                                                                                -M8x18
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 16043321
                                                                                # 037
                                                                                MPN: 16043534
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 16043521 which we have in stock - and 1 more. Click to view details
                                                                                # 038
                                                                                MPN: 12646778
                                                                                WASHER
                                                                                from £0.52
                                                                                from £0.52
                                                                                This part replaces part number 156093
                                                                                # 039
                                                                                MPN: 127496
                                                                                WASHER
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                # 040
                                                                                MPN: 179808
                                                                                NUT
                                                                                from £0.48
                                                                                from £0.48
                                                                                This part replaces part number 124525
                                                                                # 041
                                                                                MPN: 195711
                                                                                LH BRACKET
                                                                                -Not as SPARE PART - Replaced by 201156
                                                                                Supersession
                                                                                Supersession
                                                                                # 041
                                                                                MPN: 195715
                                                                                RH BRACKET
                                                                                -Not as SPARE PART - Replaced by 201155
                                                                                Supersession
                                                                                Supersession
                                                                                # 041
                                                                                MPN: 201155
                                                                                RH BRACKET
                                                                                from £97.93
                                                                                from £97.93
                                                                                This part replaces part number 195715
                                                                                # 041
                                                                                MPN: 201156
                                                                                LH BRACKET
                                                                                from £97.93
                                                                                from £97.93
                                                                                This part replaces part number 195711
                                                                                # 042
                                                                                MPN: 10441390
                                                                                BRACKET WITH SHEATH
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 043
                                                                                MPN: 178366
                                                                                CONNECTORS FIXING BRACKET
                                                                                from £2.31
                                                                                from £2.31
                                                                                # 044
                                                                                MPN: 14059211
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 045
                                                                                MPN: 10440990
                                                                                BRACKET WITH SHEATH
                                                                                from £0.77
                                                                                from £0.77
                                                                                # 046
                                                                                MPN: 203904
                                                                                PROTECTION FOR MUFFLER
                                                                                from £198.73
                                                                                from £198.73
                                                                                # 047
                                                                                MPN: 206161
                                                                                SCREW
                                                                                from £14.73
                                                                                from £14.73
                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
