ferrari 360 challenge (2000) doors - framework and coverings - opening control and hinges parts diagram

111 - Doors - Framework and Coverings - Opening Control and Hinges

Ferrari 360 Challenge (2000) Doors - Framework and Coverings - Opening Control and Hinges Parts Diagram

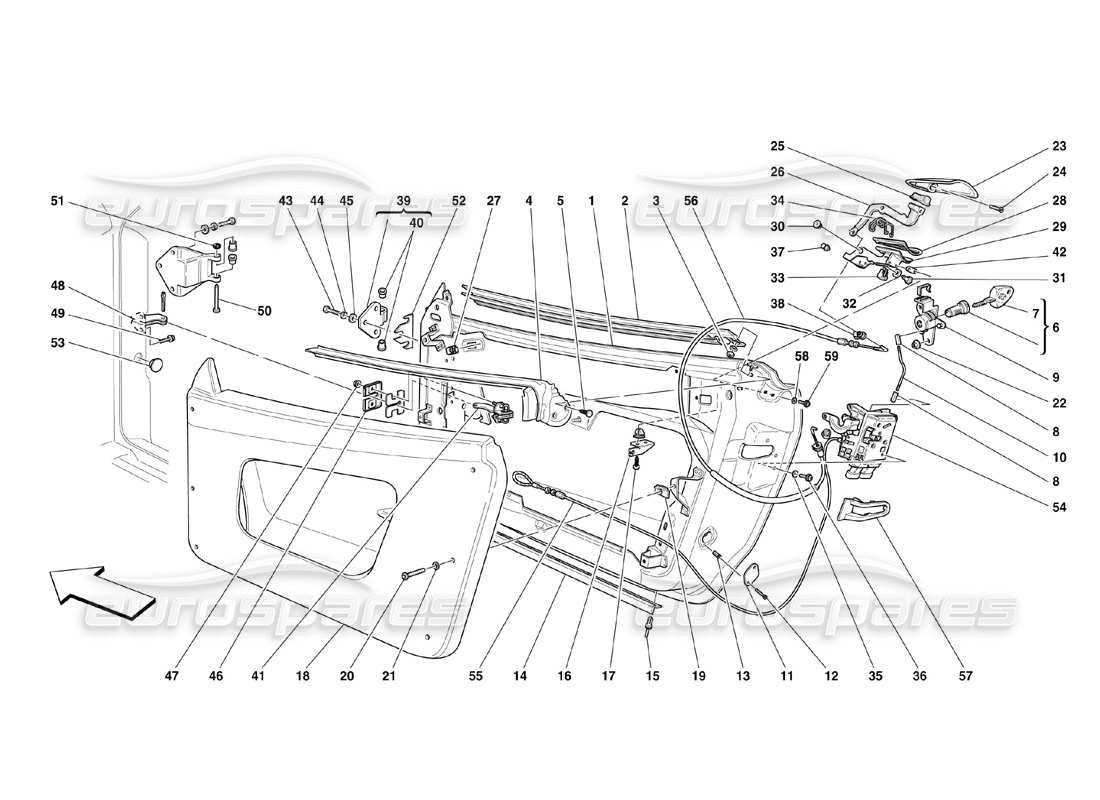

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                        #
                                                                                                                        Part number
                                                                                                                        Description
                                                                                                                        Price
                                                                                                                        # 001
                                                                                                                        MPN: 66144100
                                                                                                                        LH DOOR FRAME
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 001
                                                                                                                        MPN: 66144511
                                                                                                                        RH DOOR FRAME
                                                                                                                        from £2,417.16
                                                                                                                        from £2,417.16
                                                                                                                        This part replaces part number 66144500
                                                                                                                        # 002
                                                                                                                        MPN: 65164400
                                                                                                                        RH GASKET OUTER GLASS SCRAPER
                                                                                                                        from £151.78
                                                                                                                        from £151.78
                                                                                                                        # 002
                                                                                                                        MPN: 65164500
                                                                                                                        LH GASKET OUTER GLASS SCRAPER
                                                                                                                        from £151.78
                                                                                                                        from £151.78
                                                                                                                        # 003
                                                                                                                        MPN: 14042177
                                                                                                                        NUT
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        # 004
                                                                                                                        MPN: 65544600
                                                                                                                        RH GASKET INNER GLASS SCRAPER
                                                                                                                        from £215.63
                                                                                                                        from £215.63
                                                                                                                        # 004
                                                                                                                        MPN: 65544700
                                                                                                                        LH GASKET INNER GLASS SCRAPER
                                                                                                                        from £215.55
                                                                                                                        from £215.55
                                                                                                                        # 005
                                                                                                                        MPN: 14591687
                                                                                                                        FIXING BUTTON
                                                                                                                        from £0.29
                                                                                                                        from £0.29
                                                                                                                        This part replaces part number 69767700 - and 1 more. Click to view details
                                                                                                                        # 006

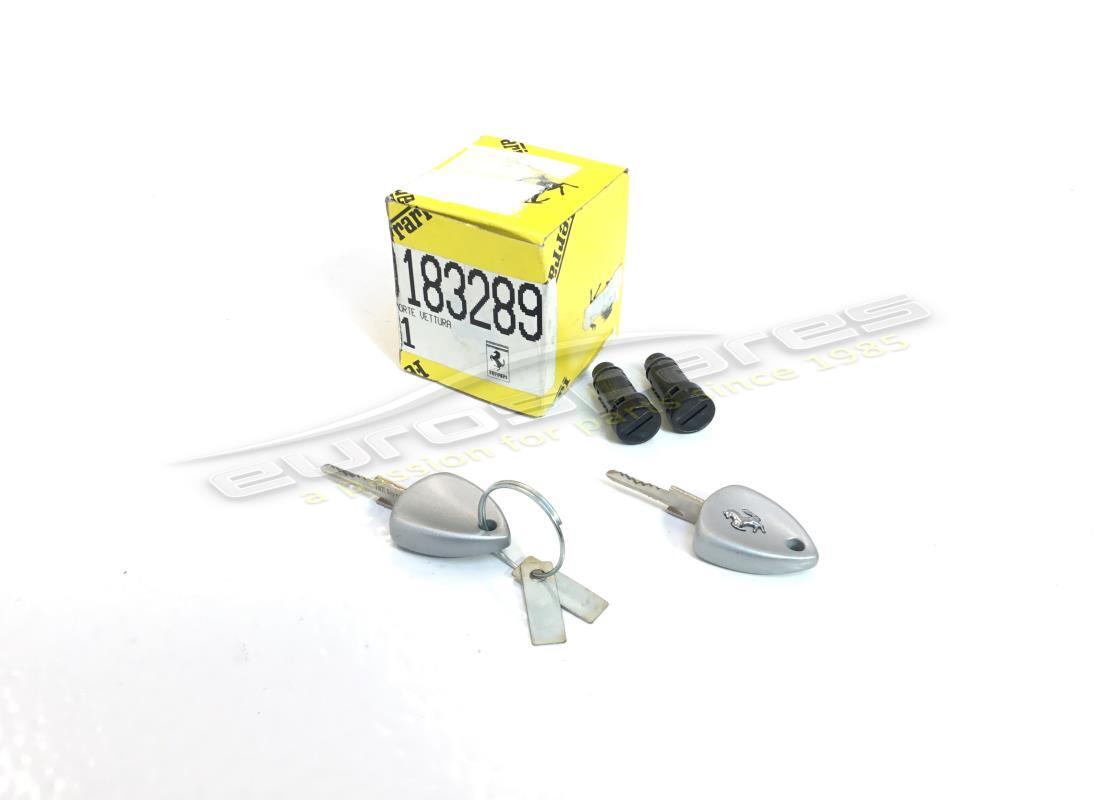

                                                                                                                        MPN: 183289
                                                                                                                        LOCKS SET COMPLETED WITH KEY
                                                                                                                        from £995.00
                                                                                                                        from £995.00
                                                                                                                        This part replaces part number 222628
                                                                                                                        # 007
                                                                                                                        MPN: 183474
                                                                                                                        BLANK KEY
                                                                                                                        from £117.80
                                                                                                                        from £117.80
                                                                                                                        # 008
                                                                                                                        MPN: 62794000
                                                                                                                        FLEXIBLE JOINT
                                                                                                                        from £0.73
                                                                                                                        from £0.73
                                                                                                                        # 009
                                                                                                                        MPN: 65839400
                                                                                                                        RH DOOR LOCK BLOCK
                                                                                                                        from £91.53
                                                                                                                        from £91.53
                                                                                                                        # 009
                                                                                                                        MPN: 65839500
                                                                                                                        LH DOOR LOCK BLOCK
                                                                                                                        from £91.53
                                                                                                                        from £91.53
                                                                                                                        # 010
                                                                                                                        MPN: 65836500
                                                                                                                        SAFETY TIE ROD
                                                                                                                        from £31.92
                                                                                                                        from £31.92
                                                                                                                        # 011
                                                                                                                        MPN: 182531
                                                                                                                        PLUG
                                                                                                                        from £2.06
                                                                                                                        from £2.06
                                                                                                                        # 012
                                                                                                                        MPN: 15901570
                                                                                                                        SCREW
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 013
                                                                                                                        MPN: 65704200
                                                                                                                        FIXING CLIP
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 014
                                                                                                                        MPN: 64855600
                                                                                                                        GASKET
                                                                                                                        from £34.55
                                                                                                                        from £34.55
                                                                                                                        # 015
                                                                                                                        MPN: 62764000
                                                                                                                        RIVET
                                                                                                                        from £0.50
                                                                                                                        from £0.50
                                                                                                                        # 016
                                                                                                                        MPN: 65546400
                                                                                                                        RH BRACKET
                                                                                                                        from £1.65
                                                                                                                        from £1.65
                                                                                                                        # 016
                                                                                                                        MPN: 65547800
                                                                                                                        LH BRACKET
                                                                                                                        from £1.65
                                                                                                                        from £1.65
                                                                                                                        # 017
                                                                                                                        MPN: 15644075
                                                                                                                        SCREW
                                                                                                                        from £1.01
                                                                                                                        from £1.01
                                                                                                                        This part replaces part number 15644078
                                                                                                                        # 018
                                                                                                                        MPN: 65980900
                                                                                                                        RH COVERED DOOR PANEL
                                                                                                                        from £1,287.54
                                                                                                                        from £1,287.54
                                                                                                                        # 018
                                                                                                                        MPN: 65981000
                                                                                                                        LH COVERED DOOR PANEL
                                                                                                                        from £700.78
                                                                                                                        from £700.78
                                                                                                                        # 019
                                                                                                                        MPN: 14190290
                                                                                                                        NUT
                                                                                                                        from £0.68
                                                                                                                        from £0.68
                                                                                                                        # 020
                                                                                                                        MPN: 60815200
                                                                                                                        SCREW
                                                                                                                        from £1.35
                                                                                                                        from £1.35
                                                                                                                        # 021
                                                                                                                        MPN: 12638104
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 022
                                                                                                                        MPN: 13046011
                                                                                                                        NUT
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 023
                                                                                                                        MPN: 63576010
                                                                                                                        RH OUTER DOOR HANDLE
                                                                                                                        from £63.03
                                                                                                                        from £63.03
                                                                                                                        This part replaces part number 63576069 - and 63 more. Click to view details
                                                                                                                        # 023
                                                                                                                        MPN: 63576110
                                                                                                                        LH OUTER DOOR HANDLE
                                                                                                                        from £63.03
                                                                                                                        from £63.03
                                                                                                                        This part replaces part number 63576169 - and 63 more. Click to view details
                                                                                                                        # 024
                                                                                                                        MPN: 13309277
                                                                                                                        SCREW
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 13309211
                                                                                                                        # 025
                                                                                                                        MPN: 64861100
                                                                                                                        RH INNER GASKET
                                                                                                                        from £5.24
                                                                                                                        from £5.24
                                                                                                                        # 025
                                                                                                                        MPN: 64861200
                                                                                                                        LH INNER GASKET
                                                                                                                        from £5.24
                                                                                                                        from £5.24
                                                                                                                        # 026
                                                                                                                        MPN: 64860600
                                                                                                                        LEVER
                                                                                                                        from £34.52
                                                                                                                        from £34.52
                                                                                                                        # 027
                                                                                                                        MPN: 14190190
                                                                                                                        NUT
                                                                                                                        from £1.14
                                                                                                                        from £1.14
                                                                                                                        # 028
                                                                                                                        MPN: 64860900
                                                                                                                        RH HANDLE GASKET
                                                                                                                        from £48.05
                                                                                                                        from £48.05
                                                                                                                        # 028
                                                                                                                        MPN: 64861000
                                                                                                                        LH HANDLE GASKET
                                                                                                                        from £48.05
                                                                                                                        from £48.05
                                                                                                                        # 029
                                                                                                                        MPN: 64860410
                                                                                                                        RH HANDLE SEAT
                                                                                                                        from £29.18
                                                                                                                        from £29.18
                                                                                                                        This part replaces part number 64860469 - and 47 more. Click to view details
                                                                                                                        # 029
                                                                                                                        MPN: 64860510
                                                                                                                        LH HANDLE SEAT
                                                                                                                        from £29.18
                                                                                                                        from £29.18
                                                                                                                        This part replaces part number 64860569 - and 47 more. Click to view details
                                                                                                                        # 030
                                                                                                                        MPN: 65398700
                                                                                                                        BUSHING
                                                                                                                        from £15.81
                                                                                                                        from £15.81
                                                                                                                        # 031
                                                                                                                        MPN: 64860800
                                                                                                                        PIN
                                                                                                                        from £25.26
                                                                                                                        from £25.26
                                                                                                                        # 032
                                                                                                                        MPN: 65520700
                                                                                                                        WASHER
                                                                                                                        from £3.34
                                                                                                                        from £3.34
                                                                                                                        # 033
                                                                                                                        MPN: 65398600
                                                                                                                        GUIDE
                                                                                                                        from £11.59
                                                                                                                        from £11.59
                                                                                                                        # 034
                                                                                                                        MPN: 64860700
                                                                                                                        SPRING FOR HANDLE
                                                                                                                        from £7.95
                                                                                                                        from £7.95
                                                                                                                        # 035
                                                                                                                        MPN: 65545900
                                                                                                                        WASHER
                                                                                                                        from £1.72
                                                                                                                        from £1.72
                                                                                                                        This part replaces part number 86211600
                                                                                                                        # 036
                                                                                                                        MPN: 66207700
                                                                                                                        SCREW
                                                                                                                        from £1.37
                                                                                                                        from £1.37
                                                                                                                        This part replaces part number 10558628
                                                                                                                        # 037
                                                                                                                        MPN: 63853400
                                                                                                                        RUBBER PAD
                                                                                                                        from £2.50
                                                                                                                        from £2.50
                                                                                                                        # 038
                                                                                                                        MPN: 14578180
                                                                                                                        CLIP
                                                                                                                        from £9.87
                                                                                                                        from £9.87
                                                                                                                        This part replaces part number 14578283 - and 1 more. Click to view details
                                                                                                                        # 039
                                                                                                                        MPN: 64803300
                                                                                                                        MOBILE HINGE
                                                                                                                        from £72.94
                                                                                                                        from £72.94
                                                                                                                        # 040
                                                                                                                        MPN: 62825300
                                                                                                                        BUSHING
                                                                                                                        from £18.10
                                                                                                                        from £18.10
                                                                                                                        # 041
                                                                                                                        MPN: 65195200
                                                                                                                        TIE ROD
                                                                                                                        from £171.98
                                                                                                                        from £171.98
                                                                                                                        This part replaces part number 63896900 - and 1 more. Click to view details
                                                                                                                        # 042
                                                                                                                        MPN: 65547500
                                                                                                                        SPACER
                                                                                                                        from £0.76
                                                                                                                        from £0.76
                                                                                                                        # 043
                                                                                                                        MPN: 16043934
                                                                                                                        SCREW
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 16043921 - and 1 more. Click to view details
                                                                                                                        # 044
                                                                                                                        MPN: 10571779
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 045
                                                                                                                        MPN: 14496578
                                                                                                                        WASHER
                                                                                                                        from £0.50
                                                                                                                        from £0.50
                                                                                                                        This part replaces part number 14496506 - and 1 more. Click to view details
                                                                                                                        # 046
                                                                                                                        MPN: 63895200
                                                                                                                        RH PLATE
                                                                                                                        from £9.04
                                                                                                                        from £9.04
                                                                                                                        This part replaces part number 63895400 - and 1 more. Click to view details
                                                                                                                        # 046
                                                                                                                        MPN: 63895300
                                                                                                                        LH PLATE
                                                                                                                        from £16.44
                                                                                                                        from £16.44
                                                                                                                        This part replaces part number 63895500
                                                                                                                        # 047
                                                                                                                        MPN: 14059211
                                                                                                                        NUT
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 048
                                                                                                                        MPN: 65880400
                                                                                                                        RH BRACKET
                                                                                                                        from £71.40
                                                                                                                        from £71.40
                                                                                                                        # 048
                                                                                                                        MPN: 65886100
                                                                                                                        LH BRACKET
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 049
                                                                                                                        MPN: 18770124
                                                                                                                        SCREW
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 050
                                                                                                                        MPN: 64803400
                                                                                                                        PIN
                                                                                                                        from £21.04
                                                                                                                        from £21.04
                                                                                                                        # 051
                                                                                                                        MPN: 11087974
                                                                                                                        FLEXIBLE RING
                                                                                                                        from £0.48
                                                                                                                        from £0.48
                                                                                                                        This part replaces part number 11087976
                                                                                                                        # 052
                                                                                                                        MPN: 65713400
                                                                                                                        THICKNESS
                                                                                                                        from £1.38
                                                                                                                        from £1.38
                                                                                                                        # 053
                                                                                                                        MPN: 66154100
                                                                                                                        RUBBER PLUG
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 054
                                                                                                                        MPN: 68993100
                                                                                                                        RH DOOR LOCK WITH CABLES WITH EXTERNAL LOCKING
                                                                                                                        from £175.94
                                                                                                                        from £175.94
                                                                                                                        This part replaces part number 65836100
                                                                                                                        # 054
                                                                                                                        MPN: 68993200
                                                                                                                        LH DOOR LOCK WITH CABLES WITH EXTERNAL LOCKING
                                                                                                                        from £175.94
                                                                                                                        from £175.94
                                                                                                                        This part replaces part number 65836200
                                                                                                                        # 054
                                                                                                                        MPN: 69998000
                                                                                                                        RH DOOR LOCK WITH CABLES WITHOUT EXTERNAL LOCKING
                                                                                                                        from £175.13
                                                                                                                        from £175.13
                                                                                                                        # 055
                                                                                                                        MPN: 66125600
                                                                                                                        RH DOOR OPENING INNER CABLE
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 055
                                                                                                                        MPN: 66126000
                                                                                                                        LH DOOR OPENING INNER CABLE
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 056
                                                                                                                        MPN: 68602600
                                                                                                                        DOOR OPENING OUTER CABLE
                                                                                                                        from £15.95
                                                                                                                        from £15.95
                                                                                                                        This part replaces part number 65068400
                                                                                                                        # 057
                                                                                                                        MPN: 65705000
                                                                                                                        RH PLATE
                                                                                                                        from £8.11
                                                                                                                        from £8.11
                                                                                                                        # 057
                                                                                                                        MPN: 65717800
                                                                                                                        LH PLATE
                                                                                                                        from £8.62
                                                                                                                        from £8.62
                                                                                                                        # 058
                                                                                                                        MPN: 14446978
                                                                                                                        WASHER
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        # 059
                                                                                                                        MPN: 66207700
                                                                                                                        SCREW
                                                                                                                        from £1.41
                                                                                                                        from £1.41
                                                                                                                        This part replaces part number 10558628
