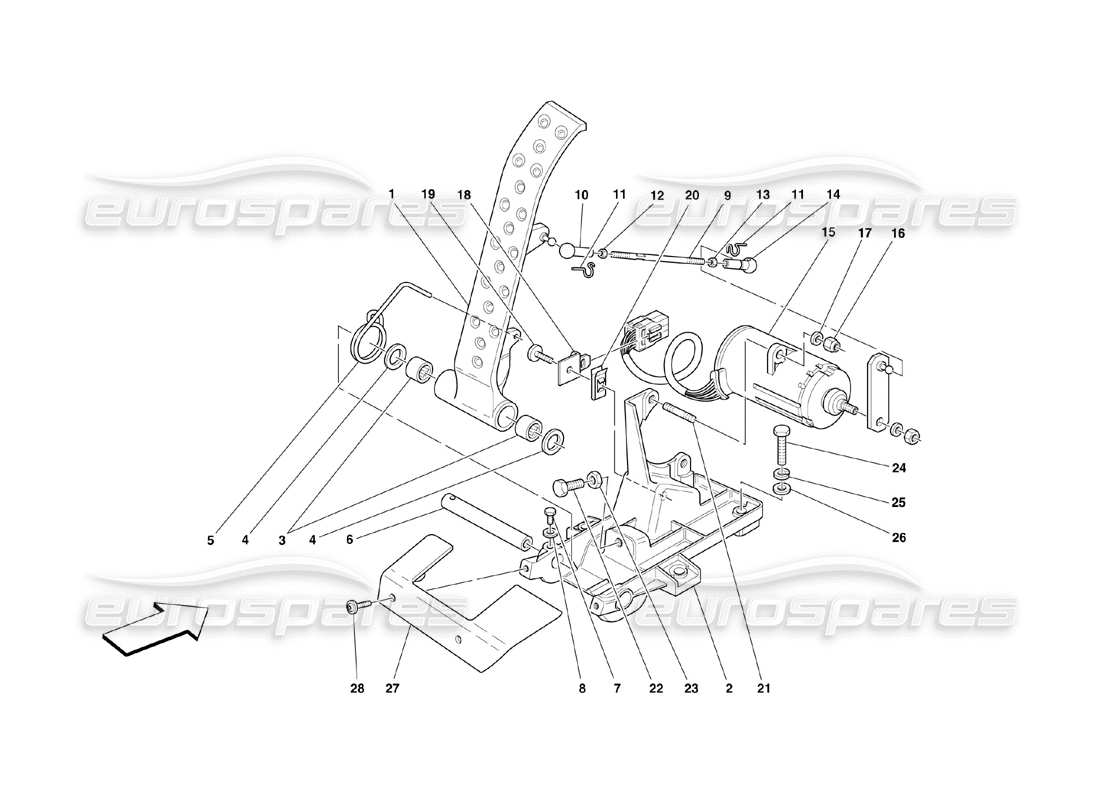

014 - Electronic Accelerator Pedal

Ferrari 360 Challenge (2000) Electronic Accelerator Pedal Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 180220
                                                      Accelerator Pedal
                                                      from £73.99
                                                      from £73.99
                                                      # 002
                                                      MPN: 171464
                                                      ACCELERATOR PEDAL SUPPORT
                                                      Supersession
                                                      Supersession
                                                      # 003
                                                      MPN: 101677
                                                      ROLLER BEARING
                                                      from £2.04
                                                      from £2.04
                                                      # 004
                                                      MPN: 157115
                                                      WASHER
                                                      from £1.43
                                                      from £1.43
                                                      # 005
                                                      MPN: 175351
                                                      RETUTN SPRING FOR PEDAL
                                                      from £2.18
                                                      from £2.18
                                                      # 007
                                                      MPN: 10977524
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      # 008
                                                      MPN: 12601174
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
                                                      # 009
                                                      MPN: 171466
                                                      PUSH ROD
                                                      from £1.53
                                                      from £1.53
                                                      # 010
                                                      MPN: 173999
                                                      RH THREAD THROTTLE BALL JOINT
                                                      from £4.15
                                                      from £4.15
                                                      This part replaces part number 105617
                                                      # 011
                                                      MPN: 174001
                                                      CLIP
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 10124776 - and 1 more. Click to view details
                                                      # 012
                                                      MPN: 15896470
                                                      NUT
                                                      (minimum order quantity = 20)
                                                      from £0.76
                                                      from £0.76
                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                      # 013
                                                      MPN: 105586
                                                      LH THREAD NUT
                                                      from £4.65
                                                      from £4.65
                                                      # 014
                                                      MPN: 174000
                                                      BALL JOINT HEAD
                                                      from £3.61
                                                      from £3.61
                                                      This part replaces part number 10123911
                                                      # 016
                                                      MPN: 102948
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                      # 017
                                                      MPN: 10519424
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                      # 018
                                                      MPN: 170925
                                                      BRACKET FOR CONNECTOR FIXING
                                                      from £1.83
                                                      from £1.83
                                                      # 019
                                                      MPN: 14071911
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 020
                                                      MPN: 14371274
                                                      BRACKET
                                                      from £0.64
                                                      from £0.64
                                                      # 021
                                                      MPN: 11500324
                                                      STUD
                                                      from £0.68
                                                      from £0.68
                                                      This part replaces part number 11500321
                                                      # 023
                                                      MPN: 16102314
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                      # 024
                                                      MPN: 10902624
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 10902621
                                                      # 025
                                                      MPN: 127494
                                                      WASHER
                                                      (minimum order quantity = 20)
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                      # 026
                                                      MPN: 14496424
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 14496401 - and 3 more. Click to view details
                                                      # 027
                                                      MPN: 65709100
                                                      ACCELERATOR PEDAL COVER
                                                      from £4.67
                                                      from £4.67
                                                      # 028
                                                      MPN: 65752800
                                                      SCREW
                                                      from £1.14
                                                      from £1.14
                                                      This part replaces part number 294485 - and 1 more. Click to view details
