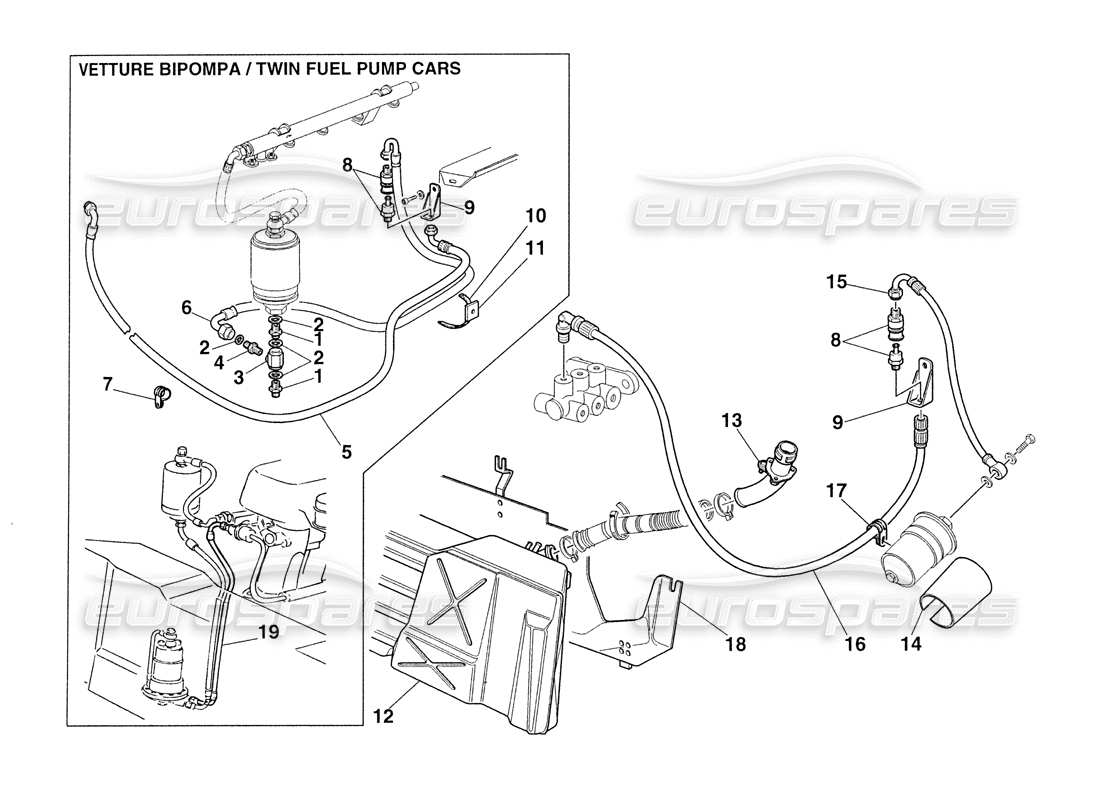

007 - fuel supply system
Ferrari 355 Challenge (1999) Fuel Supply System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 164763
NIPPLE
from £20.91
from £20.91
# 002
MPN: 10280060
COPPER WASHER
from £0.48
from £0.48
This part replaces part number 100501 - and 3 more. Click to view details
# 003
MPN: 164764
T-CONNECTOR
from £99.48
from £99.48
# 004
MPN: 164765
NIPPLE
from £27.28
from £27.28
# 005
MPN: 164767
RIGHT PIPE
from £244.04
from £244.04
# 006
MPN: 164766
LEFT PIPE
from £275.87
from £275.87
# 007
MPN: 10441490
CLAMP
from £0.51
from £0.51
# 008
MPN: 153218
QUICK COUPLING VALVE
from £683.41
from £683.41
# 009
MPN: 164741
VALVE SUPPORTING BRACKET (AFTER EXHAUSTION USE P.NO. 169052)
Supersession
Supersession
# 010
MPN: 163287
PLASTIC CLAMP
from £0.53
from £0.53
# 011
MPN: 163288
CLAMP SUPPORT
from £0.69
from £0.69
# 012
MPN: 171124
FUEL TANK (FOR SINGLE-PUMP CARS)
# 013
MPN: 169066
UNION
from £212.23
from £212.23
# 014
MPN: 174466
FILTER INSULATION
from £62.00
from £62.00
# 015
MPN: 170898
PIPE
from £280.04
from £280.04
# 016
MPN: 170899
PIPE
from £449.23
from £449.23
# 017
MPN: 10450590
CLAMP
from £1.24
from £1.24
# 018
MPN: 153571
SHIELD
from £327.67
from £327.67
# 019
MPN: 172439
RIGHT PIPE
from £136.16
from £136.16
This part replaces part number 157653 - and 1 more. Click to view details
