ferrari 355 challenge (1999) engine supports - chassis and body elements parts diagram

001 - Engine Supports - Chassis and Body Elements

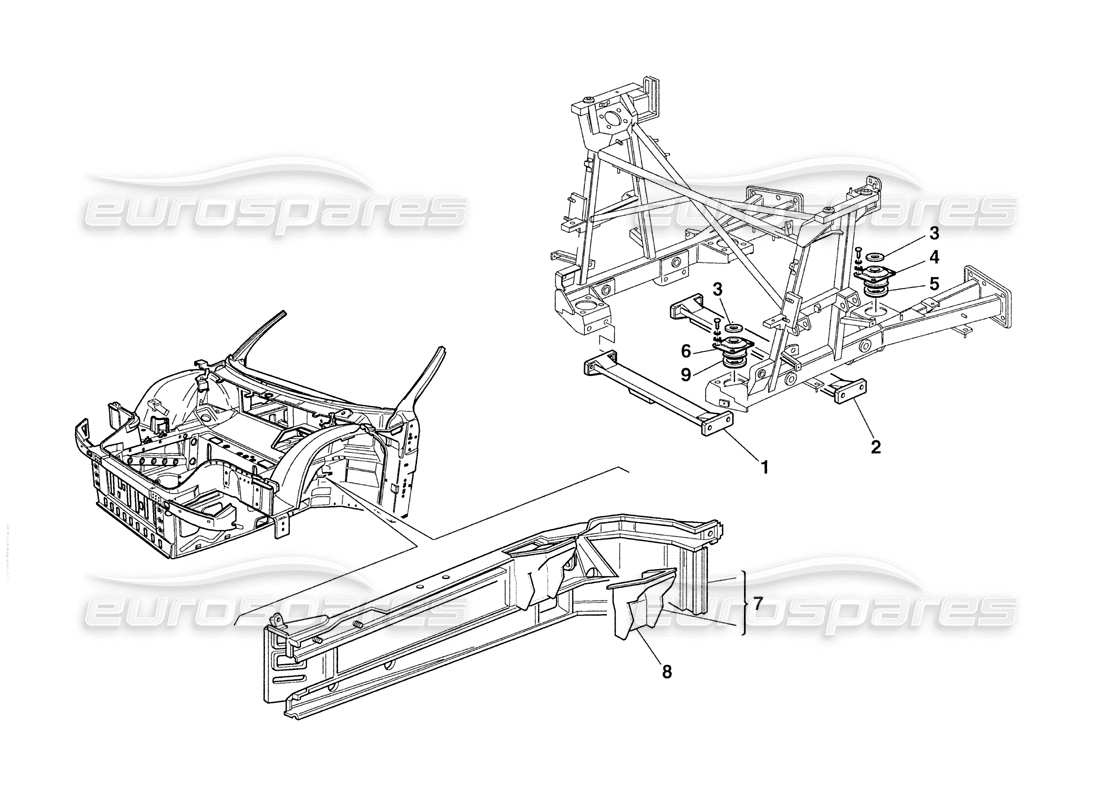

Ferrari 355 Challenge (1999) Engine Supports - Chassis and Body Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 65095200
                    REAR CROSS MEMBER
                    from £524.99
                    from £524.99
                    # 002
                    MPN: 65095100
                    FRONT CROSS MEMBER
                    from £520.38
                    from £520.38
                    # 003
                    MPN: 132268
                    PLATE
                    from £27.45
                    from £27.45
                    This part replaces part number 154996

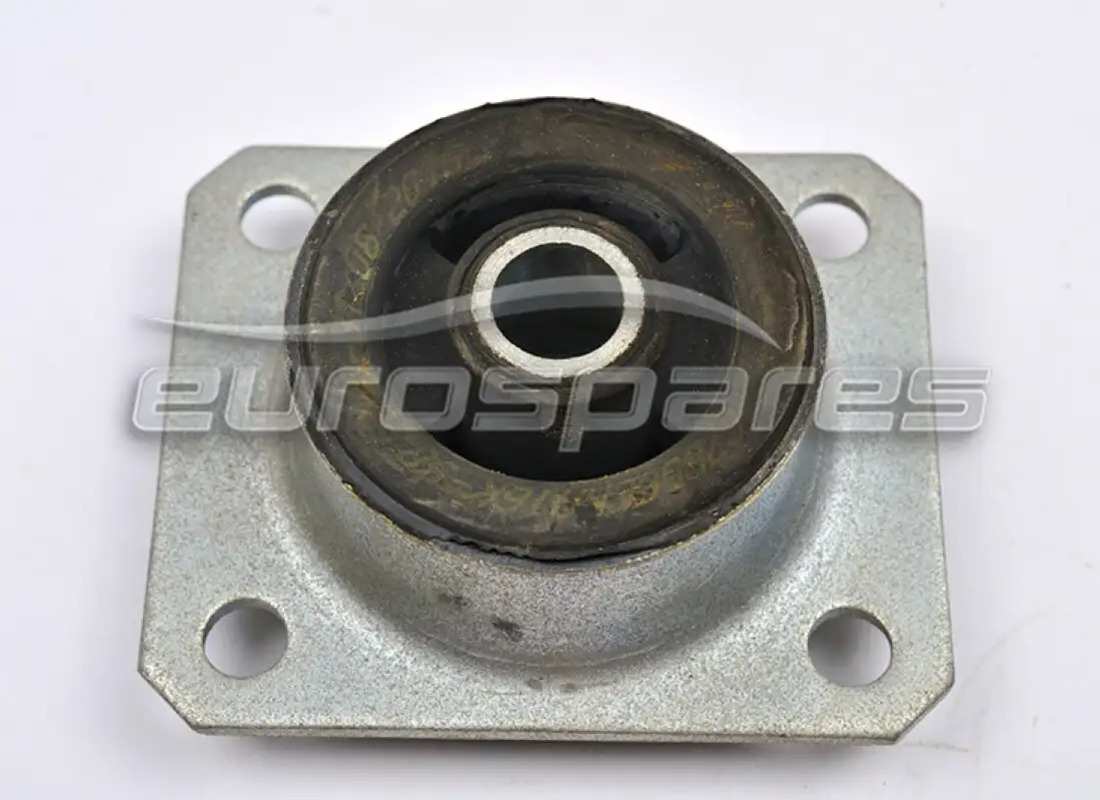

                    # 004
                    MPN: 168358
                    Engine Mount
                    from £68.38
                    from £68.38
                    This part replaces part number 177755
                    # 005
                    MPN: 170189
                    ENGINE SUPPORTING SPACER
                    from £16.46
                    from £16.46
                    # 006
                    MPN: 159423
                    SUPPORT MOUNT
                    from £94.94
                    from £94.94
                    This part replaces part number 155075 - and 1 more. Click to view details
                    # 007
                    MPN: 65128700
                    COMPLETE RIGHT SIDE (FOR LH DRIVE)
                    from £932.73
                    from £932.73
                    # 007
                    MPN: 65128800
                    COMPLETE LEFT SIDE (FOR LH DRIVE)
                    from £493.26
                    from £493.26
                    # 007
                    MPN: 65128900
                    COMPLETE RIGHT SIDE (FOR RH DRIVE)
                    from £470.29
                    from £470.29
                    # 007
                    MPN: 65129000
                    COMPLETE LEFT SIDE (FOR RH DRIVE)
                    from £470.29
                    from £470.29
                    # 008
                    MPN: 65128400
                    RIGHT SHOCK-ABSORBER SUPPORT
                    from £213.66
                    from £213.66
                    # 008
                    MPN: 65128500
                    LEFT SHOCK-ABSORBER SUPPORT
                    from £239.37
                    from £239.37
                    # 009
                    MPN: 170188
                    GEARBOX SUPPORTING SPACER
                    from £16.46
                    from £16.46
