012 - Rear Suspension and Brake Pipes

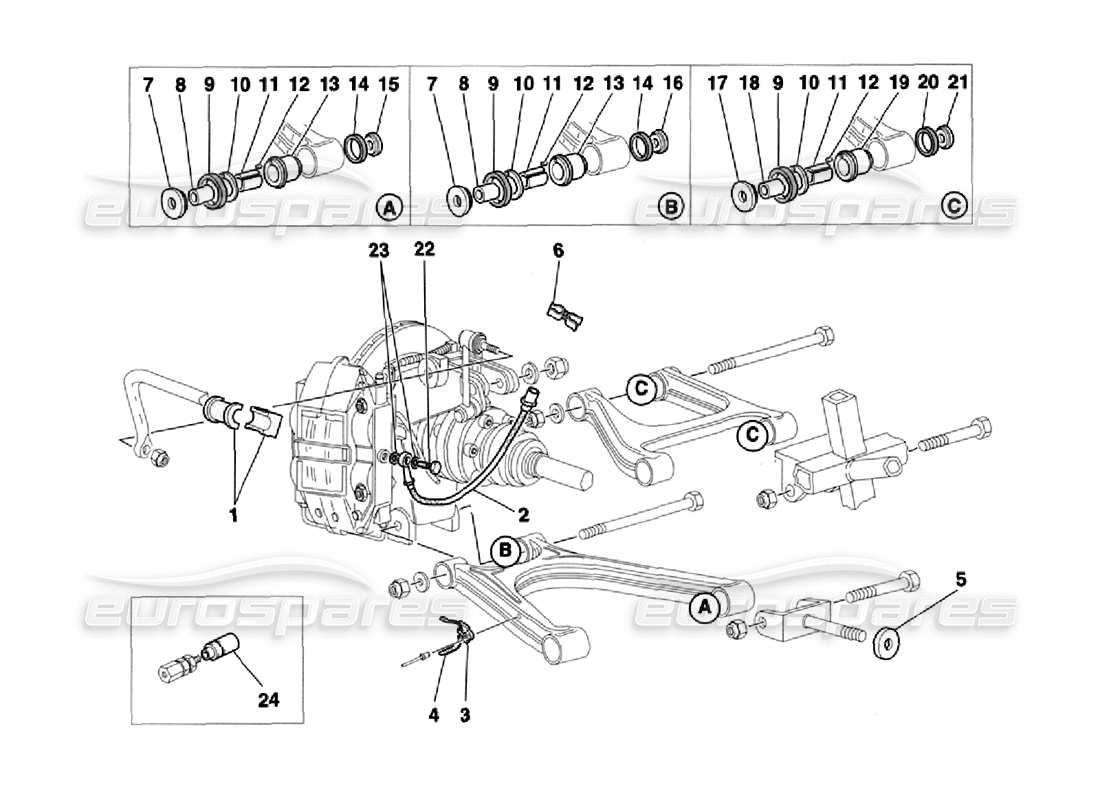

Ferrari 355 Challenge (1996) Rear Suspension and Brake Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 164762
                                                BUMPER
                                                from £118.13
                                                from £118.13
                                                # 002
                                                MPN: 166015
                                                BRAKE PIPE
                                                from £119.85
                                                from £119.85
                                                # 003
                                                MPN: 163288
                                                PLATE
                                                from £0.69
                                                from £0.69
                                                # 004
                                                MPN: 163287
                                                CLAMP
                                                from £0.47
                                                from £0.47
                                                # 005
                                                MPN: 163325
                                                SPACER
                                                from £10.49
                                                from £10.49
                                                # 006
                                                MPN: 124551
                                                SPRING CLAMP
                                                from £0.71
                                                from £0.71
                                                # 007
                                                MPN: 148651
                                                BIG THRUST WASHER
                                                from £12.21
                                                from £12.21
                                                # 008
                                                MPN: 148730
                                                INNER SPACER
                                                from £16.77
                                                from £16.77
                                                # 009
                                                MPN: 148729
                                                BIG DUST SEAL
                                                from £6.36
                                                from £6.36
                                                # 010
                                                MPN: 101009
                                                THRUST WASHER
                                                from £6.76
                                                from £6.76
                                                This part replaces part number 600771
                                                # 011
                                                MPN: 101010
                                                INNER BUSH
                                                from £4.86
                                                from £4.86
                                                This part replaces part number 600786
                                                # 012
                                                MPN: 100796
                                                DOWEL
                                                from £2.26
                                                from £2.26
                                                This part replaces part number 94943
                                                # 013
                                                MPN: 148600
                                                OUTSIDE BUSH
                                                from £35.08
                                                from £35.08
                                                # 014
                                                MPN: 148650
                                                SMALL DUST SEAL
                                                from £1.32
                                                from £1.32
                                                # 015
                                                MPN: 148678
                                                SMALL THRUST WASHER
                                                from £9.56
                                                from £9.56
                                                # 016
                                                MPN: 148607
                                                SMALL THRUST WASHER
                                                from £8.91
                                                from £8.91
                                                # 017
                                                MPN: 149746
                                                BIG THRUST WASHER
                                                from £28.94
                                                from £28.94
                                                # 018
                                                MPN: 150379
                                                INNER SPACER
                                                from £62.33
                                                from £62.33
                                                # 019
                                                MPN: 149563
                                                OUTSIDE UPPER BUSH
                                                from £65.51
                                                from £65.51
                                                # 020
                                                MPN: 148599
                                                SMALL DUST SEAL
                                                from £1.80
                                                from £1.80
                                                # 021
                                                MPN: 149564
                                                SMALL THRUST WASHER
                                                from £16.79
                                                from £16.79
                                                # 022
                                                MPN: 169829
                                                SCREW
                                                from £4.09
                                                from £4.09
                                                # 023
                                                MPN: 10260160
                                                WASHER
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 10260170
                                                # 024
                                                MPN: 155808
                                                BRAKING REGULATOR
                                                As an alternative for no. 157908
                                                from £57.17
                                                from £57.17
                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
