ferrari 355 challenge (1996) front suspension and brake pipes parts diagram

011 - Front Suspension and Brake Pipes

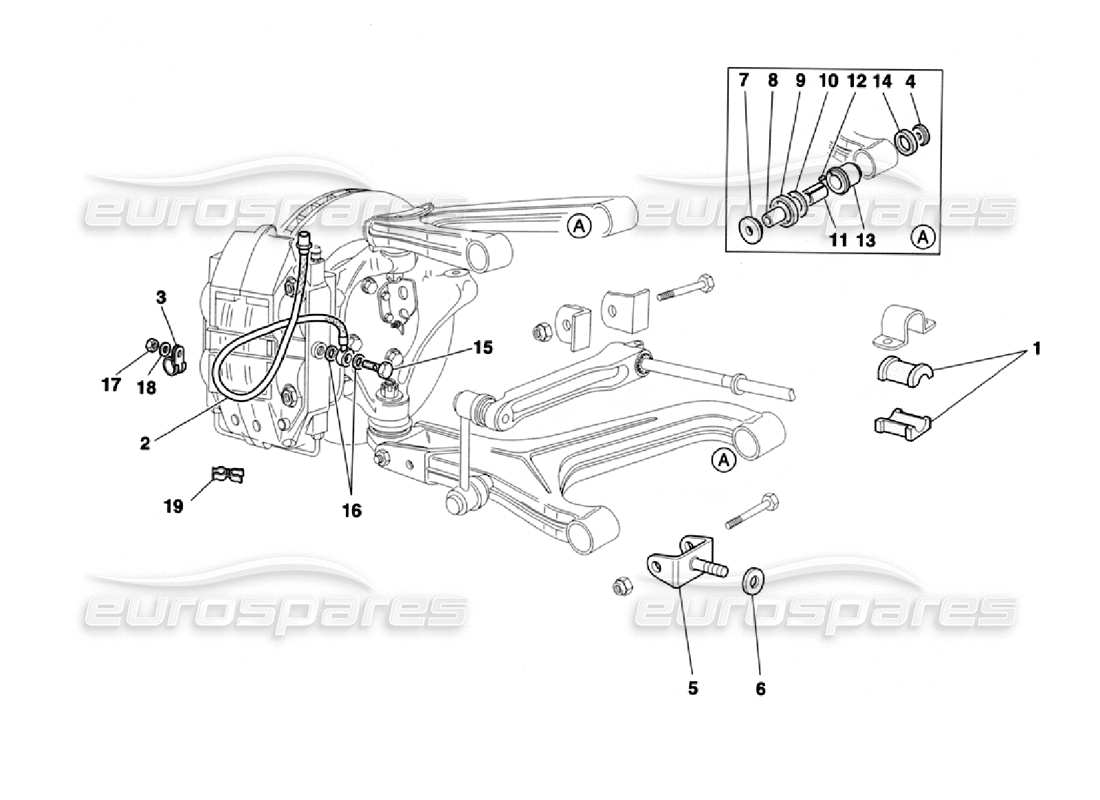

Ferrari 355 Challenge (1996) Front Suspension and Brake Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 153179
                                        BUMPER
                                        from £118.13
                                        from £118.13
                                        # 002
                                        MPN: 166014
                                        BRAKE PIPE
                                        from £141.49
                                        from £141.49
                                        # 003
                                        MPN: 10440990
                                        CLAMP
                                        from £0.77
                                        from £0.77
                                        # 004
                                        MPN: 149564
                                        SMALL THRUST WASHER
                                        from £16.79
                                        from £16.79
                                        # 005
                                        MPN: 164755
                                        FORK
                                        from £43.21
                                        from £43.21
                                        # 006
                                        MPN: 163325
                                        SPACER
                                        from £10.49
                                        from £10.49
                                        # 007
                                        MPN: 149746
                                        BIG THRUST WASHER
                                        from £28.94
                                        from £28.94
                                        # 008
                                        MPN: 150379
                                        INNER SPACER
                                        from £62.33
                                        from £62.33
                                        # 009
                                        MPN: 148729
                                        BIG DUST SEAL
                                        from £6.36
                                        from £6.36
                                        # 010
                                        MPN: 101009
                                        THRUST WASHER
                                        from £6.76
                                        from £6.76
                                        This part replaces part number 600771
                                        # 011
                                        MPN: 101010
                                        INNER BUSH
                                        from £4.86
                                        from £4.86
                                        This part replaces part number 600786
                                        # 012
                                        MPN: 100796
                                        DOWEL
                                        from £2.26
                                        from £2.26
                                        This part replaces part number 94943
                                        # 013
                                        MPN: 149563
                                        UPPER OUTSIDE BUSH
                                        from £65.51
                                        from £65.51
                                        # 014
                                        MPN: 148599
                                        SMALL DUST SEAL
                                        from £1.80
                                        from £1.80
                                        # 015
                                        MPN: 169829
                                        SCREW
                                        from £4.09
                                        from £4.09
                                        # 016
                                        MPN: 10260160
                                        WASHER
                                        from £0.51
                                        from £0.51
                                        This part replaces part number 10260170
                                        # 017
                                        MPN: 12574211
                                        NUT
                                        from £0.71
                                        from £0.71
                                        # 018
                                        MPN: 14496401
                                        WASHER
                                        Supersession
                                        Supersession
                                        # 019
                                        MPN: 124551
                                        SPRING CLAMP
                                        from £0.71
                                        from £0.71
