ferrari 355 (5.2 motronic) tunnel - framework and accessories parts diagram

131 - Tunnel - Framework and Accessories

Ferrari 355 (5.2 Motronic) Tunnel - Framework and Accessories Parts Diagram

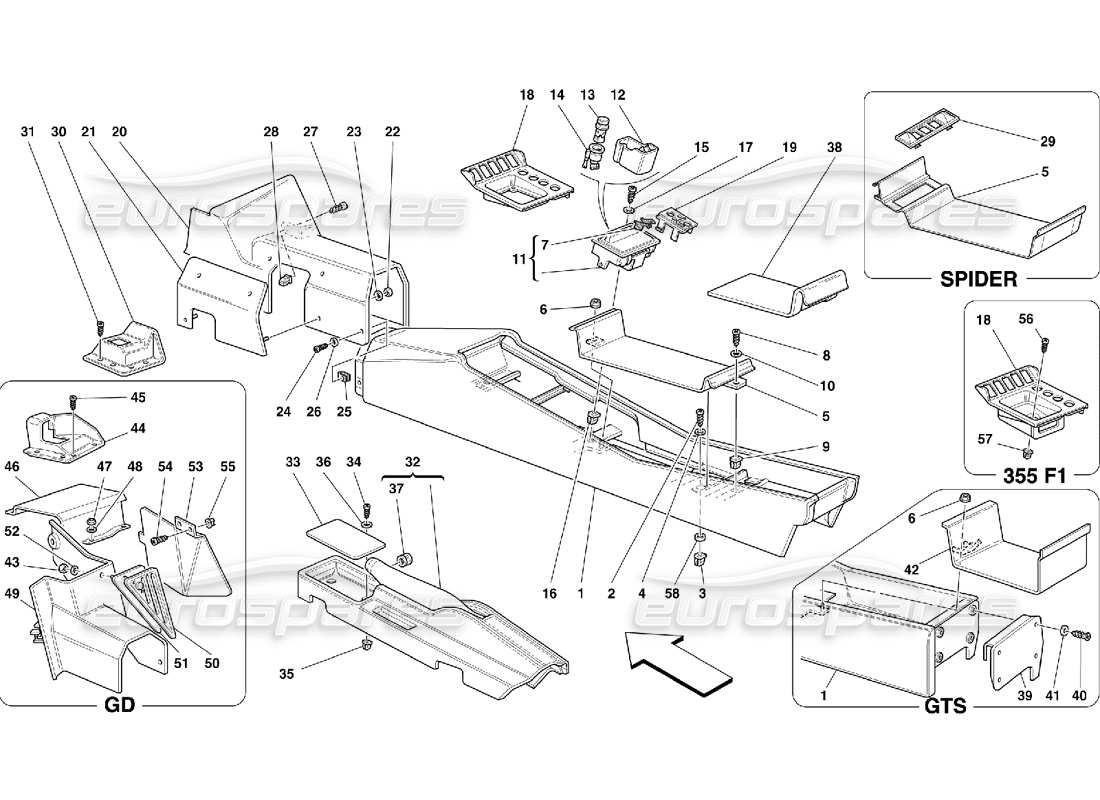

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 635230..

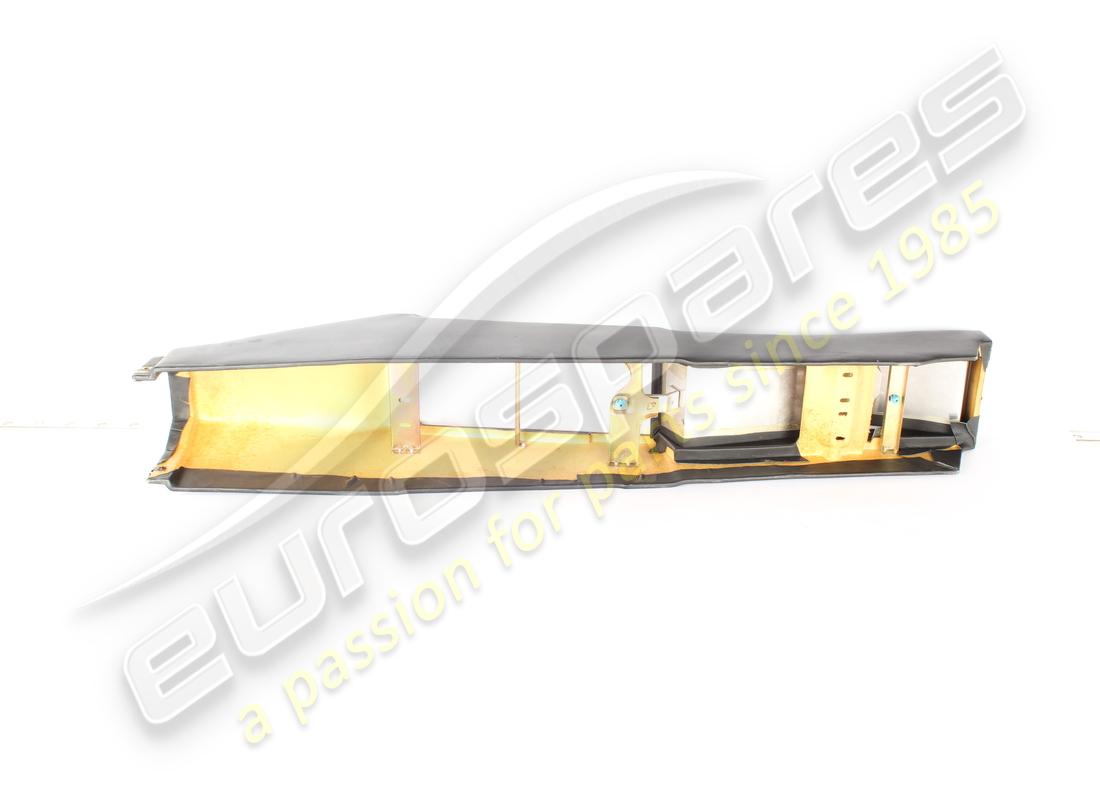

                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Not for 355 F1 - Not for GTS, Spider and GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 001
                                                    MPN: 642409..
                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Not for 355 F1 - Valid for GTS and Spider - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £519.75
                                                    from £519.75
                                                    # 001
                                                    MPN: 644221..
                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Not for 355 F1 - Valid for GD - Not for GTS and Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 001
                                                    MPN: 645000..
                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Not for 355 F1 - Valid for GD GTS and GD Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £593.25
                                                    from £593.25
                                                    # 001
                                                    MPN: 652095..
                                                    UPHOLSTERY
                                                    -Not for GTS and Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 001
                                                    MPN: 652096..
                                                    UPHOLSTERY
                                                    -Valid for GTS and Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 001
                                                    MPN: 654067..
                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Valid for 355 F1 - Not for GTS, Spider and GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 001
                                                    MPN: 654067100
                                                    CARBON FIBRE TUNNEL COVER CONSOLE
                                                    -Valid for 355 F1 - Not for GTS, Spider and GD
                                                    # 001
                                                    MPN: 654266..
                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Valid for 355 F1 - Valid for GTS and Spider - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 001
                                                    MPN: 654502..
                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Valid for 355 F1 - Valid for GD - Not for GTS and Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 001
                                                    MPN: 65450204

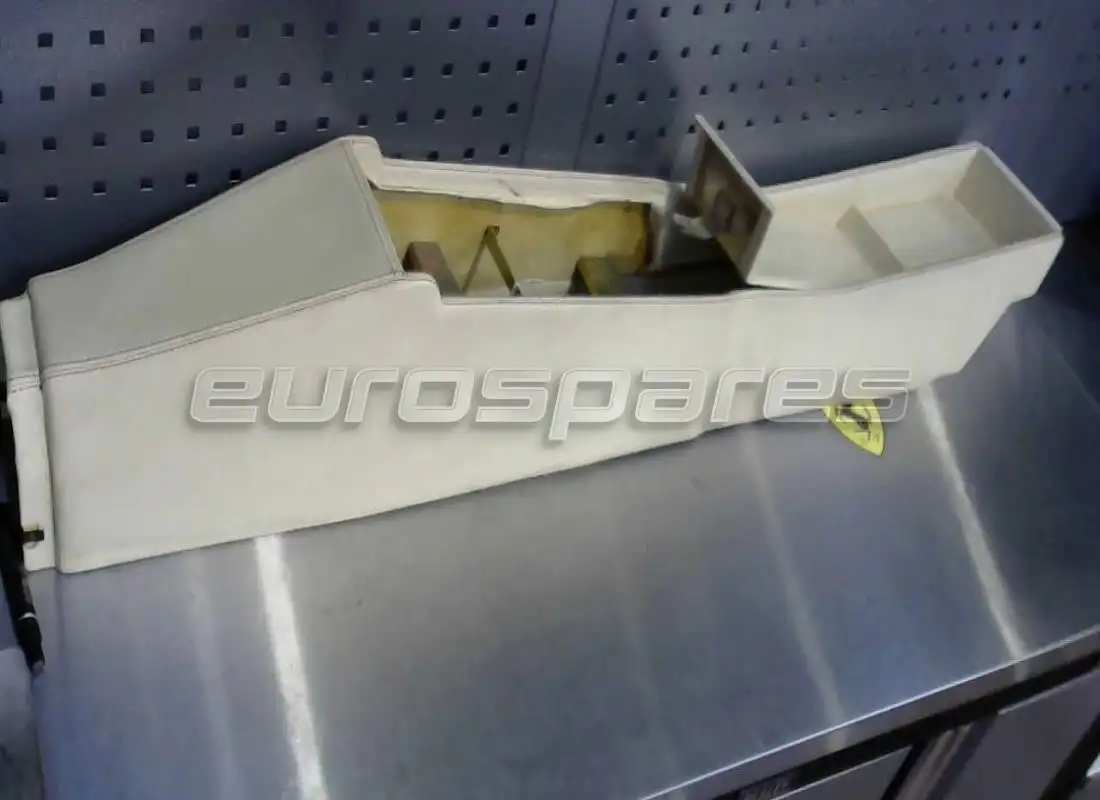

                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Valid for 355 F1 - Valid for GD - (CREAM colour)
                                                    from £577.50
                                                    from £577.50
                                                    This part replaces part number 654502.. - and 1 more. Click to view details
                                                    # 001
                                                    MPN: 654516..
                                                    UPHOLSTERED TUNNEL COVER CONSOLE
                                                    -Valid for 355 F1 - Valid for GD GTS and GD Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £414.75
                                                    from £414.75
                                                    # 002
                                                    MPN: 15785101
                                                    SCREW
                                                    from £0.71
                                                    from £0.71
                                                    # 003
                                                    MPN: 14202782
                                                    BLOCK
                                                    from £0.71
                                                    from £0.71
                                                    # 004
                                                    MPN: 12638178
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10519578 - and 3 more. Click to view details
                                                    # 005
                                                    MPN: 635228..
                                                    UPHOLSTERY
                                                    -Not for Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 005
                                                    MPN: 642401..
                                                    COVER FOR DRAWER BOTTOM
                                                    -Not for Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 005
                                                    MPN: 646044..
                                                    COVER FOR DRAWER BOTTOM
                                                    -Valid for Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 005
                                                    MPN: 646048..
                                                    UPHOLSTERY
                                                    -Valid for Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 006
                                                    MPN: 14039414
                                                    NUT
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 14039411
                                                    # 007
                                                    MPN: 64460400
                                                    Ferrari-PININFARINA SMALL FLAGS
                                                    from £56.51
                                                    from £56.51
                                                    # 008
                                                    MPN: 15785101
                                                    SCREW
                                                    from £0.71
                                                    from £0.71
                                                    # 009
                                                    MPN: 14202782
                                                    BLOCK
                                                    from £0.71
                                                    from £0.71
                                                    # 010
                                                    MPN: 12638178
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10519578 - and 3 more. Click to view details

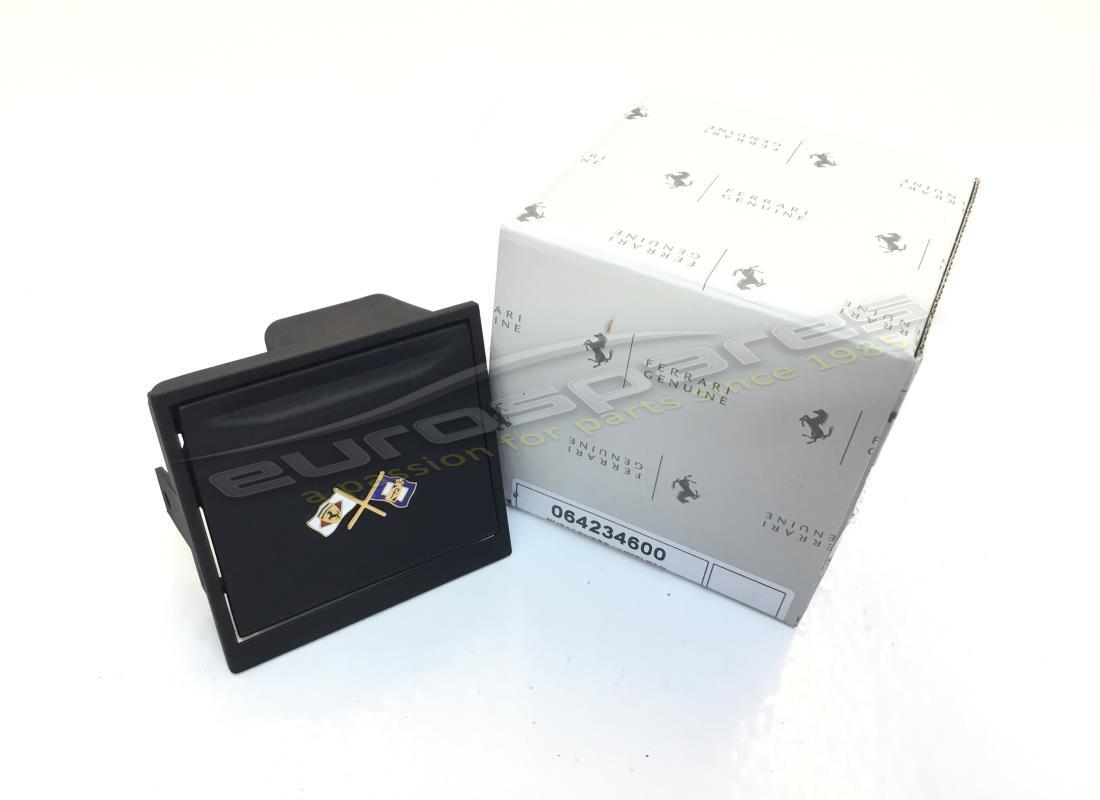

                                                    # 011
                                                    MPN: 64234600
                                                    ASHTRAY
                                                    from £242.00
                                                    from £242.00
                                                    # 012
                                                    -
                                                    ASHTRAY PAN
                                                    # 013
                                                    MPN: 226942
                                                    CIGAR LIGHTER
                                                    not as spare part - use part number: 226942
                                                    from £11.31
                                                    from £11.31
                                                    This part replaces part number 61107500
                                                    # 014
                                                    MPN: 226941
                                                    CIGAR LIGHTER BODY
                                                    not as spare part - use part number: 226941
                                                    from £16.73
                                                    from £16.73
                                                    This part replaces part number 61107600 - and 2 more. Click to view details
                                                    # 015
                                                    MPN: 15785101
                                                    SCREW
                                                    from £0.71
                                                    from £0.71
                                                    # 016
                                                    MPN: 14202782
                                                    BLOCK
                                                    from £0.71
                                                    from £0.71
                                                    # 017
                                                    MPN: 12638178
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10519578 - and 3 more. Click to view details
                                                    # 018
                                                    MPN: 64234400

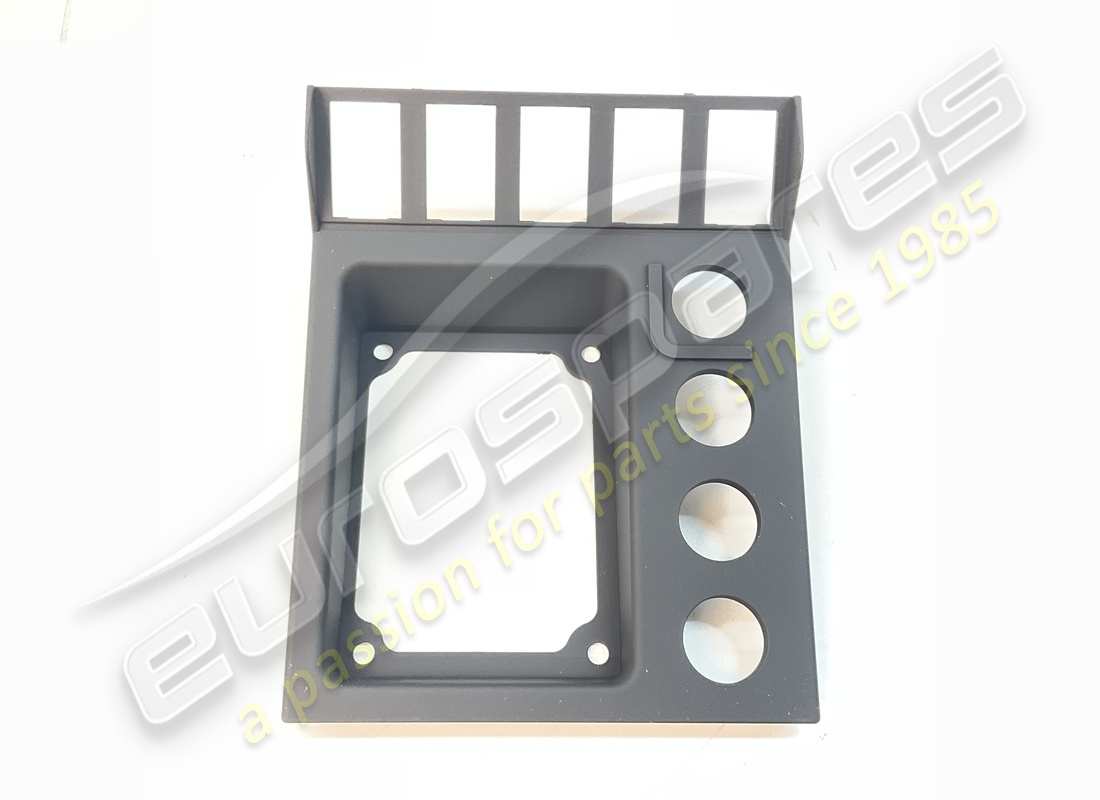

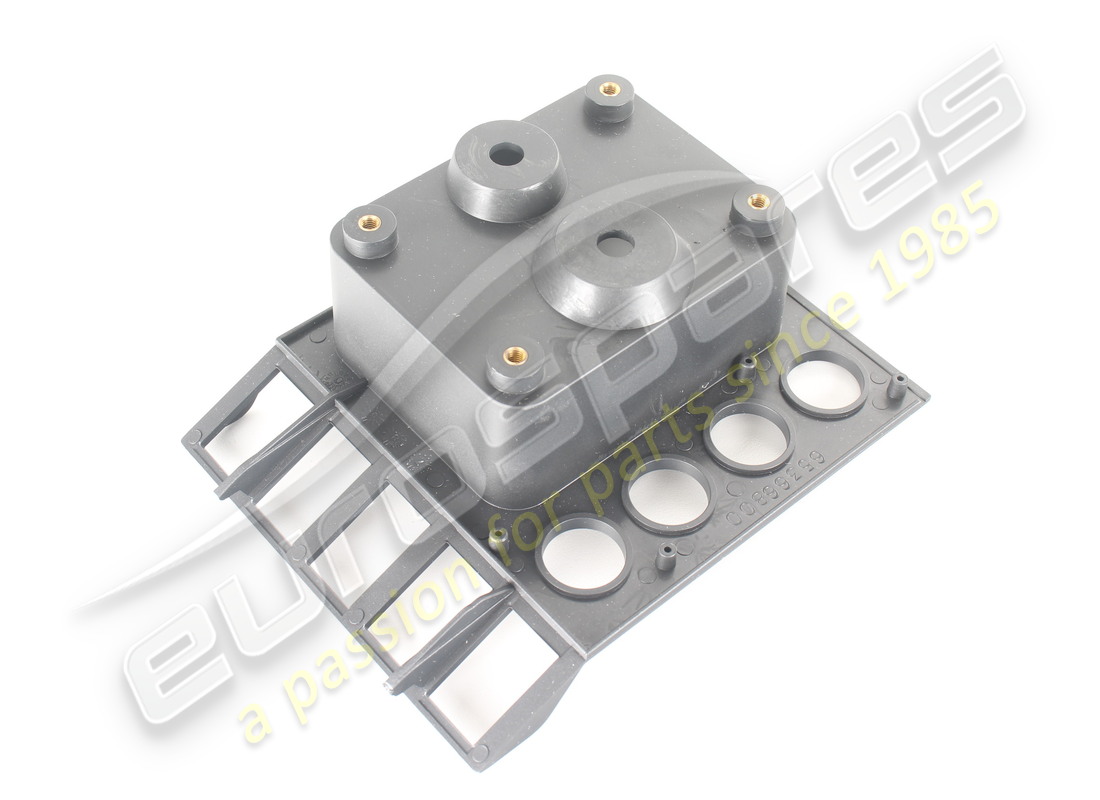

                                                    TUNNEL SWITCHES HOLDER PLATE
                                                    -Not for 355 F1 - Not for GD
                                                    from £195.78
                                                    from £195.78
                                                    # 018
                                                    MPN: 64437600
                                                    TUNNEL SWITCHES HOLDER PLATE
                                                    -Not for 355 F1 - Valid for GD
                                                    from £70.01
                                                    from £70.01
                                                    # 018
                                                    MPN: 65366800
                                                    TUNNEL SWITCHES HOLDER PLATE
                                                    -Valid for 355 F1
                                                    from £53.42
                                                    from £53.42
                                                    # 019
                                                    MPN: 64234700
                                                    SWITCH HOLDER PLATE
                                                    -Not for USA, CDN and AUS - Valid for cars with ABS cut-out
                                                    from £24.92
                                                    from £24.92
                                                    # 019
                                                    MPN: 70002900
                                                    ASHTRAY SIDE SWITCHES HOLDER PLATE
                                                    -Valid for USA, CDN and AUS - Valid for cars without ABS cut-out
                                                    from £232.67
                                                    from £232.67
                                                    This part replaces part number 64483000
                                                    # 020
                                                    MPN: 635679..
                                                    TUNNEL CONSOLE FRONT PART
                                                    -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 021
                                                    MPN: 63525400

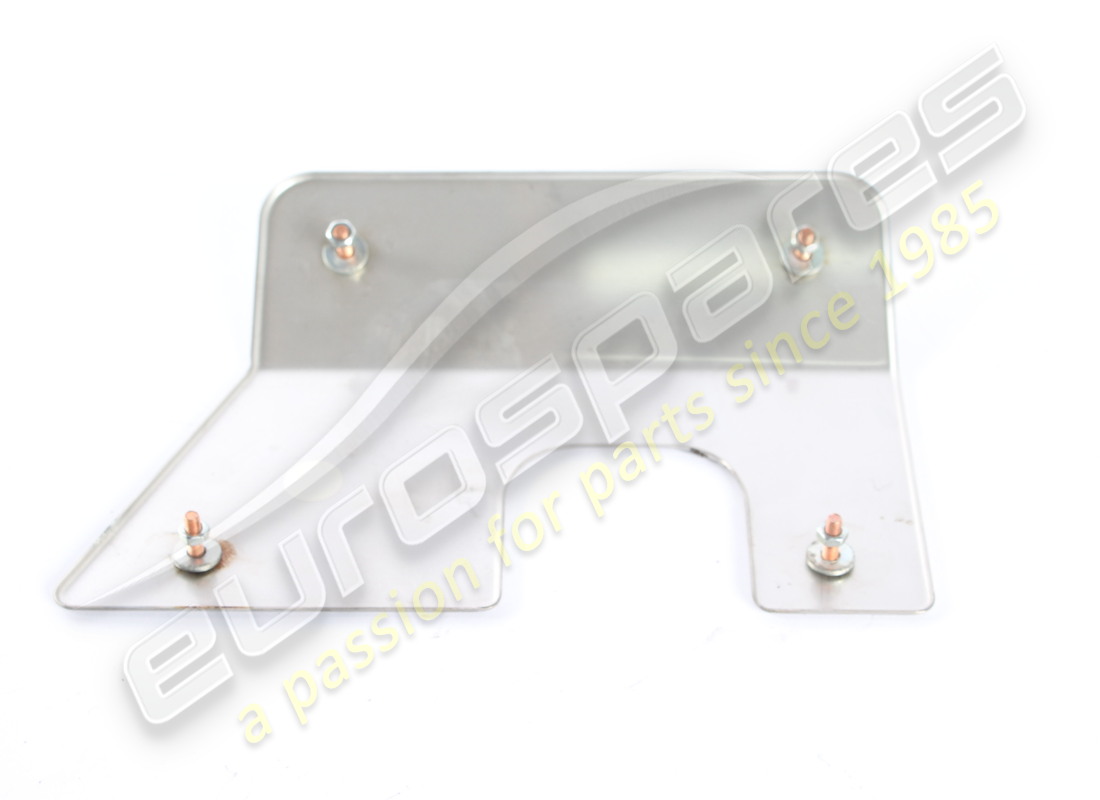

                                                    ACCELERATOR PEDAL SHIELD
                                                    -Not for GD
                                                    from £22.60
                                                    from £22.60
                                                    # 022
                                                    MPN: 10794014
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10794034
                                                    # 023
                                                    MPN: 12642801
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12642824
                                                    # 024
                                                    MPN: 15916977
                                                    SCREW
                                                    from £0.52
                                                    from £0.52
                                                    This part replaces part number 15672606 which we have in stock - and 2 more. Click to view details
                                                    # 025
                                                    MPN: 61789700
                                                    BRACKET
                                                    from £0.47
                                                    from £0.47
                                                    # 026
                                                    MPN: 12611307
                                                    WASHER
                                                    from £0.71
                                                    from £0.71
                                                    # 027
                                                    MPN: 15785101
                                                    SCREW
                                                    from £0.71
                                                    from £0.71
                                                    # 028
                                                    MPN: 14202782
                                                    BLOCK
                                                    from £0.71
                                                    from £0.71
                                                    # 029
                                                    MPN: 70002902
                                                    SWITCH HOLDER PLATE
                                                    -Valid for Spider
                                                    from £171.64
                                                    from £171.64
                                                    This part replaces part number 64627100 - and 1 more. Click to view details
                                                    # 030
                                                    MPN: 63566800
                                                    ACCELERATOR PEDAL COVER
                                                    -Not for GD
                                                    from £84.00
                                                    from £84.00
                                                    # 031
                                                    MPN: 15914707
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 032
                                                    MPN: 63581100
                                                    LHD HAND BRAKE CONSOLE
                                                    Not for GD - To be trimmed -
                                                    from £375.96
                                                    from £375.96
                                                    # 032
                                                    MPN: 63581300
                                                    UPHOLSTERY
                                                    -Not for GD - in black
                                                    from £238.94
                                                    from £238.94

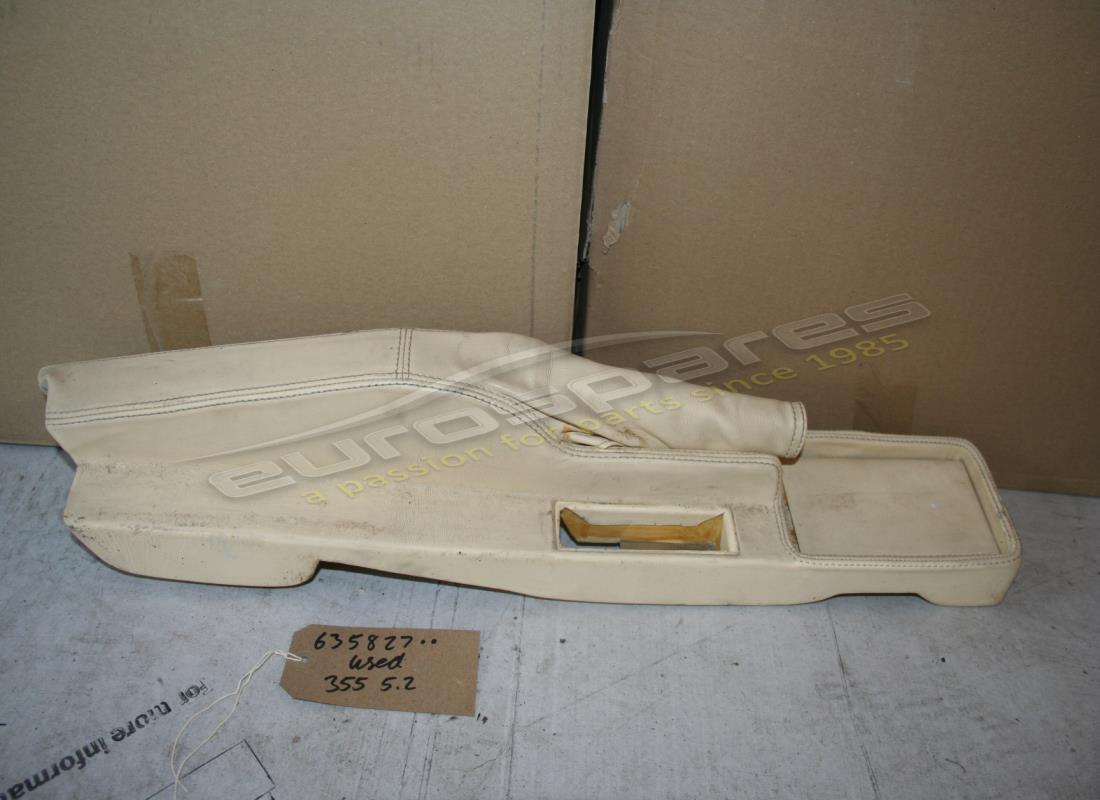

                                                    # 032
                                                    MPN: 635827..
                                                    COMPLETE HAND BRAKE CONSOLE
                                                    -Valid for GD-Not for Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £472.50
                                                    from £472.50
                                                    # 032
                                                    MPN: 635829..
                                                    UPHOLSTERY
                                                    -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £231.00
                                                    from £231.00
                                                    # 032
                                                    MPN: 650524..
                                                    COMPLETE HAND BRAKE CONSOLE
                                                    -Valid for Spider-Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 032
                                                    MPN: 650525..
                                                    COMPLETE HAND BRAKE CONSOLE
                                                    -Valid for GD Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 032
                                                    MPN: 65052504

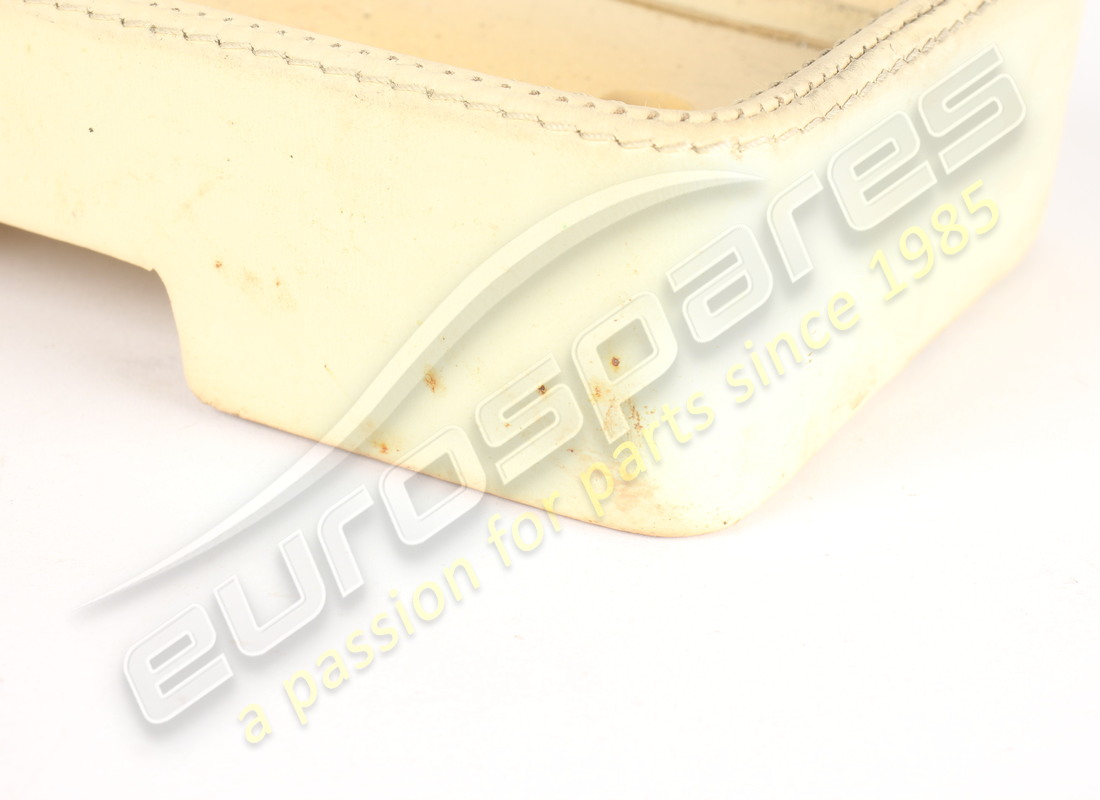

                                                    COMPLETE HAND BRAKE CONSOLE
                                                    -Valid for GD Spider - in Cream
                                                    from £418.95
                                                    from £418.95
                                                    # 033
                                                    MPN: 626842..

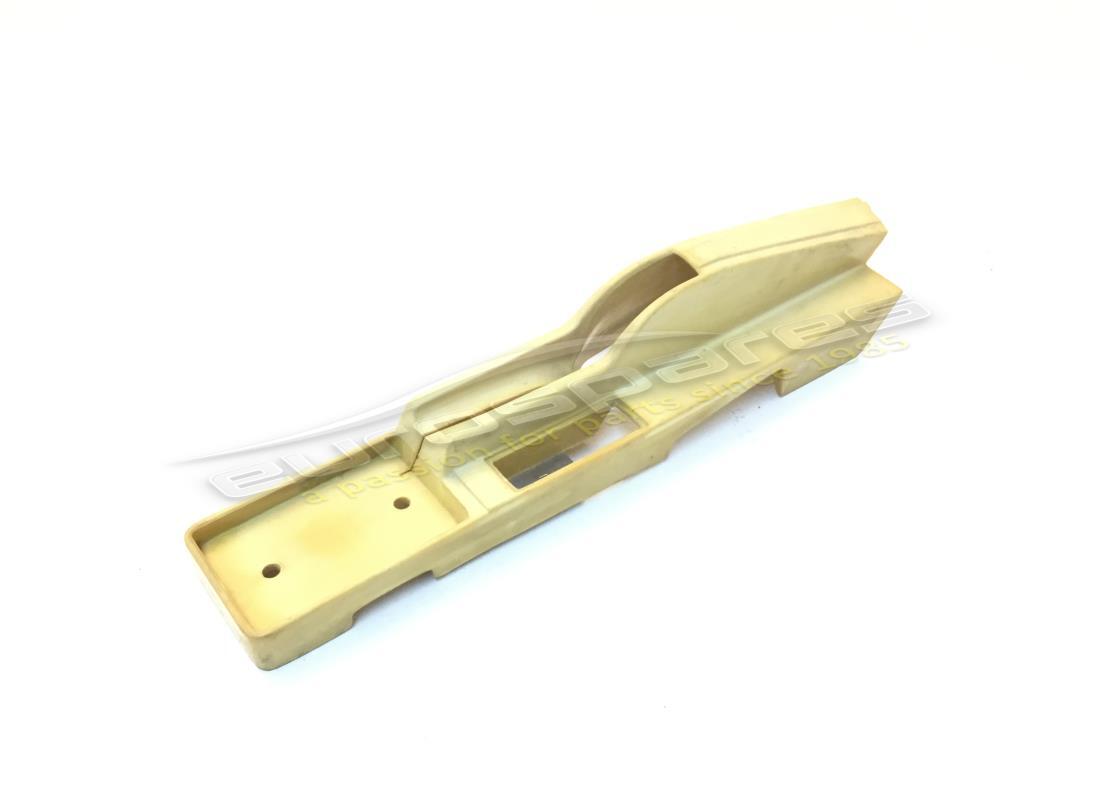

                                                    HAND BRAKE CONSOLE CASING MOULDING
                                                    -See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 034
                                                    MPN: 15688175
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 15688108
                                                    # 035
                                                    MPN: 14115980
                                                    BLOCK
                                                    from £0.68
                                                    from £0.68
                                                    This part replaces part number 14202380
                                                    # 036
                                                    MPN: 12638178
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10519578 - and 3 more. Click to view details
                                                    # 037
                                                    MPN: 64277400
                                                    button
                                                    from £0.47
                                                    from £0.47
                                                    # 038
                                                    MPN: 64239800
                                                    TUNNEL REAR GLOVE BOX BOTTOM MOULDING
                                                    -Without upholstery
                                                    from £10.77
                                                    from £10.77
                                                    # 038
                                                    MPN: 644227..
                                                    UPHOLSTERY
                                                    -See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 039
                                                    MPN: 635233..
                                                    REAR INSERT
                                                    -Valid for GTS and Spider - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 039
                                                    MPN: 645006..
                                                    REAR INSERT
                                                    -Valid for GD GTS and GD Spider - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 040
                                                    MPN: 15914708
                                                    SCREW
                                                    -Valid for GTS and Spider - Not for GD
                                                    from £0.47
                                                    from £0.47
                                                    # 041
                                                    MPN: 62823200
                                                    WASHER
                                                    -Valid for GTS and Spider - Not for GD
                                                    from £0.71
                                                    from £0.71
                                                    # 042
                                                    MPN: 63522900
                                                    COVER FOR DRAWER BOTTOM
                                                    -Valid for GTS
                                                    from £87.19
                                                    from £87.19
                                                    # 043
                                                    MPN: 62790300
                                                    NUT
                                                    -Valid for GD
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12574011 - and 1 more. Click to view details
                                                    # 044
                                                    MPN: 64894600
                                                    ACCELERATOR PEDAL COVER
                                                    -Valid for GD
                                                    from £48.57
                                                    from £48.57
                                                    # 045
                                                    MPN: 15914707
                                                    SCREW
                                                    -Valid for GD
                                                    from £0.47
                                                    from £0.47
                                                    # 046
                                                    MPN: 63002600
                                                    PEDAL PROTECTION
                                                    -Valid for GD
                                                    from £41.61
                                                    from £41.61
                                                    # 047
                                                    MPN: 102741
                                                    NUT
                                                    -Valid for GD
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                    # 048
                                                    MPN: 10519424
                                                    WASHER
                                                    -Valid for GD
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                    # 049
                                                    MPN: 644225..
                                                    TUNNEL CONSOLE FRONT PART
                                                    -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £418.95
                                                    from £418.95
                                                    # 050
                                                    MPN: 62986300
                                                    SLAB FOR DRIVER SIDE FOOT REST PLATE
                                                    -Valid for GD
                                                    from £63.42
                                                    from £63.42
                                                    # 051
                                                    MPN: 63222500
                                                    SLAB SUPPORT
                                                    -Valid for GD
                                                    from £23.34
                                                    from £23.34
                                                    # 052
                                                    MPN: 12642801
                                                    WASHER
                                                    -Valid for GD
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12642824
                                                    # 053
                                                    MPN: 64484200
                                                    ACCELERATOR PEDAL PROTECTION
                                                    -Valid for GD
                                                    from £411.16
                                                    from £411.16
                                                    # 054
                                                    MPN: 15916170
                                                    SCREW
                                                    -Valid for GD
                                                    from £0.71
                                                    from £0.71
                                                    # 055
                                                    MPN: 14202580
                                                    BLOCK
                                                    -Valid for GD
                                                    from £0.47
                                                    from £0.47
                                                    # 056
                                                    MPN: 15785101
                                                    SCREW
                                                    -Valid for 355 F1
                                                    from £0.71
                                                    from £0.71
                                                    # 057
                                                    MPN: 14202782
                                                    BLOCK
                                                    -Valid for 355 F1
                                                    from £0.71
                                                    from £0.71
                                                    # 058
                                                    MPN: 63186100
                                                    SPACER
                                                    from £0.68
                                                    from £0.68
