-Valid for Spider
ferrari 355 (5.2 motronic) seats and safety belts parts diagram

130 - Seats and Safety Belts

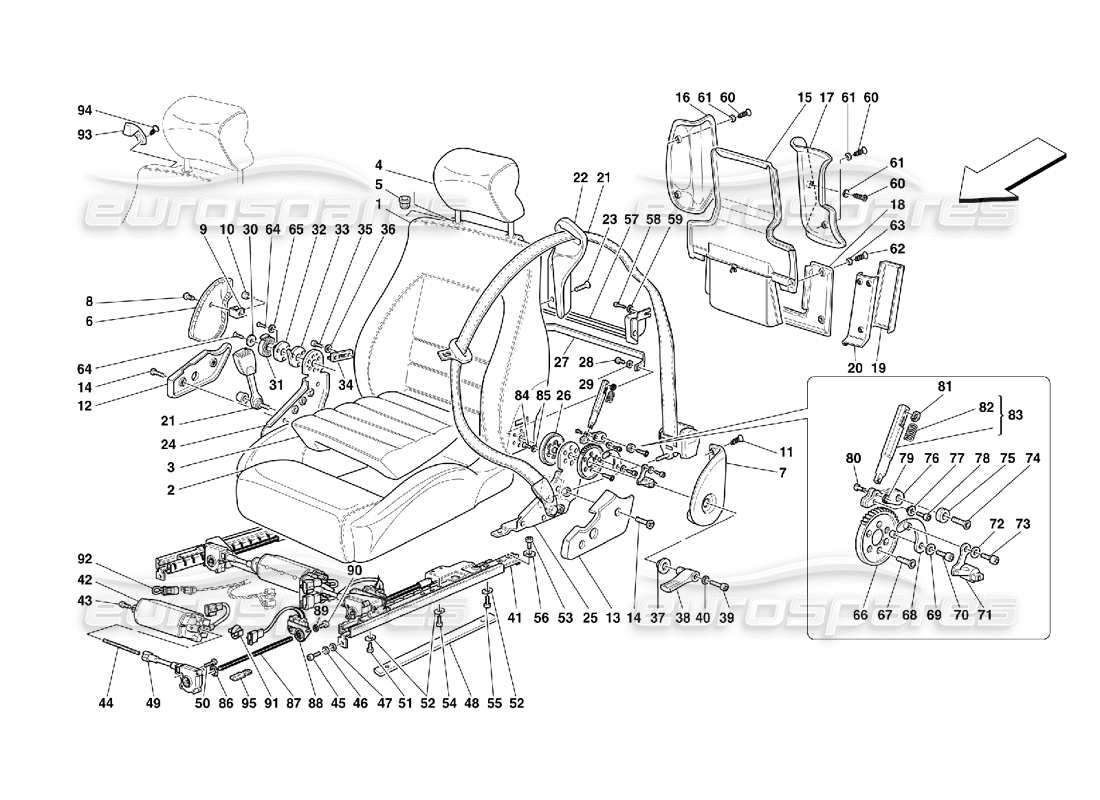

Ferrari 355 (5.2 Motronic) Seats and Safety Belts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                            #
                                                                                                                            Part number
                                                                                                                            Description
                                                                                                                            Price
                                                                                                                            # 00
                                                                                                                            MPN: 64319500/B
                                                                                                                            PAIR CREAM SEATS
                                                                                                                            (spider only)
                                                                                                                            from £2,462.25
                                                                                                                            from £2,462.25
                                                                                                                            # 00
                                                                                                                            MPN: 64319500/C
                                                                                                                            PAIR OF BLACK SEATS
                                                                                                                            (spider only)
                                                                                                                            # 000
                                                                                                                            MPN: 646126..
                                                                                                                            RH SEAT COMPLETE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 000
                                                                                                                            MPN: 646127..
                                                                                                                            LH SEAT COMPLETE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 001
                                                                                                                            MPN: 636456..
                                                                                                                            COMPLETE SEAT BACK UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 002
                                                                                                                            MPN: 635858..
                                                                                                                            COMPLETE SEAT CUSHION UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 003
                                                                                                                            MPN: 635873..
                                                                                                                            CUSHION CENTRAL PADDING UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 003
                                                                                                                            MPN: 639935..
                                                                                                                            COVERED CUSHION CENTRAL PADDING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 004
                                                                                                                            MPN: 647622..
                                                                                                                            UPHOLSTERED HEAD-REST
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 004
                                                                                                                            MPN: 648488..
                                                                                                                            HEAD-REST UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 005
                                                                                                                            MPN: 20058905
                                                                                                                            HEADREST PLASTIC INSERT
                                                                                                                            from £19.41
                                                                                                                            from £19.41
                                                                                                                            # 006
                                                                                                                            MPN: 636460..
                                                                                                                            RH SEAT BACK INNER COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 006
                                                                                                                            MPN: 636486..
                                                                                                                            LH SEAT BACK INNER COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 007
                                                                                                                            MPN: 636463..
                                                                                                                            RH SEAT BACK OUTER COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 007
                                                                                                                            MPN: 636488..
                                                                                                                            LH SEAT BACK OUTER COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 008
                                                                                                                            MPN: 63379100
                                                                                                                            FIXING BUTTON
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 009
                                                                                                                            MPN: 63945000
                                                                                                                            BRACKET
                                                                                                                            from £9.95
                                                                                                                            from £9.95
                                                                                                                            # 010
                                                                                                                            MPN: 20297602
                                                                                                                            SCREW
                                                                                                                            from £5.70
                                                                                                                            from £5.70
                                                                                                                            # 011
                                                                                                                            MPN: 64314400
                                                                                                                            SCREW
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 012
                                                                                                                            MPN: 642366..
                                                                                                                            RH CUSHION INNER COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 012
                                                                                                                            MPN: 642389..
                                                                                                                            LH CUSHION INNER COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 013
                                                                                                                            MPN: 642368..
                                                                                                                            RH CUSHION OUTER COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 013
                                                                                                                            MPN: 642390..
                                                                                                                            LH CUSHION OUTER COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 014
                                                                                                                            MPN: 20297602
                                                                                                                            SCREW
                                                                                                                            from £5.70
                                                                                                                            from £5.70
                                                                                                                            # 015
                                                                                                                            MPN: 635485..
                                                                                                                            SEAT BACK REAR POCKET UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 015
                                                                                                                            MPN: 636459..
                                                                                                                            REAR BULKHEAD ASSEMBLY FOR SEAT BACK
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 015
                                                                                                                            MPN: 639202..
                                                                                                                            SEAT BACK BULKHEAD UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 016
                                                                                                                            MPN: 642000..
                                                                                                                            COVERED LH SEAT BACK INNER GUARDING STRUCTURE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 016
                                                                                                                            MPN: 642136..
                                                                                                                            COVERED RH SEAT BACK INNER GUARDING STRUCTURE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 016
                                                                                                                            MPN: 642159..
                                                                                                                            LH INNER GUARDING STRUCTURE UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 016
                                                                                                                            MPN: 642159..
                                                                                                                            RH INNER GUARDING STRUCTURE UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 017
                                                                                                                            MPN: 642363..
                                                                                                                            COVERED RH SEAT BACK OUTER GUARDING STRUCTURE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 017
                                                                                                                            MPN: 642364..
                                                                                                                            RH OUTER GUARDING STRUCTURE UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 017
                                                                                                                            MPN: 642365..
                                                                                                                            COVERED LH SEAT BACK OUTER GUARDING STRUCTURE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 017
                                                                                                                            MPN: 642370..
                                                                                                                            LH OUTER GUARDING STRUCTURE UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 018
                                                                                                                            MPN: 639295..
                                                                                                                            SEAT BACK REAR POCKET
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 018
                                                                                                                            MPN: 639297..
                                                                                                                            SEAT BACK REAR POCKET UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 019
                                                                                                                            MPN: 642381..
                                                                                                                            RH SAFETY BELT SLIDE COVERING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 019
                                                                                                                            MPN: 642382..
                                                                                                                            SLIDE COVERING UPHOLSTERY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 019
                                                                                                                            MPN: 642383..
                                                                                                                            LH SAFETY BELT SLIDE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 020
                                                                                                                            MPN: 63997500
                                                                                                                            RH SAFETY BELT SLIDE STRUCTURE
                                                                                                                            -Valid Till Car Ass. Nr. 22721
                                                                                                                            from £7.16
                                                                                                                            from £7.16
                                                                                                                            # 020
                                                                                                                            MPN: 63997600
                                                                                                                            LH SAFETY BELT SLIDE STRUCTURE
                                                                                                                            -Valid Till Car Ass. Nr. 22721
                                                                                                                            from £7.16
                                                                                                                            from £7.16
                                                                                                                            # 020
                                                                                                                            MPN: 652952..
                                                                                                                            RH SAFETY BELT SLIDE STRUCTURE
                                                                                                                            -Valid From Car Ass. Nr. 22722
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 020
                                                                                                                            MPN: 652953..
                                                                                                                            LH SAFETY BELT SLIDE STRUCTURE
                                                                                                                            -Valid From Car Ass. Nr. 22722
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 020
                                                                                                                            MPN: 652954..
                                                                                                                            RH LINING
                                                                                                                            -Valid From Car Ass. Nr. 22722
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 020
                                                                                                                            MPN: 652955..
                                                                                                                            LH LINING
                                                                                                                            -Valid From Car Ass. Nr. 22722
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 021
                                                                                                                            MPN: 64760400
                                                                                                                            SAFETY BELTS (COMPLETE SET)
                                                                                                                            -Not for USA and CDN
                                                                                                                            from £1,509.39
                                                                                                                            from £1,509.39
                                                                                                                            # 021
                                                                                                                            MPN: 64980500
                                                                                                                            SAFETY BELTS
                                                                                                                            -Valid for USA and CDN
                                                                                                                            from £639.41
                                                                                                                            from £639.41
                                                                                                                            # 022
                                                                                                                            MPN: 63970600
                                                                                                                            RH SEAT BACK BELT-SLIDING
                                                                                                                            from £818.30
                                                                                                                            from £818.30
                                                                                                                            # 022
                                                                                                                            MPN: 63970700
                                                                                                                            LH SEAT BACK BELT-SLIDING
                                                                                                                            from £818.30
                                                                                                                            from £818.30
                                                                                                                            # 023
                                                                                                                            MPN: 63691200
                                                                                                                            SCREW
                                                                                                                            from £0.65
                                                                                                                            from £0.65
                                                                                                                            # 024
                                                                                                                            MPN: 64601800
                                                                                                                            RH CUSHION-SEAT BACK CONNECTING INNER PLATE
                                                                                                                            from £86.88
                                                                                                                            from £86.88
                                                                                                                            # 024
                                                                                                                            MPN: 64601900
                                                                                                                            LH CUSHION-SEAT BACK CONNECTING INNER PLATE
                                                                                                                            from £86.88
                                                                                                                            from £86.88
                                                                                                                            # 025
                                                                                                                            MPN: 64601600
                                                                                                                            RH CUSHION-SEAT BACK CONNECTING OUTER PLATE
                                                                                                                            from £87.16
                                                                                                                            from £87.16
                                                                                                                            # 025
                                                                                                                            MPN: 64601700
                                                                                                                            LH CUSHION-SEAT BACK CONNECTING OUTER PLATE
                                                                                                                            from £87.16
                                                                                                                            from £87.16
                                                                                                                            # 026
                                                                                                                            MPN: 62739100
                                                                                                                            RH DEVICE FOR BACK SEAT ADJUSTMENT
                                                                                                                            from £102.68
                                                                                                                            from £102.68
                                                                                                                            # 026
                                                                                                                            MPN: 62739200
                                                                                                                            LH DEVICE FOR BACK SEAT ADJUSTMENT
                                                                                                                            from £145.68
                                                                                                                            from £145.68
                                                                                                                            # 027
                                                                                                                            MPN: 63294300
                                                                                                                            JOINTS CONNECTION
                                                                                                                            from £9.47
                                                                                                                            from £9.47
                                                                                                                            This part replaces part number 62651800
                                                                                                                            # 028
                                                                                                                            MPN: 14302931
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 029
                                                                                                                            MPN: 160920
                                                                                                                            WASHER
                                                                                                                            from £0.50
                                                                                                                            from £0.50
                                                                                                                            # 030
                                                                                                                            MPN: 13578305
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 031
                                                                                                                            MPN: 62651900
                                                                                                                            SEAT BACK RETURNING SPRING
                                                                                                                            from £10.27
                                                                                                                            from £10.27
                                                                                                                            # 032
                                                                                                                            MPN: 62652000
                                                                                                                            SPRING RETAINING BUSH
                                                                                                                            from £12.39
                                                                                                                            from £12.39
                                                                                                                            # 033
                                                                                                                            MPN: 62955700
                                                                                                                            RH SEAT BACK LOCK
                                                                                                                            from £5.83
                                                                                                                            from £5.83
                                                                                                                            # 033
                                                                                                                            MPN: 62955800
                                                                                                                            LH SEAT BACK LOCK
                                                                                                                            from £23.21
                                                                                                                            from £23.21
                                                                                                                            # 034
                                                                                                                            MPN: 64235900
                                                                                                                            PLATE FOR SEAT BACK FASTENING
                                                                                                                            from £33.14
                                                                                                                            from £33.14
                                                                                                                            # 035
                                                                                                                            MPN: 40294308
                                                                                                                            SCREW
                                                                                                                            from £2.70
                                                                                                                            from £2.70
                                                                                                                            This part replaces part number 20293306
                                                                                                                            # 036
                                                                                                                            MPN: 12601374
                                                                                                                            WASHER
                                                                                                                            from £0.53
                                                                                                                            from £0.53
                                                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                            # 037
                                                                                                                            MPN: 62752500
                                                                                                                            BUSHING
                                                                                                                            from £3.21
                                                                                                                            from £3.21
                                                                                                                            # 038
                                                                                                                            MPN: 63998500
                                                                                                                            RH HANDLE FOR SEAT RELEASE
                                                                                                                            from £142.22
                                                                                                                            from £142.22
                                                                                                                            # 038
                                                                                                                            MPN: 63998600
                                                                                                                            LH HANDLE FOR SEAT RELEASE
                                                                                                                            from £72.90
                                                                                                                            from £72.90
                                                                                                                            # 039
                                                                                                                            MPN: 14358927
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 040
                                                                                                                            MPN: 149951
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                                            # 041
                                                                                                                            MPN: 64618600
                                                                                                                            ELECTRIFIED GUIDE ASSEMBLY
                                                                                                                            from £878.99
                                                                                                                            from £878.99
                                                                                                                            # 042
                                                                                                                            MPN: 64977600
                                                                                                                            electric motor
                                                                                                                            from £409.10
                                                                                                                            from £409.10
                                                                                                                            # 043
                                                                                                                            MPN: 64977700
                                                                                                                            SCREW
                                                                                                                            # 044
                                                                                                                            MPN: 64978000
                                                                                                                            BOWDEN
                                                                                                                            from £40.67
                                                                                                                            from £40.67
                                                                                                                            # 045
                                                                                                                            MPN: 14306374
                                                                                                                            SCREW
                                                                                                                            from £0.51
                                                                                                                            from £0.51
                                                                                                                            This part replaces part number 14306334
                                                                                                                            # 046
                                                                                                                            MPN: 12601374
                                                                                                                            WASHER
                                                                                                                            from £0.53
                                                                                                                            from £0.53
                                                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                            # 047
                                                                                                                            MPN: 14496578
                                                                                                                            WASHER
                                                                                                                            from £0.53
                                                                                                                            from £0.53
                                                                                                                            This part replaces part number 14496506 - and 1 more. Click to view details
                                                                                                                            # 048
                                                                                                                            MPN: 64612800
                                                                                                                            UNDERGUIDE SHIM
                                                                                                                            from £7.30
                                                                                                                            from £7.30
                                                                                                                            # 049
                                                                                                                            MPN: 64977800
                                                                                                                            UNION
                                                                                                                            from £99.06
                                                                                                                            from £99.06
                                                                                                                            # 050
                                                                                                                            MPN: 64977900
                                                                                                                            SCREW
                                                                                                                            from £2.07
                                                                                                                            from £2.07
                                                                                                                            # 051
                                                                                                                            MPN: 40294308
                                                                                                                            SCREW
                                                                                                                            from £2.78
                                                                                                                            from £2.78
                                                                                                                            This part replaces part number 20293306
                                                                                                                            # 052
                                                                                                                            MPN: 63395300
                                                                                                                            ELASTIC PLATE
                                                                                                                            from £0.87
                                                                                                                            from £0.87
                                                                                                                            # 053
                                                                                                                            MPN: 40294308
                                                                                                                            SCREW
                                                                                                                            from £2.78
                                                                                                                            from £2.78
                                                                                                                            This part replaces part number 20293306
                                                                                                                            # 054
                                                                                                                            MPN: 63929800
                                                                                                                            SCREW
                                                                                                                            from £7.67
                                                                                                                            from £7.67
                                                                                                                            # 055
                                                                                                                            MPN: 13028734
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 14814434 which we have in stock
                                                                                                                            # 056
                                                                                                                            MPN: 63395300
                                                                                                                            ELASTIC PLATE
                                                                                                                            from £0.87
                                                                                                                            from £0.87
                                                                                                                            # 057
                                                                                                                            MPN: 63602900
                                                                                                                            ARTICULATED JOINTS TRANSMISSION COVER
                                                                                                                            from £82.95
                                                                                                                            from £82.95
                                                                                                                            # 058
                                                                                                                            MPN: 14302331
                                                                                                                            SCREW
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 059
                                                                                                                            MPN: 160920
                                                                                                                            WASHER
                                                                                                                            from £0.50
                                                                                                                            from £0.50
                                                                                                                            # 060
                                                                                                                            MPN: 64275400
                                                                                                                            SCREW L. MM. 32
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 060
                                                                                                                            MPN: 64314400
                                                                                                                            SCREW L. MM. 19
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 061
                                                                                                                            MPN: 62823200
                                                                                                                            WASHER
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 062
                                                                                                                            MPN: 64314300
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 088

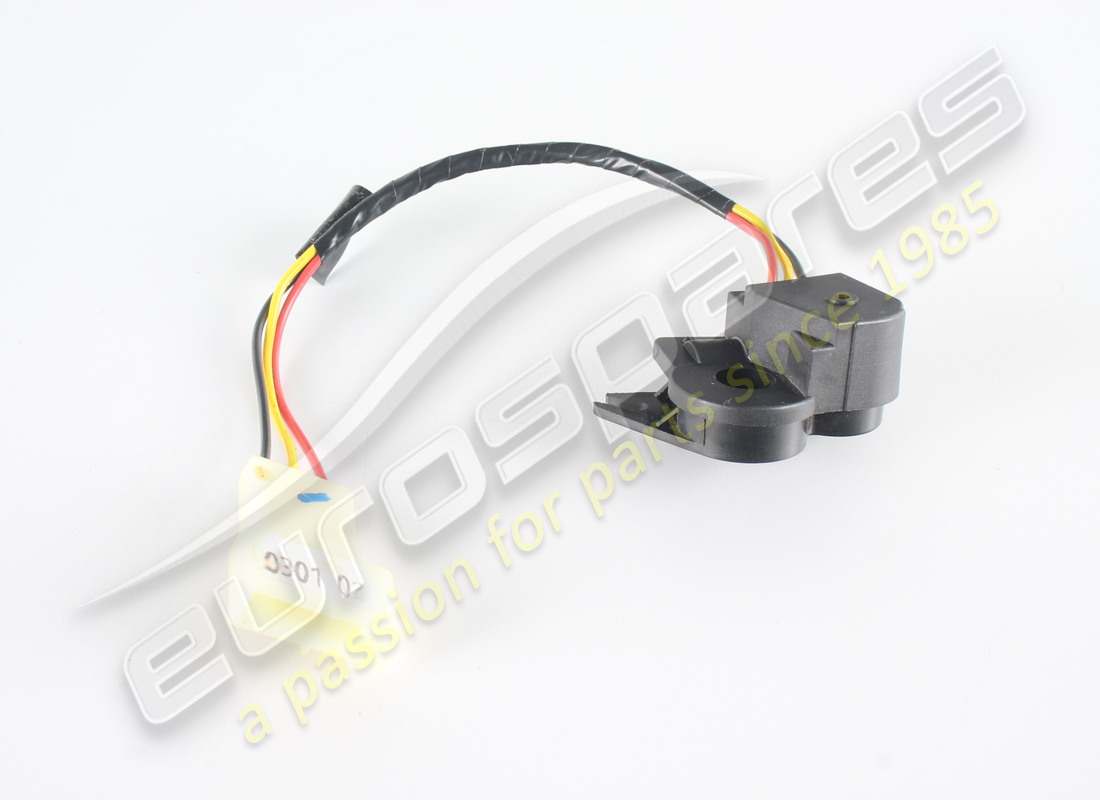

                                                                                                                            MPN: 64978300
                                                                                                                            POTENTIOMETER
                                                                                                                            (spider only)
                                                                                                                            Supersession
                                                                                                                            Supersession
