ferrari 355 (5.2 motronic) front bumper parts diagram

125 - FRONT BUMPER

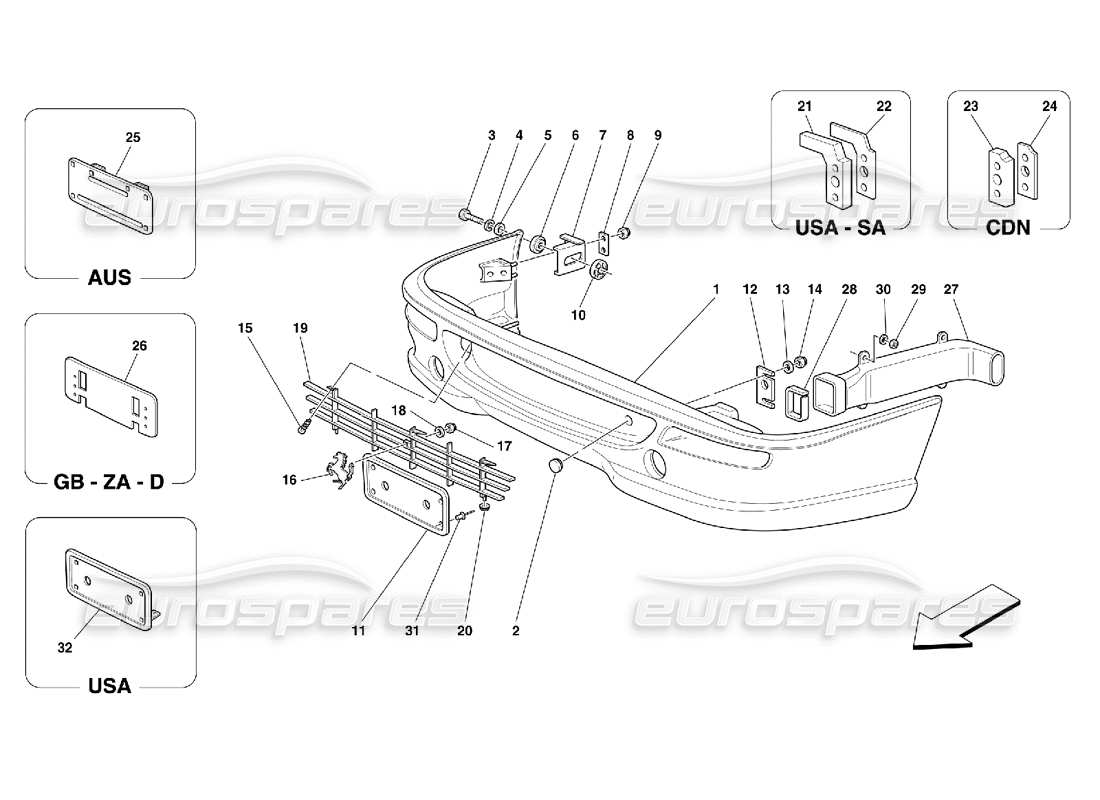

Ferrari 355 (5.2 Motronic) Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 64513510

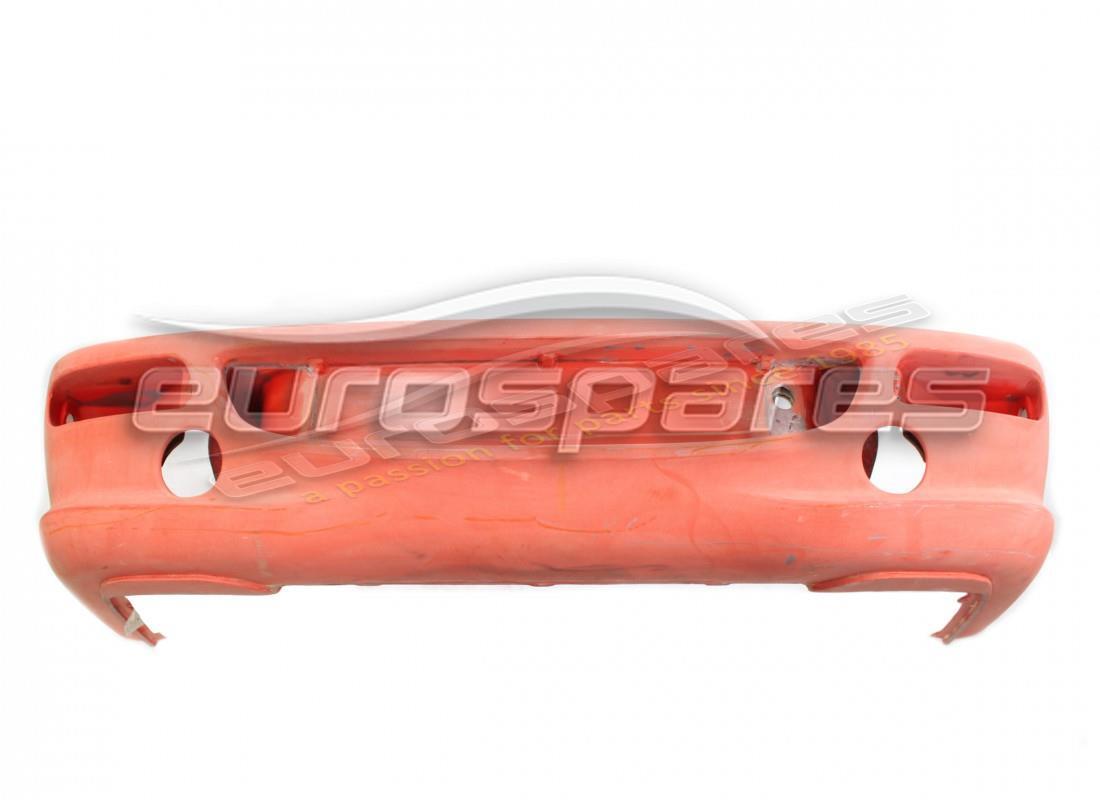

                                              FRONT BUMPER
                                              -Valid for CDN
                                              from £4,443.71
                                              from £4,443.71
                                              # 001
                                              MPN: 64888010
                                              FRONT BUMPER
                                              Not for USA
                                              from £5,422.87
                                              from £5,422.87
                                              This part replaces part number 64888000 - and 1 more. Click to view details
                                              # 001
                                              MPN: 64888910
                                              FRONT BUMPER
                                              -Valid for USA
                                              from £3,674.55
                                              from £3,674.55
                                              # 001
                                              MPN: 64889910
                                              FRONT BUMPER
                                              -Valid for SA
                                              Supersession
                                              Supersession
                                              This part replaces part number 64889910
                                              # 002
                                              MPN: 14507987
                                              PLUG
                                              from £0.91
                                              from £0.91
                                              # 003
                                              MPN: 15970921
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              # 004
                                              MPN: 127497
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 10516871 - and 2 more. Click to view details
                                              # 005
                                              MPN: 12646801
                                              WASHER
                                              from £0.68
                                              from £0.68
                                              This part replaces part number 12644682
                                              # 006
                                              MPN: 62128200
                                              EXTERNAL SMALL BLOCK
                                              from £1.01
                                              from £1.01
                                              # 007
                                              MPN: 62126500
                                              BRACKET
                                              from £5.63
                                              from £5.63
                                              # 008
                                              MPN: 62126600
                                              PLATE
                                              from £1.54
                                              from £1.54
                                              # 009
                                              MPN: 104030
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 16104125
                                              # 010
                                              MPN: 62128300
                                              INTERNAL SMALL BLOCK
                                              from £0.59
                                              from £0.59
                                              This part replaces part number 83203700
                                              # 011
                                              MPN: 64214300
                                              FRONT PLATE HOLDER
                                              -Valid for I
                                              from £78.48
                                              from £78.48
                                              # 012
                                              MPN: 62126700
                                              SPACER
                                              -Possible fitting - Not for USA and CDN
                                              from £5.14
                                              from £5.14
                                              # 013
                                              MPN: 12646801
                                              WASHER
                                              from £0.68
                                              from £0.68
                                              This part replaces part number 12644682
                                              # 014
                                              MPN: 104114
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 15503711 - and 1 more. Click to view details
                                              # 015
                                              MPN: 15916977
                                              SCREW
                                              from £0.52
                                              from £0.52
                                              This part replaces part number 15672606 which we have in stock - and 2 more. Click to view details

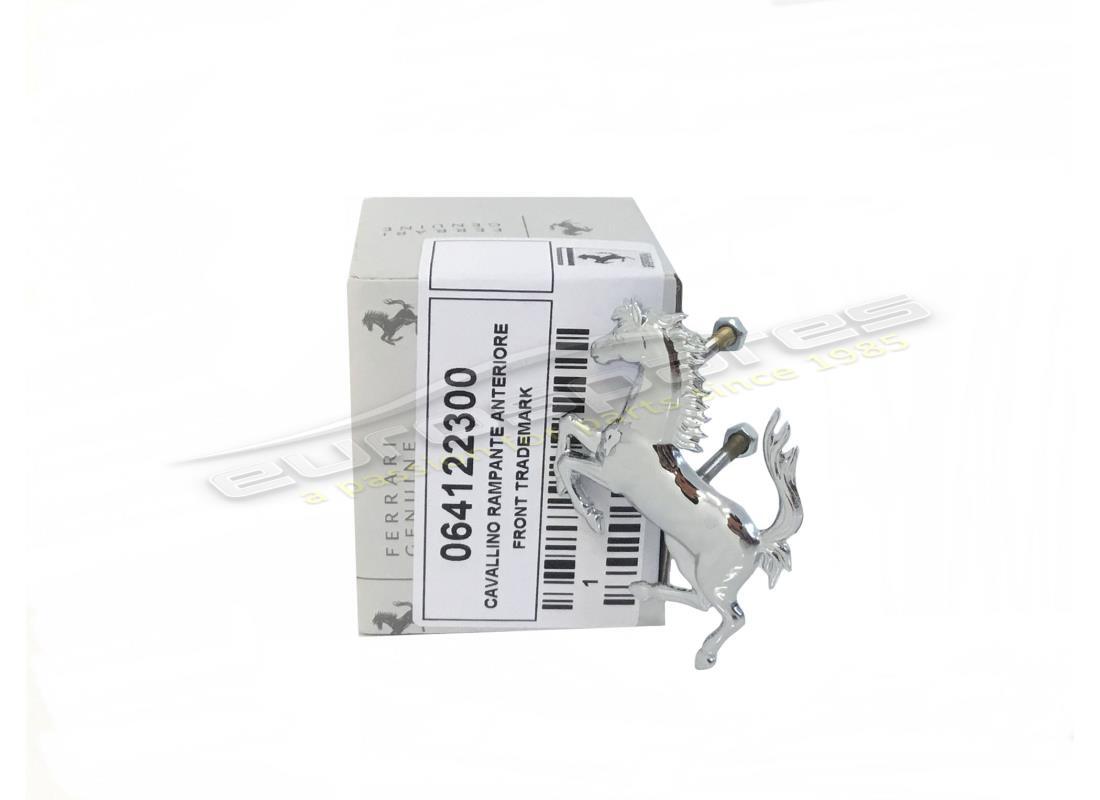

                                              # 016
                                              MPN: 64122300
                                              FRONT CAVALLINO RAMPANTE
                                              from £31.69
                                              from £31.69
                                              # 017
                                              MPN: 62790300
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12574011 - and 1 more. Click to view details
                                              # 018
                                              MPN: 10519278
                                              WASHER
                                              from £0.51
                                              from £0.51
                                              This part replaces part number 10519206 - and 1 more. Click to view details
                                              # 019
                                              MPN: 64122200
                                              Front Grill
                                              from £1,451.54
                                              from £1,451.54
                                              # 020
                                              MPN: 62126200
                                              GRILL FIXING BUSHING
                                              from £2.42
                                              from £2.42
                                              # 021
                                              MPN: 62550800
                                              PAD
                                              -Valid for USA and SA
                                              from £74.27
                                              from £74.27
                                              # 022
                                              MPN: 62550900
                                              THICKNESS
                                              -Valid for USA and SA - Possible fitting
                                              from £3.05
                                              from £3.05
                                              # 023
                                              MPN: 63326200
                                              PAD
                                              -Valid for CDN
                                              from £75.43
                                              from £75.43
                                              # 024
                                              MPN: 63359200
                                              THICKNESS
                                              -Valid for CDN - Possible fitting
                                              from £20.45
                                              from £20.45
                                              # 025
                                              MPN: 64684800
                                              FRONT PLATE HOLDER
                                              -Valid for AUS
                                              from £171.82
                                              from £171.82
                                              # 026
                                              MPN: 64621400
                                              FRONT PLATE HOLDER
                                              -Valid for GB, ZA and D
                                              from £53.15
                                              from £53.15
                                              # 027
                                              MPN: 64244800
                                              RH BRAKES AIR INLET
                                              from £43.57
                                              from £43.57
                                              # 028
                                              MPN: 64530700
                                              GASKET
                                              from £1.50
                                              from £1.50
                                              # 029
                                              MPN: 102741
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                              # 030
                                              MPN: 12644424
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12644401 - and 1 more. Click to view details
                                              # 031
                                              MPN: 62556300
                                              RIVET
                                              from £0.71
                                              from £0.71
                                              # 032
                                              MPN: 65127500
                                              NUMBER PLATE SUPPORT
                                              -Valid for USA
                                              from £58.19
                                              from £58.19
                                              This part replaces part number 65122100
