ferrari 355 (2.7 motronic) air-bags parts diagram

134 - Air-Bags

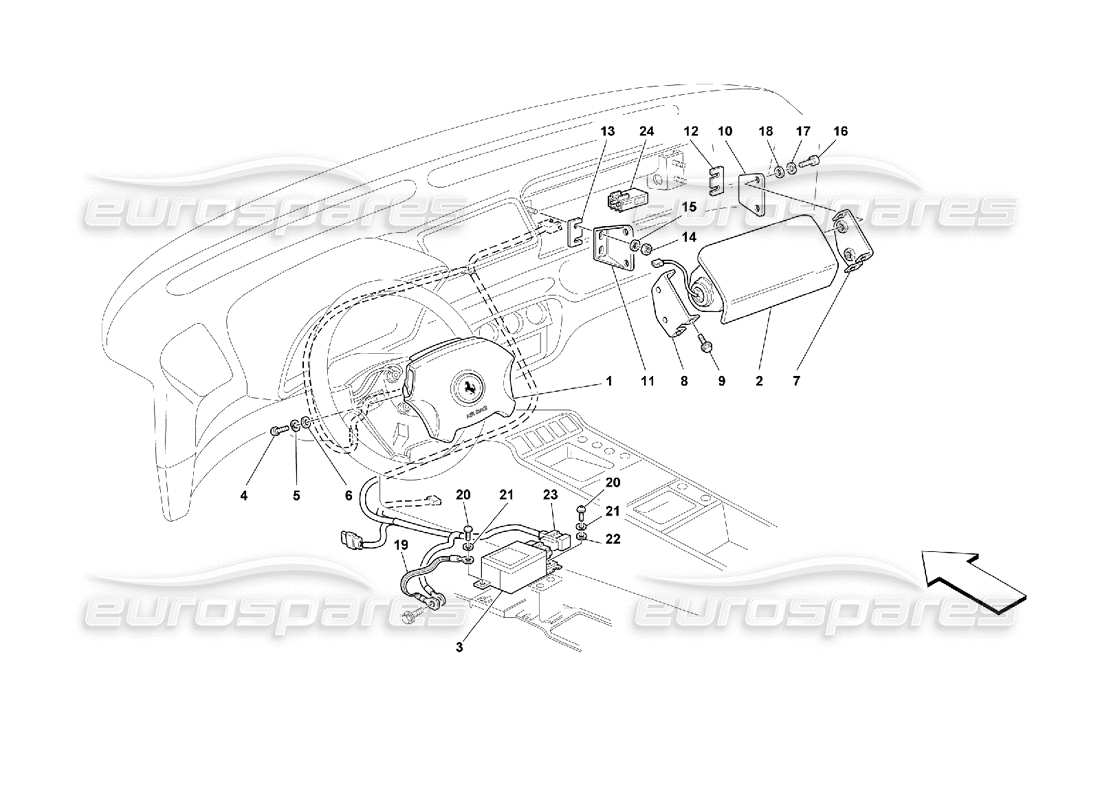

Ferrari 355 (2.7 Motronic) Air-Bags Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 65895700
                          DRIVER SIDE AIR-BAG
                          in black
                          from £1,325.96
                          from £1,325.96
                          This part replaces part number 156693 - and 2 more. Click to view details
                          # 002
                          MPN: 64343900

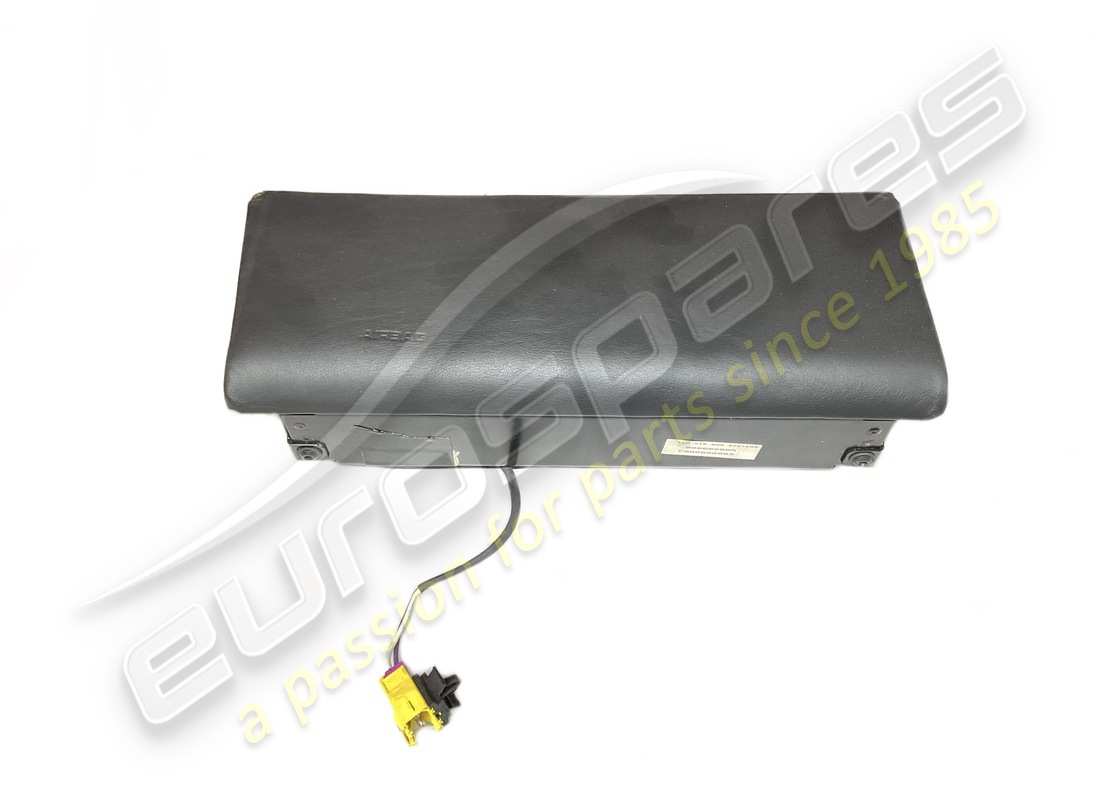

                          PASSENGER SIDE AIR-BAG
                          -Not for GD
                          from £2,376.72
                          from £2,376.72
                          # 002
                          MPN: 64628800
                          PASSENGER SIDE AIR-BAG
                          -Valid for GD
                          from £1,498.05
                          from £1,498.05
                          # 003
                          MPN: 158123
                          AIR-BAG CONTROL UNIT
                          (Early Type)
                          from £1,071.21
                          from £1,071.21
                          # 004
                          MPN: 64470000
                          SCREW
                          -Not as spare part now - Replaced by 64882800
                          Supersession
                          Supersession
                          # 004
                          MPN: 64882800
                          SCREW
                          from £0.61
                          from £0.61
                          This part replaces part number 64470000
                          # 005
                          MPN: 127494
                          WASHER
                          (minimum order quantity = 20)
                          from £0.53
                          from £0.53
                          This part replaces part number 10516470 - and 4 more. Click to view details
                          # 007
                          MPN: 63941300
                          RH BRACKET ON AIR-BAG MODULE
                          from £11.19
                          from £11.19
                          # 008
                          MPN: 63941400
                          LH BRACKET ON AIR-BAG MODULE
                          from £11.19
                          from £11.19
                          # 009
                          MPN: 62940900
                          SCREW
                          from £0.73
                          from £0.73
                          This part replaces part number 67352400
                          # 010
                          MPN: 63941500
                          RH MOBILE BRACKET
                          -Valid for USA and CDN
                          from £11.19
                          from £11.19
                          # 010
                          MPN: 64781900
                          RH MOBILE BRACKET
                          -Not for USA, CDN and GD
                          from £16.86
                          from £16.86
                          # 010
                          MPN: 64884100
                          RH MOBILE BRACKET
                          -Valid for GD
                          from £171.17
                          from £171.17
                          # 011
                          MPN: 63941600
                          LH MOBILE BRACKET
                          -Valid for USA and CDN
                          from £11.19
                          from £11.19
                          # 011
                          MPN: 64782000
                          LH MOBILE BRACKET
                          -Not for USA, CDN and GD
                          from £49.00
                          from £49.00
                          # 011
                          MPN: 64884200
                          LH MOBILE BRACKET
                          -Valid for GD
                          from £171.17
                          from £171.17
                          # 012
                          MPN: 64630800
                          RH THICKNESS
                          -Possible fitting
                          from £0.50
                          from £0.50
                          # 013
                          MPN: 64630900
                          LH THICKNESS
                          -Possible fitting
                          from £0.50
                          from £0.50
                          # 014
                          MPN: 101139
                          NUT
                          from £0.47
                          from £0.47
                          This part replaces part number 16104425
                          # 015
                          MPN: 14496524
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 14496525 - and 1 more. Click to view details
                          # 016
                          MPN: 64470200
                          SCREW
                          -Not as spare part now - Replaced by 64882600
                          Supersession
                          Supersession
                          # 016
                          MPN: 64882600
                          SCREW
                          from £0.81
                          from £0.81
                          This part replaces part number 64470200
                          # 017
                          MPN: 10615674
                          WASHER
                          Supersession
                          Supersession
                          This part replaces part number 10615670 which we have in stock - and 2 more. Click to view details
                          # 018
                          MPN: 12642078
                          WASHER
                          from £0.51
                          from £0.51
                          This part replaces part number 12642006
                          # 019
                          MPN: 160855
                          GROUND CABLE
                          from £6.58
                          from £6.58
                          # 020
                          MPN: 64470000
                          SCREW
                          -Not as spare part now - Replaced by 64882800
                          Supersession
                          Supersession
                          # 020
                          MPN: 64882800
                          SCREW
                          from £0.61
                          from £0.61
                          This part replaces part number 64470000
                          # 021
                          MPN: 127494
                          WASHER
                          (minimum order quantity = 20)
                          from £0.53
                          from £0.53
                          This part replaces part number 10516470 - and 4 more. Click to view details
                          # 022
                          MPN: 12639724
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 12639725 - and 1 more. Click to view details
                          # 023
                          MPN: 159320

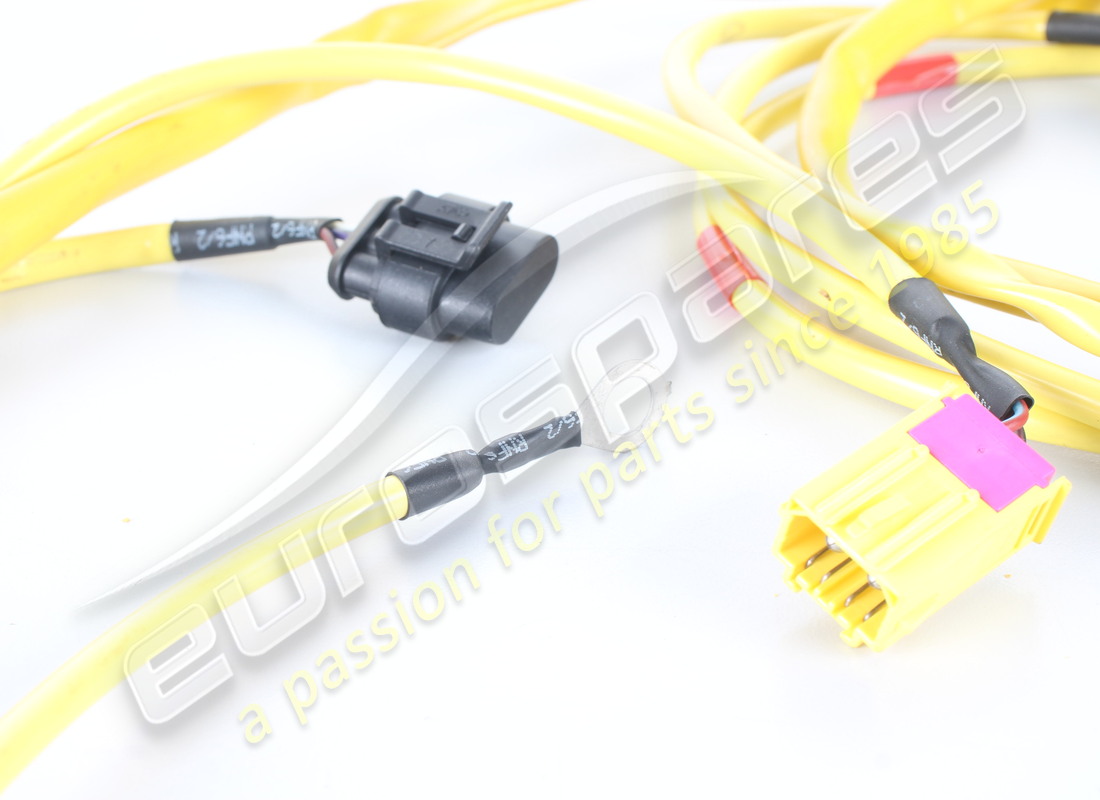

                          AIR-BAG DEVICE CABLES
                          from £295.25
                          from £295.25
                          # 024
                          MPN: 163826
                          PASSENGER SIDE RESISTOR
                          from £38.01
                          from £38.01
