-Valid for Air-Bag Cars
ferrari 355 (2.7 motronic) dashboard parts diagram

133 - DASHBOARD

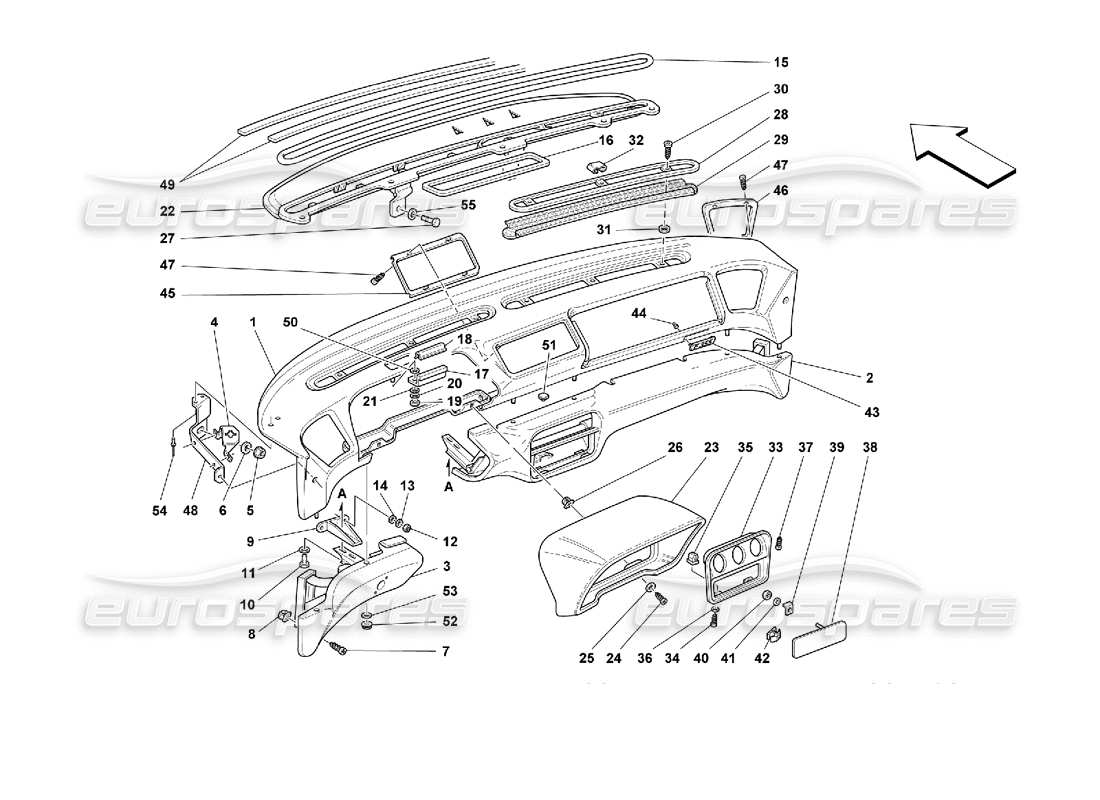

Ferrari 355 (2.7 Motronic) Dashboard Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 641183..
                                                                                            UPPER LINING
                                                                                            -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 001
                                                                                            MPN: 644439..
                                                                                            UPPER LINING
                                                                                            -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 001
                                                                                            MPN: 644777..

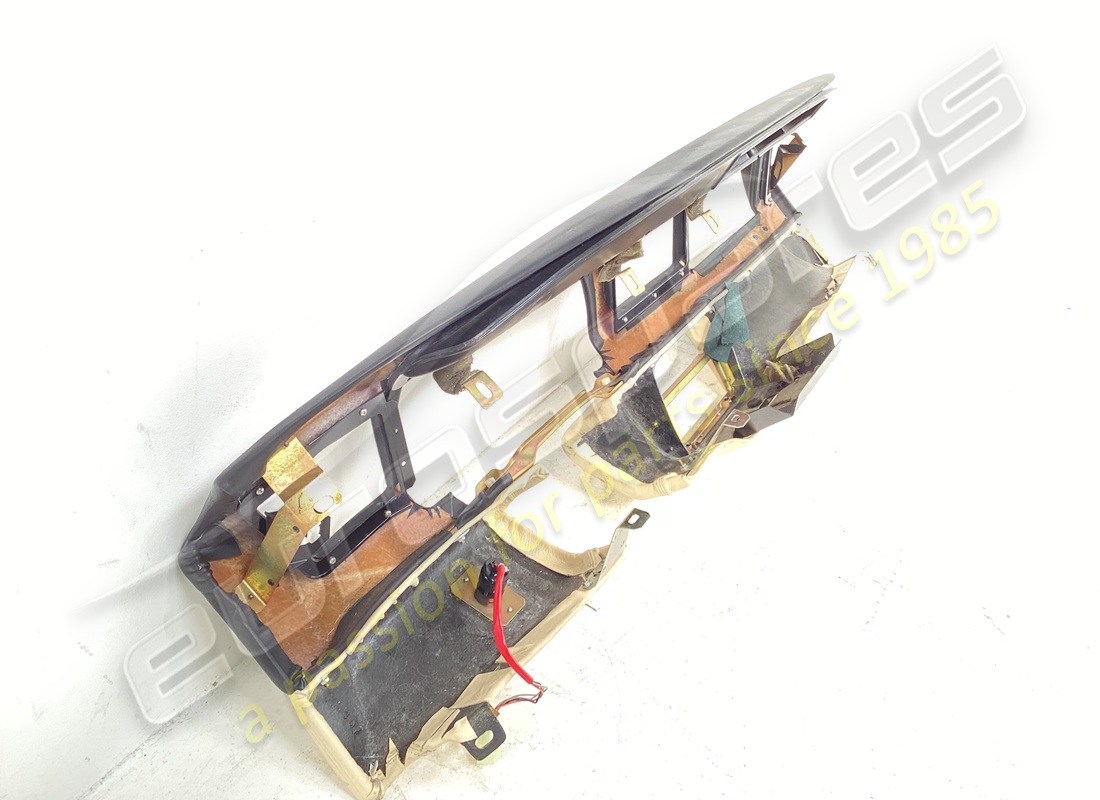

                                                                                            UPHOLSTERED DASHBOARD UPPER FRAMEWORK
                                                                                            -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            from £1,254.75
                                                                                            from £1,254.75
                                                                                            # 001
                                                                                            MPN: 648847..
                                                                                            UPHOLSTERED DASHBOARD UPPER FRAMEWORK
                                                                                            -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            from £724.50
                                                                                            from £724.50
                                                                                            # 002
                                                                                            MPN: 641177
                                                                                            RH LOWER UPHOLSTERY
                                                                                            -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 002
                                                                                            MPN: 644456..
                                                                                            COVERED RH LOWER INSERT
                                                                                            -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            # 002
                                                                                            MPN: 644459..
                                                                                            RH LOWER UPHOLSTERY
                                                                                            -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 002
                                                                                            MPN: 644782..
                                                                                            COVERED RH LOWER INSERT
                                                                                            -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 003
                                                                                            MPN: 641178
                                                                                            LH LOWER UPHOLSTERY
                                                                                            -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 003
                                                                                            MPN: 644448..
                                                                                            COVERED LH LOWER INSERT
                                                                                            -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 003
                                                                                            MPN: 644451..

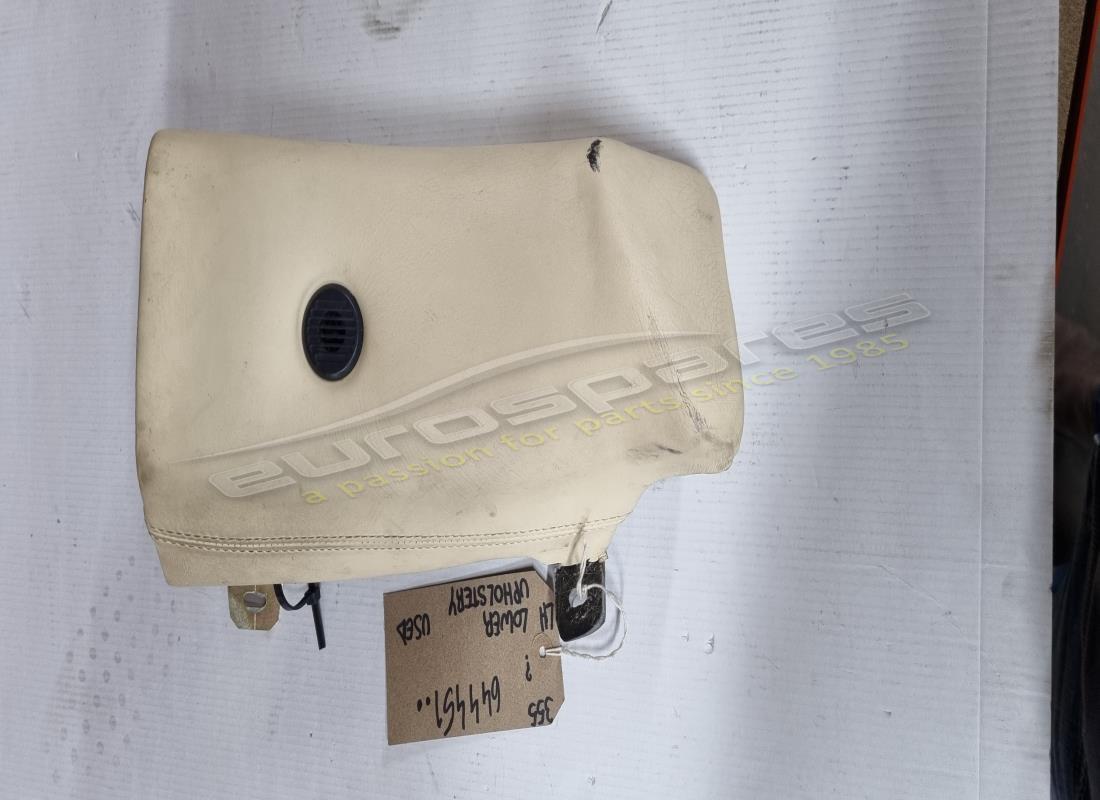

                                                                                            LH LOWER UPHOLSTERY
                                                                                            -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            from £257.25
                                                                                            from £257.25
                                                                                            # 003
                                                                                            MPN: 644792..
                                                                                            COVERED LH LOWER INSERT
                                                                                            -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 004
                                                                                            MPN: 62175700
                                                                                            RH TWEETER FIXING BRACKET
                                                                                            from £6.32
                                                                                            from £6.32
                                                                                            # 004
                                                                                            MPN: 62175800
                                                                                            LH TWEETER FIXING BRACKET
                                                                                            from £6.32
                                                                                            from £6.32
                                                                                            # 005
                                                                                            MPN: 13832101
                                                                                            NUT
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 006
                                                                                            MPN: 12640624
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                            # 007
                                                                                            MPN: 15785101
                                                                                            SCREW
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 008
                                                                                            MPN: 14115980
                                                                                            BLOCK
                                                                                            from £0.68
                                                                                            from £0.68
                                                                                            This part replaces part number 14202380
                                                                                            # 009
                                                                                            MPN: 64263100
                                                                                            COMPLETE BRACKET
                                                                                            from £48.42
                                                                                            from £48.42
                                                                                            # 010
                                                                                            MPN: 10977524
                                                                                            SCREW
                                                                                            from £0.50
                                                                                            from £0.50
                                                                                            # 011
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 012
                                                                                            MPN: 15896214
                                                                                            NUT
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 15896211
                                                                                            # 013
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 014
                                                                                            MPN: 12643724
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                                            # 015
                                                                                            MPN: 62200500
                                                                                            AIR DUCTING GASKET
                                                                                            from £4.31
                                                                                            from £4.31
                                                                                            # 016
                                                                                            MPN: 62188000
                                                                                            AIR CONVEYOR
                                                                                            from £3.58
                                                                                            from £3.58
                                                                                            # 017
                                                                                            MPN: 62139700
                                                                                            INSTRUMENTS PANEL FIXING PLATE
                                                                                            from £1.37
                                                                                            from £1.37
                                                                                            # 018
                                                                                            MPN: 62139800
                                                                                            ANTI-VIBRATIONS
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 019
                                                                                            MPN: 15896470
                                                                                            NUT
                                                                                            (minimum order quantity = 20)
                                                                                            from £0.76
                                                                                            from £0.76
                                                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                            # 020
                                                                                            MPN: 12605274
                                                                                            WASHER
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            This part replaces part number 12605270 - and 1 more. Click to view details
                                                                                            # 021
                                                                                            MPN: 14496324
                                                                                            WASHER
                                                                                            from £1.39
                                                                                            from £1.39
                                                                                            This part replaces part number 14496301 which we have in stock
                                                                                            # 022
                                                                                            MPN: 62185800
                                                                                            UNDER-DASHBOARD AIR DUCTING
                                                                                            from £48.06
                                                                                            from £48.06
                                                                                            # 023
                                                                                            MPN: 641120..
                                                                                            COVERED INSTRUMENTS PANEL
                                                                                            -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            from £1,044.75
                                                                                            from £1,044.75
                                                                                            # 023
                                                                                            MPN: 644324..
                                                                                            DASH PANEL (LEATHER)
                                                                                            -Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 023
                                                                                            MPN: 644464..
                                                                                            COVERED INSTRUMENTS PANEL
                                                                                            -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            from £934.50
                                                                                            from £934.50
                                                                                            # 023
                                                                                            MPN: 644467..
                                                                                            LINING
                                                                                            -Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 023
                                                                                            MPN: 65612000
                                                                                            DASH PANEL (CARBON)
                                                                                            -Not for GD - OPTIONAL CARBON FIBRE
                                                                                            from £1,118.25
                                                                                            from £1,118.25
                                                                                            # 024
                                                                                            MPN: 15687708
                                                                                            SCREW
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 025
                                                                                            MPN: 10519278
                                                                                            WASHER
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            This part replaces part number 10519206 - and 1 more. Click to view details
                                                                                            # 026
                                                                                            MPN: 14115885
                                                                                            BLOCK
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 14202686 - and 1 more. Click to view details
                                                                                            # 027
                                                                                            MPN: 10977724
                                                                                            SCREW M 5
                                                                                            -Valid after stock exhaustion of 13833524
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10977711
                                                                                            # 027
                                                                                            MPN: 13833524
                                                                                            SCREW M 5
                                                                                            -Valid till stock exhaustion
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 027
                                                                                            MPN: 13836324
                                                                                            SCREW M 6
                                                                                            -For F355 Not as spare part
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 028
                                                                                            MPN: 62186800

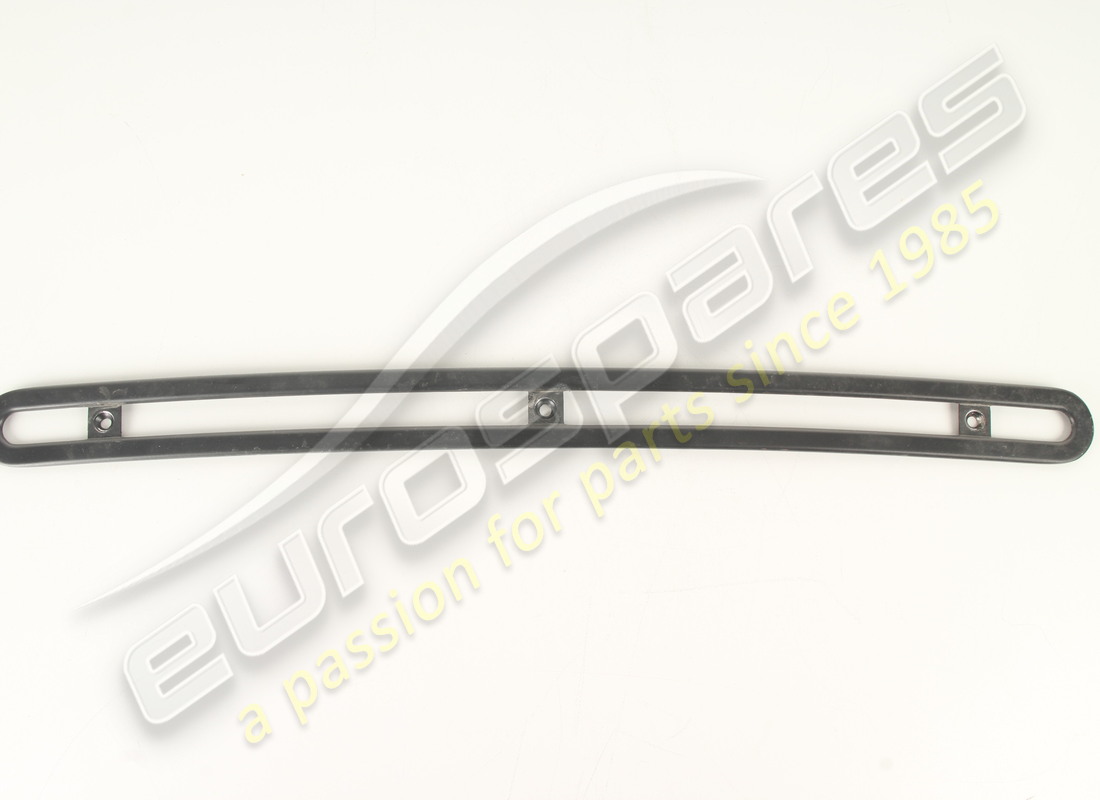

                                                                                            AIR OUTLET PLATE
                                                                                            from £297.00
                                                                                            from £297.00
                                                                                            # 029
                                                                                            MPN: 62880800

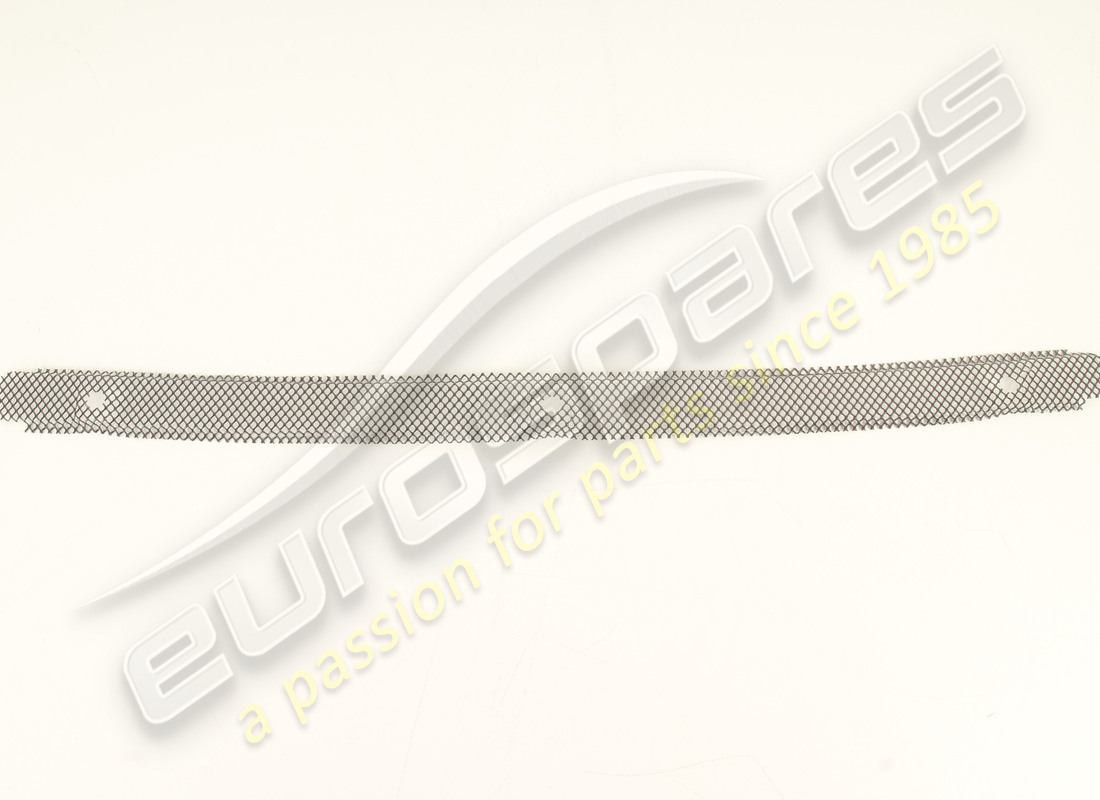

                                                                                            AIR OUTLET GRID SHIELD
                                                                                            from £4.74
                                                                                            from £4.74
                                                                                            # 030
                                                                                            MPN: 63291400
                                                                                            SCREW
                                                                                            from £0.39
                                                                                            from £0.39
                                                                                            # 031
                                                                                            MPN: 63622400
                                                                                            WASHER
                                                                                            from £24.24
                                                                                            from £24.24
                                                                                            # 032
                                                                                            MPN: 62880900
                                                                                            SCREW-COVER PLATE
                                                                                            from £10.59
                                                                                            from £10.59
                                                                                            # 033
                                                                                            MPN: 170934
                                                                                            PLATE FOR INSTRUMENTS
                                                                                            -Not for GD - Valid after stock exhaustion of 64113200
                                                                                            from £203.42
                                                                                            from £203.42
                                                                                            This part replaces part number 64113200
                                                                                            # 033
                                                                                            MPN: 170935
                                                                                            PLATE FOR INSTRUMENTS
                                                                                            -Valid for GD
                                                                                            from £92.84
                                                                                            from £92.84
                                                                                            # 033
                                                                                            MPN: 64113200
                                                                                            PLATE FOR INSTRUMENTS
                                                                                            -Not for GD - Valid till stock exhaustion
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 034
                                                                                            MPN: 15908606
                                                                                            SCREW
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            # 035
                                                                                            MPN: 14115580
                                                                                            BLOCK
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 036
                                                                                            MPN: 12612207
                                                                                            WASHER
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 037
                                                                                            MPN: 15692178
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 038
                                                                                            MPN: 64426700
                                                                                            PLATE FOR RADIO HOUSING
                                                                                            from £275.70
                                                                                            from £275.70
                                                                                            # 039
                                                                                            MPN: 62993400
                                                                                            CLIP
                                                                                            from £0.83
                                                                                            from £0.83
                                                                                            # 040
                                                                                            MPN: 16101711
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 16101715
                                                                                            # 041
                                                                                            MPN: 10615174
                                                                                            WASHER
                                                                                            (minimum order quantity = 20)
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 10615170 - and 1 more. Click to view details
                                                                                            # 042
                                                                                            MPN: 141699
                                                                                            CLIP
                                                                                            from £0.74
                                                                                            from £0.74
                                                                                            # 043
                                                                                            MPN: 64493700
                                                                                            F 355 MARK
                                                                                            from £51.30
                                                                                            from £51.30
                                                                                            # 044
                                                                                            MPN: 60324506
                                                                                            CLIP
                                                                                            from £1.54
                                                                                            from £1.54
                                                                                            This part replaces part number 62773000
                                                                                            # 045
                                                                                            MPN: 64113600
                                                                                            AIR OUTLET CENTRAL PLATE
                                                                                            -Not for GD
                                                                                            from £40.05
                                                                                            from £40.05
                                                                                            # 045
                                                                                            MPN: 64510700
                                                                                            AIR OUTLET CENTRAL PLATE
                                                                                            -Valid for GD
                                                                                            from £9.16
                                                                                            from £9.16
                                                                                            # 046
                                                                                            MPN: 64113300
                                                                                            AIR OUTLET RH LATERAL PLATE
                                                                                            from £24.06
                                                                                            from £24.06
                                                                                            # 046
                                                                                            MPN: 64510500
                                                                                            AIR OUTLET LH LATERAL PLATE
                                                                                            from £21.62
                                                                                            from £21.62
                                                                                            # 047
                                                                                            MPN: 15902670
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 048
                                                                                            MPN: 64113800

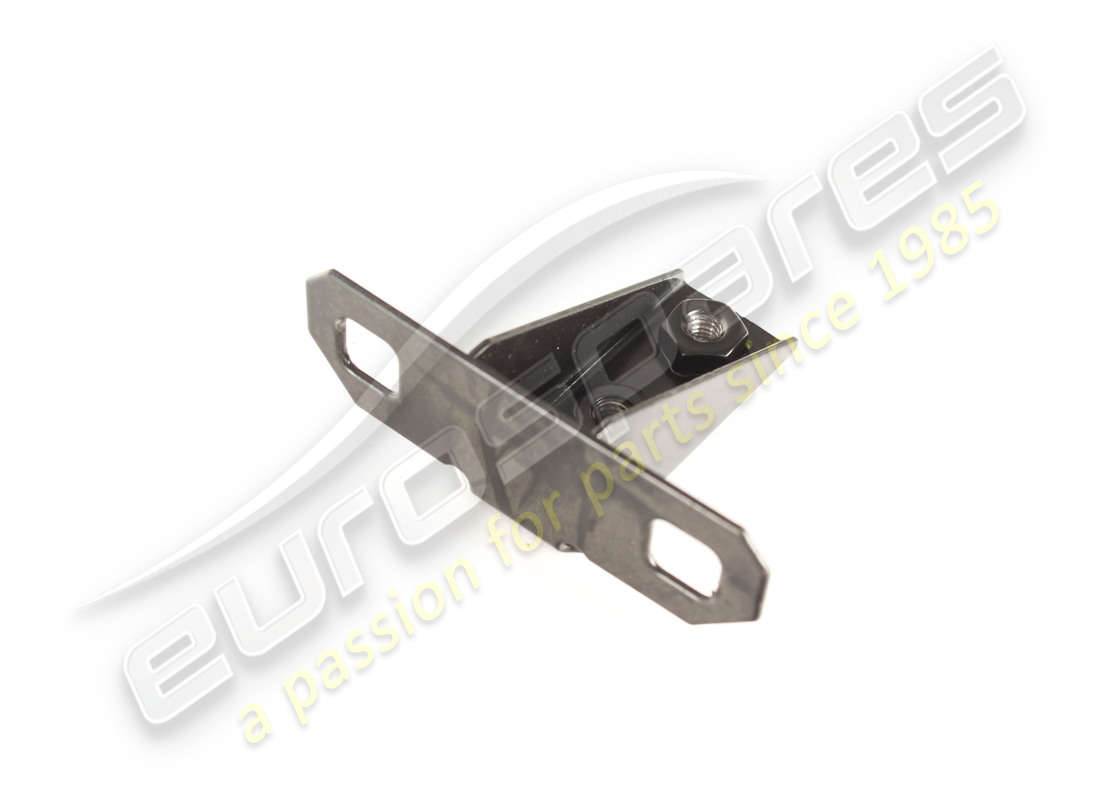

                                                                                            DASHBOARD RH UPPER LATERAL FIXING BRACKET
                                                                                            from £14.50
                                                                                            from £14.50
                                                                                            # 048
                                                                                            MPN: 64113900
                                                                                            DASHBOARD LH UPPER LATERAL FIXING BRACKET
                                                                                            from £14.50
                                                                                            from £14.50
                                                                                            # 049
                                                                                            MPN: 63312400

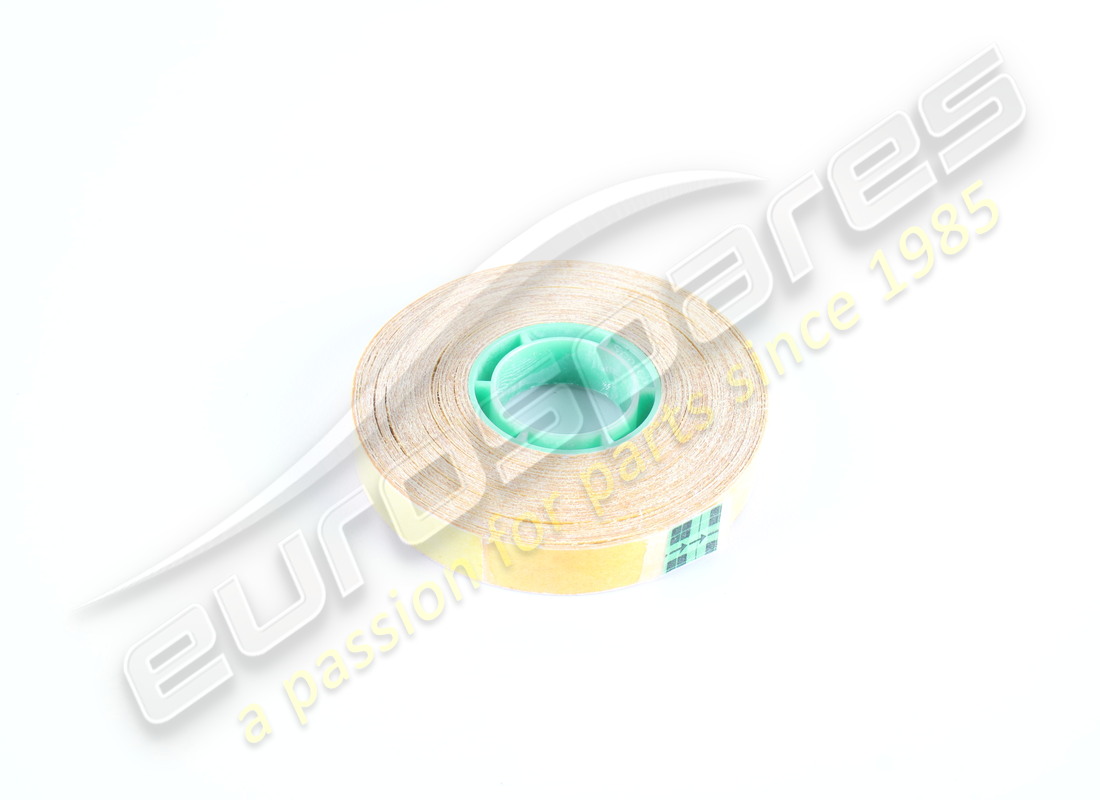

                                                                                            BI-ADHESIVE TAPE
                                                                                            from £32.51
                                                                                            from £32.51
                                                                                            # 050
                                                                                            MPN: 12640624
                                                                                            WASHER
                                                                                            -Possible fitting
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                            # 051
                                                                                            MPN: 14624687
                                                                                            PLUG
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 052
                                                                                            MPN: 13831801
                                                                                            NUT
                                                                                            from £0.52
                                                                                            from £0.52
                                                                                            # 053
                                                                                            MPN: 12638124
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                                                                            # 054
                                                                                            MPN: 60609700
                                                                                            RIVET
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 055
                                                                                            MPN: 12599274
                                                                                            WASHER
                                                                                            from £0.71
                                                                                            from £0.71
