ferrari 355 (2.7 motronic) rear bumper parts diagram

126 - REAR BUMPER

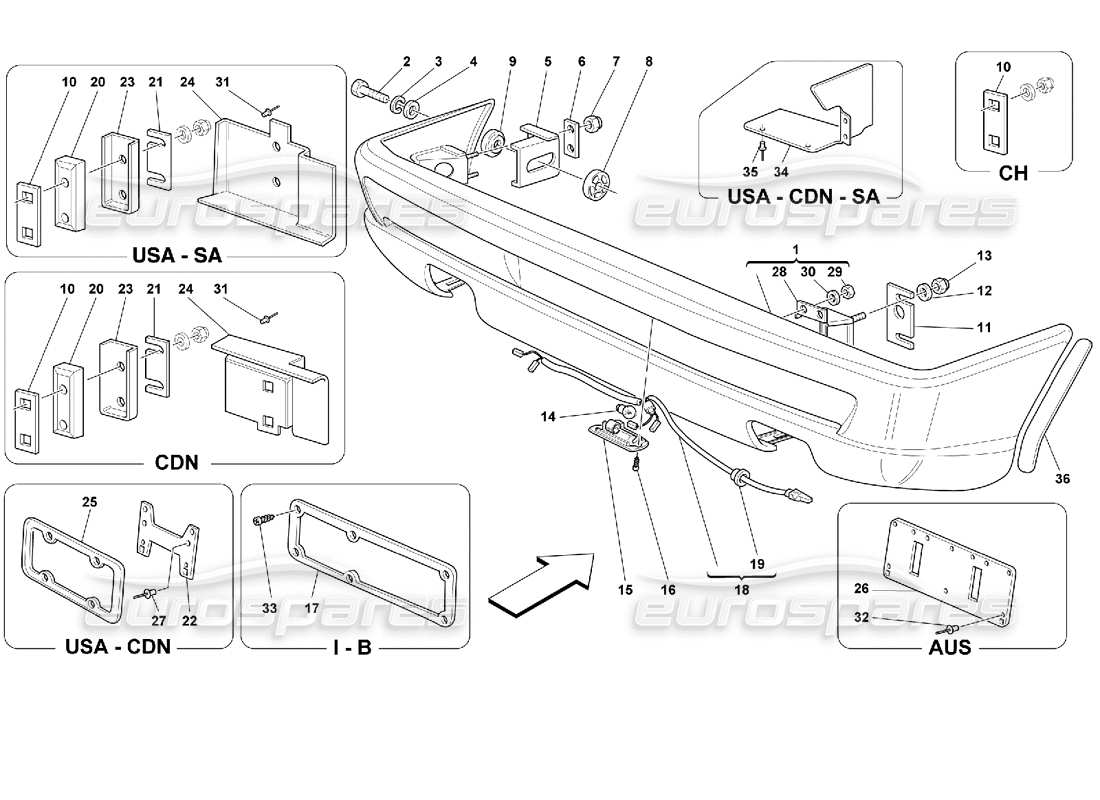

Ferrari 355 (2.7 Motronic) Rear Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price

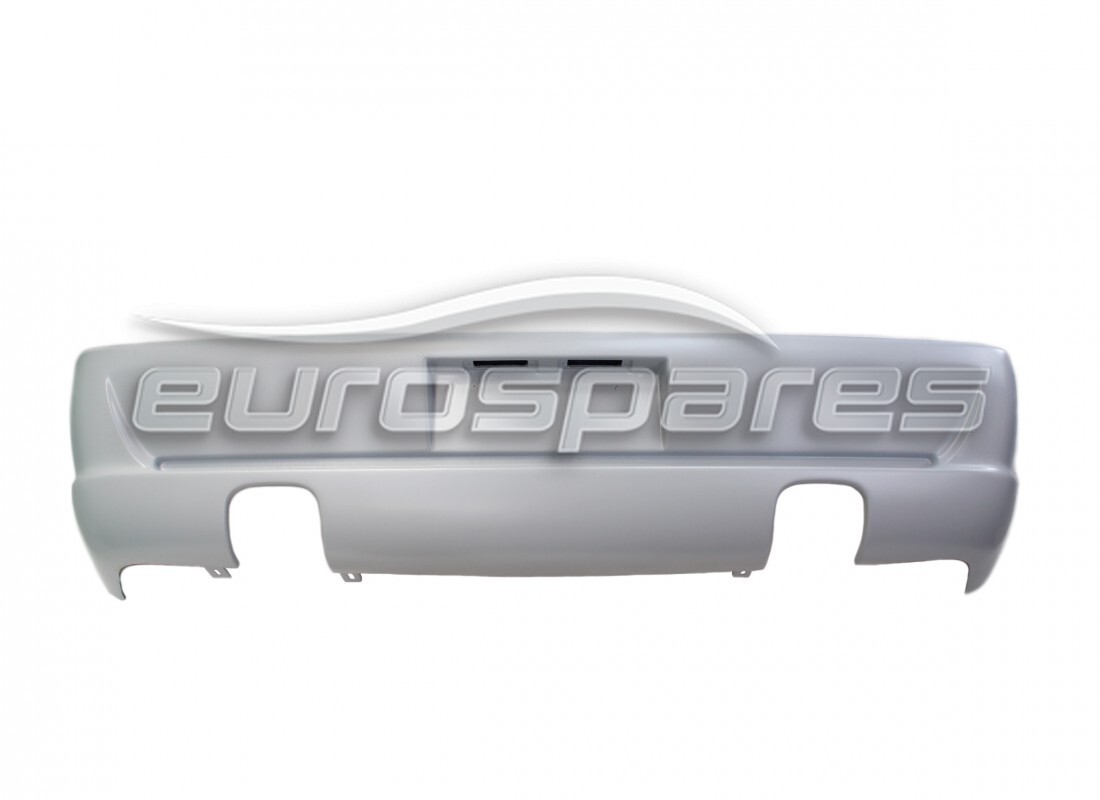

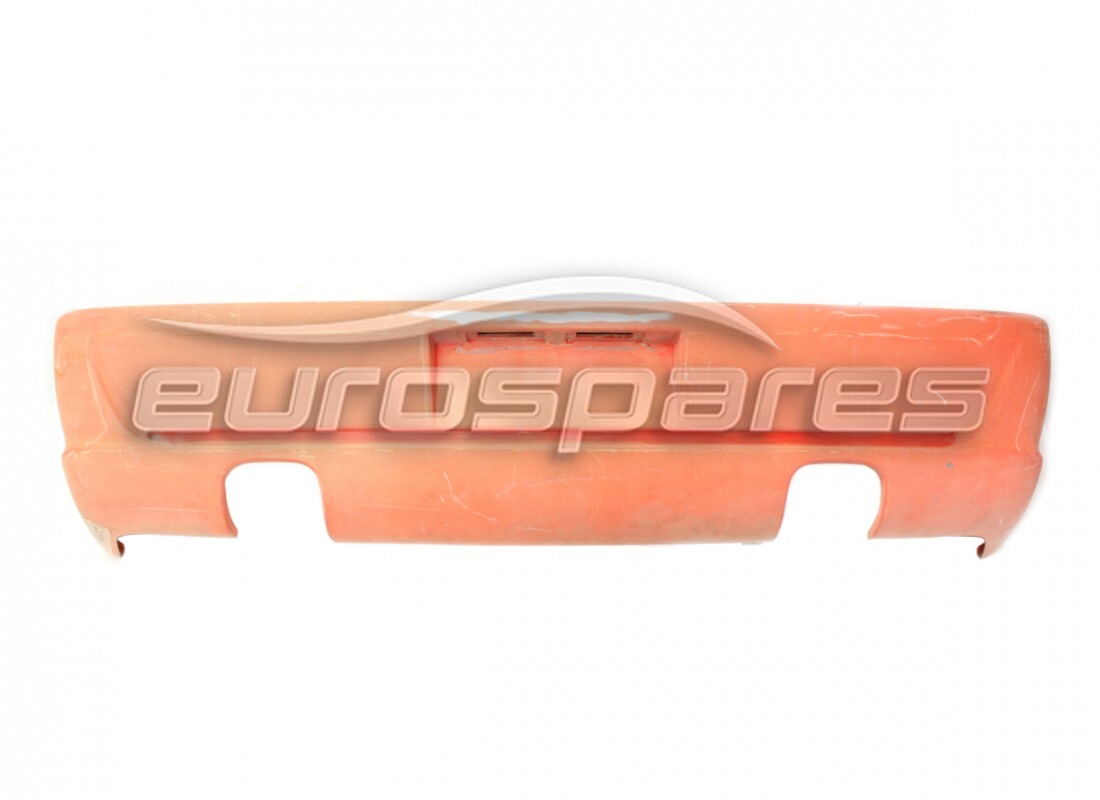

                                        # 001
                                        MPN: 64483810
                                        REAR BUMPER
                                        -Valid for USA - Valid till Ass. Nr.20189
                                        from £4,214.73
                                        from £4,214.73
                                        # 001
                                        MPN: 64497310
                                        REAR BUMPER
                                        -Valid for SA till Ass. Nr.20189
                                        from £3,039.75
                                        from £3,039.75
                                        # 001
                                        MPN: 64513110
                                        REAR BUMPER
                                        -Valid for CDN
                                        from £4,443.71
                                        from £4,443.71
                                        # 001
                                        MPN: 64888210
                                        REAR BUMPER
                                        -Not for USA, CDN and SA - Valid from Ass. Nr.20190
                                        Supersession
                                        Supersession
                                        # 001
                                        MPN: 65099410
                                        REAR BUMPER (FIBREGLASS)
                                        -Not for USA, CDN and SA - Valid till Ass. Nr.20189
                                        from £3,674.55
                                        from £3,674.55
                                        This part replaces part number 64888210 - and 1 more. Click to view details
                                        # 001
                                        MPN: 65129210
                                        REAR BUMPER
                                        -Valid for USA - Valid from Ass. Nr.20190
                                        from £3,674.55
                                        from £3,674.55
                                        # 001
                                        MPN: 65129410
                                        REAR BUMPER
                                        -Valid for SA from Ass. Nr.20190
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 15970921
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 003
                                        MPN: 127497
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        This part replaces part number 10516871 - and 2 more. Click to view details
                                        # 004
                                        MPN: 12646801
                                        WASHER
                                        from £0.68
                                        from £0.68
                                        This part replaces part number 12644682
                                        # 005
                                        MPN: 62126500
                                        BRACKET
                                        from £5.63
                                        from £5.63
                                        # 006
                                        MPN: 62126600
                                        PLATE
                                        from £1.54
                                        from £1.54
                                        # 007
                                        MPN: 104030
                                        NUT
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 16104125
                                        # 008
                                        MPN: 62128300
                                        INTERNAL SMALL BLOCK
                                        from £0.59
                                        from £0.59
                                        This part replaces part number 83203700
                                        # 009
                                        MPN: 62128200
                                        EXTERNAL SMALL BLOCK
                                        from £1.01
                                        from £1.01
                                        # 010
                                        MPN: 62845700
                                        INSULATOR FOR BRACKET
                                        -Valid for USA, CDN, CH and SA
                                        from £60.91
                                        from £60.91
                                        # 011
                                        MPN: 62126800
                                        SPACER
                                        -Not for USA, CDN and SA
                                        from £10.02
                                        from £10.02
                                        # 012
                                        MPN: 12644301
                                        WASHER
                                        from £0.62
                                        from £0.62
                                        # 013
                                        MPN: 12574521
                                        NUT
                                        from £0.55
                                        from £0.55
                                        This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                        # 014
                                        MPN: 10857790
                                        BULB
                                        from £1.14
                                        from £1.14
                                        This part replaces part number 101524
                                        # 016
                                        MPN: 15644178
                                        SCREW
                                        Supersession
                                        Supersession
                                        # 017
                                        MPN: 60097003
                                        REAR NUMBER PLATE RIM
                                        -Valid for I and B
                                        from £14.69
                                        from £14.69
                                        This part replaces part number 60096401 which we have in stock
                                        # 018
                                        MPN: 153479
                                        CABLES FOR NUMBER PLATE LIGHTS
                                        from £166.82
                                        from £166.82
                                        # 019
                                        MPN: 10399180
                                        CABLE GROMMET
                                        from £5.76
                                        from £5.76
                                        # 020
                                        MPN: 62551000
                                        PAD
                                        -Valid for USA, CDN and SA
                                        from £25.63
                                        from £25.63
                                        # 021
                                        MPN: 62551100
                                        THICKNESS
                                        -Valid for USA, CDN and SA
                                        from £13.53
                                        from £13.53
                                        # 022
                                        MPN: 64497800
                                        REAR NUMBER PLATE SUPPORT
                                        -Valid for USA and CDN
                                        from £18.28
                                        from £18.28
                                        # 023
                                        MPN: 64508800
                                        HEAT SHIELD
                                        -Valid for USA, CDN and SA
                                        from £133.32
                                        from £133.32
                                        # 024
                                        MPN: 64774800
                                        RH HEAT PROTECTION SHIELD
                                        -Valid for USA, CDN and SA - Valid from car Ass. Nr. 18789
                                        from £138.84
                                        from £138.84
                                        This part replaces part number 64624600
                                        # 024
                                        MPN: 64774900
                                        LH HEAT PROTECTION SHIELD
                                        -Valid for USA, CDN and SA - Valid from car Ass. Nr. 18789
                                        from £135.04
                                        from £135.04
                                        This part replaces part number 64624700
                                        # 025
                                        MPN: 60987900
                                        REAR NUMBER PLATE RIM
                                        -Valid for USA and CDN
                                        from £38.94
                                        from £38.94
                                        # 026
                                        MPN: 64684500
                                        REAR NUMBER PLATE SUPPORT
                                        -Valid for AUS
                                        from £16.59
                                        from £16.59
                                        # 027
                                        MPN: 62738200
                                        RIVET
                                        -Valid for USA and CDN
                                        from £0.47
                                        from £0.47
                                        # 028
                                        MPN: 64100600
                                        BUMPER FIXING CENTRAL BRACKET
                                        from £41.09
                                        from £41.09
                                        # 029
                                        MPN: 14048211
                                        NUT
                                        from £0.51
                                        from £0.51
                                        # 030
                                        MPN: 12646724
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                        # 031
                                        MPN: 60174307
                                        RIVET
                                        -Valid for USA, CDN and SA - Valid from car Ass. Nr. 18789
                                        from £2.84
                                        from £2.84
                                        # 032
                                        MPN: 62556300
                                        RIVET
                                        -Valid for AUS
                                        from £0.71
                                        from £0.71
                                        # 033
                                        MPN: 15688075
                                        SCREW
                                        -Valid for I and B
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                        # 034
                                        MPN: 64624600
                                        RH ANGLE PIECE
                                        -Valid for USA, CDN and SA - Valid till car Ass. Nr. 18788
                                        Supersession
                                        Supersession
                                        # 034
                                        MPN: 64624700
                                        LH ANGLE PIECE
                                        -Valid for USA, CDN and SA - Valid till car Ass. Nr. 18788
                                        Supersession
                                        Supersession
                                        # 035
                                        MPN: 62738200
                                        RIVET
                                        -Valid for USA, CDN and SA - Valid till car Ass. Nr. 18788
                                        from £0.47
                                        from £0.47
                                        # 036
                                        MPN: 64498800
                                        LH PROTECTION
                                        Supersession
                                        Supersession
                                        # 036
                                        MPN: 64498900
                                        RH PROTECTION
                                        Supersession
                                        Supersession
