ferrari 355 (2.7 motronic) front part structures parts diagram

102 - Front Part Structures

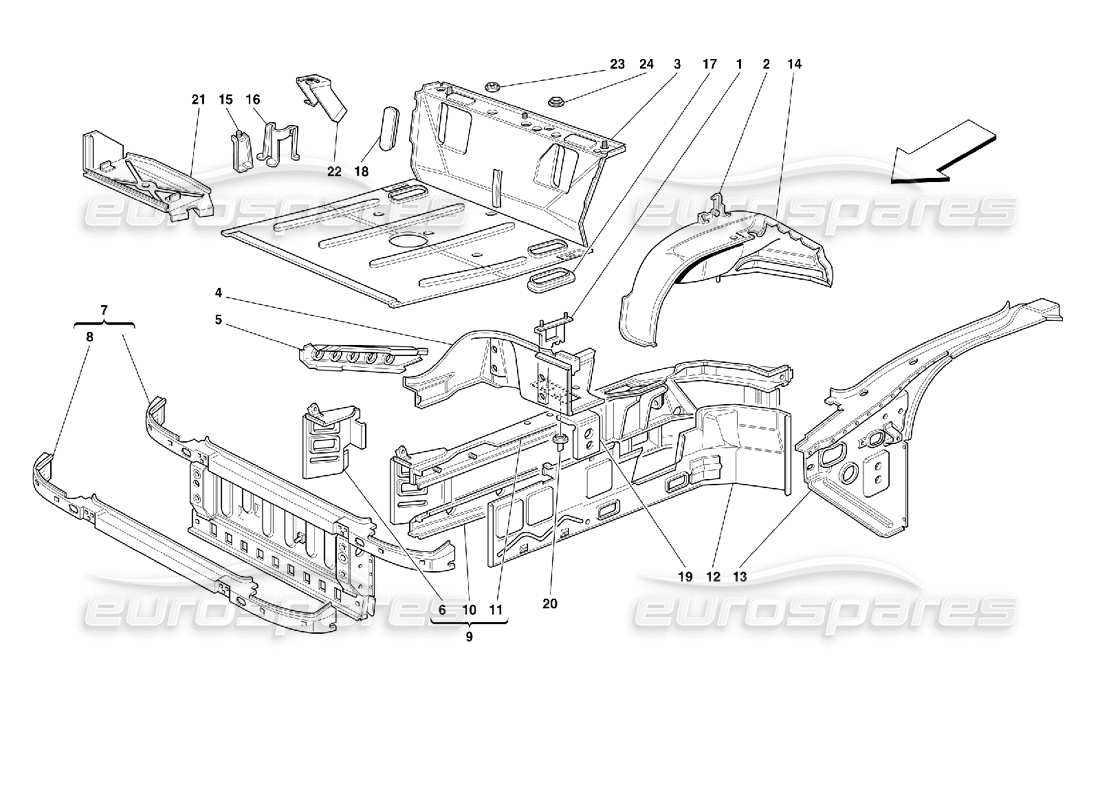

Ferrari 355 (2.7 Motronic) Front Part Structures Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 62166000
                                CONTROL UNIT FIXING BRACKET
                                from £99.98
                                from £99.98
                                # 002
                                MPN: 62068200
                                RH BRACKET FOR FRONT HOOD LOCK
                                from £22.80
                                from £22.80
                                # 002
                                MPN: 62068300
                                LH BRACKET FOR FRONT HOOD LOCK
                                from £22.80
                                from £22.80
                                # 003
                                MPN: 64437100
                                COMPLETE TRUNK BOTTOM
                                -Not for AIR-BAG cars - Valid for GD
                                Supersession
                                Supersession
                                # 003
                                MPN: 65262400
                                COMPLETE TRUNK BOTTOM
                                Not for GD
                                from £3,056.48
                                from £3,056.48
                                This part replaces part number 64325900 - and 1 more. Click to view details
                                # 003
                                MPN: 65360000
                                COMPLETE TRUNK BOTTOM
                                -Valid for AIR-BAG cars - Valid for GD
                                from £644.79
                                from £644.79
                                This part replaces part number 64437100 - and 1 more. Click to view details
                                # 004
                                MPN: 63537200
                                LH LIGHT AROUND FRAMEWORK
                                -Completed with bracket 1
                                Supersession
                                Supersession
                                This part replaces part number 62088000
                                # 004
                                MPN: 64299200
                                RH LIGHT AROUND FRAMEWORK
                                -Completed with brackets 15 and 16
                                from £794.52
                                from £794.52
                                This part replaces part number 62087900
                                # 005
                                MPN: 63597600
                                REINFORCEMENT FOR FRONT RH SIDE STRUCTURE
                                from £103.39
                                from £103.39
                                This part replaces part number 62208600
                                # 005
                                MPN: 63597700
                                REINFORCEMENT FOR FRONT LH SIDE STRUCTURE
                                from £109.91
                                from £109.91
                                This part replaces part number 62208700
                                # 006
                                MPN: 62096300
                                FRONT REINFORCEMENT FOR LH SIDE STRUCTURE
                                -Not for CDN
                                from £69.90
                                from £69.90
                                # 006
                                MPN: 63343700
                                FRONT REINFORCEMENT FOR RH SIDE STRUCTURE
                                from £24.82
                                from £24.82
                                # 006
                                MPN: 63343700
                                FRONT REINFORCEMENT FOR RH SIDE STRUCTURE
                                -Valid for CDN
                                from £24.82
                                from £24.82
                                # 006
                                MPN: 63343800
                                FRONT REINFORCEMENT FOR LH SIDE STRUCTURE
                                -Valid for CDN
                                from £24.87
                                from £24.87
                                # 007
                                MPN: 64312800
                                COMPLETE FRONT MOULDING
                                -Not for CDN
                                from £1,377.35
                                from £1,377.35
                                This part replaces part number 62086900
                                # 007
                                MPN: 64513800
                                COMPLETE FRONT MOULDING
                                -Valid for CDN
                                from £783.33
                                from £783.33
                                # 008
                                MPN: 70000611
                                UPPER CROSS MEMBER FOR FRONT FRAMEWORK
                                from £673.83
                                from £673.83
                                # 009
                                MPN: 64043000
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid till car Nr.104322 - Not for CDN and GD
                                from £764.79
                                from £764.79
                                # 009
                                MPN: 64043100
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid till car Nr.104322 - Not for CDN and GD
                                from £2,856.08
                                from £2,856.08
                                # 009
                                MPN: 64435900
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid for GD till cars Nr.104322
                                from £802.44
                                from £802.44
                                # 009
                                MPN: 64477400
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid for GD till cars Nr.104322
                                from £735.24
                                from £735.24
                                # 009
                                MPN: 64514200
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid for CDN till cars Nr.104322
                                from £938.71
                                from £938.71
                                # 009
                                MPN: 64514300
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid for CDN till cars Nr.104322
                                from £941.91
                                from £941.91
                                # 009
                                MPN: 65196700
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid from car Nr.104323 - Not for CDN and GD
                                from £619.24
                                from £619.24
                                # 009
                                MPN: 65196800
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid from car Nr.104323 - Not for CDN and GD
                                Supersession
                                Supersession
                                # 009
                                MPN: 65196900
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid for GD from cars Nr.104323
                                Supersession
                                Supersession
                                # 009
                                MPN: 65197000
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid for GD from cars Nr.104323
                                Supersession
                                Supersession
                                # 009
                                MPN: 65197100
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid for CDN from cars Nr.104323
                                # 009
                                MPN: 65197200
                                LH FRONT LATERAL STRUCTURE ASSEMBLY
                                -Valid for CDN from cars Nr.104323
                                Supersession
                                Supersession
                                # 010
                                MPN: 62083000
                                RH LOWER SPRAG
                                -Without reinforcements
                                from £252.72
                                from £252.72
                                # 010
                                MPN: 62083100
                                LH LOWER SPRAG
                                -Without reinforcements
                                from £300.63
                                from £300.63
                                # 011
                                MPN: 63597400
                                RH UPPER SPRAG
                                -Not for CDN
                                from £117.47
                                from £117.47
                                # 011
                                MPN: 63597800
                                LH UPPER SPRAG
                                -Not for CDN
                                from £90.87
                                from £90.87
                                # 011
                                MPN: 64514000
                                RH UPPER SPRAG
                                -Valid for CDN
                                from £137.87
                                from £137.87
                                # 011
                                MPN: 64514100
                                LH UPPER SPRAG
                                -Valid for CDN
                                from £114.65
                                from £114.65
                                # 012
                                MPN: 63953900
                                SPRAGS LH SIDE WALL
                                from £263.33
                                from £263.33
                                # 012
                                MPN: 63954000
                                SPRAGS RH SIDE WALL
                                from £273.56
                                from £273.56
                                # 013
                                MPN: 64899400
                                LH FENDER SUPPORT WALL
                                -Valid after stock exhaustion of 64308300
                                from £601.02
                                from £601.02
                                This part replaces part number 63382000 - and 1 more. Click to view details
                                # 014
                                MPN: 63589700
                                RH FRONT WHEELHOUSE
                                -Not for GD
                                from £255.14
                                from £255.14
                                This part replaces part number 62088100
                                # 014
                                MPN: 63589800
                                LH FRONT WHEELHOUSE
                                -Not for GD
                                Supersession
                                Supersession
                                This part replaces part number 62088200
                                # 014
                                MPN: 63590100
                                RH FRONT WHEELHOUSE
                                -Valid for GD
                                from £95.58
                                from £95.58
                                # 014
                                MPN: 63590200
                                LH FRONT WHEELHOUSE
                                -Valid for GD
                                from £586.04
                                from £586.04
                                # 015
                                MPN: 62165400
                                WINDSHIELD WASHER BAG FIXING BRACKET
                                from £7.36
                                from £7.36
                                # 016
                                MPN: 62165600
                                DEHYDRATOR FILTER FIXING BRACKET
                                from £5.99
                                from £5.99
                                # 017
                                MPN: 62678500
                                PLUG
                                from £3.12
                                from £3.12
                                # 018
                                MPN: 62921200
                                PLUG
                                from £21.36
                                from £21.36
                                # 019
                                MPN: 62121200
                                BUMPER FIXING BRACKET
                                from £4.14
                                from £4.14
                                # 020
                                MPN: 14507187
                                LH PLUG
                                from £2.03
                                from £2.03
                                # 020
                                MPN: 63013000
                                RH PLUG
                                from £1.59
                                from £1.59
                                # 021
                                MPN: 64043800
                                BATTERY SUPPORT
                                from £42.25
                                from £42.25
                                # 022
                                MPN: 64292100
                                BATTERY CUT-OUT SWITCH FIXING BRACKET
                                from £64.02
                                from £64.02
                                # 023
                                MPN: 63505900
                                PLUG
                                from £2.32
                                from £2.32
                                # 024
                                MPN: 14507987
                                PLUG
                                from £0.91
                                from £0.91
