ferrari 355 (2.7 motronic) current generator - starting motor - battery parts diagram

048 - Current Generator - Starting Motor - Battery

Ferrari 355 (2.7 Motronic) Current Generator - Starting Motor - Battery Parts Diagram

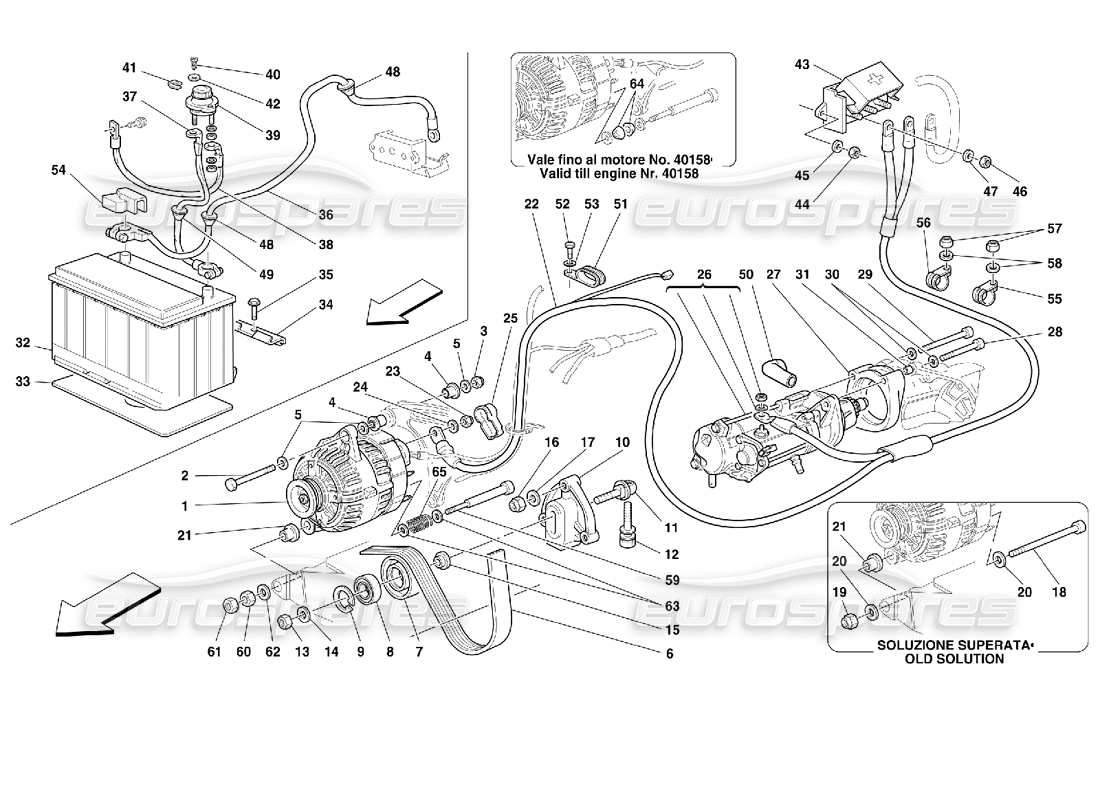

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                        #
                                                                                                                        Part number
                                                                                                                        Description
                                                                                                                        Price
                                                                                                                        # 001
                                                                                                                        MPN: 158047

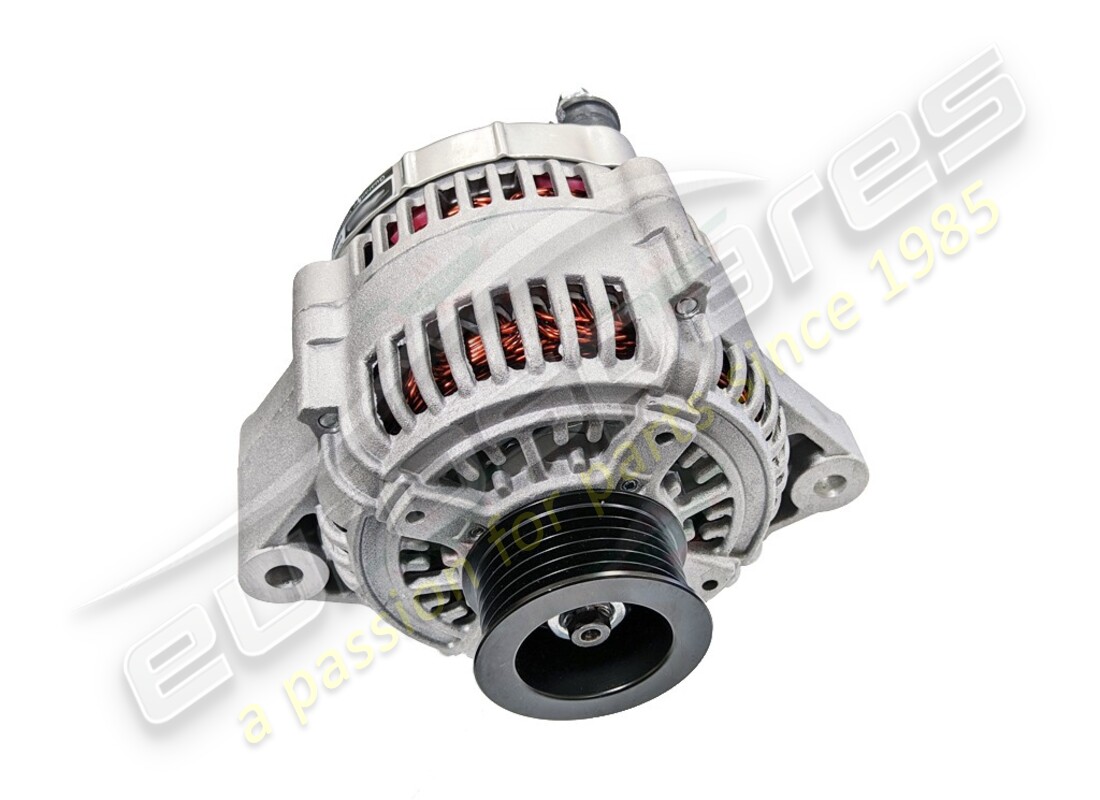

                                                                                                                        140 A. ALTERNATOR
                                                                                                                        from £592.50
                                                                                                                        from £592.50
                                                                                                                        # 002
                                                                                                                        MPN: 15971324
                                                                                                                        SCREW
                                                                                                                        from £0.82
                                                                                                                        from £0.82
                                                                                                                        This part replaces part number 123198 - and 1 more. Click to view details
                                                                                                                        # 003
                                                                                                                        MPN: 102742
                                                                                                                        NUT
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                                        # 004
                                                                                                                        MPN: 163834
                                                                                                                        ESTENDBLOCK
                                                                                                                        from £21.97
                                                                                                                        from £21.97
                                                                                                                        # 006
                                                                                                                        MPN: 199833

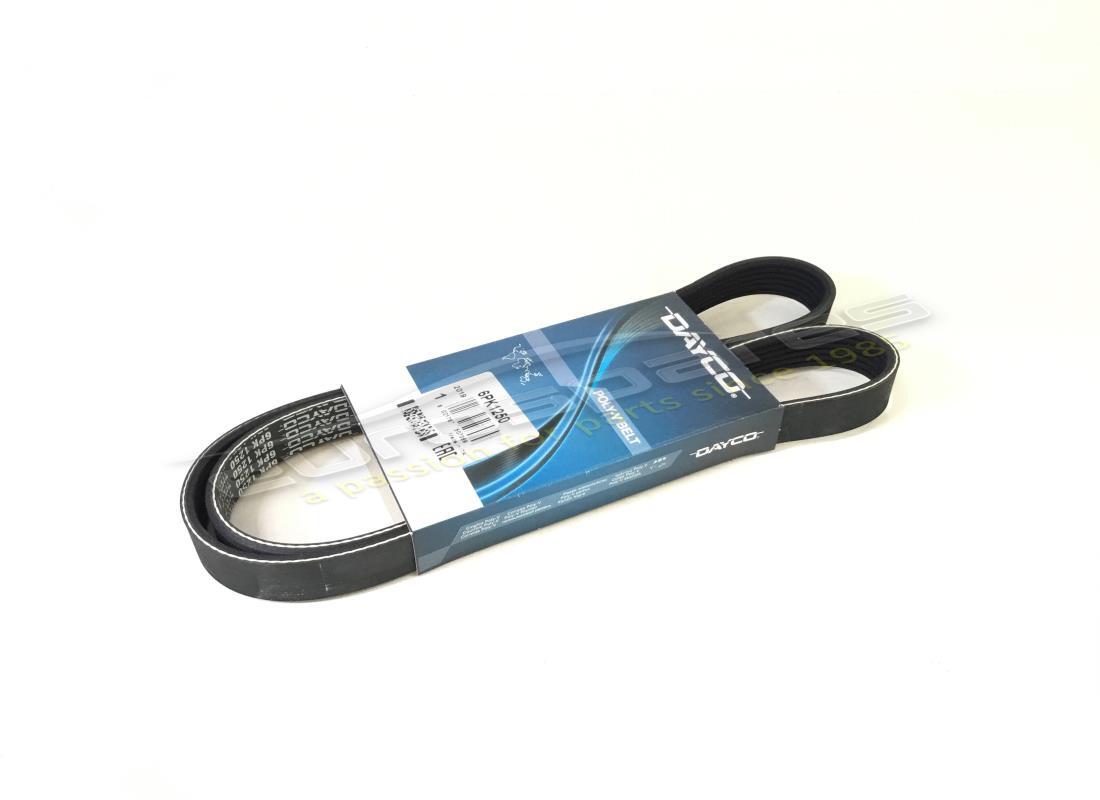

                                                                                                                        GENERATOR CONTROL BELT
                                                                                                                        from £13.19
                                                                                                                        from £13.19
                                                                                                                        This part replaces part number 158102
                                                                                                                        # 006
                                                                                                                        MPN: 199833
                                                                                                                        GENERATOR CONTROL BELT
                                                                                                                        from £13.19
                                                                                                                        from £13.19
                                                                                                                        This part replaces part number 158102
                                                                                                                        # 007
                                                                                                                        MPN: 148632
                                                                                                                        BELT TIGHTENING PULLEY
                                                                                                                        from £262.50
                                                                                                                        from £262.50
                                                                                                                        # 008
                                                                                                                        MPN: 123350
                                                                                                                        BEARING
                                                                                                                        from £20.15
                                                                                                                        from £20.15
                                                                                                                        # 009
                                                                                                                        MPN: 11060076
                                                                                                                        SEEGER RING
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        # 010
                                                                                                                        MPN: 153687
                                                                                                                        BELT TIGHTENING SUPPORT BRACKET
                                                                                                                        from £172.38
                                                                                                                        from £172.38
                                                                                                                        # 011
                                                                                                                        MPN: 148630

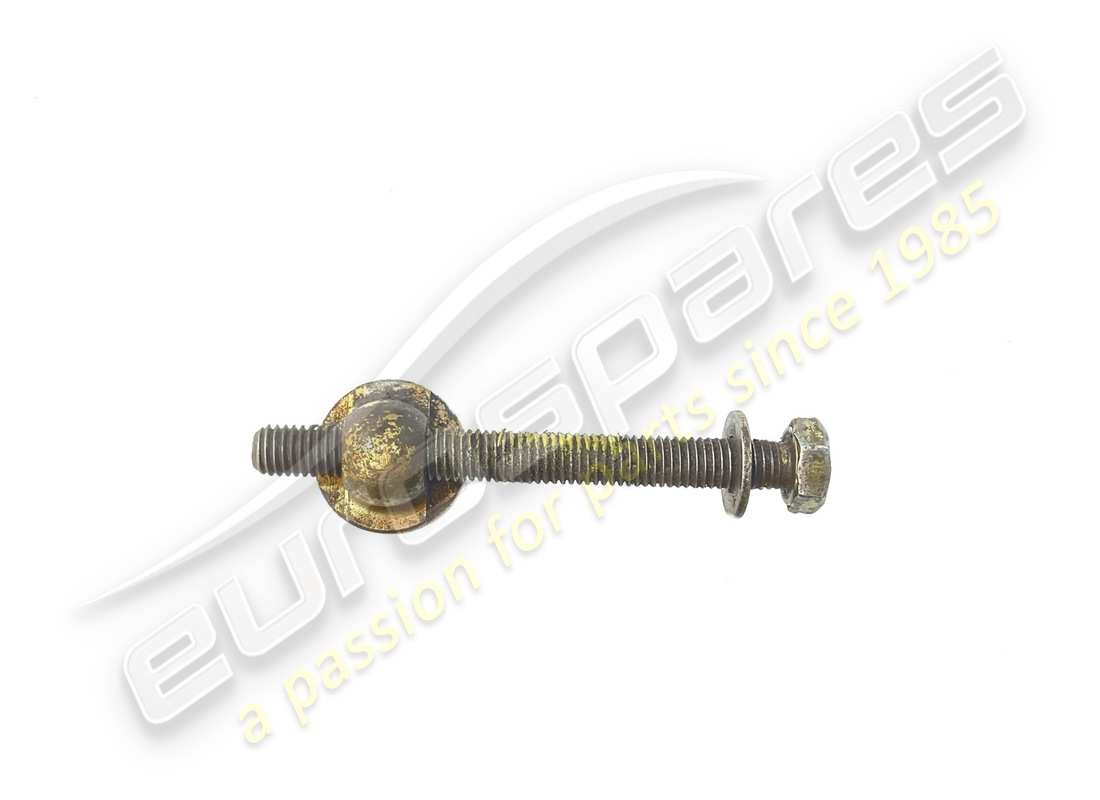

                                                                                                                        THREADED PIN
                                                                                                                        from £69.55
                                                                                                                        from £69.55
                                                                                                                        # 012
                                                                                                                        MPN: 157289
                                                                                                                        SCREW
                                                                                                                        from £3.97
                                                                                                                        from £3.97
                                                                                                                        # 013
                                                                                                                        MPN: 148020
                                                                                                                        NUT
                                                                                                                        from £2.57
                                                                                                                        from £2.57
                                                                                                                        This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                                        # 014
                                                                                                                        MPN: 10730721
                                                                                                                        WASHER
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 015
                                                                                                                        MPN: 158180
                                                                                                                        SPACER
                                                                                                                        from £4.86
                                                                                                                        from £4.86
                                                                                                                        # 016
                                                                                                                        MPN: 101139
                                                                                                                        NUT
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 16104425
                                                                                                                        # 017
                                                                                                                        MPN: 12601374
                                                                                                                        WASHER
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                        # 018
                                                                                                                        MPN: 14360234
                                                                                                                        SCREW
                                                                                                                        from £3.84
                                                                                                                        from £3.84
                                                                                                                        # 019
                                                                                                                        MPN: 102742
                                                                                                                        NUT
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                                        # 020
                                                                                                                        MPN: 126648
                                                                                                                        WASHER
                                                                                                                        from £0.60
                                                                                                                        from £0.60
                                                                                                                        # 021
                                                                                                                        MPN: 160877
                                                                                                                        BUSHING
                                                                                                                        -Valid till engine Nr. 37691
                                                                                                                        from £5.07
                                                                                                                        from £5.07
                                                                                                                        # 021
                                                                                                                        MPN: 164467
                                                                                                                        BUSHING
                                                                                                                        -Valid from engine Nr. 37692
                                                                                                                        from £15.98
                                                                                                                        from £15.98
                                                                                                                        # 022
                                                                                                                        MPN: 157506
                                                                                                                        ALTERNATOR-STARTER MOTOR-TERMINAL BOX CONNECTING CABLE
                                                                                                                        from £238.95
                                                                                                                        from £238.95
                                                                                                                        # 024
                                                                                                                        MPN: 12601374
                                                                                                                        WASHER
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                        # 026
                                                                                                                        MPN: 155166

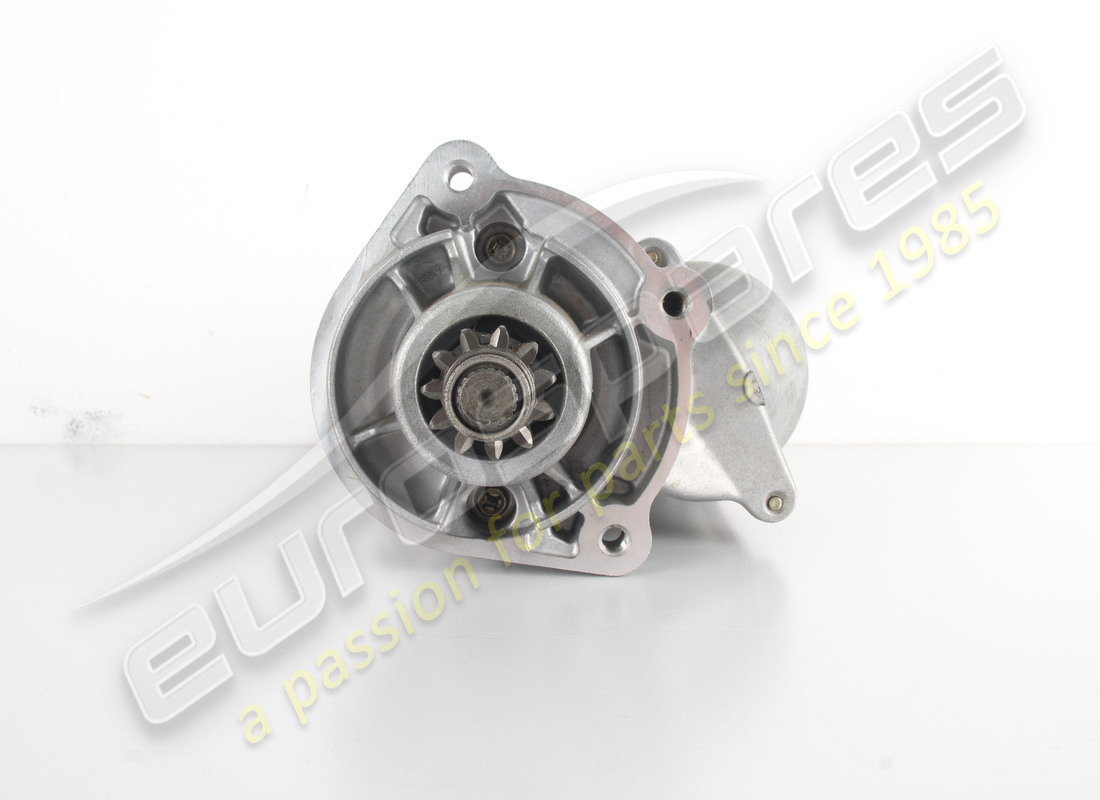

                                                                                                                        STARTER MOTOR
                                                                                                                        from £229.81
                                                                                                                        from £229.81
                                                                                                                        # 027
                                                                                                                        MPN: 155873
                                                                                                                        STARTER MOTOR SUPPORT
                                                                                                                        from £27.26
                                                                                                                        from £27.26
                                                                                                                        # 028
                                                                                                                        MPN: 16044521
                                                                                                                        SCREW
                                                                                                                        from £0.71
                                                                                                                        from £0.71
                                                                                                                        # 029
                                                                                                                        MPN: 16045021
                                                                                                                        SCREW
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 030
                                                                                                                        MPN: 12601374
                                                                                                                        WASHER
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                        # 031
                                                                                                                        MPN: 100041
                                                                                                                        DOWEL
                                                                                                                        from £3.82
                                                                                                                        from £3.82
                                                                                                                        # 032
                                                                                                                        MPN: 157496
                                                                                                                        BATTERY 12V-70AH-400A
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 032
                                                                                                                        MPN: 61933900
                                                                                                                        BATTERY 12V-70AH-420A
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 118060 - and 1 more. Click to view details
                                                                                                                        # 033
                                                                                                                        MPN: 63653600
                                                                                                                        ANTI-VIBRATIONS PAD
                                                                                                                        from £183.22
                                                                                                                        from £183.22
                                                                                                                        # 034
                                                                                                                        MPN: 62573400
                                                                                                                        BATTERY FIXING BRACKET
                                                                                                                        from £22.50
                                                                                                                        from £22.50
                                                                                                                        # 035
                                                                                                                        MPN: 13837411
                                                                                                                        SCREW
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 036
                                                                                                                        MPN: 157502
                                                                                                                        BATTERY TO FRONT TERMINAL
                                                                                                                        -Not for GD
                                                                                                                        from £35.90
                                                                                                                        from £35.90
                                                                                                                        # 036
                                                                                                                        MPN: 160894
                                                                                                                        BATTERY TO FRONT TERMINAL BOX CONNECTING CABLE
                                                                                                                        -Valid for GD
                                                                                                                        from £59.11
                                                                                                                        from £59.11
                                                                                                                        # 037
                                                                                                                        MPN: 157505
                                                                                                                        BATTERY-CUT OUT SWITCH CONNECTING PLAIT
                                                                                                                        from £82.95
                                                                                                                        from £82.95
                                                                                                                        # 038
                                                                                                                        MPN: 153128
                                                                                                                        CUT OUT SWITCH-MASS CONNECTING PLAIT
                                                                                                                        from £51.41
                                                                                                                        from £51.41
                                                                                                                        # 039
                                                                                                                        MPN: 139607
                                                                                                                        CUT-OUT SWITCH
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 040
                                                                                                                        MPN: 15688278
                                                                                                                        SCREW
                                                                                                                        from £0.71
                                                                                                                        from £0.71
                                                                                                                        # 041
                                                                                                                        MPN: 61067800
                                                                                                                        BRACKET
                                                                                                                        from £1.07
                                                                                                                        from £1.07
                                                                                                                        # 042
                                                                                                                        MPN: 12637806
                                                                                                                        WASHER
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 043
                                                                                                                        MPN: 170114
                                                                                                                        TERMINAL BOX
                                                                                                                        from £6.99
                                                                                                                        from £6.99
                                                                                                                        This part replaces part number 153357
                                                                                                                        # 044
                                                                                                                        MPN: 12574011
                                                                                                                        NUT
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        # 045
                                                                                                                        MPN: 10519224
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 10519201 which we have in stock
                                                                                                                        # 046
                                                                                                                        MPN: 101139
                                                                                                                        NUT
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 16104425
                                                                                                                        # 047
                                                                                                                        MPN: 12601374
                                                                                                                        WASHER
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                        # 048
                                                                                                                        MPN: 149043
                                                                                                                        CABLE BUSHING
                                                                                                                        from £2.87
                                                                                                                        from £2.87
                                                                                                                        # 049
                                                                                                                        MPN: 149043
                                                                                                                        CABLE BUSHING
                                                                                                                        from £2.87
                                                                                                                        from £2.87
                                                                                                                        # 050
                                                                                                                        MPN: 150815
                                                                                                                        PROTECTION BOOT
                                                                                                                        from £4.53
                                                                                                                        from £4.53
                                                                                                                        # 051
                                                                                                                        MPN: 126672
                                                                                                                        BRACKET WITH SHEATH
                                                                                                                        from £1.93
                                                                                                                        from £1.93
                                                                                                                        # 052
                                                                                                                        MPN: 10902011
                                                                                                                        SCREW
                                                                                                                        from £1.07
                                                                                                                        from £1.07
                                                                                                                        This part replaces part number 10902411
                                                                                                                        # 053
                                                                                                                        MPN: 12604274
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                                                        # 054
                                                                                                                        MPN: 144727
                                                                                                                        PROTECTION BOOT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 123674/T - and 1 more. Click to view details
                                                                                                                        # 055
                                                                                                                        MPN: 10441790
                                                                                                                        BRACKET WITH SHEATH
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 056
                                                                                                                        MPN: 10441690
                                                                                                                        BRACKET WITH SHEATH
                                                                                                                        from £1.07
                                                                                                                        from £1.07
                                                                                                                        This part replaces part number 1044690
                                                                                                                        # 057
                                                                                                                        MPN: 12574211
                                                                                                                        NUT
                                                                                                                        from £0.71
                                                                                                                        from £0.71
                                                                                                                        # 058
                                                                                                                        MPN: 10519424
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                                                                        # 059
                                                                                                                        MPN: 130431
                                                                                                                        SCREW
                                                                                                                        -Valid till engine Nr. 37691
                                                                                                                        from £10.82
                                                                                                                        from £10.82
                                                                                                                        # 059
                                                                                                                        MPN: 164463
                                                                                                                        SCREW
                                                                                                                        -Valid from engine Nr. 37692 till
                                                                                                                        from £27.73
                                                                                                                        from £27.73
                                                                                                                        # 059
                                                                                                                        MPN: 166563
                                                                                                                        SCREW
                                                                                                                        -Valid from engine Nr. 40159
                                                                                                                        from £20.07
                                                                                                                        from £20.07
                                                                                                                        # 060
                                                                                                                        MPN: 10791021
                                                                                                                        NUT
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        # 061
                                                                                                                        MPN: 149719
                                                                                                                        NUT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 062
                                                                                                                        MPN: 126648
                                                                                                                        WASHER
                                                                                                                        from £0.61
                                                                                                                        from £0.61
                                                                                                                        # 063
                                                                                                                        MPN: 12642521
                                                                                                                        WASHER
                                                                                                                        -Valid till engine Nr. 37691
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 063
                                                                                                                        MPN: 164469
                                                                                                                        WASHER
                                                                                                                        -Valid from engine Nr. 37692
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 064
                                                                                                                        MPN: 11190574
                                                                                                                        WASHER
                                                                                                                        -Valid till engine Nr. 40158
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 14499504
                                                                                                                        # 065
                                                                                                                        MPN: 111743
                                                                                                                        SPRING
                                                                                                                        -Valid from engine Nr. 40159
                                                                                                                        from £6.87
                                                                                                                        from £6.87
                                                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
