ferrari 355 (2.7 motronic) air intake parts diagram

014 - AIR INTAKE

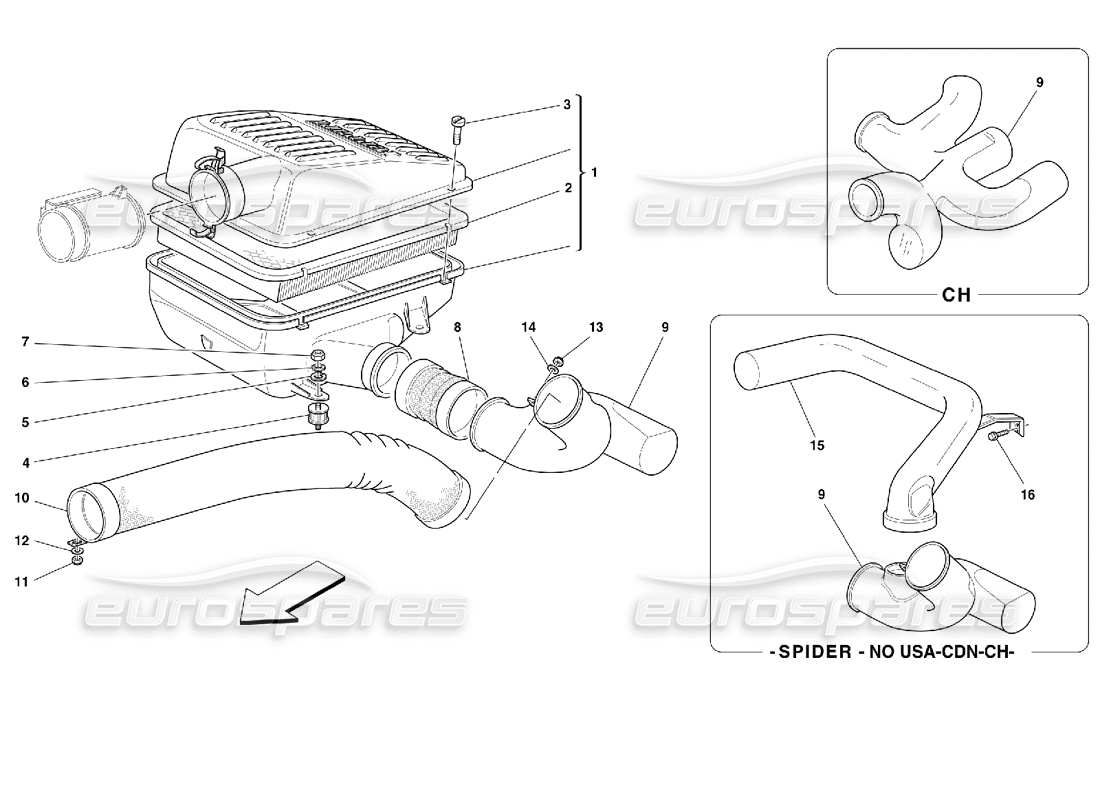

Ferrari 355 (2.7 Motronic) Air Intake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 154729
                        COMPLETE RH AIR INTAKE
                        -Not for CH
                        from £341.47
                        from £341.47
                        # 001
                        MPN: 154730
                        COMPLETE LH AIR INTAKE
                        -Not for CH
                        from £288.75
                        from £288.75
                        # 001
                        MPN: 165291
                        COMPLETE LH AIR INTAKE
                        -Valid for CH
                        from £599.13
                        from £599.13
                        # 001
                        MPN: 165292
                        COMPLETE RH AIR INTAKE
                        -Valid for CH
                        from £599.13
                        from £599.13
                        # 002
                        MPN: 151562

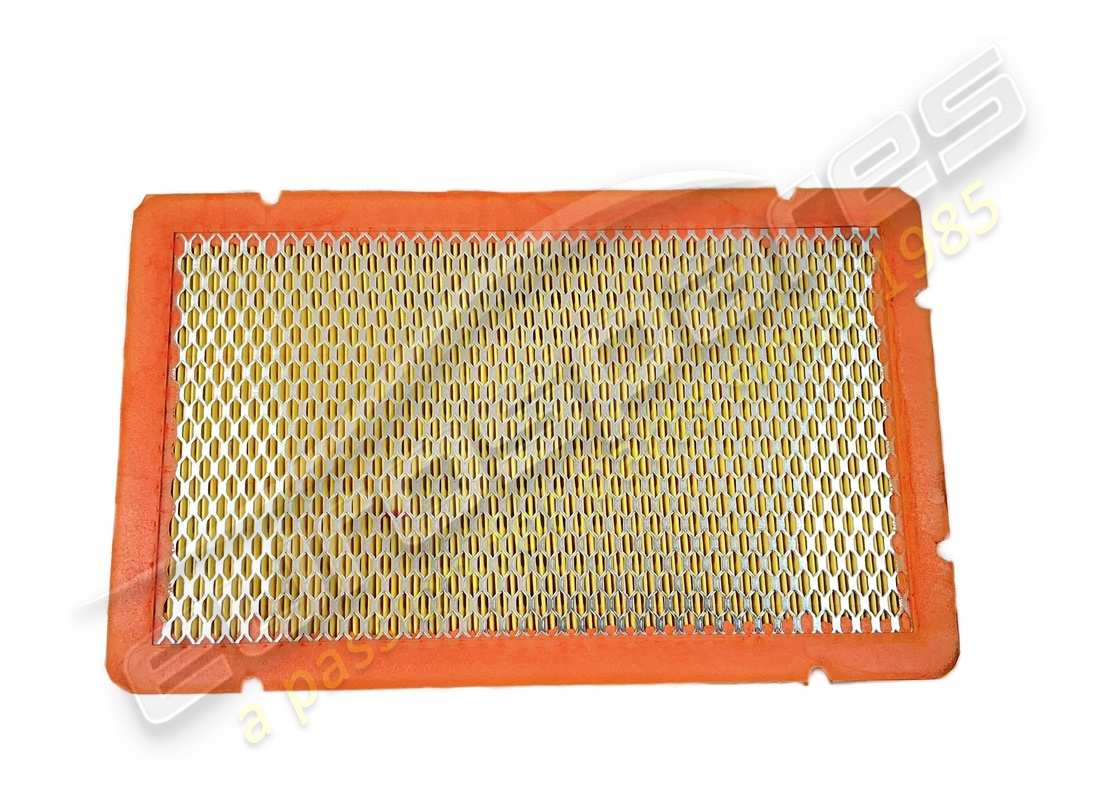

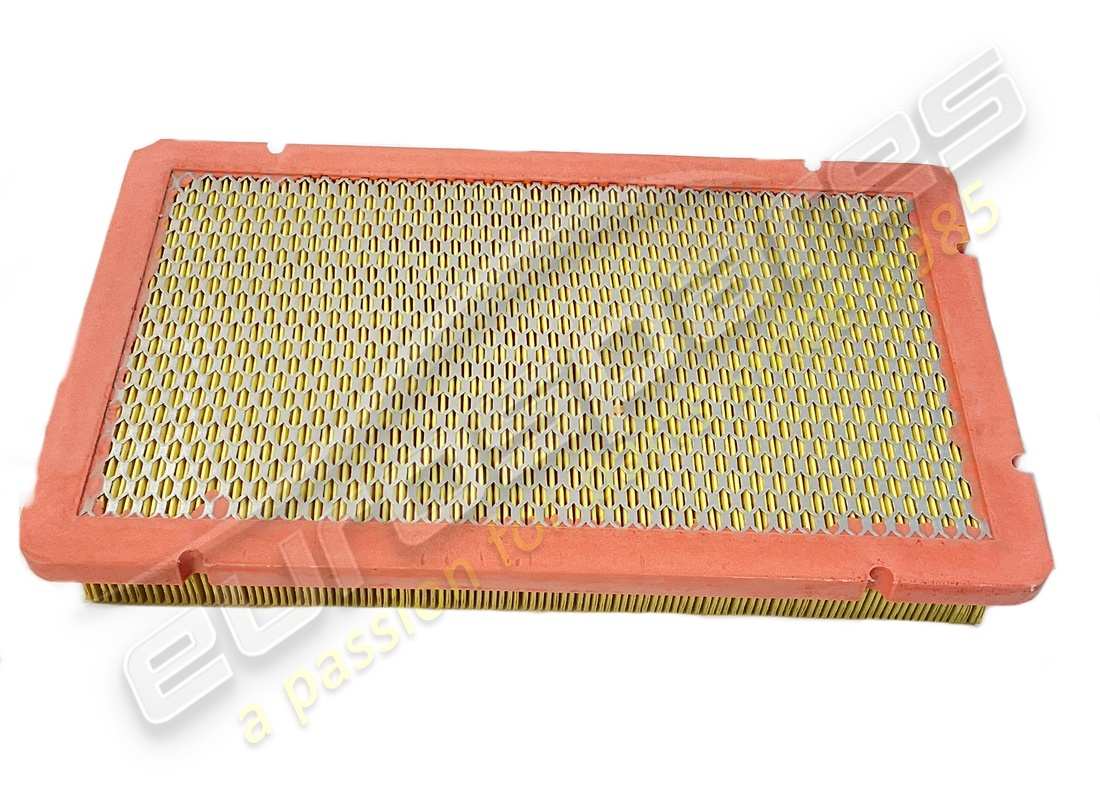

                        AIR FILTER
                        from £33.15
                        from £33.15
                        # 003
                        MPN: 157757/A
                        SCREW
                        from £8.99
                        from £8.99
                        # 004
                        MPN: 142202
                        ANTI-VIBRATION SUPPORT
                        from £14.50
                        from £14.50
                        # 005
                        MPN: 12643701
                        WASHER
                        Supersession
                        Supersession
                        This part replaces part number 12643704 - and 1 more. Click to view details
                        # 006
                        MPN: 127494
                        WASHER
                        (minimum order quantity = 20)
                        from £0.52
                        from £0.52
                        This part replaces part number 10516470 - and 4 more. Click to view details
                        # 007
                        MPN: 15896211
                        NUT
                        Supersession
                        Supersession
                        This part replaces part number 15896210
                        # 008
                        MPN: 159527
                        SLEEVE
                        from £28.29
                        from £28.29
                        # 009
                        MPN: 157559
                        RH DUCT
                        -Not for Spider - Not for CH
                        from £18.51
                        from £18.51
                        # 009
                        MPN: 157560
                        LH DUCT
                        -Not for Spider - Not for CH
                        from £18.51
                        from £18.51
                        # 009
                        MPN: 165237
                        RH DUCT
                        -Valid for Spider - Not for USA, CDN and CH
                        from £19.45
                        from £19.45
                        # 009
                        MPN: 165238
                        LH DUCT
                        -Valid for Spider - Not for USA, CDN and CH
                        from £13.70
                        from £13.70
                        # 009
                        MPN: 165447
                        RH DUCT
                        -Valid for CH
                        from £230.49
                        from £230.49
                        # 009
                        MPN: 165448
                        LH DUCT
                        -Valid for CH
                        from £230.49
                        from £230.49
                        # 010
                        MPN: 155061

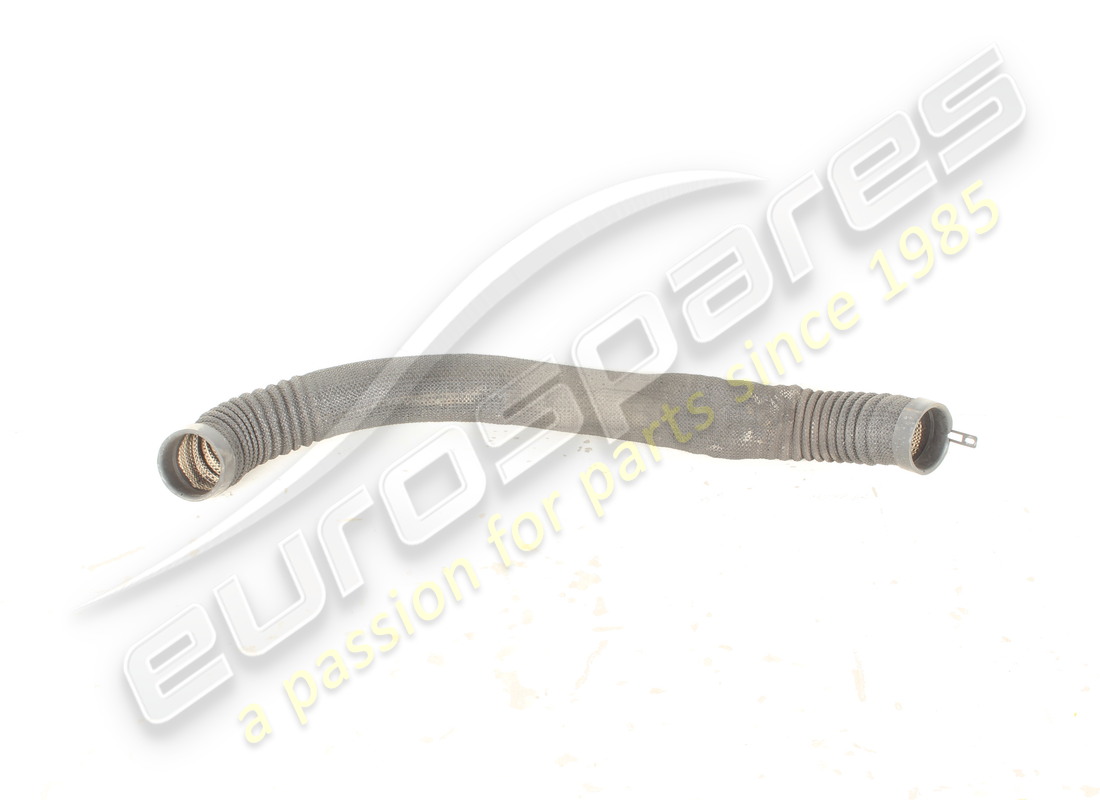

                        SUCTION DUCTING
                        -Not for Spider
                        from £86.62
                        from £86.62
                        # 010
                        MPN: 165232
                        SUCTION DUCTING
                        -Valid for Spider
                        from £84.94
                        from £84.94
                        # 012
                        MPN: 10519424
                        WASHER
                        from £0.47
                        from £0.47
                        This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                        # 013
                        MPN: 12574121
                        NUT
                        Supersession
                        Supersession
                        This part replaces part number 12574111 - and 2 more. Click to view details
                        # 014
                        MPN: 12638101
                        WASHER
                        from £0.71
                        from £0.71
                        # 015
                        MPN: 165239
                        RH EXTENSION FOR DUCT
                        -Valid for Spider - Not for USA, CDN and CH
                        from £13.18
                        from £13.18
                        # 015
                        MPN: 165240
                        LH EXTENSION FOR DUCT
                        -Valid for Spider - Not for USA, CDN and CH
                        from £10.00
                        from £10.00
                        # 016
                        MPN: 13836324
                        EXTENSION FIXING SCREW
                        Supersession
                        Supersession
